FIRST R F SMOKER (THIS YEAR)

Discussion in 'Reverse Flow' started by gary s, Jun 14, 2015.

  1. So far all the material with the exception of some flat bar and round rod

    was in my son's scrap pile'

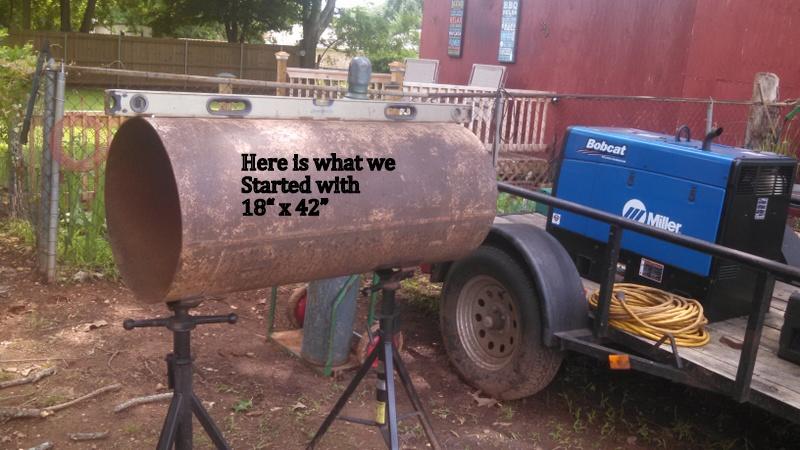

    We started with a 18" dia. x 42" long piece of pipe

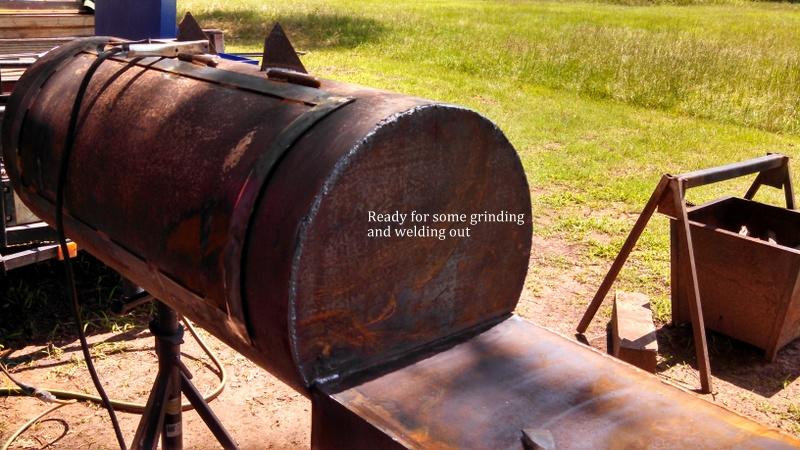

    Cut out fire box, welded angle to sides for wood rack, squared it up, tacked it together

    and welded it out

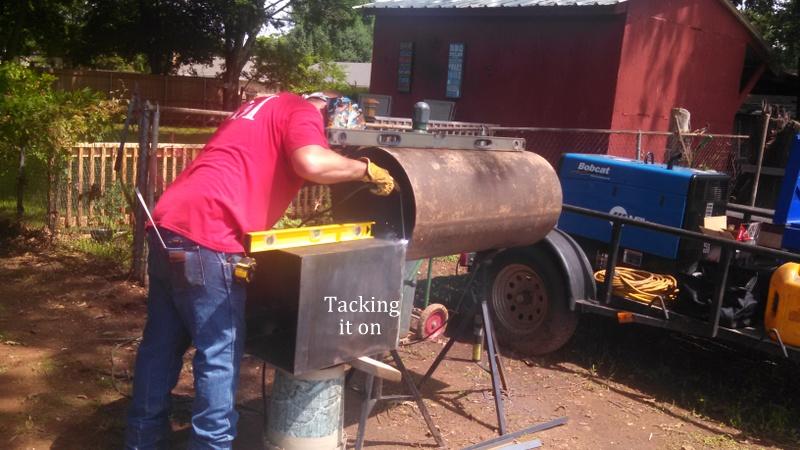

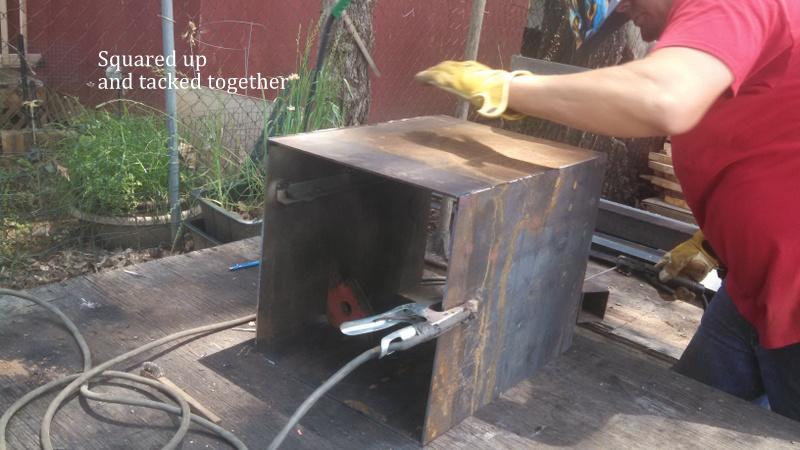

    Everything leveled and squared up, Tacking it together

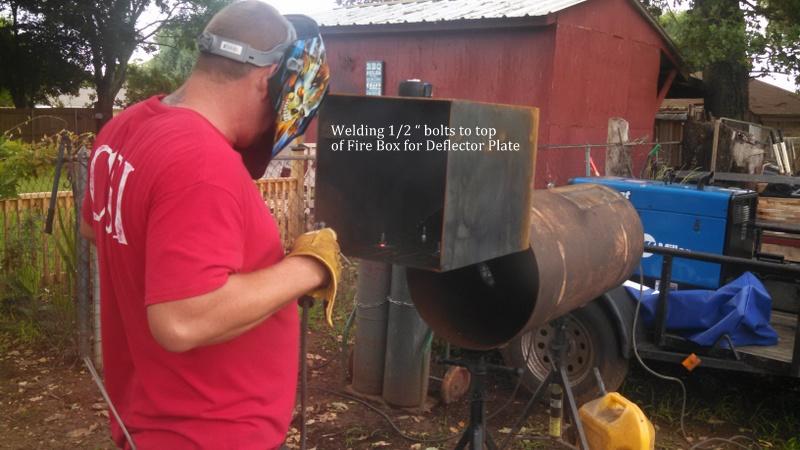

    Should have done this before welding Fire Box together, Rotated everything 180º to

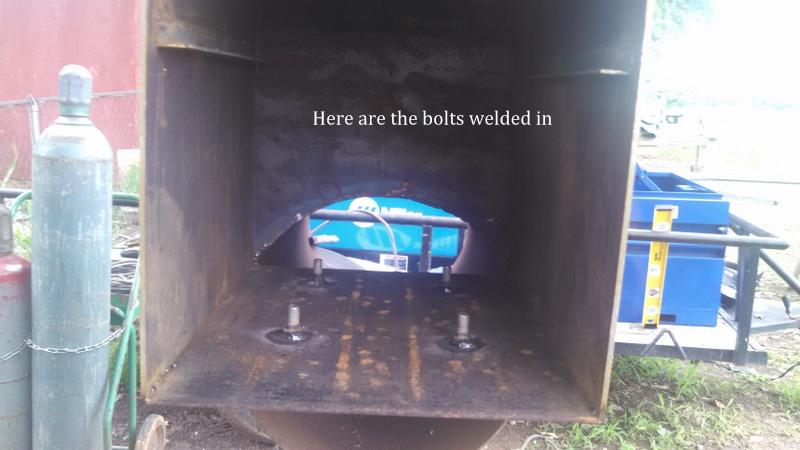

    weld on bolts for FB deflector plate. Using 1/2 " bolts

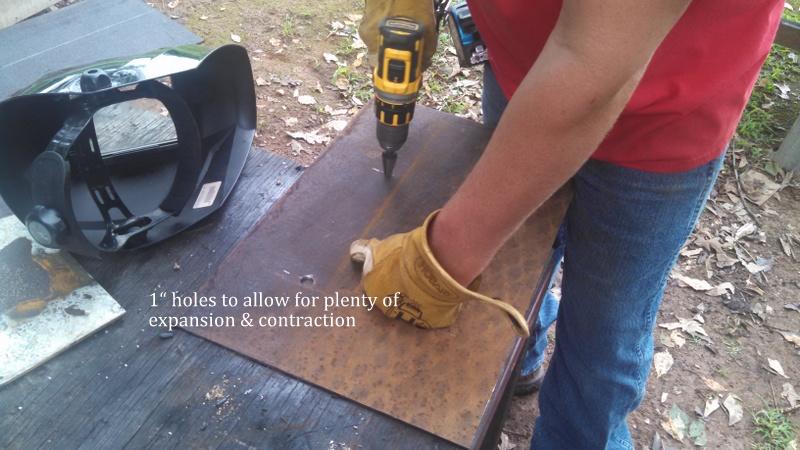

    Deflector Plate, Using a uni-bit to drill 1" holes  "Plenty of room for contraction, and

    expansion.


    Another picture of bolts welded out

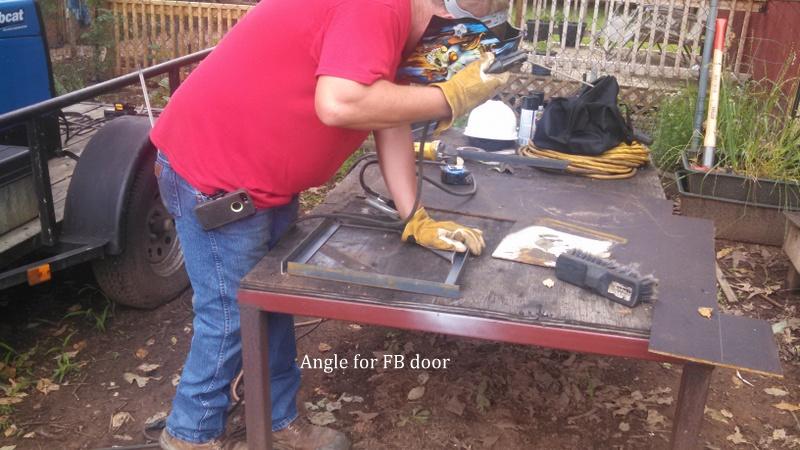

    Framing up for the Fire Box Door

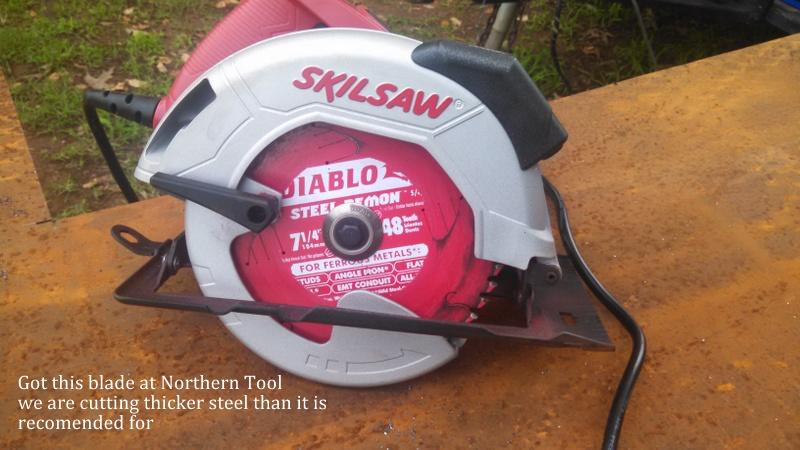

    These are not bad blades, we were cutting thicker than recommended.

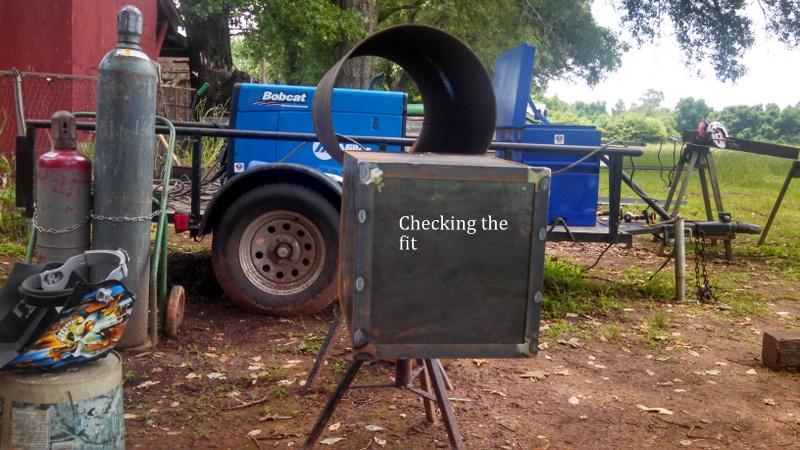

    Fire box door finished (well almost), checking the fit

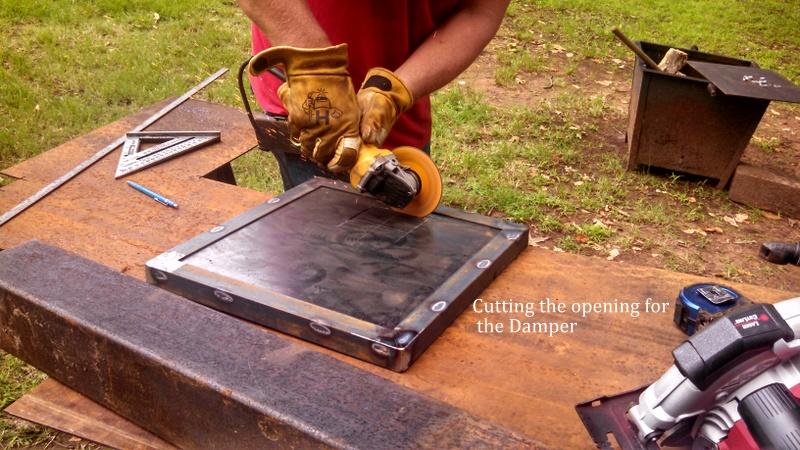

    Cutting out the bottom damper. Drilled the top one


    Here they are, door done, Used the same bullet hinges for the fire box and the CC

    door.

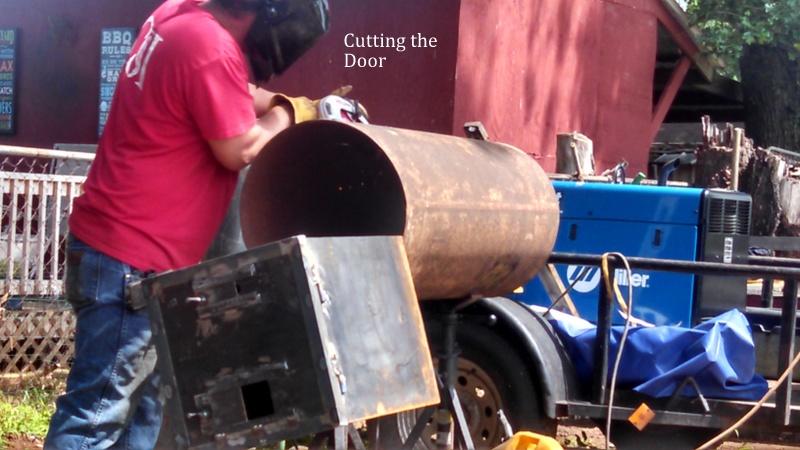

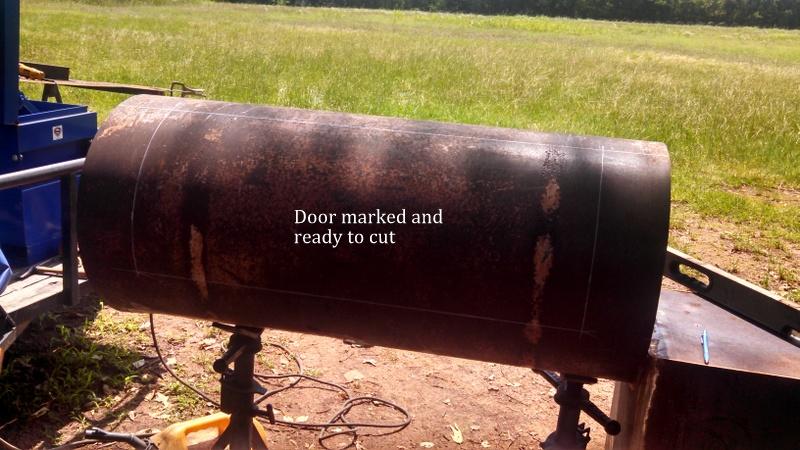

    We marked out the door, and ready to be cut


    Making the top cut and half way down each side

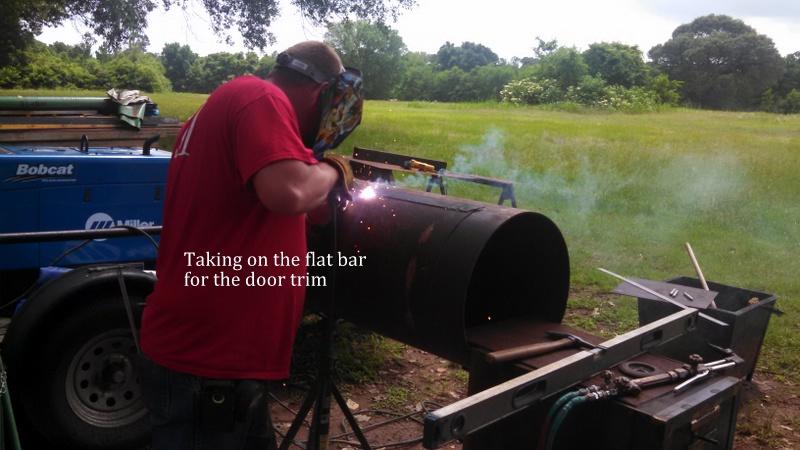

    Then we measure and cut a piece of flat bar, tack it on and position and weld on

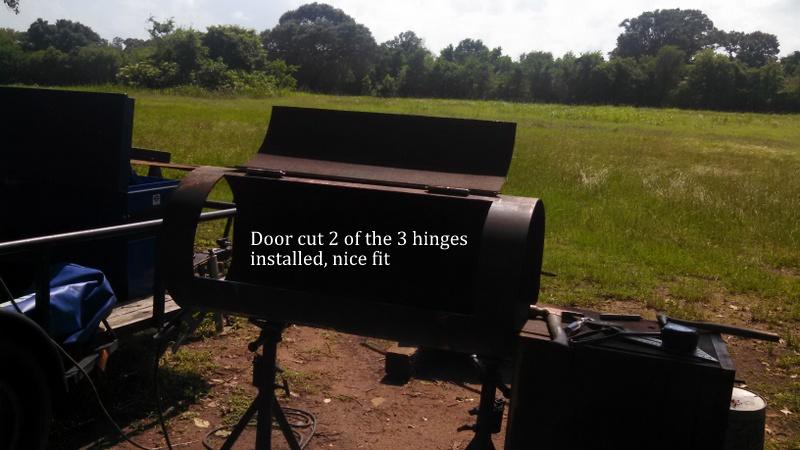

    the hinges. ( we installed 2 to make sure everything was like it was supposed to be)

    then we installed the third one.


    We tacked a piece of scrap inside at the bottom of the door cut to catch door

    on the final cut.


    Door cut out, a really a good fit. Won't be much tweaking

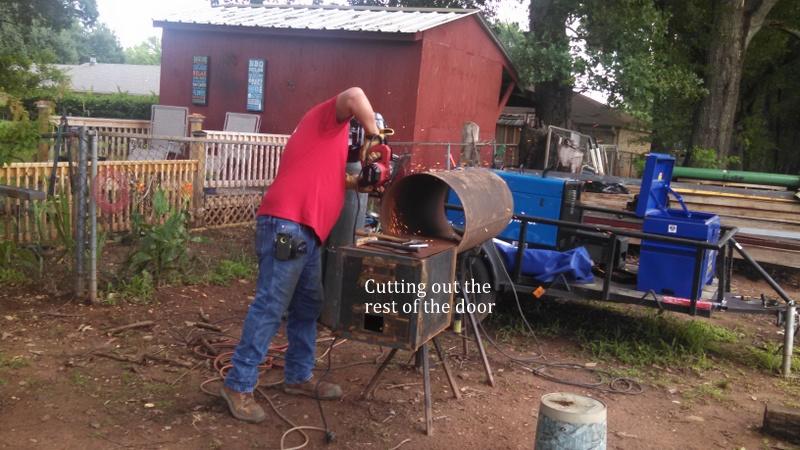

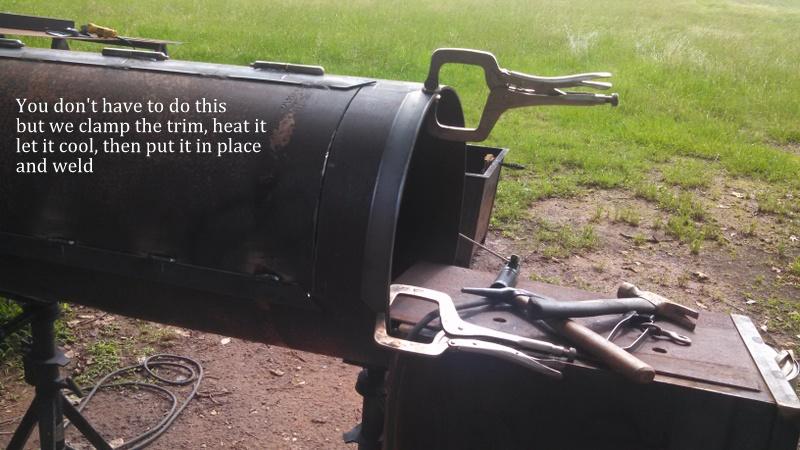

    Trimming out the rest of the door

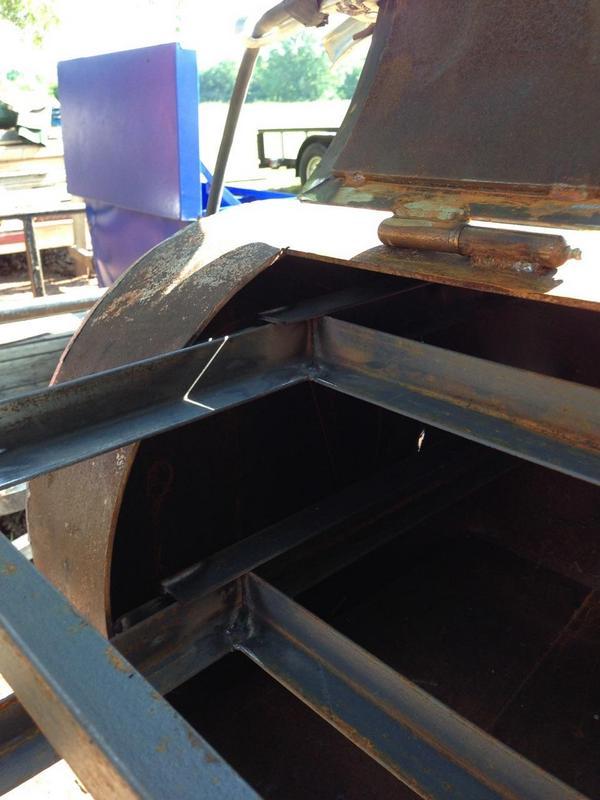

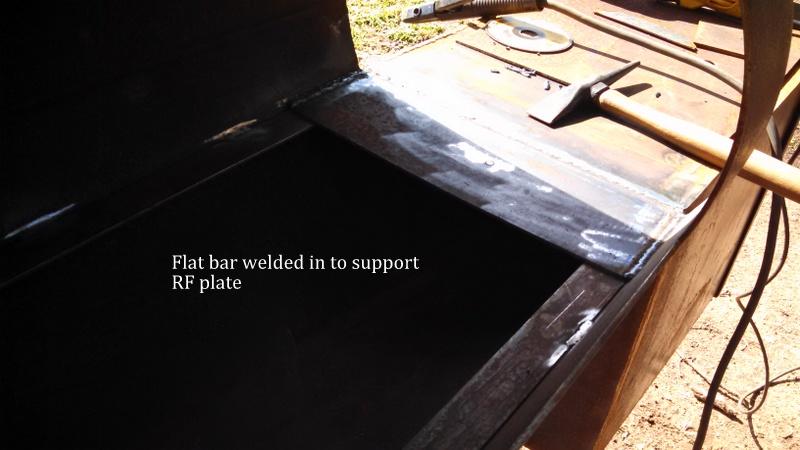

    We never weld in our RF plate, We weld in flat bar ant a 1/2 " drop from FB end to the

    opposite end. The first 5" of plate is welded in solid, The RF plate sits on the flat bar

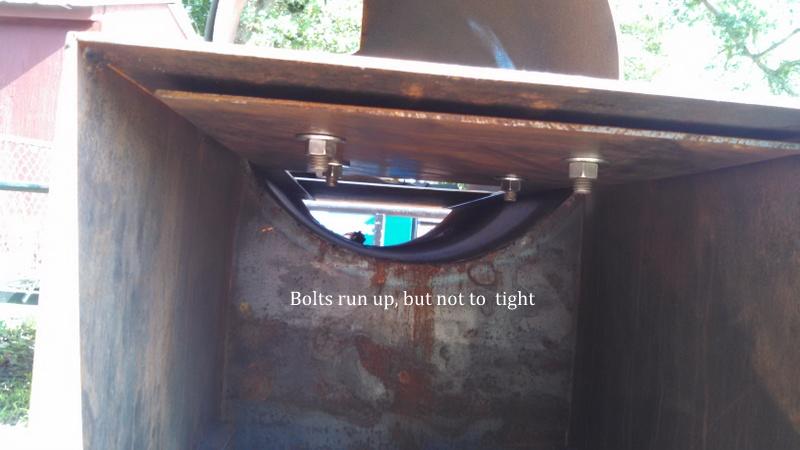

    Here is the deflector plate installed Ran the bolts up but left a little play

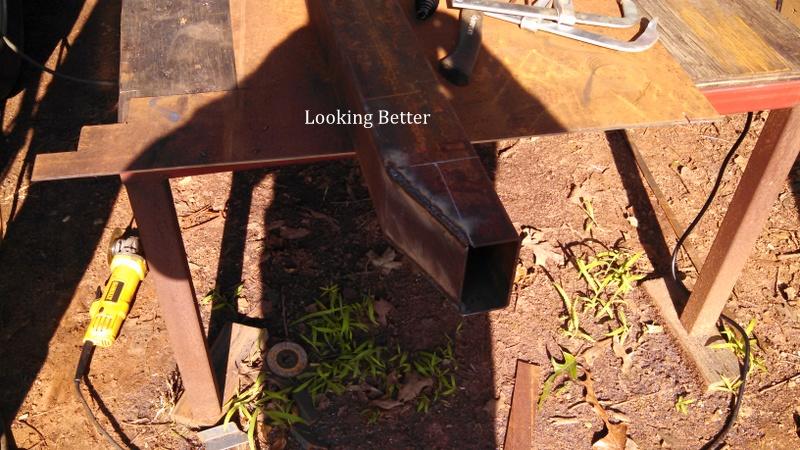

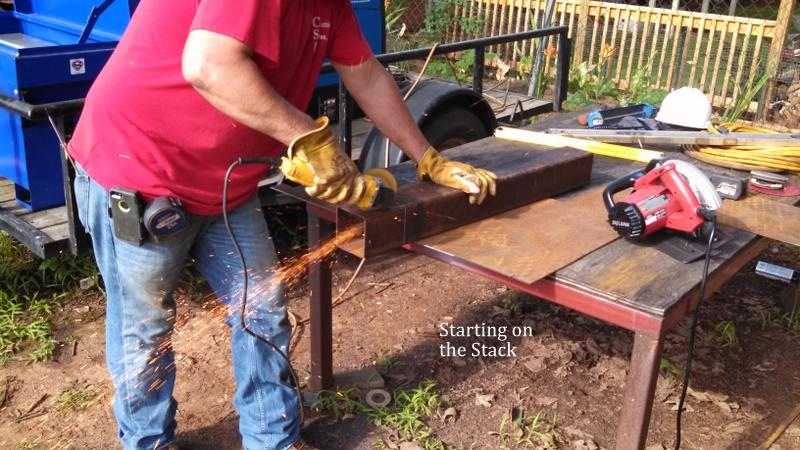

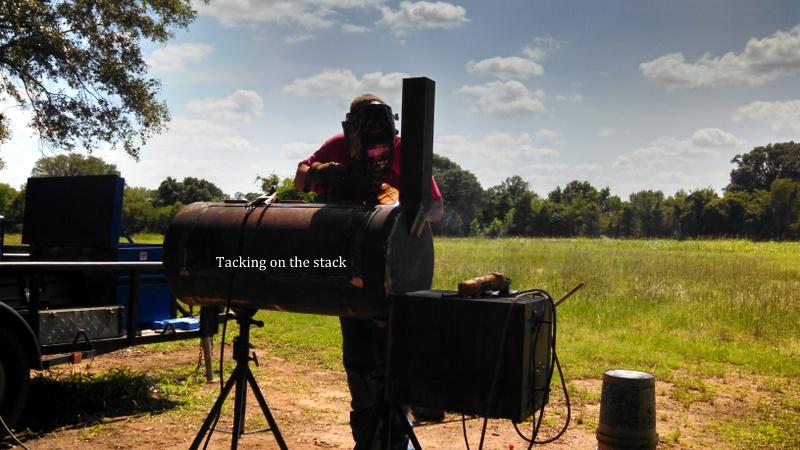

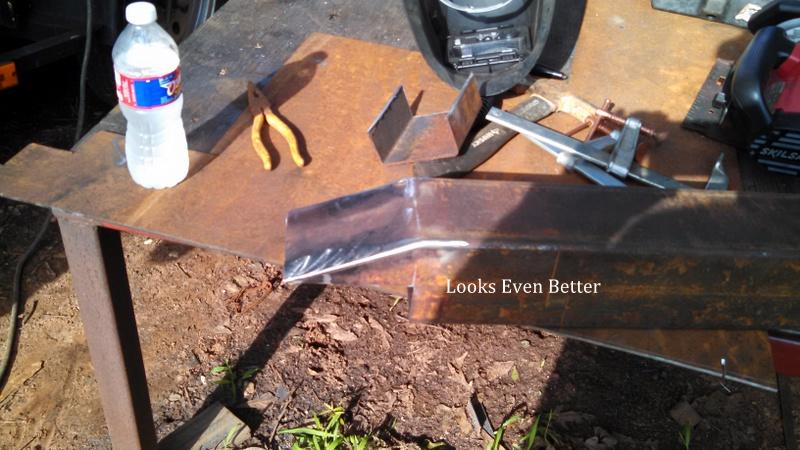

    Starting on the stack, Went with square tubing because he had about 3 - 20' sticks

    in the scrap pile.

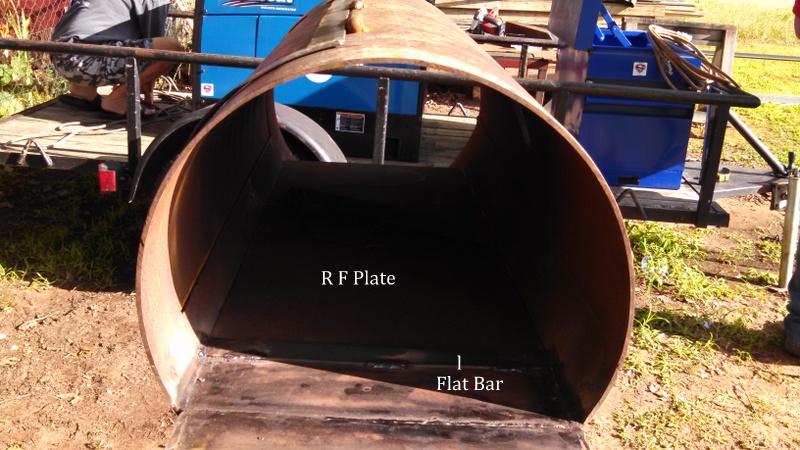

    OK here you can see what the RF plate looks like. We welded a piece of flat bar to the

    welded in piece of RF plate so the main plat slips right under and buts up it.

    Take a little time and grind a little bevel down the edges of the RF plate and

    you will have a perfect fit.

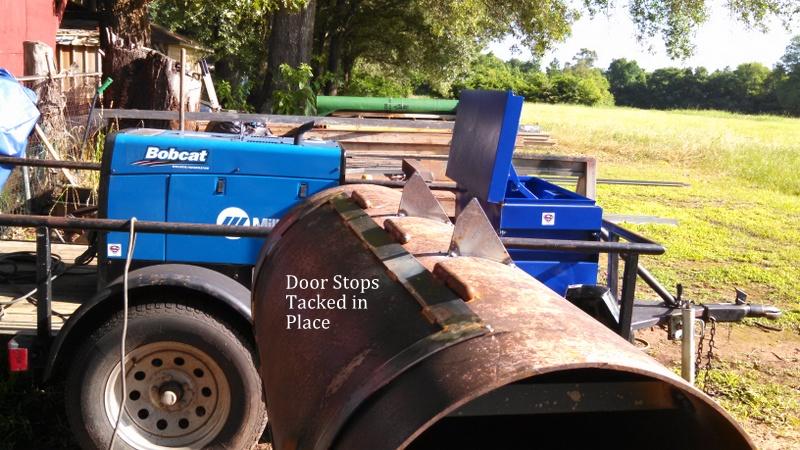

    Door stops tacked on

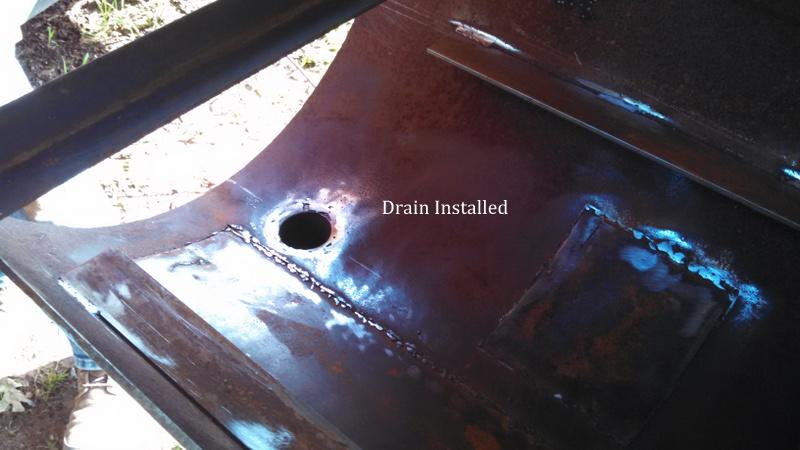

    Drain installed in bottom of Cook Chamber, ground smooth.

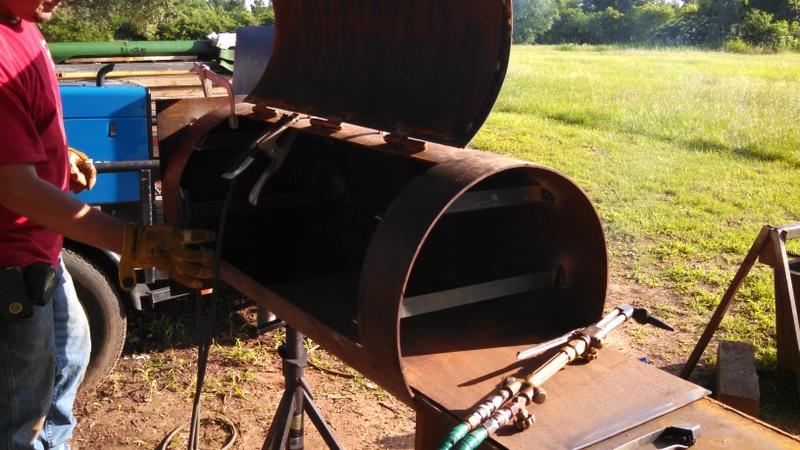

    Installing the guides for the pull out racks

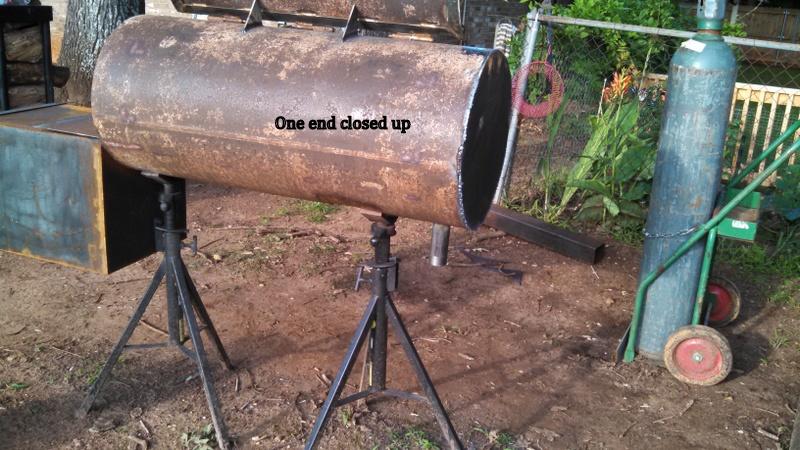

    One end all closed up. a little grinding later on

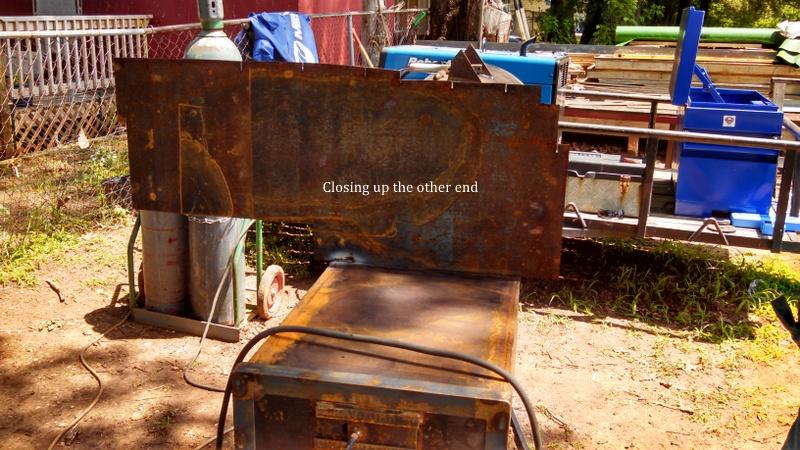

    Like I said everything out of the scrap pile, closing up the other end.


    Needs to be cleaned up, welded out and ground smooth

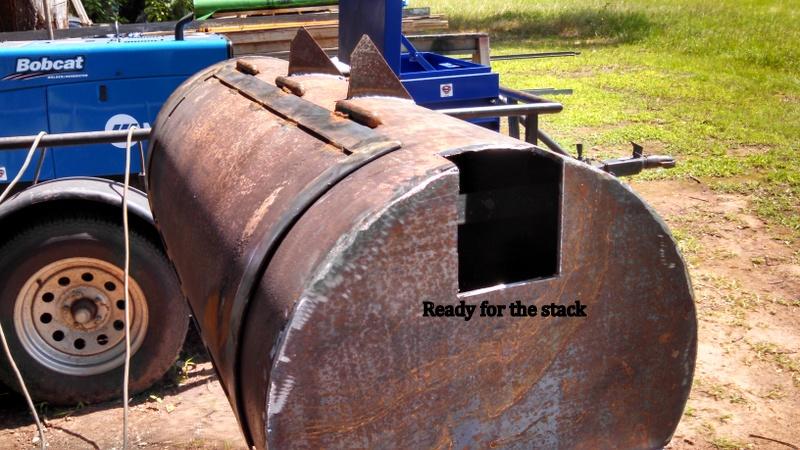

    Got the hole cut for the stack


    Squared, leveled and tacking it on

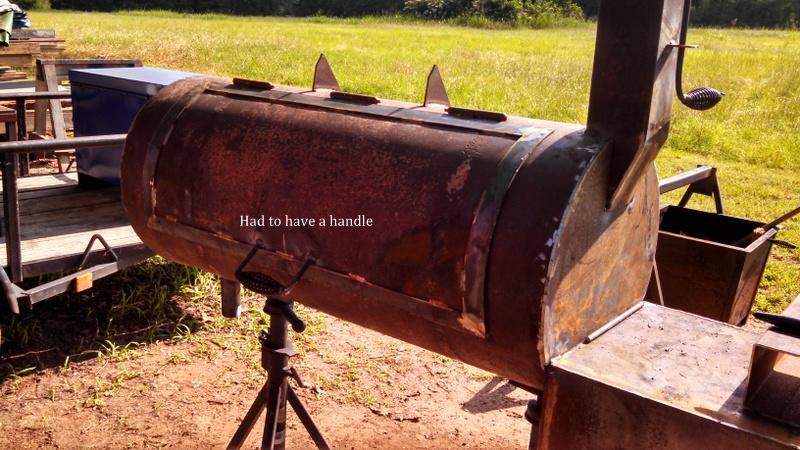

    Needed a handle for the door  and the fire box too

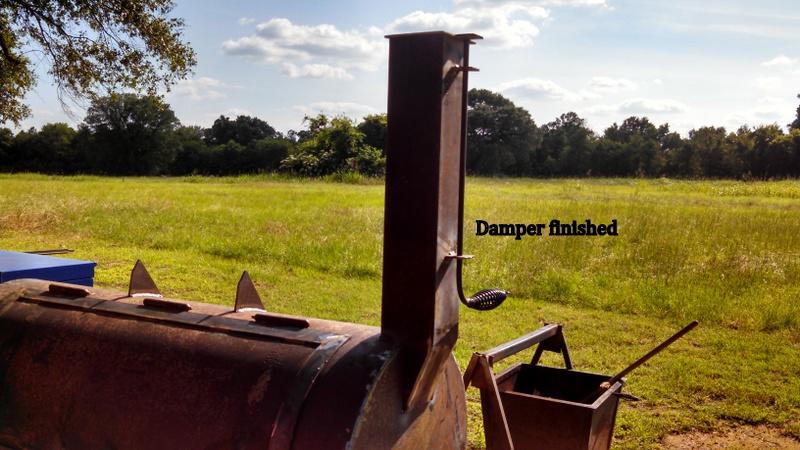

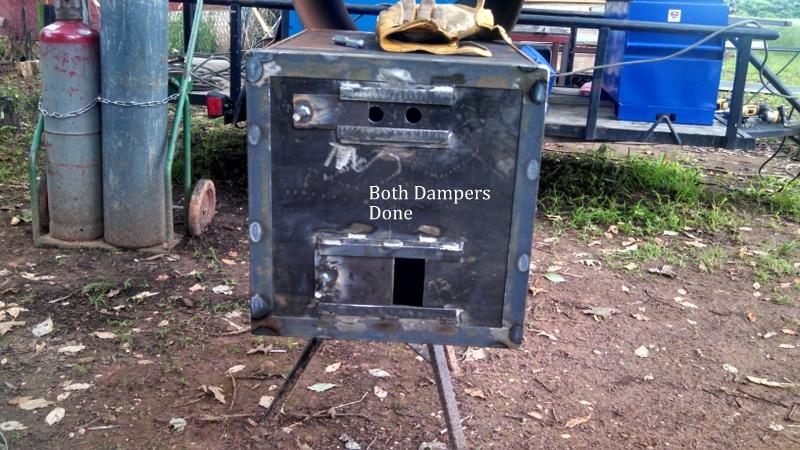

    Damper done


    Frames for the racks

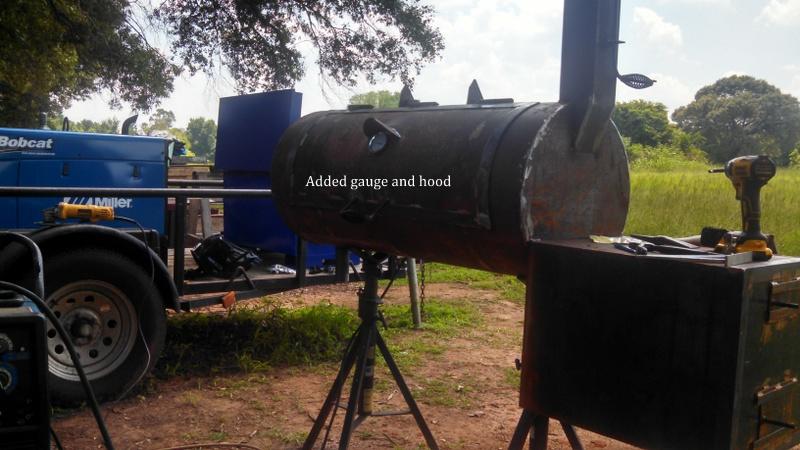

    Drilled hole for gauge, and installed hood over gauge

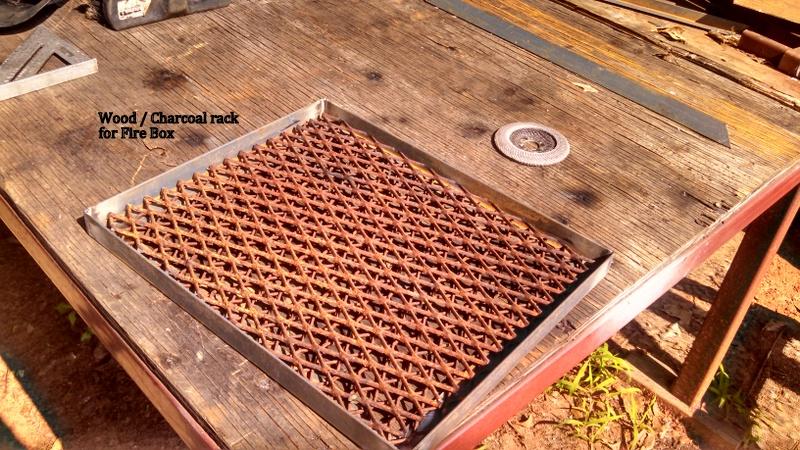

    Wood/Charcoal rack for the Fire Box

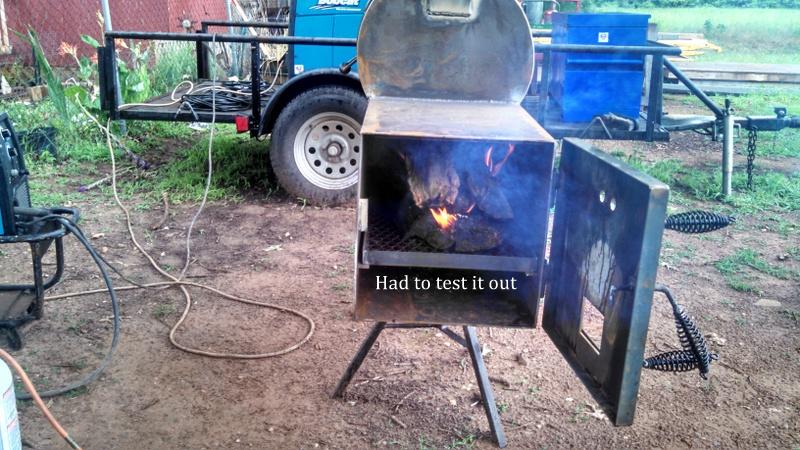

    Decided to do a test run yesterday, to see what tweaking it needs.

    A little Cook Chamber Door and Fire Box Latch Adjustment, That was it

    Took her up to a little over 400º and let her go for a while, started backing her down to

    about 250º sprayed the entire inside of the CC with cooking oil, added more wood got

    it back to almost 400 º then started playing with the dampers to see how they were

    controlling heat, Working Great ! Kept spraying cooking oil and bringing the temp up

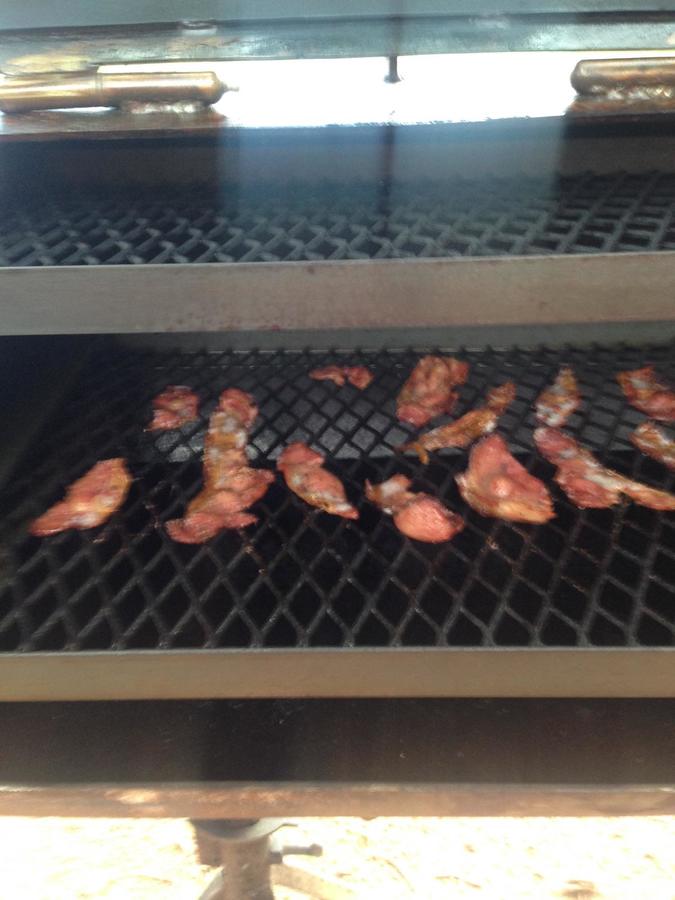

    and down. about 3 - 3.5 hours, Then My son decided to cook some of my

    Buck Board Bacon (After I left)

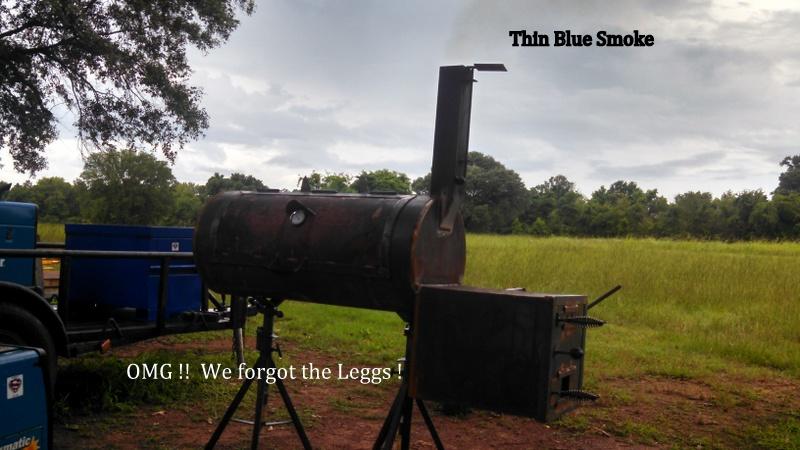

    Here is a shot of the Fire Box and Pecan



    He needs to look in his buddies scrap pile to find some material for the legs

    Still have to build work table, wood rack and install the ball valve for the drain.

    Some sanding ,grinding, clean up and paint. That's about all.
