Fabricating a smoker

Discussion in 'Roll Call' started by nick v, Oct 10, 2013.

  1. nick v

    nick v Smoke Blower

    Hey guys, I'm Nick from Northern Kentucky. Glad I found this site. Everyone on here seems really friendly and helpful. I have my own welding business and came across a 125 gallon diesel fuel tank that I want to use to make a reverse flow smoker. I started doing my research and you guys really know your stuff. Can't wait to get started so I can start smoking.
  2. s2k9k

    s2k9k AMNPS Test Group

    :welcome1: to SMF!!! We're happy you found us! You've come to the right place, we have over 50,000 members who just love to share their experience and over 1,000,000 posts describing it! Yea that’s right over 1,000,000!

    The search bar at the top can be your best friend when you are trying to find answers to your questions but don’t hesitate to start threads and ask also!

    We have an ”Articles” section that is full of great information about smoking to include a lot of recipes and instructionals. Check it out there is a lot to learn in there!
  3. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member

    [​IMG]Hello and welcome from East Texas. This is a great site, lots of information and great people that are willing to throw in their two cents worth on about anything.   Love my RF  ........



  4. kathrynn

    kathrynn Legendary Pitmaster OTBS Member

    [​IMG]to SMF!  We are so glad you joined us!

    We love to see pictures of what you are cooking (or what we call q-views here at SMF).  To "upload the q-views" just follow the directions here and it will be easier. If you are using a cell phone, an IPad or a kindle, go to the main SMF page and click the Mobile button. Will make the uploads a bit faster too.

    If you didn't read the "Terms of Service" notes.....please do.  There are a few things that everyone should know about those pesky little rules before plunging into the forums and some guidelines of how to interact within the forums. Off site links are not allowed here at SMF per TulsaJeff. Not that you have done anything wrong....just a little bit of FYI for new members!

    If you need any help roaming around the forums....just holler!  Happy to help out!

  5. nick v

    nick v Smoke Blower

    Hey Gary. What size smoker do you have? Thanks for welcoming me.
  6. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member

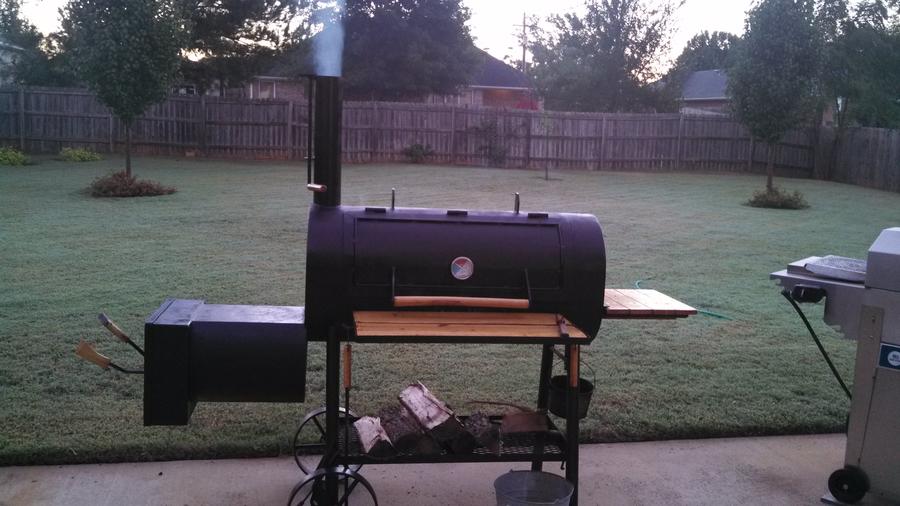

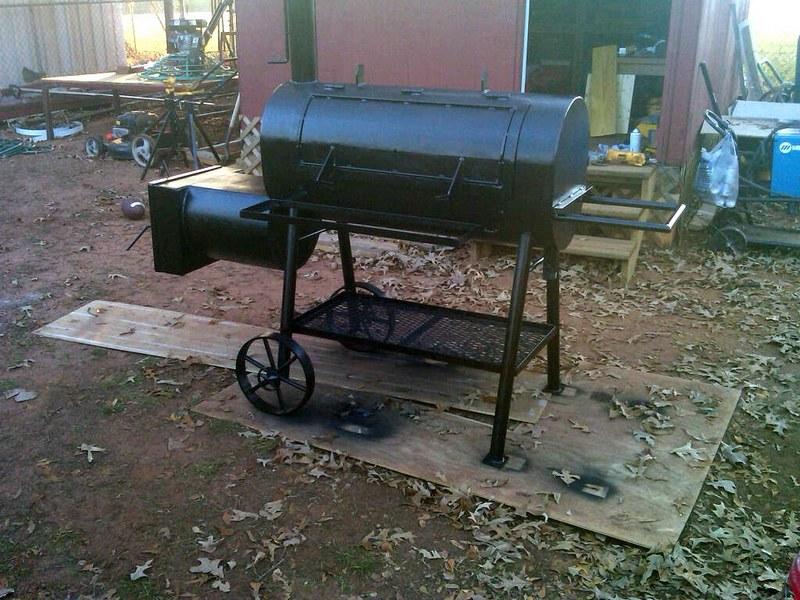

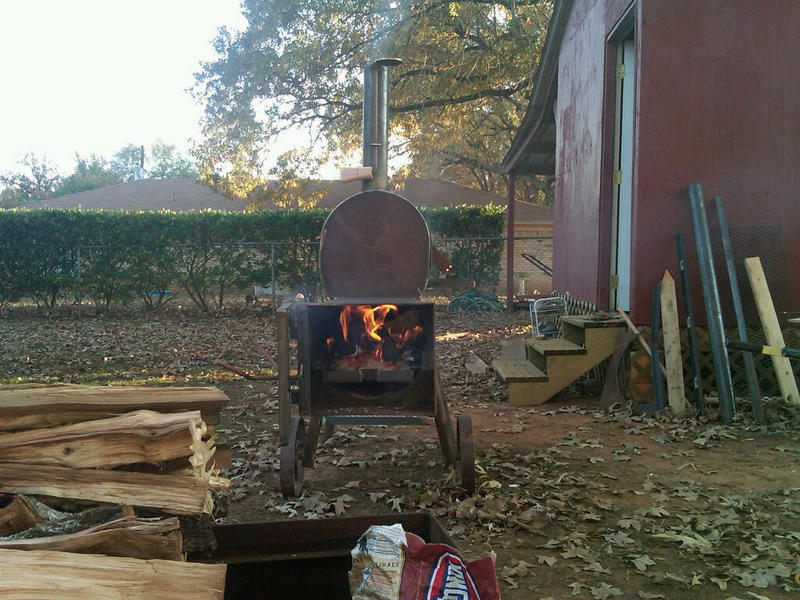

    I'll post a picture
  7. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member


  8. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member

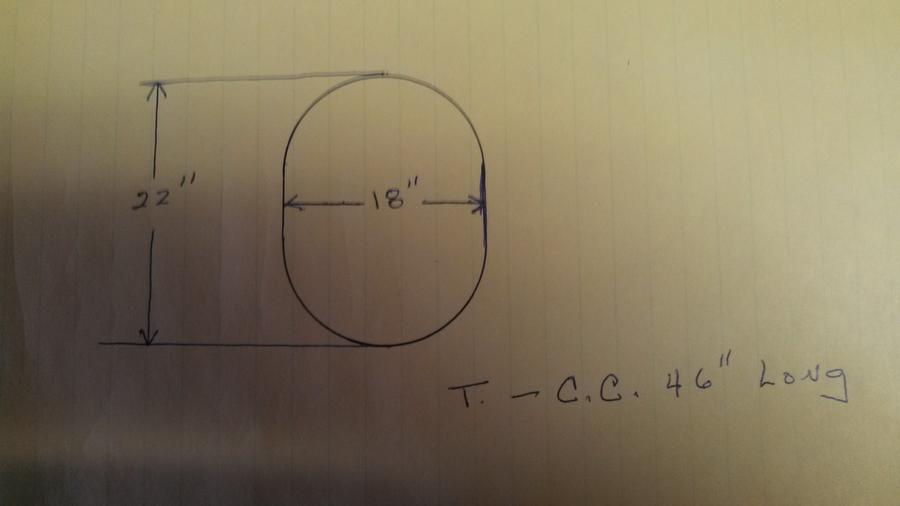

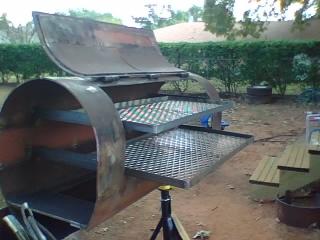

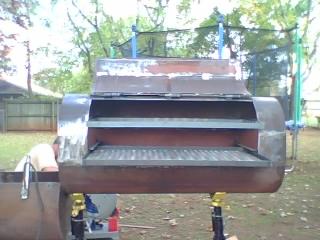

    Here are my dimensions . We had a piece of 18" pipe laying around so we decided to build me a RF smoker. We split the pipe and added 4" (we also had that laying around. Hind site I would have gone 12 " but I like what I've got and it cooks great.. We have got two tanks on the ground waiting to become pits. may take one and add some in the middle.

  9. nick v

    nick v Smoke Blower

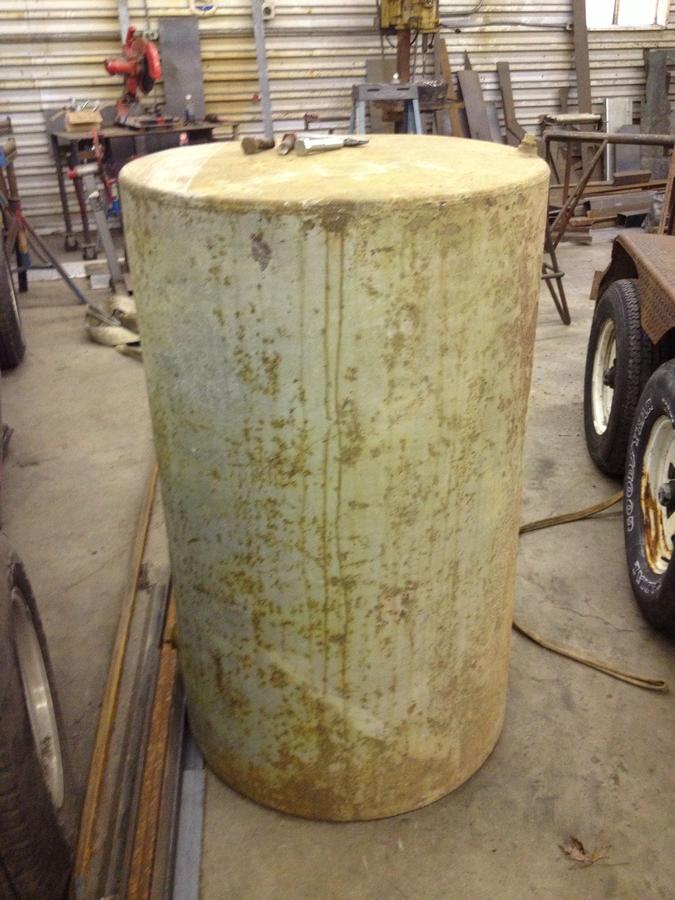

    Looks great! My tank is a 30" diameter by 49" long cylinder. Still trying to decide if I want to add wheels like you did or put it on a small trailer. Where did you get those wheels you have? I hope the wall thickness of my tank is thick enough. Haven't cut into it yet but I'm figuring its probably 3/16". Did you use regular high temp paint? Thanks for the pics.
  10. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member

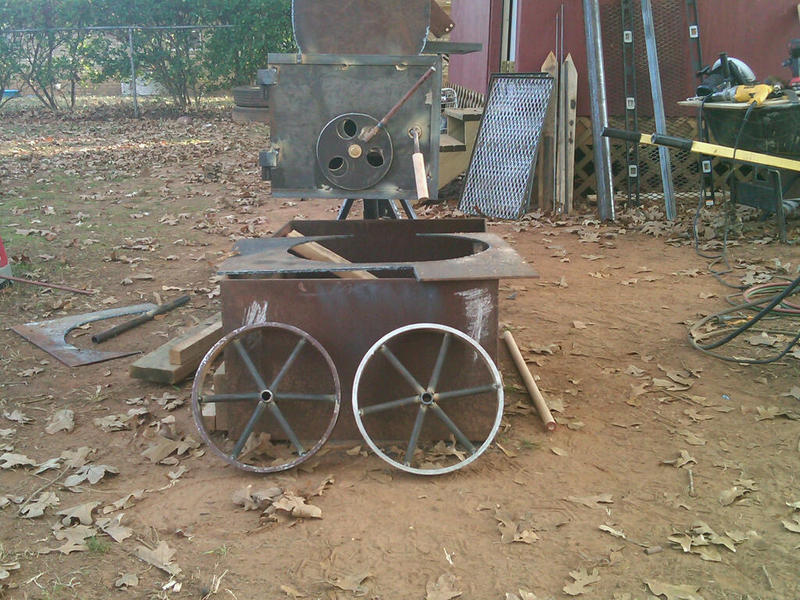

    We did use High Temp paint.  Made the wheels  Had a piece of 12" pipe cut off 2 - 2" pieces with a band saw used 5/8" round rod for spokes and 1" pipe for hub. Pretty easy and fast to make. Used Wife's cloth measuring tape to lay out spoke spacing, WE have made several sets of these everyone seems to like them. You can use any size that works for your particular project.. You can also cut a template out of plywood and use flat bar if you want to go quite a bit bigger.

  11. nick v

    nick v Smoke Blower

    I finally started my reverse flow smoker build. Turns out my tank is only 1/8" thick. Hope it holds the heat okay.

  12. nick v

    nick v Smoke Blower

  13. nick v

    nick v Smoke Blower

  14. nick v

    nick v Smoke Blower

  15. nick v

    nick v Smoke Blower

  16. nick v

    nick v Smoke Blower

  17. nick v

    nick v Smoke Blower

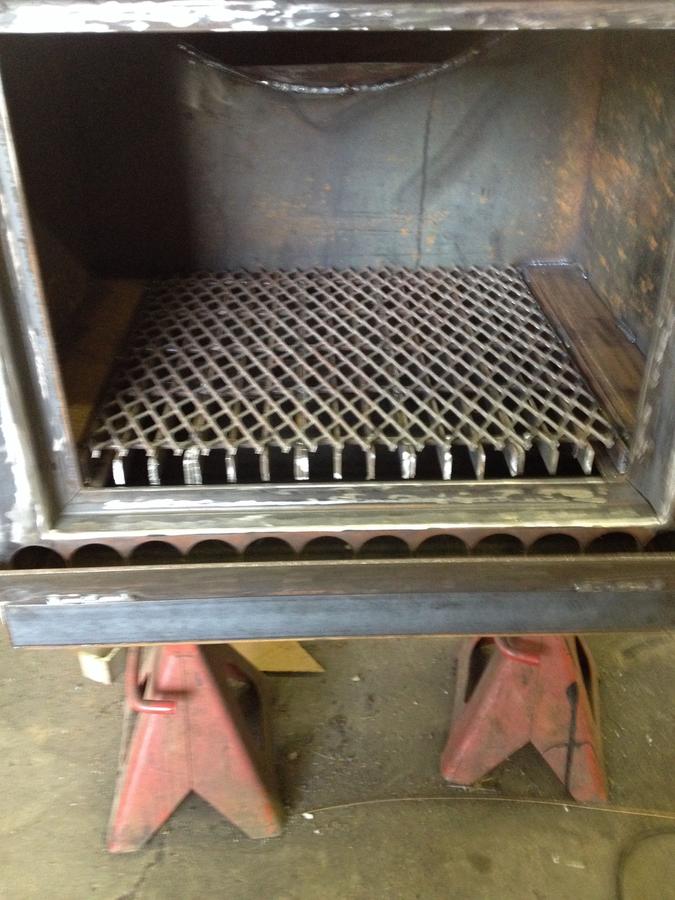

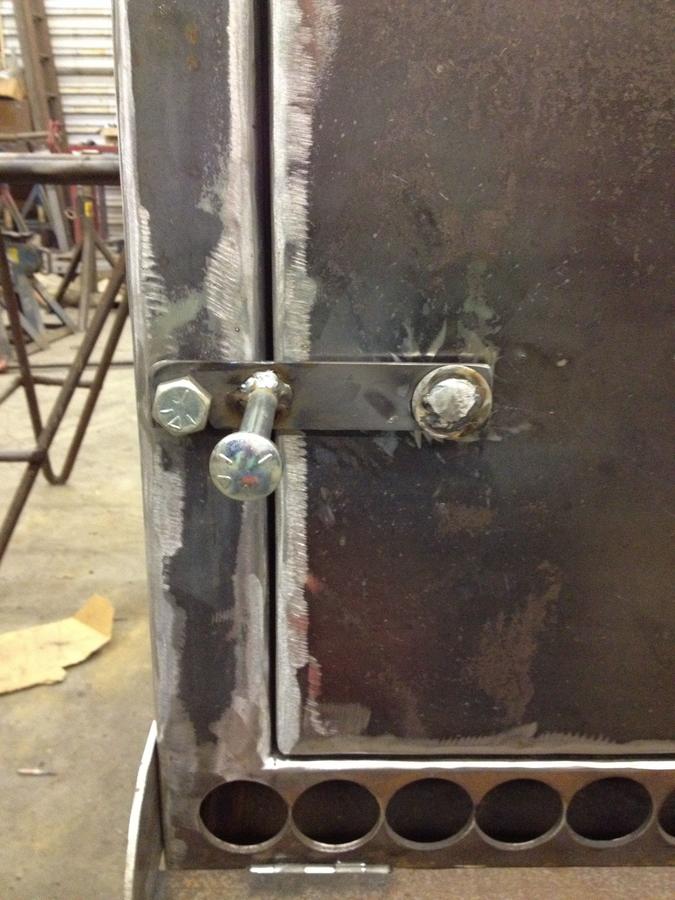

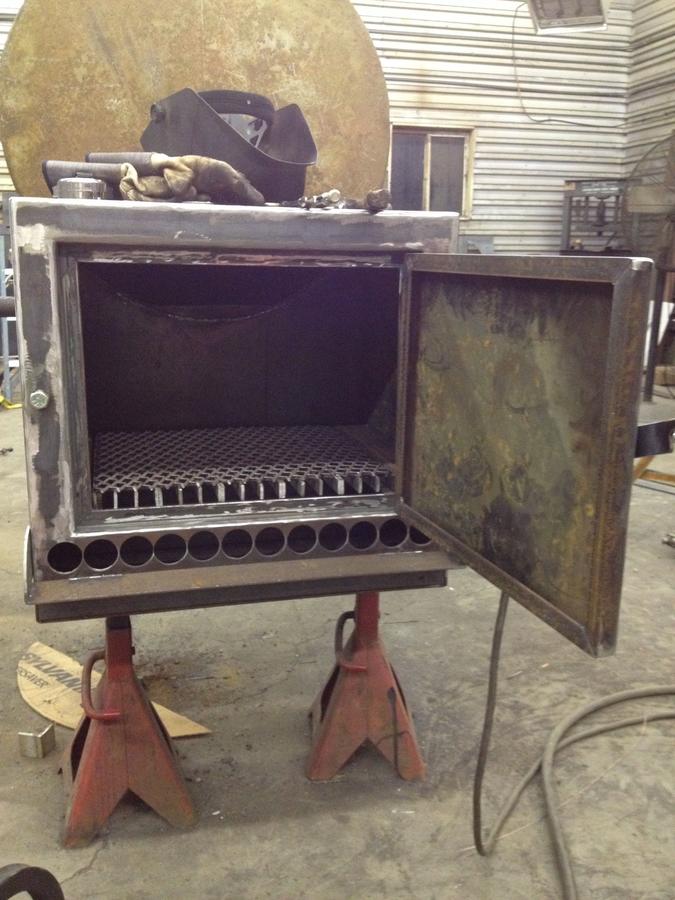

    Let me know what you guys think. The piece on the very bottom is a pullout tray for ashes.
  18. seenred

    seenred Legendary Pitmaster Group Lead OTBS Member

    Looks good to me, Nick!  I'm definitely no expert, though.  You might try posting your photos and questions over in the RF Builds forum:


    Good luck!  You're off to a good start.
