Drum Smoker- Electronics help needed please!

frank621

Newbie
27
10
Joined Jul 24, 2008
I have a double 55 gal drum build with one being the smoking chamber and the other as a fire box.

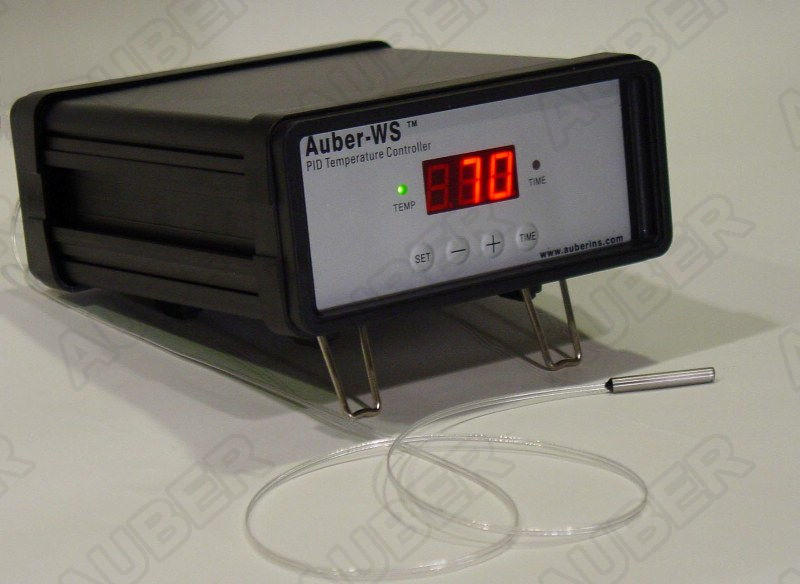

I just bought an Auber Ins. PID Controller, All in One:


and hooked it up to a Grainger (Tempco) Finned Strip Heater:

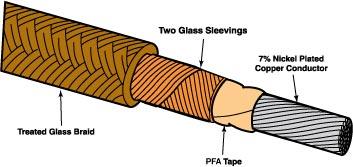

using PFA Glass Insulated High Temperature Heater Hook-up Wire:


I cannot get the heater past 122 degrees. I have 120v coming from the controller to the tips of the wires then when I connect the wires to the heater I drop to 112v

I have reversed the wires on the heater, as originally I didnt think there was a positive or negative, but it didnt change anything.

The heater, in theory, should be glowing red/orange. Any idea what I am doing wrong???

Last edited by a moderator:

daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,630
3,114
Joined Nov 12, 2010
Do you have an extension cord running to the controller.....    do you have the temp programmed into the controller....

I don't know squat about PID's....  just asking the basic questions...    In fact, I just learned how to spell PID......   Check the spade lugs to make sure they are making good contact when plugged in... a loose cord can cause a high amp draw...... and low voltage

Dave


Last edited:

frank621

Newbie
27
10
Joined Jul 24, 2008
Thanks Dave!

Yes, I do have an extension cord running from the wall to the PID. I can try going straight into the wall and see if that changes anything.

I do have the controller programmed properly, basically set it at 350 degrees for 6 hours and I called the manufacturer to confirm because this is my first experience with a PID.


s2k9k

AMNPS Test Group
11,331
180
Joined Sep 8, 2011
Where are you reading 122*? Right on the strip heater or in the smoke chamber? Where is the TC mounted?

You are reading 12v when connected because you are introducing resistance in the circuit with the heater connected.


frank621

Newbie
27
10
Joined Jul 24, 2008
122 degrees is the read out on the PID, but it is set for 350 degrees.

The TC is located in my smoking chamber which is the reading at 122. My firebox with the heater go up to probably 150-175.

The heater after running for 2.5 hrs never got glowing red.


s2k9k

AMNPS Test Group
11,331
180
Joined Sep 8, 2011
Can the PID source 15A? I think you need to put a SSR inbetween the PID and heater.
That PID is an all in one unit that is good for 2000w, his element is only 900w.

How big is the chamber?
It's possible the element isn't big enough to heat the chamber and if you are getting a lot of fresh airflow through the chamber the TC could be reading the fresh air that isn't getting heated fast enough.
I have a 1500w element and I have never seen it glow red.


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,630
3,114
Joined Nov 12, 2010
I think, but not sure....  900 watts won't heat a drum let alone a double drum...  barely heat an insulated MES 30.....   Dave


s2k9k

AMNPS Test Group
11,331
180
Joined Sep 8, 2011
Doh! I guess I missed it was a double barrel smoker!

What were the ambient temps when you were running it?

My smokehouse is 30"X30"X72" and very well insulated and with the 1500w element it will max out about 180*, so I'm agreeing with Dave that 900w probably isn't going to be big enough.


s2k9k

AMNPS Test Group
11,331
180
Joined Sep 8, 2011
Did you try putting the TC or a known accurate therm in the bottom drum?
It's going to take a lot of volume of heat to heat the bottom drum enough to transfer up to the top.


frank621

Newbie
27
10
Joined Jul 24, 2008
I have not tried that yet. I figured that if I could get the firebox to 350ish, then I should be able to maintain 225ish in my smoking chamber


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,630
3,114
Joined Nov 12, 2010
Frank, evening....  what are you generating smoke with... electric...  I have no idea what size element... Insulate the [email protected] out of it and try the 900...  see what you get and go from there....   You are going to need insulation anyway you choose to go....  Dave


radioguy

Smoking Fanatic
728
117
Joined Jan 12, 2013
Frank,

You can try this,  bypass the PID and directly plug the element in (and watch it)  see if she comes up to temperature in a reasonable amount of time.

I looked that element up and found a 1900watt one.  Just want to confirm what size it is?   Second what is the rating on the PID  (should be something load current / wattage, switching rating).  PID rating should exceed the element for safe / proper operation.   Depending upon wattage you may have some wire sizes too small.

Good luck, keep us posted.  Glad to try and assist.

RG


frank621

Newbie
27
10
Joined Jul 24, 2008
Thanks again guys!

Specs for the PID Are:
[h4]Specifications:[/h4]
Input voltage100 to 240 VAC 50 /60 Hz
Output voltageSame as the input
Maximum Current10A for 120VAC(1200 W), 8A for 240VAC(2000 W)
Controller ModePID, PI, PD or P
Output switching deviceBuilt-in optically isolated solid state relay with zero voltage crossing switching
Sensor tip dimensions4 mm diameter x 40 mm long
Sensor cable length5 ft (1.5 meter)
Timer range6 steps with 0.1 to 99.9 hours for each step
Temperature resolution1 °C or 1 °F
Temperature display unitCelsius or Fahrenheit
Temperature display range0-200 °C, or 32-392 °F
Minimum Control Temperature5 C (9 F) above ambient with smomker generator off, 22 °C (40 °F)  above ambient with smoker generator on
Maximum Control Temperature195 °C (383 °F)
Temperature accuracy+/-1°C
Dimension6.x3x6.7 inch (150x80x170 mm) WxHxD
Weight
2.2 lb (1.0 kg) without power cord
Specs on the Heater are:
tem  Finned Strip Heater
Voltage  120V
Overall Length  12"
Mounting Dimension  11"
Watts  900
Watt Density  40W/sq. in.
Terminals  Each End
Element Width  1-1/2"
Sheath Material  Seamless 304 Stainless Steel
Material  Nickel Plated Steel
Phase  1
H x W Across Fins  1-3/8 x 2"
Max. Sheath Temp.  1200 Degrees F
Mounting Type  Surface Mount
Slotted Hole Length  1/2"
Slotted Hole Width  5/16"
Screw Size  10-32
Standards  UL Recognized
Includes  Mounting Tabs


frank621

Newbie
27
10
Joined Jul 24, 2008
Bypassed the PID, just plugged straight into the wall and it never really got up to temp, even with 18ga wire.

still at a loss here...


radioguy

Smoking Fanatic
728
117
Joined Jan 12, 2013
Frank,

If that element was on and getting HOT then I would guess it's too small for your cabinet, and not your PID set up.  For safeties sake I would make the wire size #14 or #12.  I always use oversize wire, no reason to skimp.  At 900w your element should draw about 7.5 amps @ 120v line, a little more if your line voltage is lower than 120v.  #18 wire would cause a bit of a voltage drop but not much.   Are you using a long extension cord?  This might cause problems if the cord is long and too thin a wire.

Maybe someone else has another opinion / suggestion.

RG


frank621

Newbie
27
10
Joined Jul 24, 2008
i took the element out of my smoker just so I can mess with it. It did get Hot, but no where near hot enough. I would say maybe 150 degrees at most. Again, I'm not too familiar with these and I bought this one on purpose because it was 1200 degrees surface temp. but apparently I'm missing something.

I was using an extension cord but it was 8ga.
