Clean Up Smoke, that's where my money Goes

bauchjw

Master of the Pit
1,087
198
Joined Aug 3, 2015
I started piping smoke to my MES 40 from a Masterbuilt Cold Moke Kit a few months ago with mr t 59874 mr t 59874 help.

It made a huge difference in taste and consistency of cheese in my cold smokes and I started using it for my hot smokes too. Friends and family all commented on the cleaner taste in the meats. So, inspired by Mr T posts and a recent @Setesh post I tried to recreate some experiments when the temp dropped last night and gave me an opportunity to do another cheese smoke.

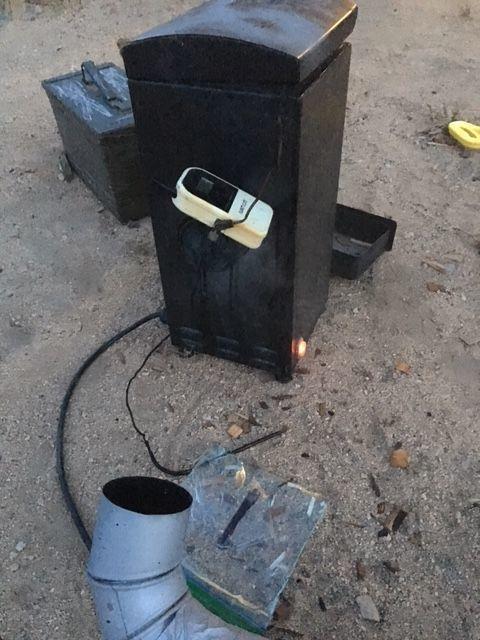

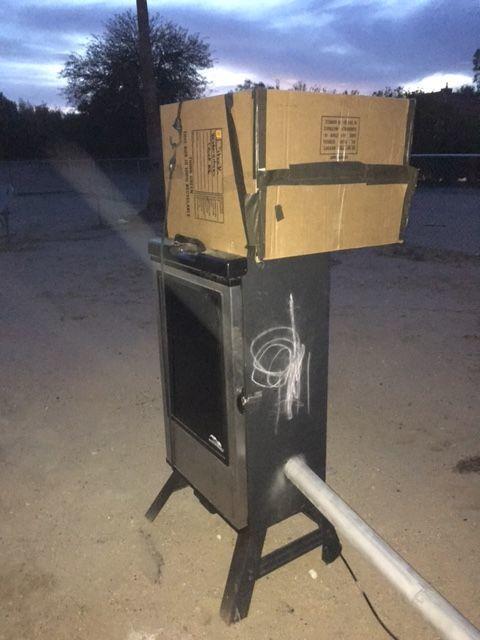

Ambient temp at 1945 63 degrees. I set up for cold smoking with cardboard box for the cheese. DIDNT plug in MES to avert epic fail. Smoke generator burned apple wood chips.

Of note I used my local weather for ambient temp instead of probes. That probably threw off the ambient numbers compared to boil tested probes.

I filled three baggies with ice water and placed temp probes near where I place the bags.
Bag 1 was in pipe next to smoke generator and 9 foot from MES.
Bag 2 was placed in MES.

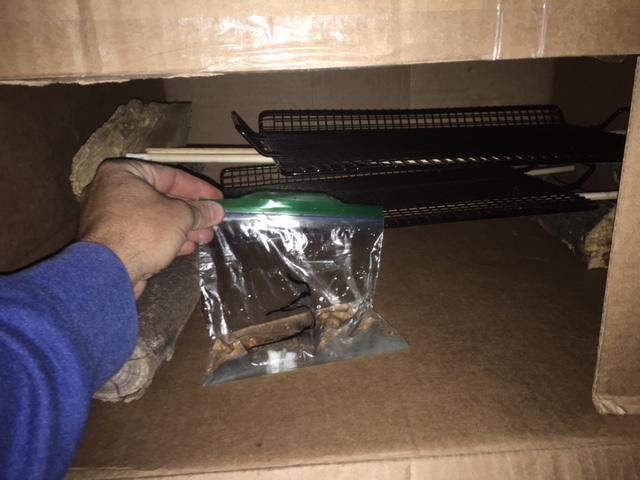

Bag 3 was placed in cheese box on top of MES

Placed cheese in with smoke rolling at 2015: ambient temp 63 still.
Bag 1: 69 degrees
Bag 2: 65 degrees
Bag 3: 62 degrees

2100 ambient: 59 degrees
Bag 1: 70 degrees
Bag 2: 60 degrees
Bag 3: 54 degrees

2200 ambient: 57 degrees
Bag 1: 64 degrees
Bag 2: 61 degrees
Bag 3: 51 degrees

2300 ambient 57 degrees
Bag 1: 66 degrees
Bag 2: 60 degrees
Bag 3: 53 degrees

0001 ambient 55
Bag 1 : 66 degrees
Bag 2: 59 degrees
Bag 3: 50 degrees

End result on probes: Bag 1 temp stayed warmer than ambient and smoke boxes. If bag one was in an insulated chamber the temp would have rose even higher. Bag 2, consistent temp of initial chamber (MES) was significantly cooler after traveling through 9 foot of pipe. However it was still warm. Bag 3 stayed coolest of all three through process and closer to ambient (below if you trust the weather app).

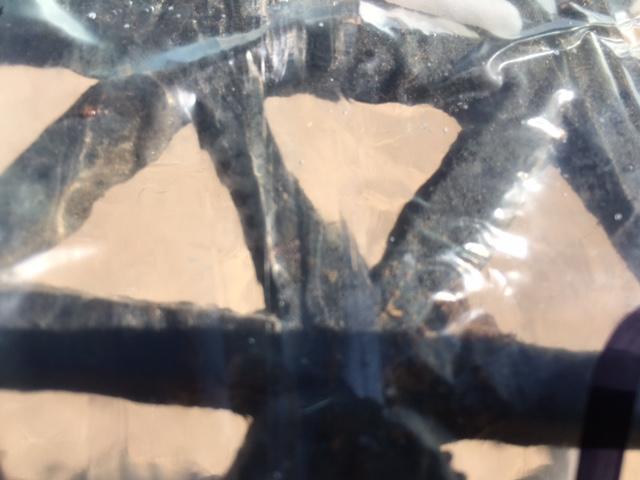

Bag 1
Bag 2
Bag 3

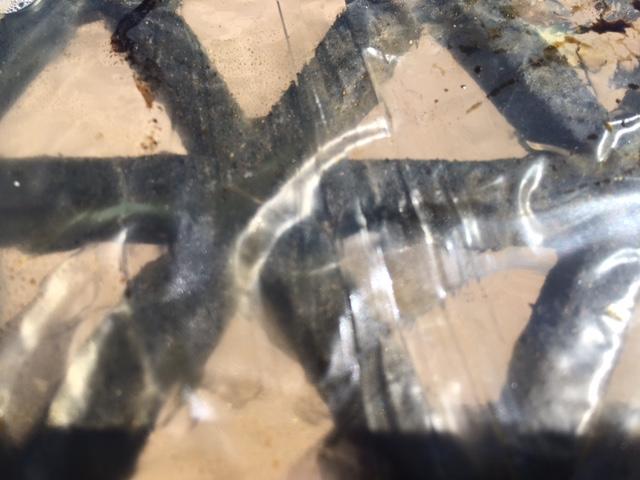

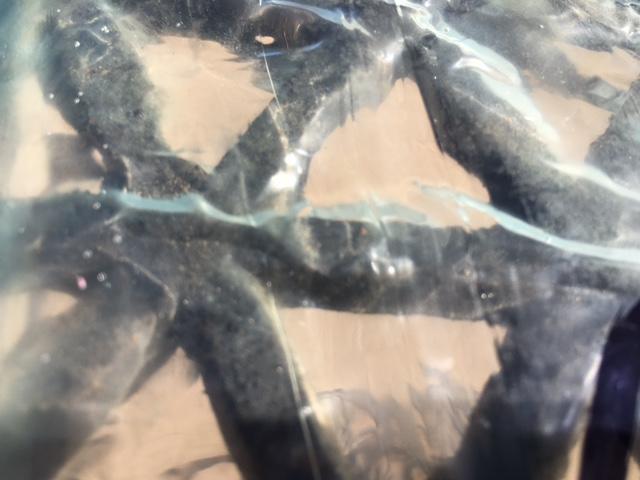

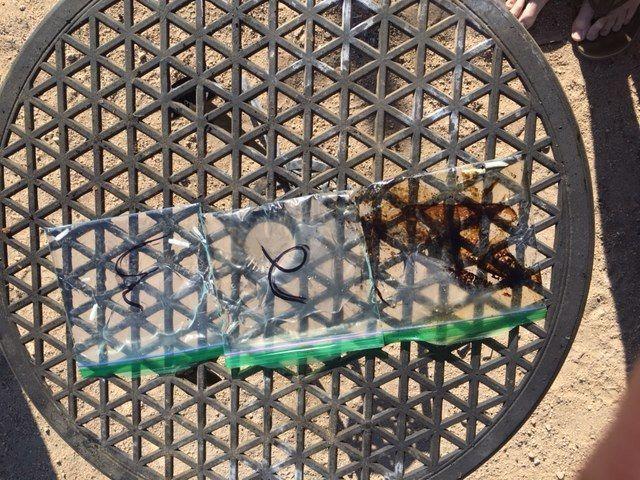

Creosote test. Bag 1 was very sticky after 5 hours near the generator and had visible creosote deposits. Bag 2 was hazy and a bit tacky, not near as bad as Bag 1. Bag 3 was dusty, but not sticky at all.


Conclusion: Perfect smoked cheese right out of smoker, no creosote, no need to "rest" cheese. No melting or change in the cheese consistency. Fridge stocked again!

Last edited:

mr t 59874

Master of the Pit
SMF Premier Member
2,631
263
Joined Jun 9, 2011
  Congratulations, you did it. Great and informative thread. I am quite certain you now understand your equipment and how making small changes can greatly improve your products.  Point

Tom


SmokinAl

SMF Hall of Fame Pitmaster
Staff member
Moderator
OTBS Member
★ Lifetime Premier ★
47,990
8,431
Joined Jun 22, 2009
Excellent smoke!

Great post, very informative!

Al


bauchjw

Master of the Pit
1,087
198
Joined Aug 3, 2015
:first:   Congratulations, you did it. Great and informative thread. I am quite certain you now understand your equipment and how making small changes can greatly improve your products.  Point

Tom
Thank you for all your time and patience Tom!


bauchjw

Master of the Pit
1,087
198
Joined Aug 3, 2015
Excellent smoke!

Great post, very informative!

Al
Thank you Al, as informative as I can with a 3 year old trying to help me type! This Forum and the good people on it has completely altered how I approach smoking and increased my knowledge by magnitudes.

Last edited:

gearjammer

Master of the Pit
1,472
173
Joined Apr 6, 2015
Points for you, very informative post.

This smoke cleaning thing is good to know.

I am quite certain that I now understand a

little more about smoke management too.

Thanks for your work on this.

              Ed


bauchjw

Master of the Pit
1,087
198
Joined Aug 3, 2015
Points for you, very informative post.
This smoke cleaning thing is good to know.
I am quite certain that I now understand a
little more about smoke management too.
Thanks for your work on this.

              Ed
Thank you, I'm glad it helped Ed! Please PM me if you have any questions or want some help. Tom gave me a huge amount of info I'm more than happy to share.


wade

Master of the Pit
OTBS Member
SMF Premier Member
Group Lead
3,863
276
Joined Apr 12, 2013
Good looking cheese


Don't forget to clean out the pipe from time to time as the tars that condense out will be building up in there with each smoke.


bauchjw

Master of the Pit
1,087
198
Joined Aug 3, 2015
Good looking cheese Thumbs Up

Don't forget to clean out the pipe from time to time as the tars that condense out will be building up in there with each smoke.
Will do Wade, thank you. Last thing I need is a horizontal chimney fire.
