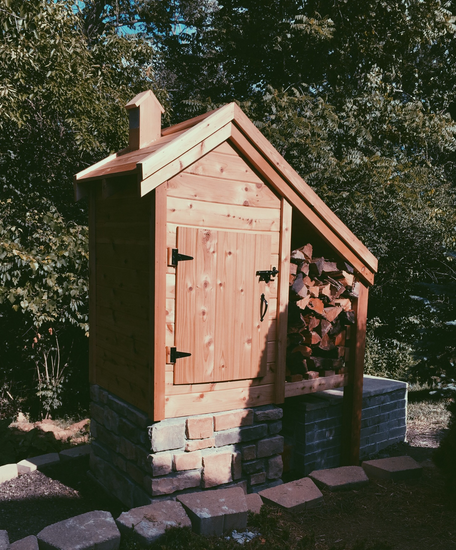

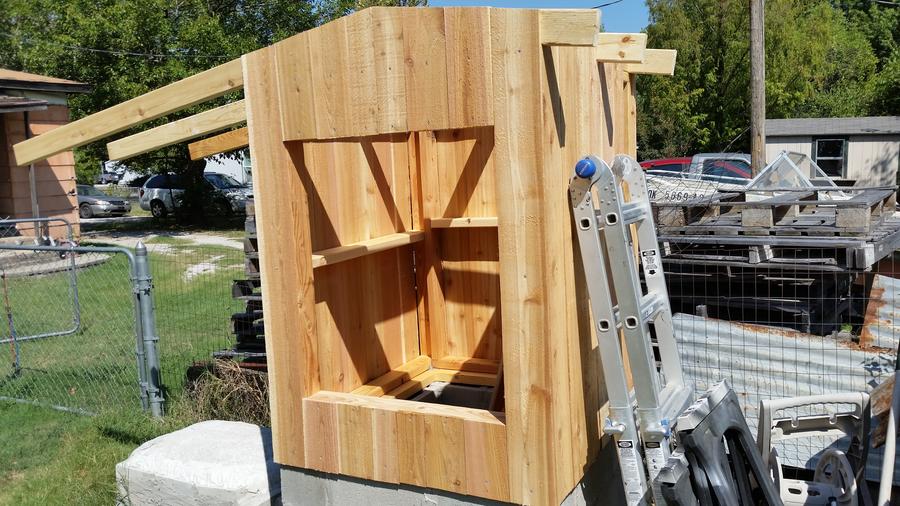

Cedar smokehouse construction

fordpharmtech

Newbie
2
10
Joined Apr 2, 2016
Thank you so much. Obviously I was searching the wrong thing. Vogelzang web site is not user friendly and seeing only titles without pictures or prices was not helpful at all.


acarlson

Newbie
1
10
Joined May 2, 2016
Did you follow plans for this or did you come up with this yourself? I have seen this picture before and have been looking for the plans to try building one


txdvr

Fire Starter
43
11
Joined Jul 2, 2015
Not sure if I am posting this correctly or not, but I have a couple of questions regarding this very nice smoke house.

I have seen some of these questions on the thread, but I have not seen the answers.

Would y'all suggest a concrete slab for the smoke chamber?

What is suggested for insulating the interior of the smoking chamber?

Would a damper in the chimney help in controlling the temp like a regular hot smoker does?

Thank you in advance for your suggestions.


nickbertram

Newbie
1
11
Joined Jul 6, 2016
Hi All,

I made a very similar smoker. I am having trouble getting my temperature up and keeping the firing burning. I got to 138 degrees and that was all. I don't have a damper on my hot box but I don't see anyone else having one either? Any insight to help get me ready for my first smoke would be greatly appreciated! Thanks!!



daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,131
2,790
Joined Nov 12, 2010
Fire control takes to air inlets to the fire box.....  upper and lower....    and an outlet for excess heat....  and inlets and outlets on the smokehouse for great temperature and air control.....   the design below just explains the theory...  actual controls can be designed in many ways....

........click on pics to enlarge.....

..


frankv

Newbie
16
12
Joined Jul 8, 2016

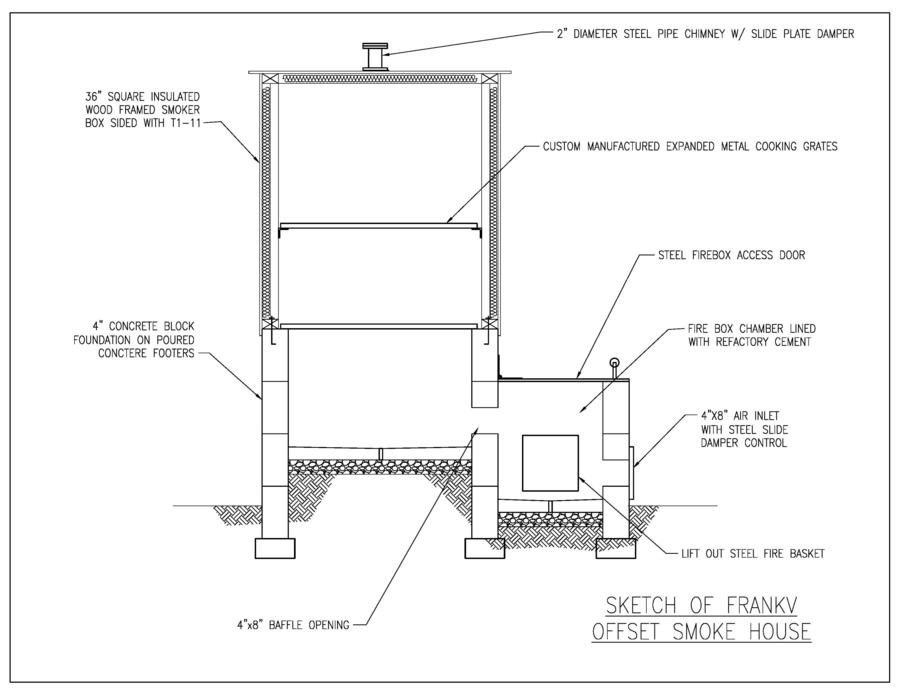

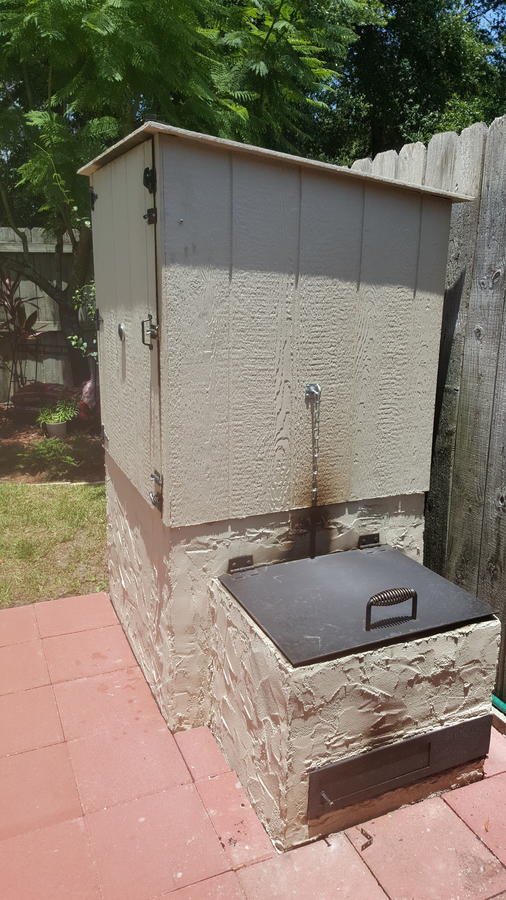

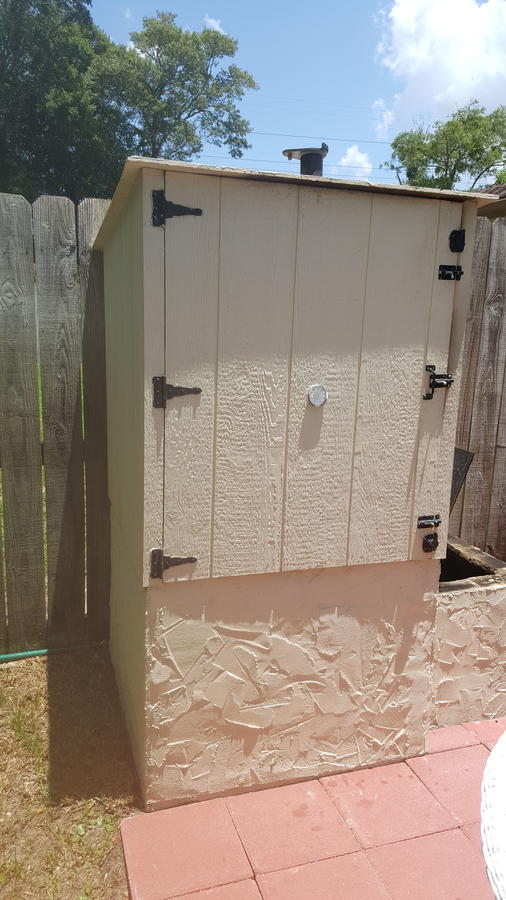

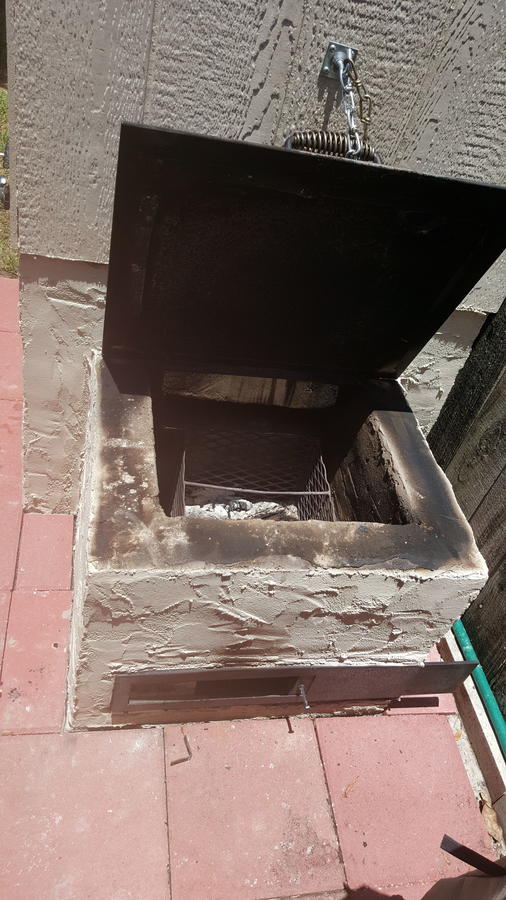

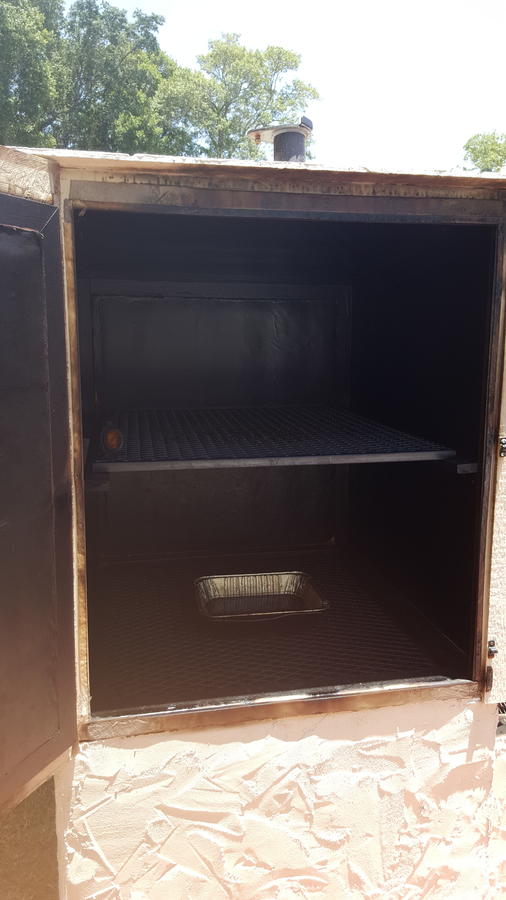

I designed and built my smoke house based on a similar design to yours.  The outside dims are 4'X4' x almost 6' high. I opted to use T1-11 siding and sealed and insulated the smoke house with 1" foil faced insulation board. The chimney is a 2" pipe with a slide plate on top for control.  Air inlet to the firebox is a 4"x8" hole in the lower side wall with a steel slide plate for air flow control.  The fire box is directly next to the smoke box and the smoke and heat passed through another 4"x8" hole in the adjourning wall.

Now to your question about reaching cooking temperatures.  I also have problems getting the smoke house up to cooking temperature.   I found I have to open both the inlet and outlet controls fully and even when building the fire, I need to open the firebox door in order to get a good fire going.  I can not rely on lump charcoal or a small amount of wood to get enough heat into the smoke house. Once I get a good  fire going I can close the firebox door leaving a slight gap and then the smoke house temp will rise.  I can get 225 to 250 this way, but it takes quite a while to get there. However, once there, I can close the firebox door completely and the smoke house holds the temp well as long as I keep adding wood to the fire.

If I smoked a lot of food at one time it would not bother me. However, for small amount of food, or for food that only requires a short cook time, it seems I need to use a lot of wood.  It is unfortunate I have to buy my wood.


frankv

Newbie
16
12
Joined Jul 8, 2016
To answer TXDVR.  I am a newbe at smoking, but not at at construction techniques as I have over 50 years experience as Civil/ Structural Engineering Designer.

Structurally you need to support your smokehouse on a proper foundation if it is a permanent structure, similar to the one being discussed in this thread.  A slab foundation is OK but will increase the height of the smoke house if the slab is at grade.  A better approach is to build concrete footers and and masonry walls, filling the interior space of the foundation with a concrete floor.  This design can lower the structure into the ground keeping the height more reasonable.

In my opinion, if you are creating in effect and "oven" it needs to be insulated or all the heat escapes.  I good choice for insulation is a foil faced hard foam board 1" thick or more.  The insulation also protects the wood construction from any concerns from excessive heat creating a fire risk. Once the smoke house is used a few times the smoke will cover all of the interior surfaces with a coating of creosote forming a protective barrier in itself, so I can not see any advantage to using expensive wood such as cedar other than for exterior appearance and weather durability.  Sheet material, such as primed T1-11 will work just as well, but will need to be painted.

And of course, you need airflow control both in and out.  From what I can determine, a chimney damper is not a must, but I opted to use a commercial smoker accessory supplier steel pipe chimney with a slide plate that can close the outlet. This does two things:  1. provides some degree of Temp control and 2. prevents, when completly closed,any chance of rain or creatures from entering the smoke house.

Not an answer to any question but just a note. I found the more difficult problem to solve was how to keep the smoke from seeping out around the smoke house door and the firebox door. Even expensive gasket materials doesn't seem to do the job. I have minimized leakage but have not been able to eliminate it.


txdvr

Fire Starter
43
11
Joined Jul 2, 2015
Thank you for the details FrankV.
Post some pics of your smoke house!


frankv

Newbie
16
12
Joined Jul 8, 2016

topdogs

Newbie
3
10
Joined Dec 3, 2015
Do not use the foam insulated board. It may give off a toxic gas. Use 1000 degree spun glass insulating board. It comes in 2ft by 4 foot semi rigid pieces and you can get the in 1 and 2 inches thick. It will not fall down and will last forever. It was about 100$ for my 3 ft deep by 6 foot wide by 5.5 ft tall smokehouse and I can cold or hot smoke to 500 degrees if I want. I do have a gas burner in it but you should easily keep around 300 plus with wood on his design but he might have to extend his smoke stack to get the proper heat draw. The shorter the stack the harder it is for the heat to travel to the smokehouse. You might need to install a damper in the stack and run the vents on the firebox door wide open and go from there. IMHO but been doing this for years. Beautiful smokehouse and I'm sure you will enjoy it for years to come. Involve your family too. Summers are great times and the drinks are cold. Let your neighbors bring it they will be over to check it out anyway!

Last edited:

Hepstyle

Newbie
1
0
Joined Dec 27, 2017
I am blown away by this design. I can't wait to build one for myself! I have been reading a lot about getting the right temperature with this. I think for cold smoking I will make the distance from the fire box to the smoke chamber a little longer, like maybe 8 -10 feet. For hot smoking, I think I will make the base of the smoke chamber another fire box, where I would most likely use charcoal as fuel and wood chunks for smoke. As mentioned before, small vents on the sides instead of a chimney on top to let excess smoke out and reduce the chances for condensation to drip back on the meat.

Truly amazing design. This thread is a gift to mankind!
