Usherk 44

Discussion in 'Smoker Builds' started by usherk44, May 2, 2013.

  1. usherk44

    usherk44 Fire Starter

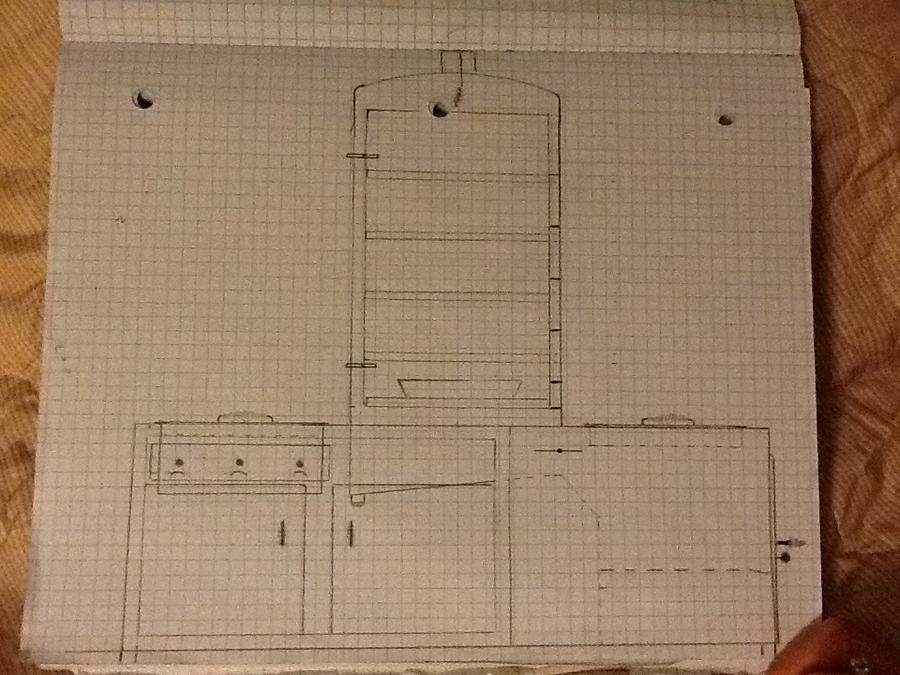

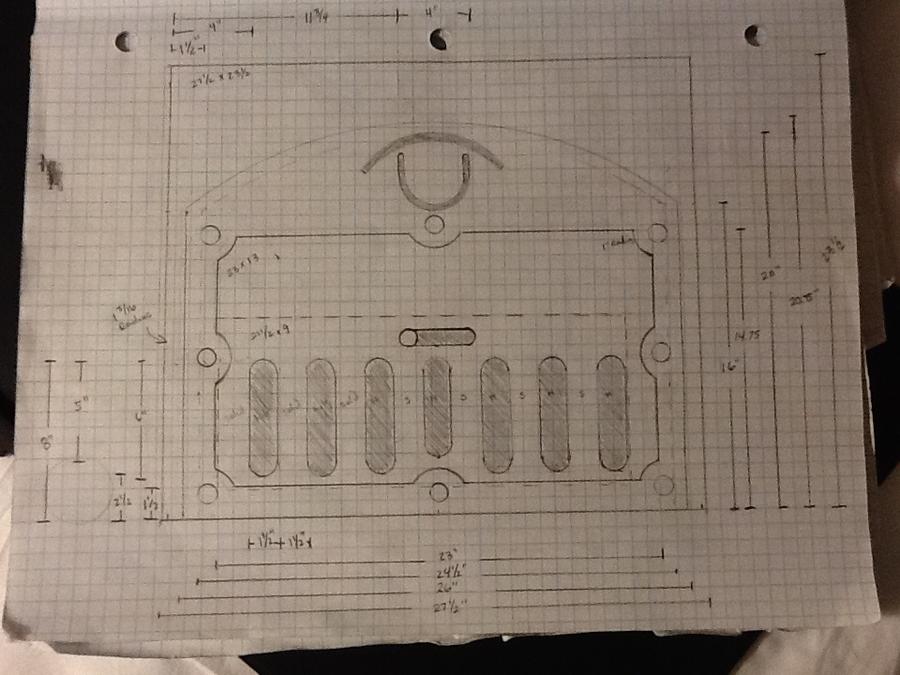

    New build, verticle smoke with FB in cabinet. Would appreciate any feedback or ideas as i go. I will have pics of progressive, only cut 1/4 " plate parts so far. Fb on the right and gas grille to the left ,center smoke chamber is a 24" diameter propane tank. This is drawing of fb end with door and intake .

    Last edited: May 28, 2013
  2. usherk44

    usherk44 Fire Starter

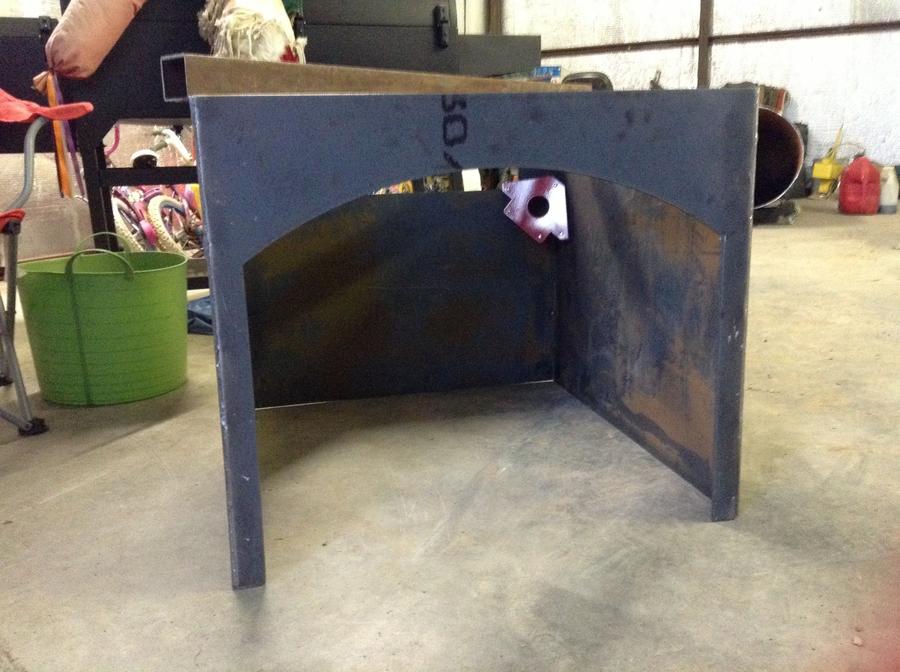

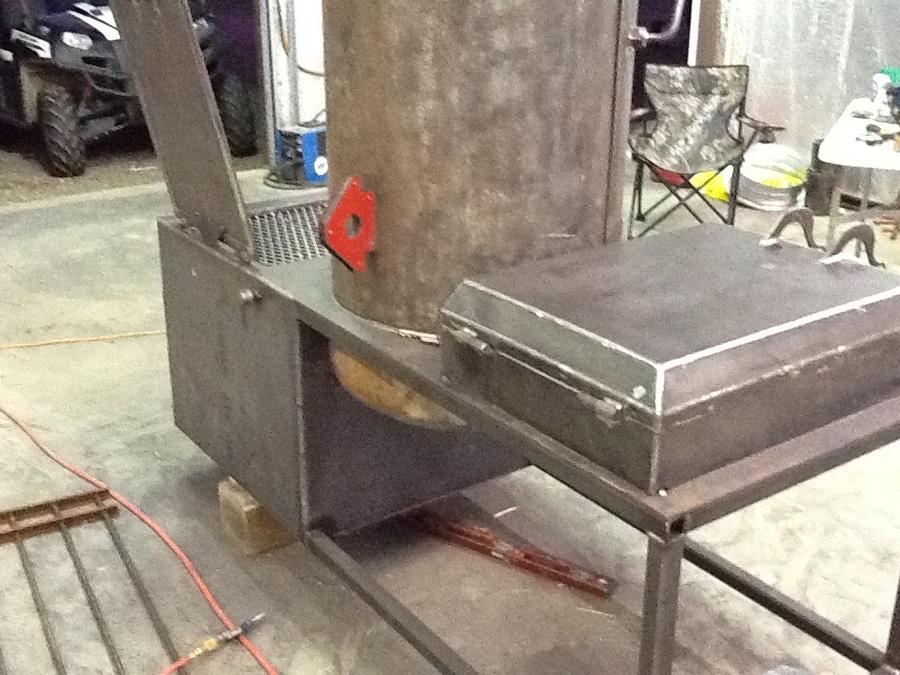

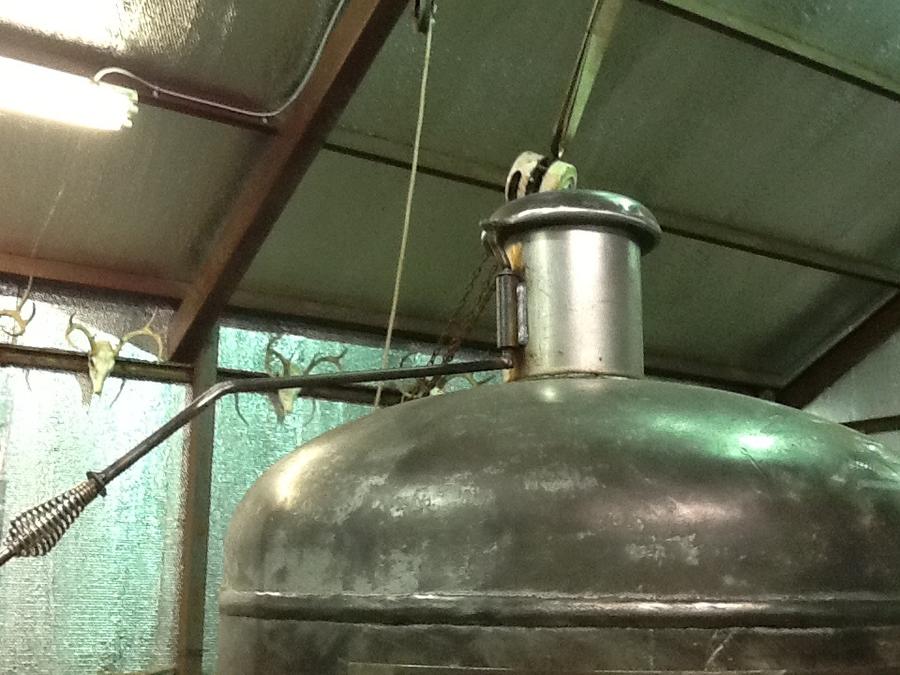

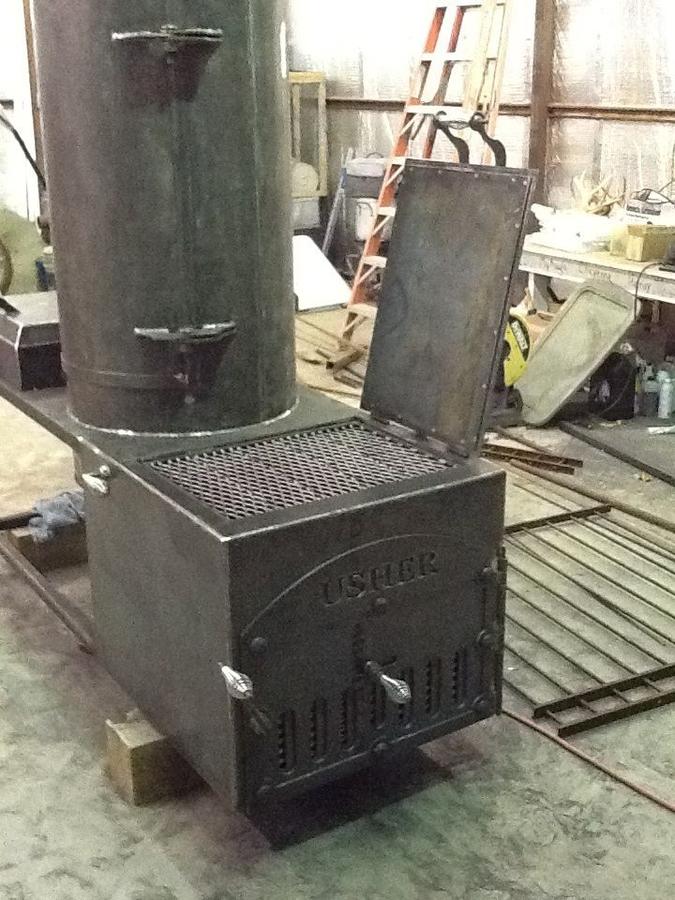

    [​IMG]finally got started over the weekend here are some pics of fire box and tank

  3. usherk44

    usherk44 Fire Starter


  4. usherk44

    usherk44 Fire Starter

    I am getting close on my build but before i get to far i would like some feedback from some of you with experience in this. I have my drawing posted here and will get some pics later today. I was mostly concerned about temperature from bottom to the top if the verticle cc

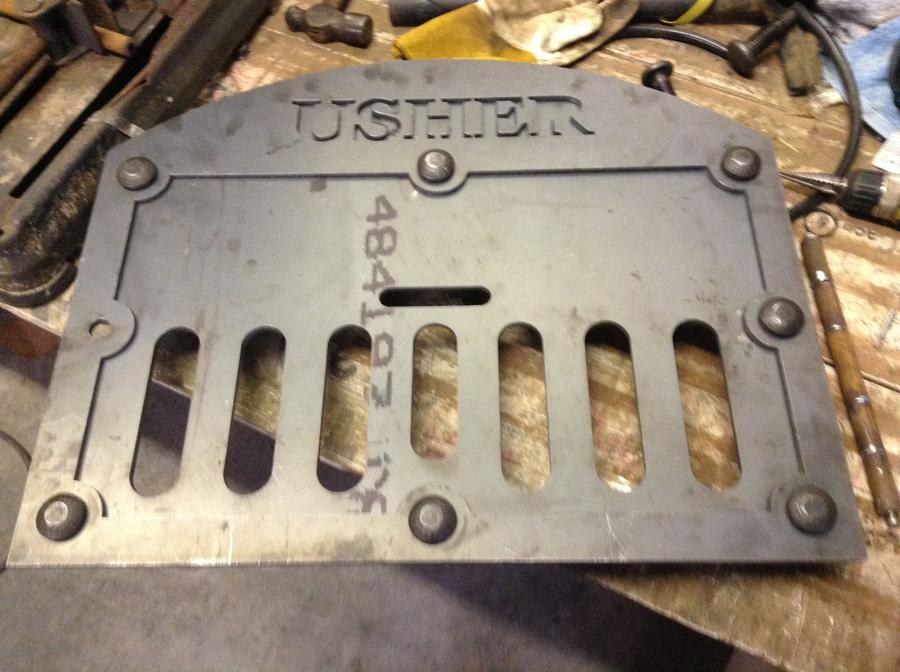

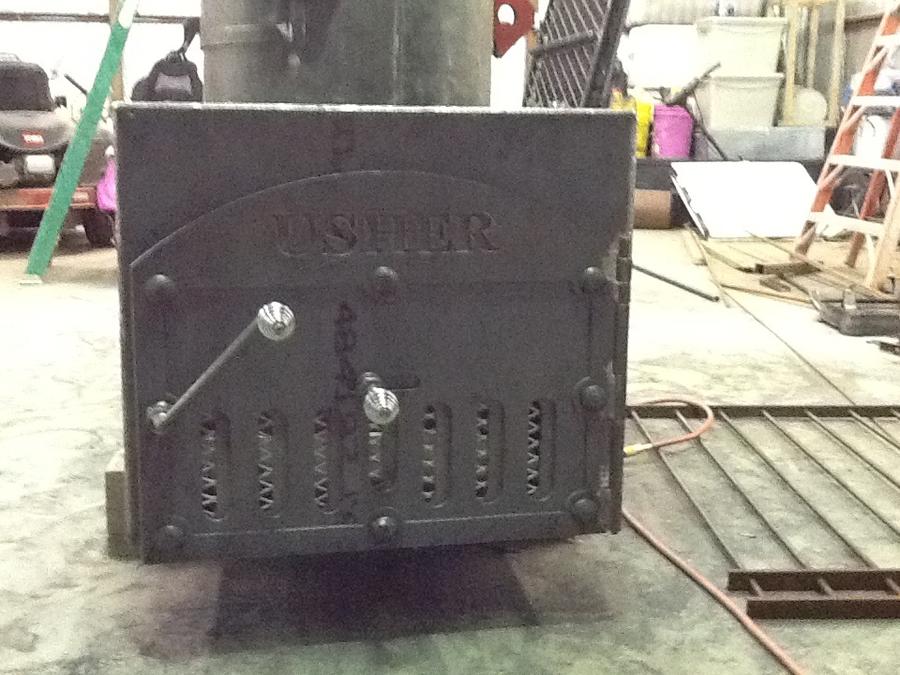

  5. That firebox door looks great! Very nice detail. I'm looking forward to seeing how the whole things turns out.

  6. usherk44

    usherk44 Fire Starter

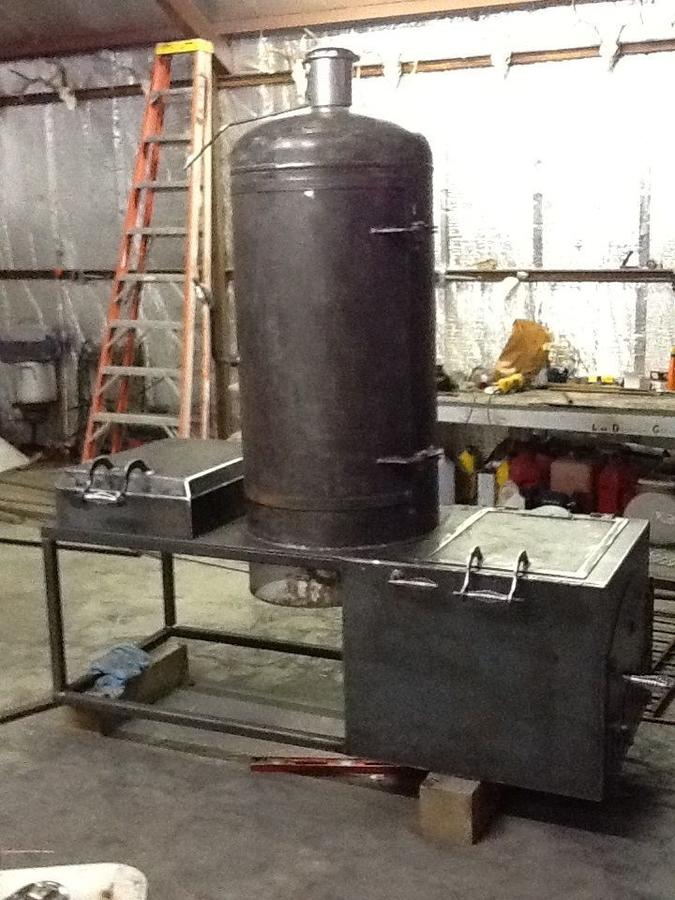

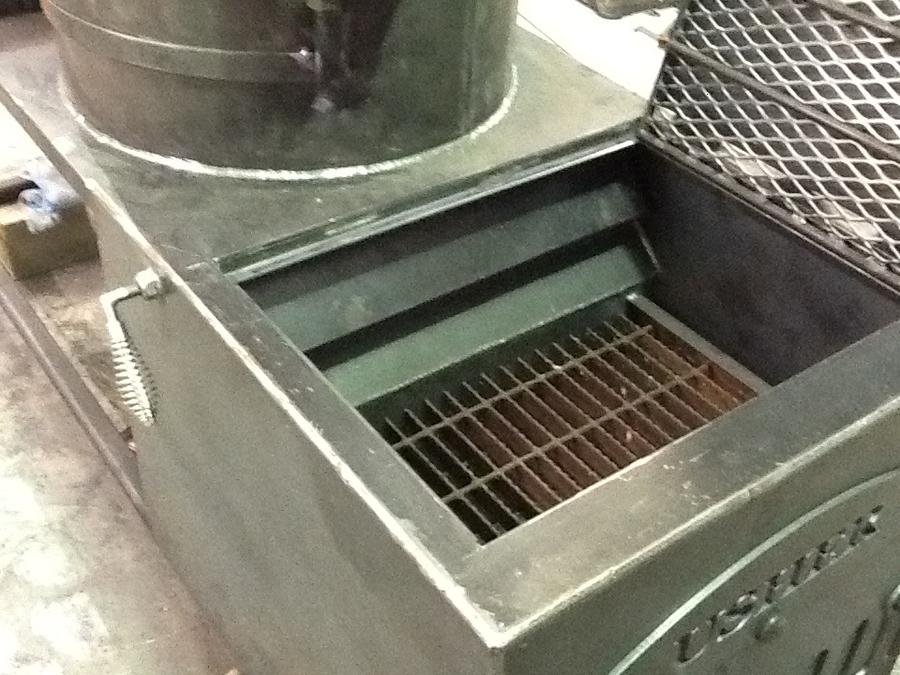

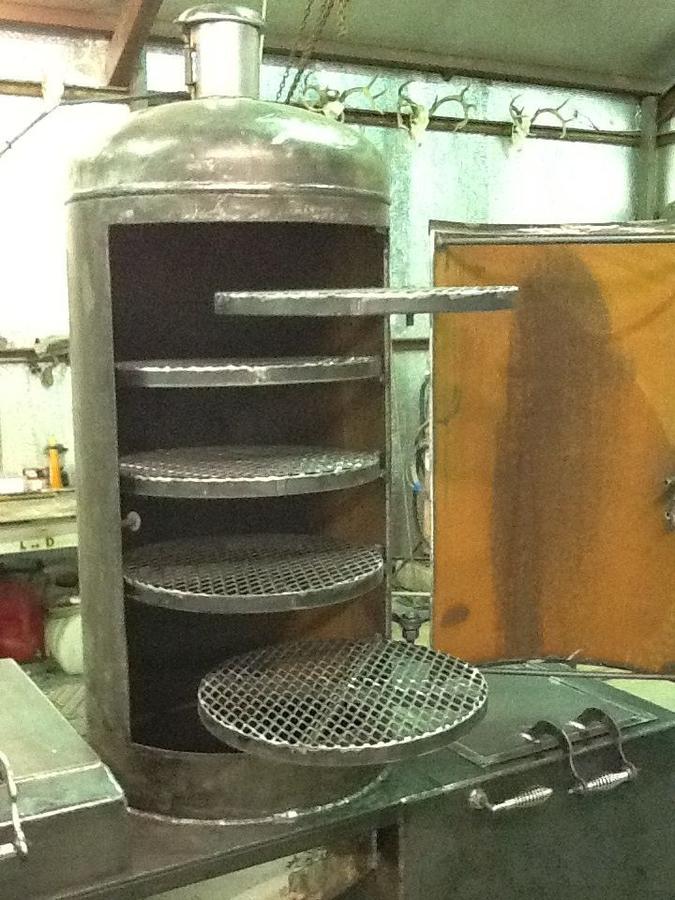

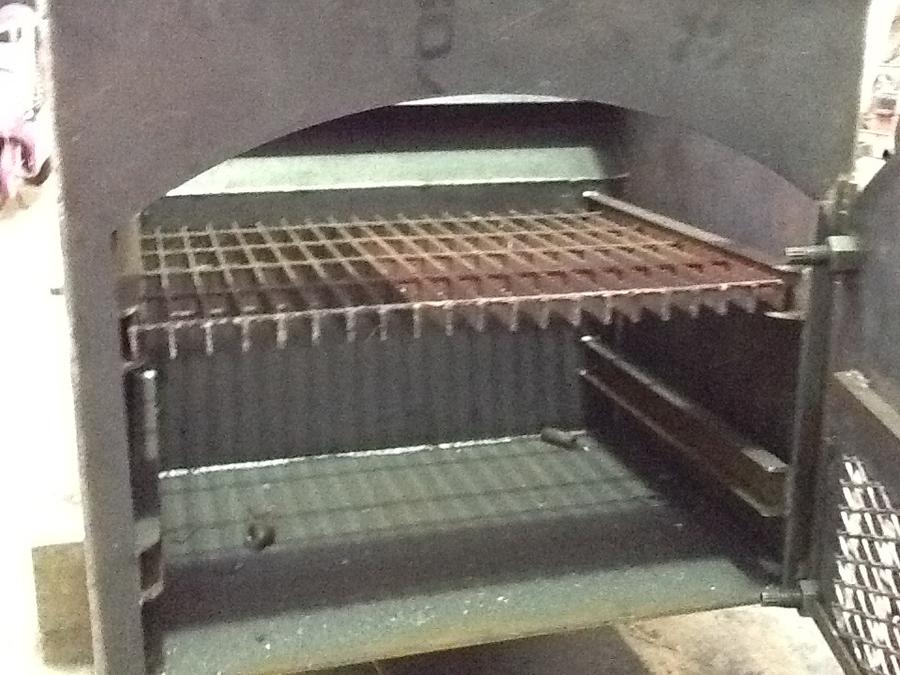

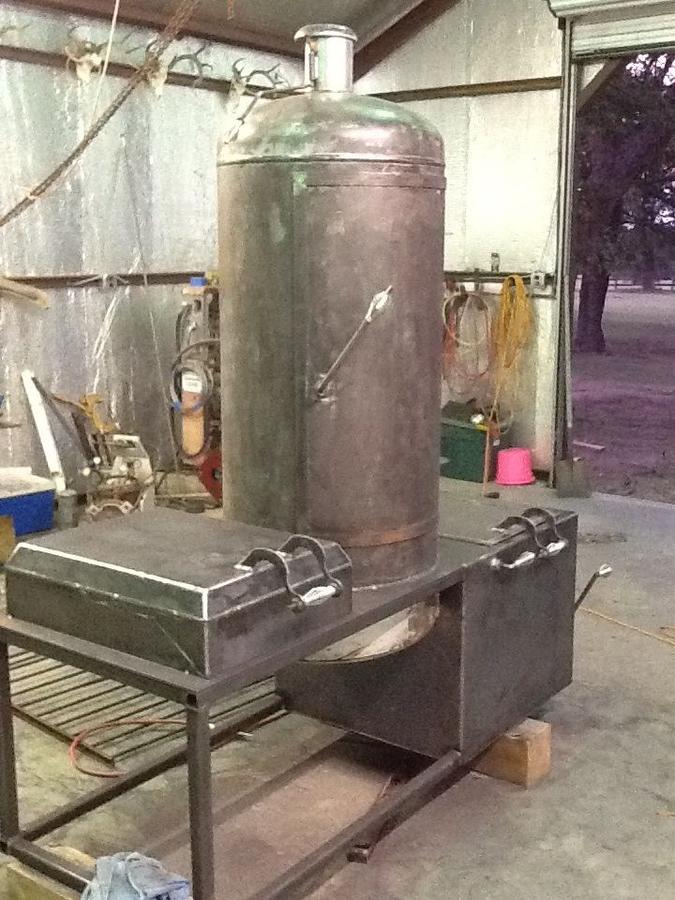

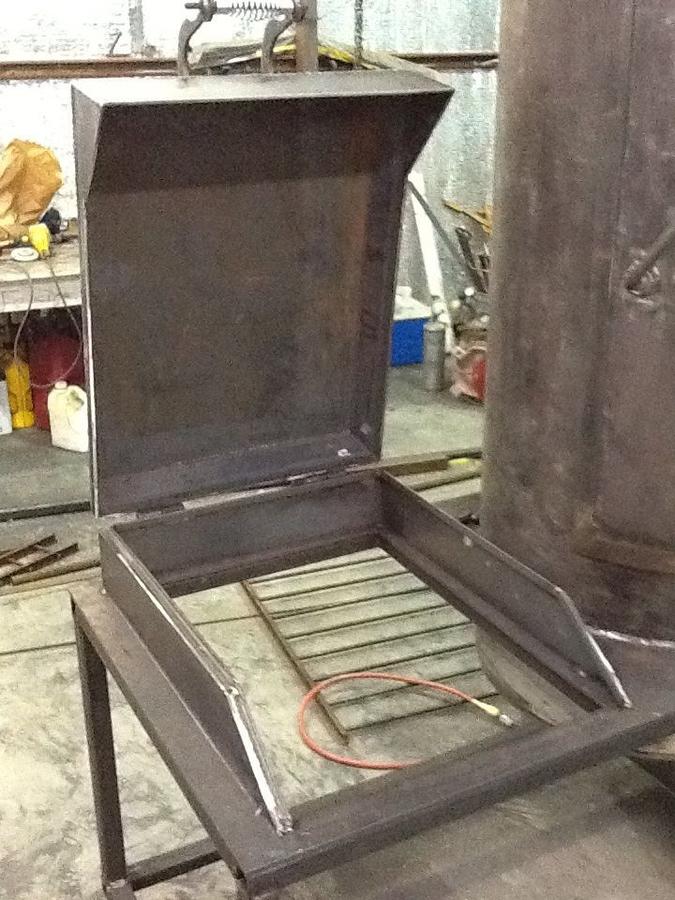

    Finally got some pictures , lets see if I can load them on here

  7. usherk44

    usherk44 Fire Starter


  8. usherk44

    usherk44 Fire Starter


  9. usherk44

    usherk44 Fire Starter


  10. usherk44

    usherk44 Fire Starter


  11. usherk44

    usherk44 Fire Starter


  12. usherk44

    usherk44 Fire Starter


  13. usherk44

    usherk44 Fire Starter


  14. usherk44

    usherk44 Fire Starter

    Could someone tell me if I would benefit by putting some kind of heat sinking material in the dead space at the rear of my fire box? If not I was thinking about making a warmer box out of that space. Any advice would be appreciated.

  15. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Thermal mass will help even out temps...   Thermal mass usually works better in the cook chamber to keep the temps even...    Dave

  16. usherk44

    usherk44 Fire Starter

    Thanks , I'm leaning toward a warmer , I think I can get 2 racks in there 10 " wide x 24 " deep.

  17. usherk44

    usherk44 Fire Starter

    Been working on my pipe burners and a log starter ,don't know how many holes Iv'e drilled but its a bunch . I guess my next step will be assembling those burners . My wife and I have been traveling to see different doctors in Chicago ,Houston , and Nashville for a couple of weeks so I lost some smoker time but I hope to be settling down for a while. I have been fighting cancer for a couple years and needed to change my treatment ,looks like Nashville is the place for me. Building this smoker and cooking meat has been a great hobby for me. I'm ready to get it done and start fine tuning my cooking skills(may take a while) lol. Will get some pictures soon.

  18. I hope your treatment goes well. God bless you.

  19. usherk44

    usherk44 Fire Starter

    . While we were in Houston I stopped by Tejas smokers and picked up a regulator and some fittings to hook up all gas connections I also got some parts to build this Venturi for the log lighter. I cut the other 3 venturies I needed with the plasma ,this was much simpler.

  20. usherk44

    usherk44 Fire Starter

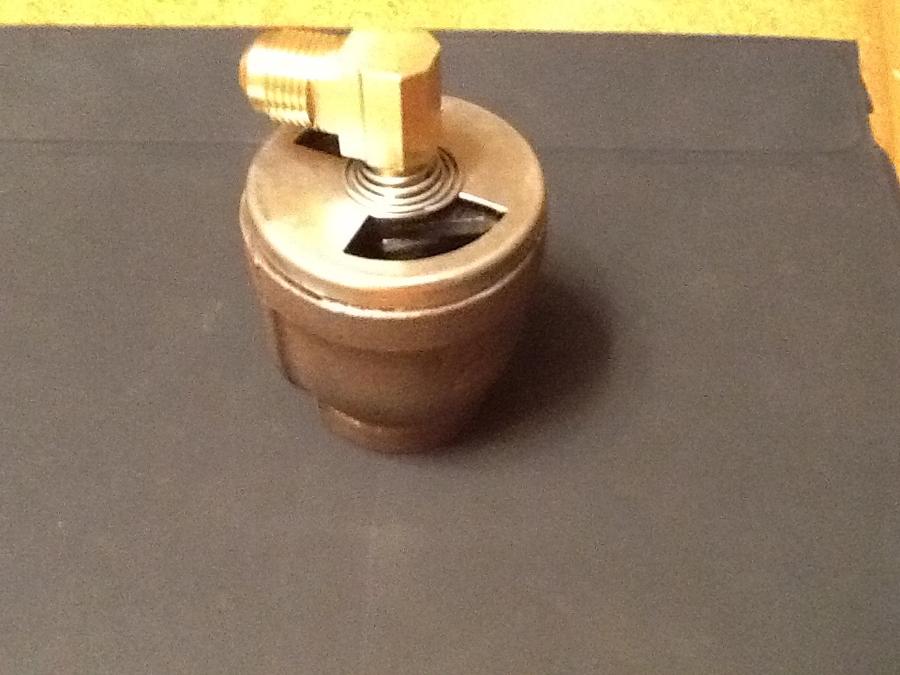

    I just had to pick up a bell reducer and weld a piece of flat bar across the end ,drill a hole for the orifice fitting and screw it into an 1/8x1/4" bush, then hold it in place with a 1/4" locknut on the back side.
