Trailmaster Reverse Flow?

[chickenhead]

If you have searched and searched on the forum for a reverse flow mod for the Brinkman Trailmaster and all you have been able to find is mods for tuning plates baskets etc...



[jarjarchef]

Are you wanting to turn it into a reverse flow?

If not I would look at the mods for a char griller.....



[chickenhead]

Yes, if anyone hadn't tried it yet, I am picking up a trailmaster this weekend and tinkering with a reverse flow mod...



[jarjarchef]

Not saying it would not be a good idea.....

The smoke stack would need to be moved to the other side and a RF plate figured out. On the char griller you use the bolts that attach the legs to the cook chamber to mount a bar to. You then place the tunning plates across. The catch is the opening to the fire box is higher then where the plates go across. So you have to angle a plate to push the heat under the tunning plates.

The single most important mod I did was the charcole basket....... Don't have the link, but there is a no weld fire basket plan on SMF somewhere..... I'll keep looking for it.



[chickenhead]

Thanks for that...

I have one in my hands now...I will lay everything out, look at some RF pics and call my welding buddy "hog lips" to see if we can get a reverse flow trailmaster built out. I will post pics of the process...



[jarjarchef]

I'll be on the look out for it.....

They are addictive........ The mods that is...



[chickenhead]

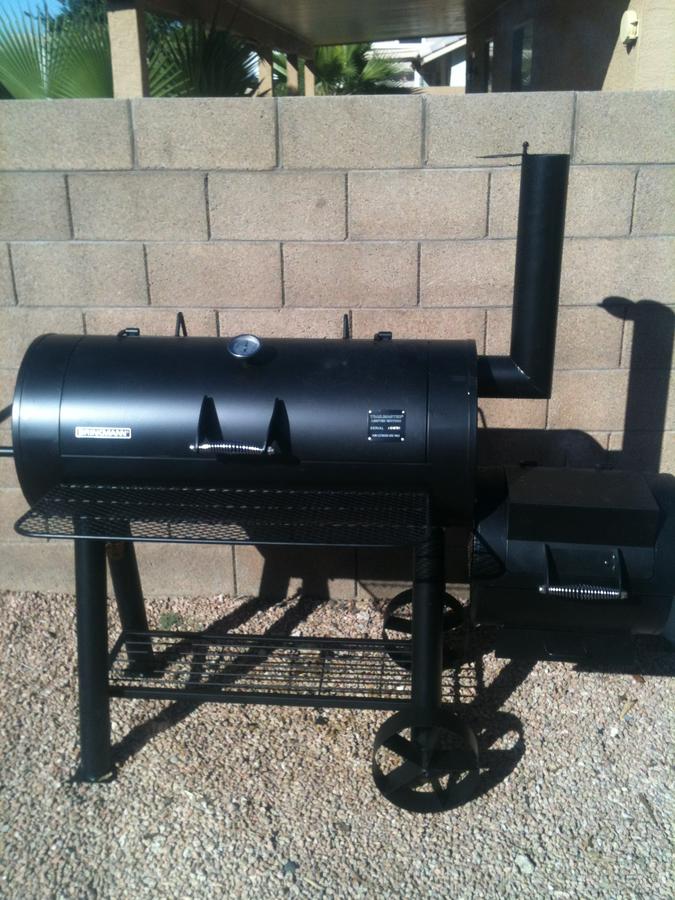

After a couple of weekends of tooling around it's finally finished...


• chickenhead
• Nov 13, 2012


• chickenhead
• Nov 13, 2012

I will post more pics of the mods later...



[chickenhead]

Here is how I did it. I first had to lower the firebox...


• chickenhead
• Nov 13, 2012

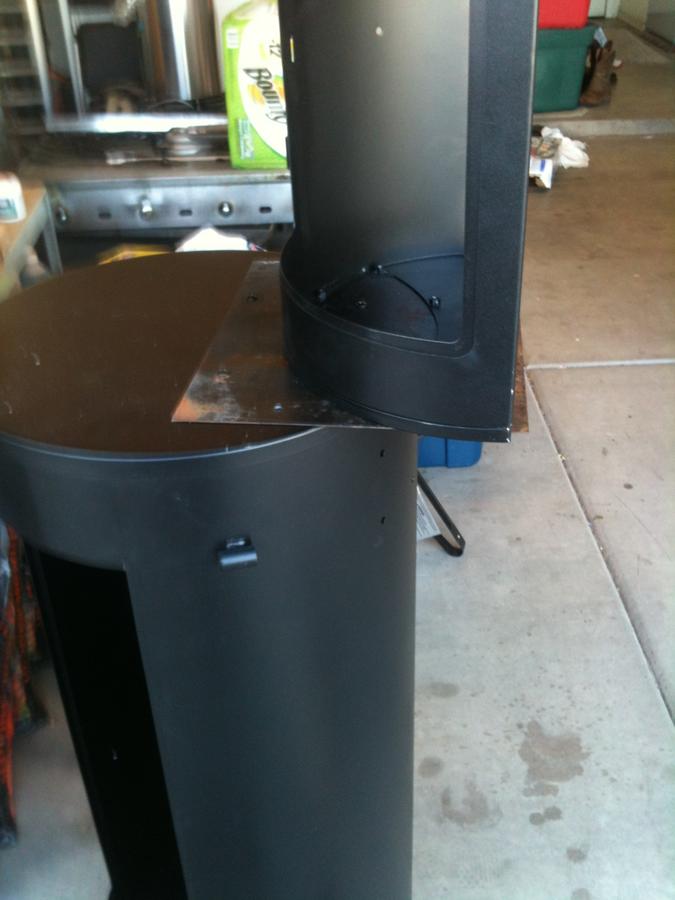

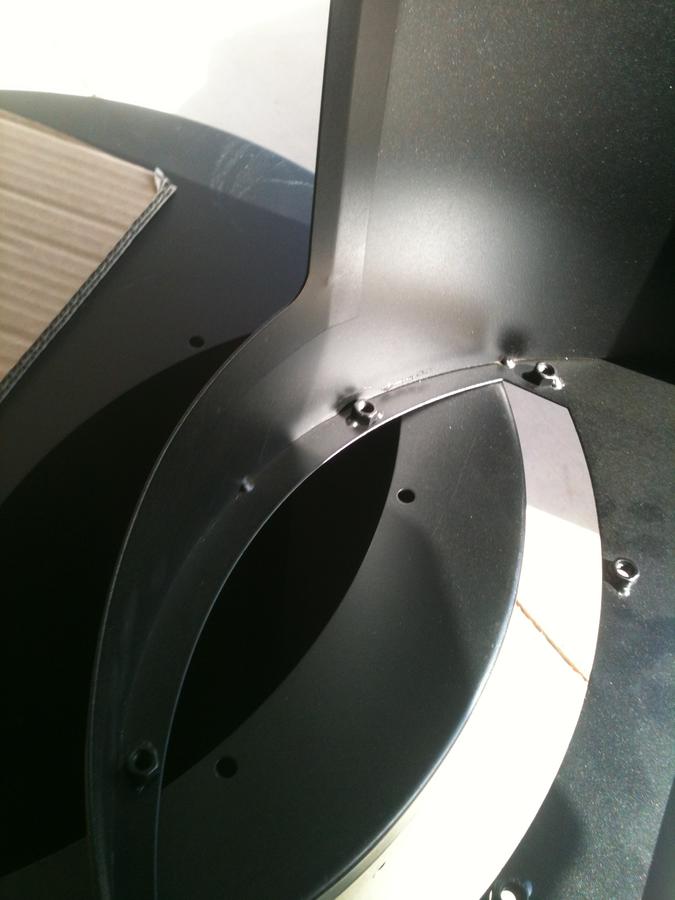

I made a plate to relocate the firebox lower and block off the chamber enough to clear the plate.


• chickenhead
• Nov 13, 2012


• chickenhead
• Nov 13, 2012


• chickenhead
• Nov 13, 2012

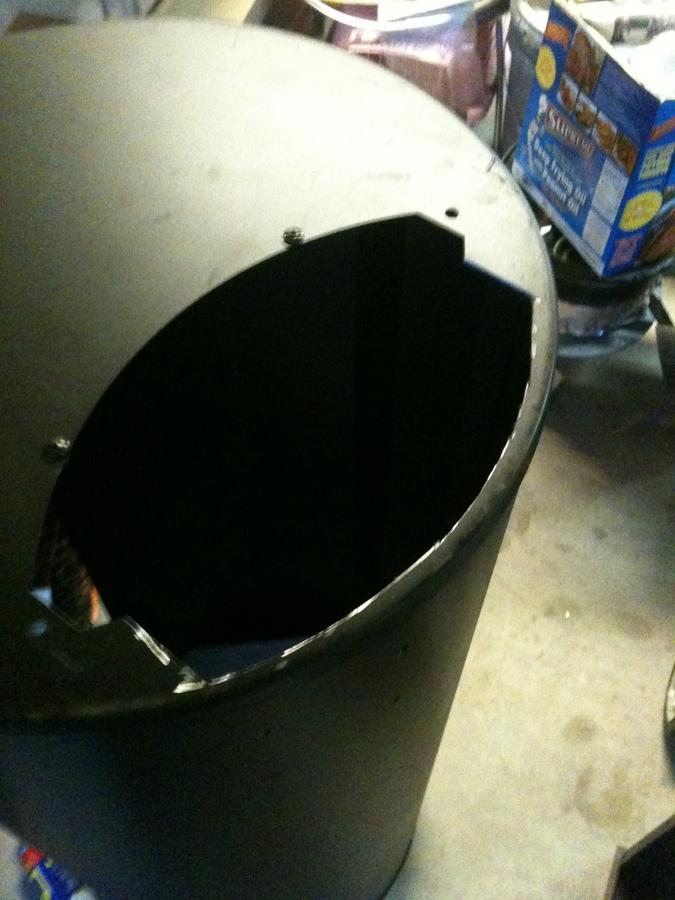

Cut the main body lower for the new location of the firebox.


• chickenhead
• Nov 13, 2012

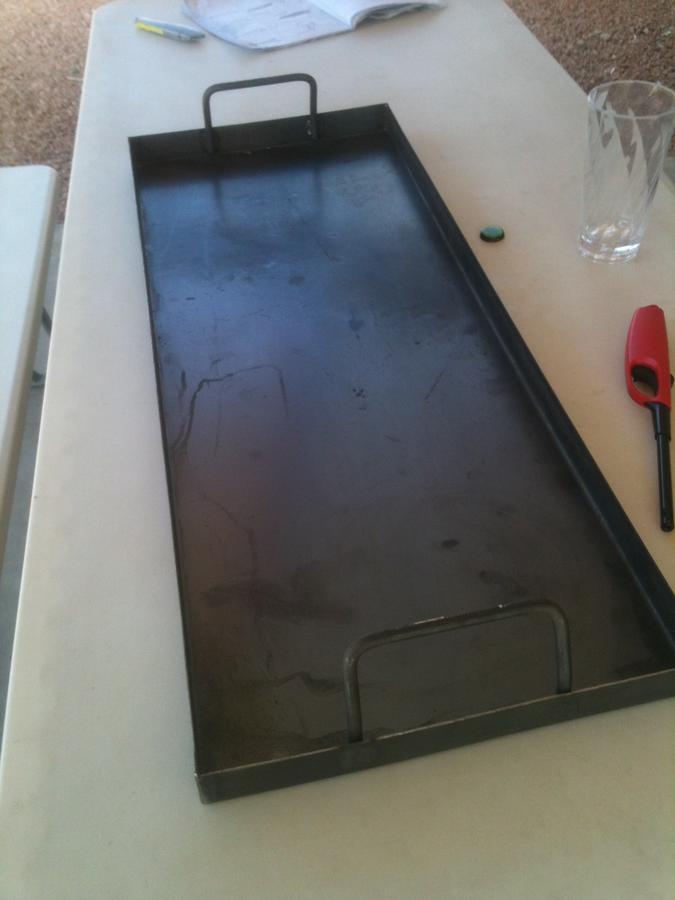

Farmed out the RF plate/pan...before drain hole.


• chickenhead
• Nov 13, 2012

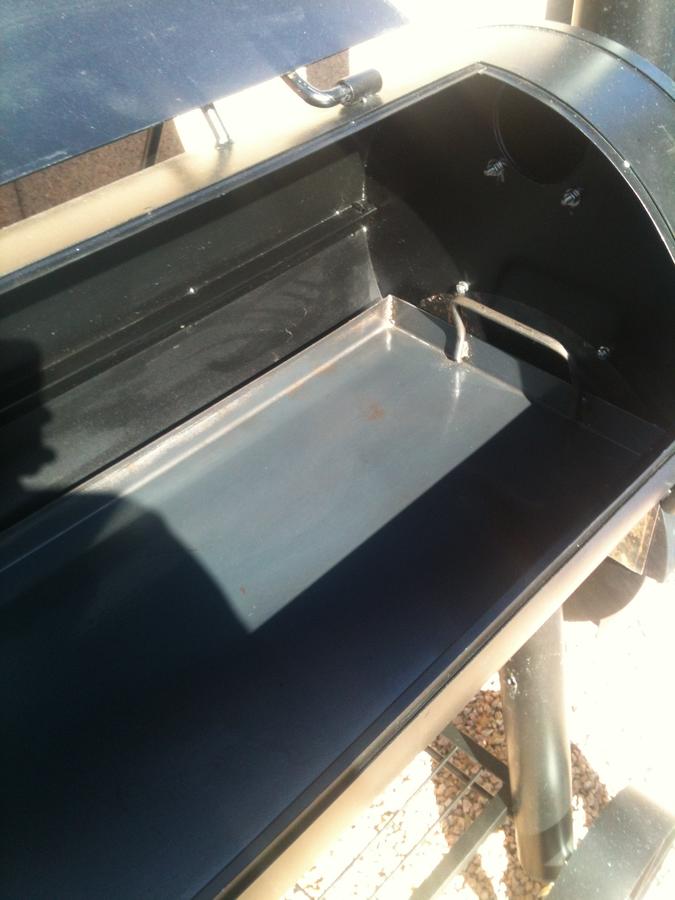

Used the rails that the charcoal grates sit on...


• chickenhead
• Nov 13, 2012

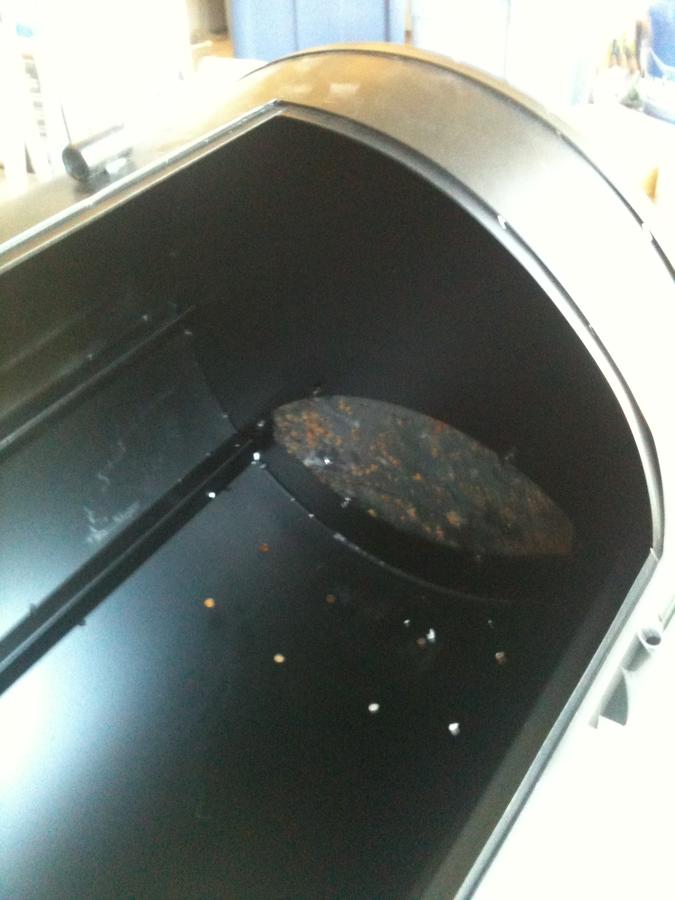

Block off plate for the stack..


• chickenhead
• Nov 14, 2012

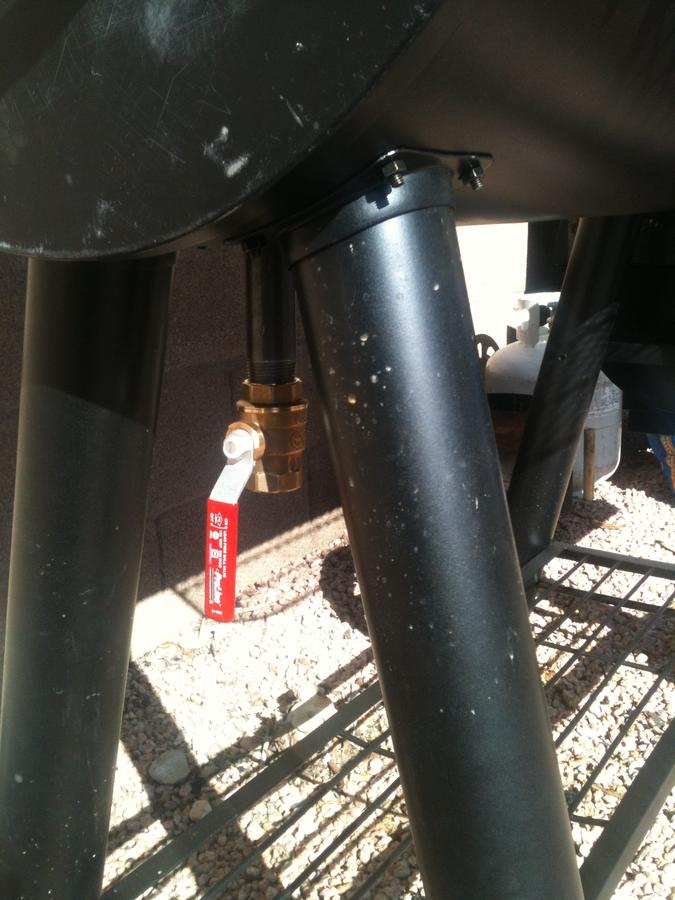

3/4 drain through pan w/ ball valve.


• chickenhead
• Nov 14, 2012

Done...


• chickenhead
• Nov 14, 2012



[jarjarchef]

Looks like it came together.....

Looking forward to the details...



[sunman76]

nice clean looking work



[mike johnson]

Looks great!! cant wait to hear how it works..



[chickenhead]

Thanks! Im going to seal up all of the gaps and season it today. Think I'm going to throw in some ribs this weekend



[jarjarchef]

Great job....

If I ever build another predone smoker I will use a lot of what you did.

Keep up the creative work..



[nparcher]

So how well did it all work? Good flow? Even heat? Brick the bottom?



[nparcher]

Also, how did you do your drip pan? What I mean is, I'm assuming it lifts out easily (see handles), and that it acts as your baffle/plates. So is it tapped to take drip tube and you must unscrew it to remove pan or what? Thanks btw, looks great.



[JckDanls 07]

So how well did it all work? Good flow? Even heat? Brick the bottom?

:yeahthat:



[nparcher]

How does firebox lid open?



[bsnemo]

This looks

Here is how I did it. I first had to lower the firebox...


• chickenhead
• Nov 13, 2012

I made a plate to relocate the firebox lower and block off the chamber enough to clear the plate.


• chickenhead
• Nov 13, 2012


• chickenhead
• Nov 13, 2012


• chickenhead
• Nov 13, 2012

Cut the main body lower for the new location of the firebox.


• chickenhead
• Nov 13, 2012

Farmed out the RF plate/pan...before drain hole.


• chickenhead
• Nov 13, 2012

Used the rails that the charcoal grates sit on...


• chickenhead
• Nov 13, 2012

Block off plate for the stack..


• chickenhead
• Nov 14, 2012

3/4 drain through pan w/ ball valve.


• chickenhead
• Nov 14, 2012

Done...


• chickenhead
• Nov 14, 2012

This looks great how do you like the results?



[daveomak]

Looks very good...... Have you fired her up yet ??  What are the results ???   Looks as if you have a winner.....

Dave



[smokin sooner]

I'm new to the world of smoking. Could someone please explain the reasoning behind reverse flow?
