Smoke / Grill House Build

Discussion in 'Smoker Builds' started by fliptetlow, Oct 14, 2012.

  1. fliptetlow

    fliptetlow Smoke Blower

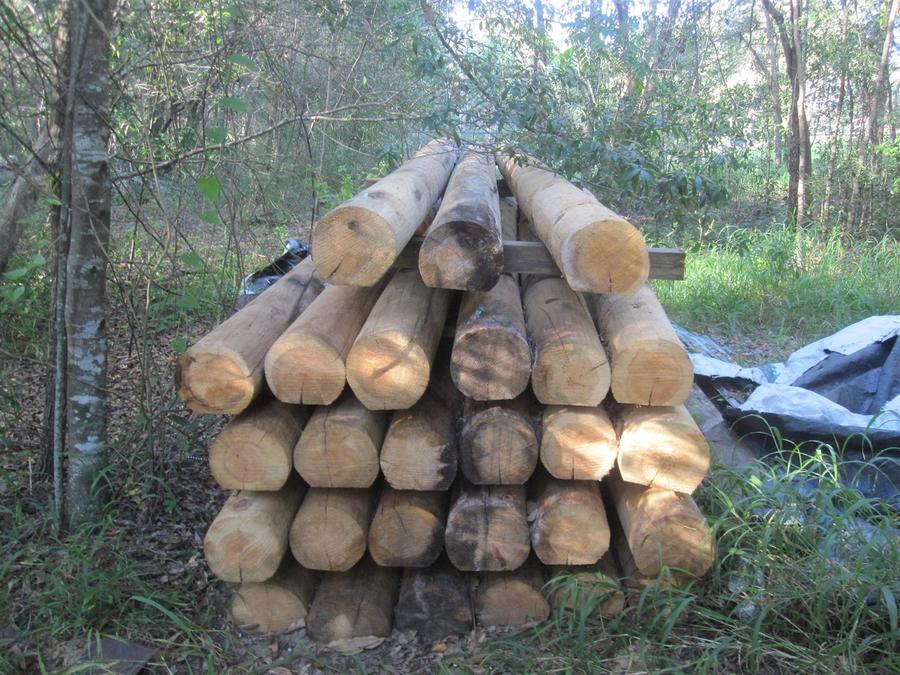

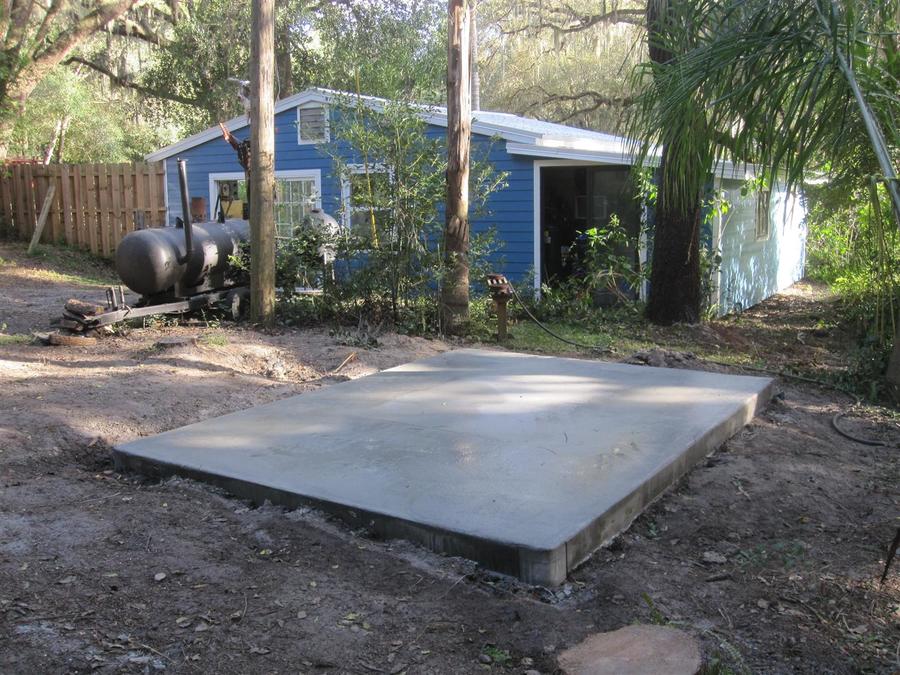

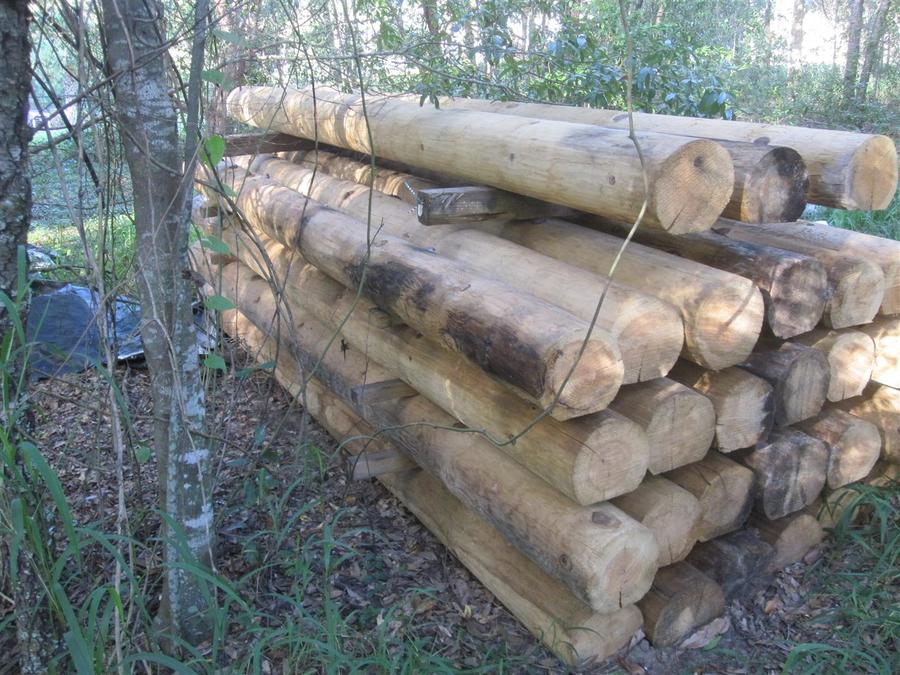

    Doing an outdoor smoke / grill open air building behind my shop / house. Thought I would document here for whoever is interested. Just had the slab poured which is 9’ x 12’ and using some logs from a log cabin build which were extras. Should be able to get most of it framed up this week I hope. Going to put the smoker on one side and have a counter with a sink, propane stove on the other side.

    Will post up pic’s as it goes along.





    rabbithutch likes this.
  2. [​IMG]  I'll be watching this one.

  3. sound1

    sound1 Smoking Fanatic

    Don't forget the man cave stuff..[​IMG]

  4. fliptetlow

    fliptetlow Smoke Blower

    Will have a flat screen and the keg is in the building behind it. [​IMG]

  5. sound1

    sound1 Smoking Fanatic

    Now you're talking!!

  6. fliptetlow

    fliptetlow Smoke Blower

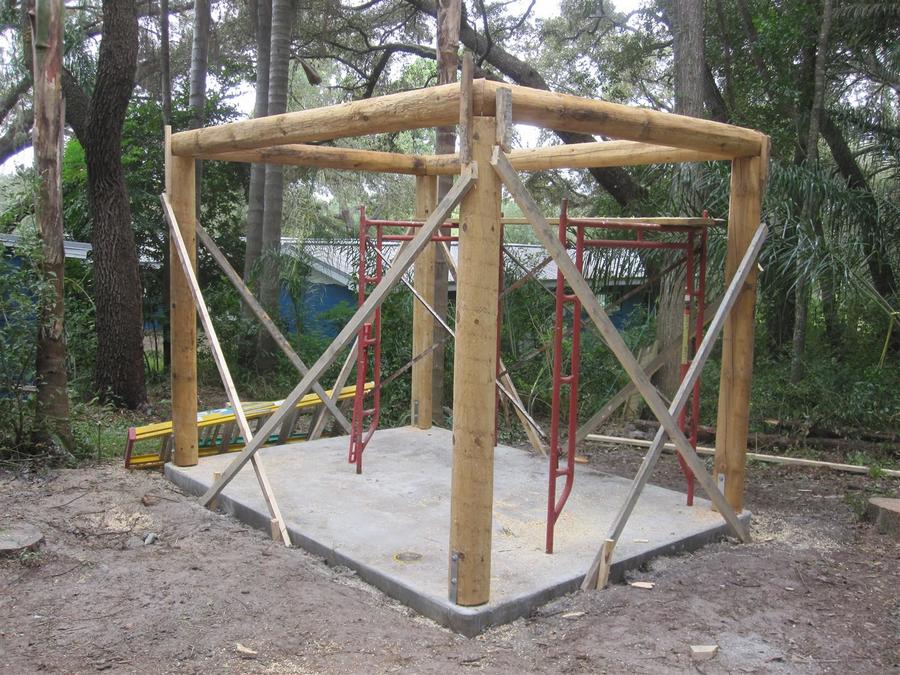

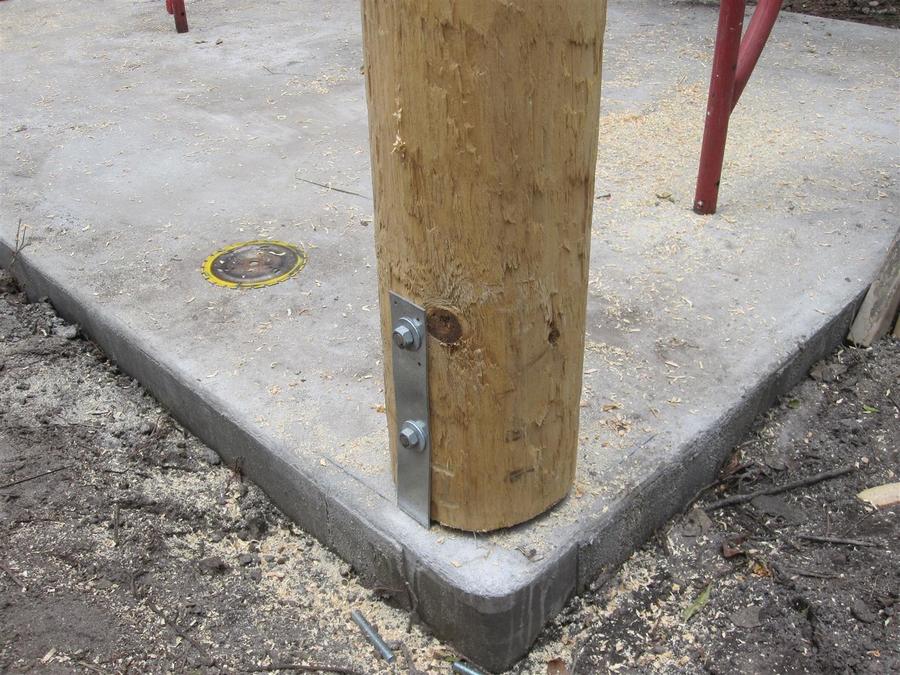

    We got the post up and secured to the slab and the top all cut and installed. Will tie it in all tomorrow when we frame the roof.





    rabbithutch likes this.
  7. shoneyboy

    shoneyboy Master of the Pit OTBS Member

    I like it already !!!

  8. woodcutter

    woodcutter Master of the Pit OTBS Member

    [​IMG]

  9. That is going to be outstanding! I want one!

  10. fliptetlow

    fliptetlow Smoke Blower

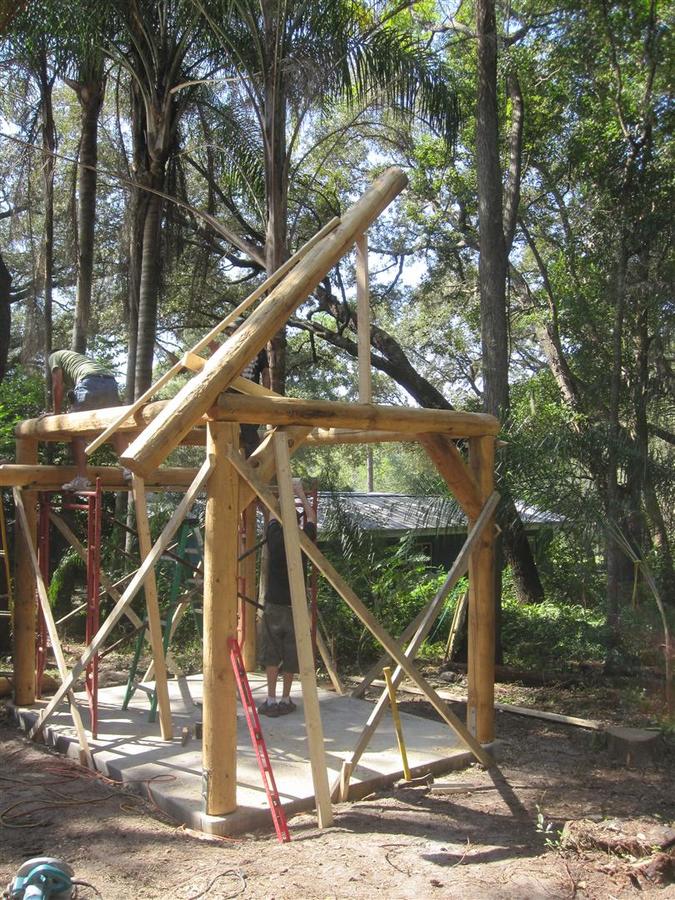

    Lunch time shot, horizontal beams are all ½” lagged together, then attached to columns with 16” x 1” hardwood pins. Hope to have the roof all framed up today.



    rabbithutch likes this.
  11. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Cool build.... I'm in.......    [​IMG]  .....

  12. jimf

    jimf Meat Mopper

    In as well.  This is going to turn out great

  13. fliptetlow

    fliptetlow Smoke Blower

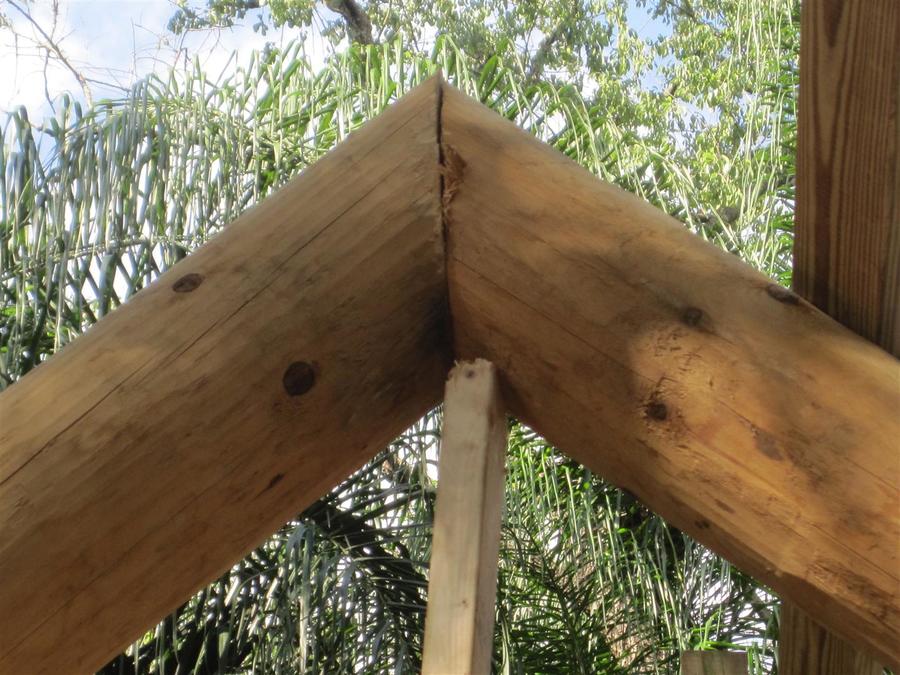

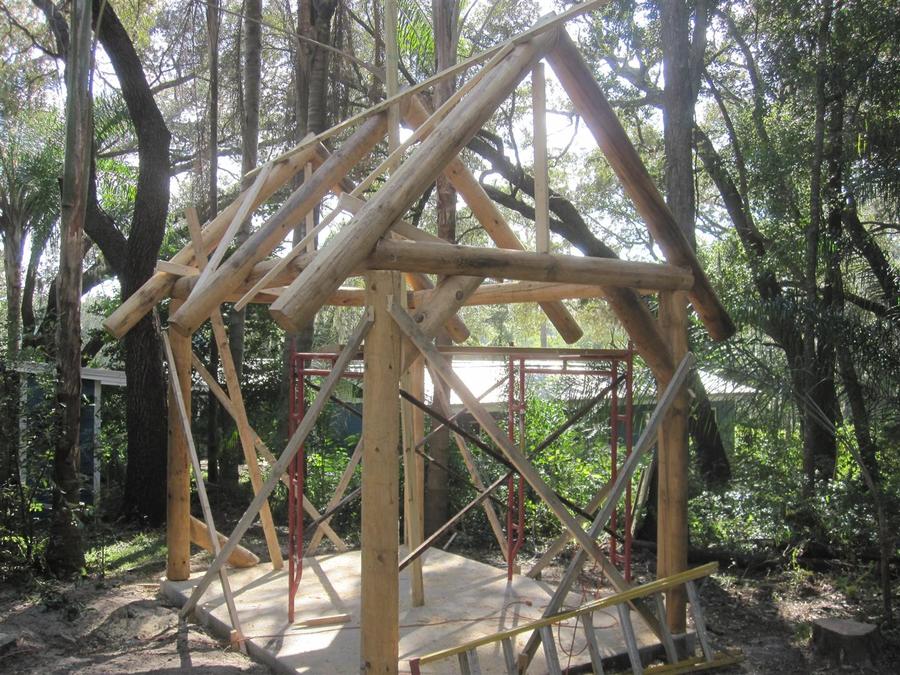

    End of day two of framing, seemed to kick the crews ass doing the roof beams.

    Should be able to get the roof tied in and the galvanized panels up and finish the other 6 corner brackets.

    Turned out to be 14’ tall at the peak.





    rabbithutch likes this.
  14. jimf

    jimf Meat Mopper

    and the most expensive (yet best looking) smoke house goes to.....

  15. sipp

    sipp Fire Starter

    I don't think the AMNPS is going to cut it on this one.

  16. fliptetlow

    fliptetlow Smoke Blower

    The poles were all free, so I'll have about $1,200 in material plus labor. But it's far from done.:)

  17. scarbelly

    scarbelly Smoking Guru OTBS Member

    Looking great so far

  18. Man Cave!  Impressive!! Thanks for sharing, good luck and cant wait to see the completion.... wow!

  19. jckdanls 07

    jckdanls 07 Master of the Pit Group Lead OTBS Member

    I'm subscribed... liking this...
