Question about heat element placement.

bill1

Smoking Fanatic
857
297
Joined Apr 25, 2015
Took a break.
Taxidermist called and my Pronghorn is ready.
Love it! Great pose. But hope your mantle is strong enough to hold it? My mantle is mounted off just 3 bricks that jut out from the masonry...wouldn't trust it to a considerable long-term static load and definitely not a seismic one.


texbowhunter316

Meat Mopper
151
43
Joined Oct 31, 2014
Thanks Bill. Its been a lot of work but I hope to get lots of use out of it.
The Pronghorn mount was surprisingly light.
I have one of those threaded latches that go through the brick and screws tight. I did miss with the first drilled hole. Hope the wife doesn’t look behind the mount!!!!


texbowhunter316

Meat Mopper
151
43
Joined Oct 31, 2014
I wonder how much heat escapes from the doors when you don’t have a seal around it?
I need to go put that on now. It’s been a long day at work.


bill1

Smoking Fanatic
857
297
Joined Apr 25, 2015

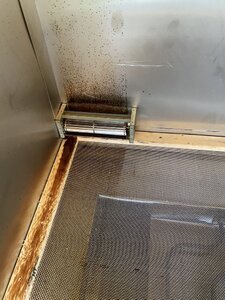

Anyone with a fan experience this?
Seems excessive for the first smoke.
I think most cookers that are designed to force a little more smoke flow around the food (for both flavor and heating/cooking efficiency) mount a bladed fan at the top. But nothing wrong with squirrel-cage fan like this.

I suspect the splatters are fat splatters...food drips are hitting the blades and getting thrown back like a spray. (With time, the blades would get so coated the air movement would be compromised or the motor would have trouble starting.) Cure would be to build a "roof" over the top of it. A simple, solid sheet of steel, slated from the wall down to the center, would keep the drips off the fan below. However it would also block or re-direct the air/smoke flow in a direction you may not like. So you could put slots down the slant angle of the "roof" so the air/smoke can pass through. Make the slots use up ~40% of the roof area. But then 40% of the drips would still get through. So build a 2nd "roof", just like the first, and spaced an inch above it, but shifted laterally so that any liquid that goes through a slot on the first hits the 2nd at a solid steel section and rolls off like most on the top roof. Air/smoke, unlike liquids, will have no trouble following a slightly jogged path through the 2 staggered roofs.

OTOH, perhaps those splatters are what popularly gets labeled as creosote here. In other words, it's part of the smoke-producing chemical process you've got going. But I doubt it. The color would be blacker in that case.


texbowhunter316

Meat Mopper
151
43
Joined Oct 31, 2014
Bill, this was the first smoke. It was a dry run with no meat. It may be the creosote. I was using mesquite pellets if that matters. The good thing is that the fan blades pop right out. It should be easy to clean.

Last edited:

JckDanls 07

Smoking Guru
OTBS Member
Group Lead
6,164
769
Joined Sep 10, 2011
Now try a dry run with no fan... see if the pellets keep going and produce a smoker full of smoke ....


texbowhunter316

Meat Mopper
151
43
Joined Oct 31, 2014
I’ll give it a go tomorrow with the fan off JD, but 2 dry runs is almost un-American. Next I’ll be reading instructions.


texbowhunter316

Meat Mopper
151
43
Joined Oct 31, 2014

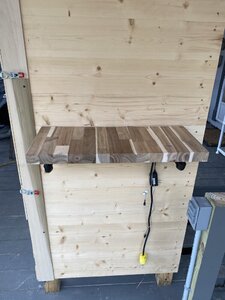

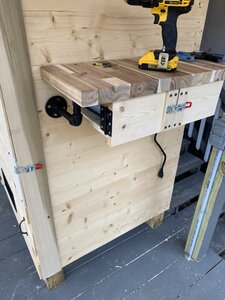

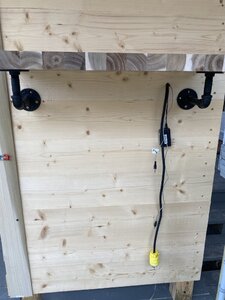

Trying to use up my extra lumber.
I’m going to leave the one side open for the WiFi signal.


Attachments

bill1

Smoking Fanatic
857
297
Joined Apr 25, 2015
Trying to use up my extra lumber.
I’m going to leave the one side open for the WiFi signal.

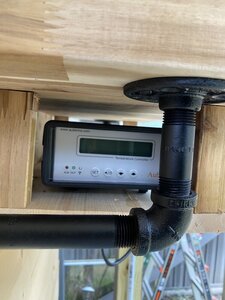

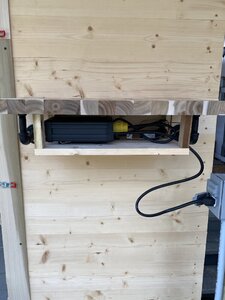

Keep an eye on those Auburn electronics. Not a lot of air flow there so you don't want that chassis getting hot.
Wood is fairly transparent to wifi RF signals but I like the idea of keeping that lower shelf open just to keep the electronics cool. And accessible.


texbowhunter316

Meat Mopper
151
43
Joined Oct 31, 2014

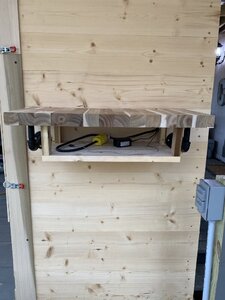

Thanks bill1, it was raining yesterday as I was working on the shelf so I thought I’d box it in. I left the front open, the back has 2 vent holes and the face of it is hinged to get the PID out, so I can run with it open if I need to. Sounds like I probably will need to.
It’s all just finish work now. I hope.
I’m building another rack similar to the bottom one now.

Last edited:

texbowhunter316

Meat Mopper
151
43
Joined Oct 31, 2014
Now try a dry run with no fan... see if the pellets keep going and produce a smoker full of smoke ....
JD. It seems that small mesh and board frame is interfering with the smoke flow. Or am I over thinking it again?
Sure wanted that stainless mesh for a jerky rack.


texbowhunter316

Meat Mopper
151
43
Joined Oct 31, 2014
JD. It seems that small mesh and board frame is interfering with the smoke flow. Or am I over thinking it again?
Sure wanted that stainless mesh for a jerky rack.
This question didn’t quite come out right
Sounds a little silly actually.

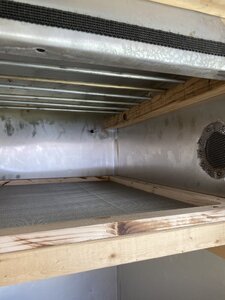

I ran the fan after a while and it wasn’t smoking as much. The frame for the rack is directly in the air flow on the back corner.
