Propane burner smokehouse w/ yellow flame

[Rjn500]

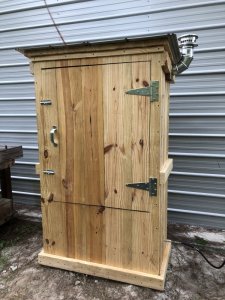

My smokehouse heats nicely but it’s producing soot.
Opened my Venturi no change
Is it possible that the not enough oxygen for a blue flame?
On a 35000btu burner, is Venturi gettin enough oxygen with a 4x8 registrar intake vent

Any help would be appreciated

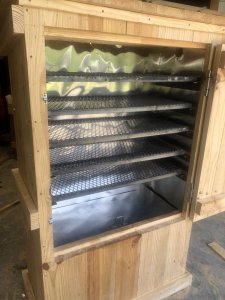

Note: my heat diffuser has 1/2” holes ever 2 inches ( not shown in front pic



[Rjn500]

Thanks in advance for and suggestions



[drdon]

Can't help you there, but I wanted to let you know that's a nice looking setup you have there.



[zwiller]

That appears to be high pressure burner and needs high pressure regulator which are less common/most are low pressure. Familiar with burners as I am a homebrewer and concerned that one could be too much BTU for a smoker. https://www.bayouclassicdirect.com/bayou-classic-high-pressure-cast-aluminum-burner-al10/



[gmc2003]

Here's a thread on that subject:

https://www.smokingmeatforums.com/threads/yellow-flame-on-masterbuilt-7-in-1.138031/

Hope it helps.

Chris



[HalfSmoked]

Have you used this burner with no problems before?
If so then a good cleaning is in order.

Warren



[dirtsailor2003]

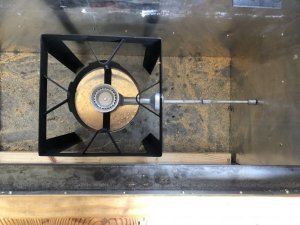

Just a quick look at your build ans I want to know where your low air intake is into the smoker? and how big is it? From the looks of it there isn't any. A propane smoker/house needs a good air intake down low.

For the size of burner that you are using and the small smoker size you're going to need a good amount of intake air.

You say that your heat diffuser has holes but I cannot see any intakes below your burner.

I wouldn't use this until you get a good air intake below the burner.



[daveomak]

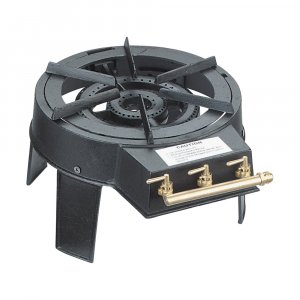

I would change out the burner... This one has 3 separate controls for the 3 rings...
That burner is too big... Too many BTU's...


Burner


.....
