Pig Roaster Build Help Needed

Wickers48162

Newbie
4
3
Joined Apr 21, 2021
SE Michigan here...looking for advise on building pig roasters...

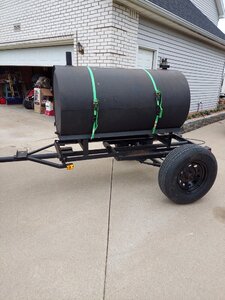

I recently obtained a project that I'm anxious to fished for a B-day celebration in May. This 200 gallon tank measures 32" x 60", has hinges mounted, drain in the bottom & exhaust ports on top. I want to install propane burners, but don't know what I need. I think I want to mount a couple 30 lb. tanks to the front for fuel. Please help! Eventually, I'll install a rotisserie as time permits....


Attachments

JC in GB

Master of the Pit
SMF Premier Member
2,671
1,661
Joined Sep 28, 2018
Are you trying to install pre-made burners or wanting to craft them yourself?

I saw a poster here that made his own burners for a Santa Maria grill. I can't remember his name.

This may be just what you are looking for. Making a home made burner is not that difficult with some basic tools.

A drill press would make the chore even easier.

JC :emoji_cat:


Wickers48162

Newbie
4
3
Joined Apr 21, 2021
JC...ty for your reply. If I could fab them myself, I'd love to.....never thought about that....any idea about hole size & spacing for I assume a high pressure propane system?


SmokinEdge

Master of the Pit
SMF Premier Member
1,214
763
Joined Jan 18, 2020
JC in GB JC in GB has you covered for diy.
If you don’t want to go that route, give the folks at Tejas Smokers a call. Tell them what you want to do and they can recommend what will work and supply you with the burners needed.
https://tejassmokers.com/


tx smoker

Master of the Pit
OTBS Member
★ Lifetime Premier ★
4,763
6,169
Joined Apr 14, 2013
I want to install propane burners, but don't know what I need.
I've converted several smokers to propane. Big question: are you looking to have propane as your heat source and have smoker wood in a pan above the burners for smoke or are you just looking to use the propane as a fire starter for logs? My current smoker is what's known as a T-Pit. I have 2 low pressure 6" burners in the bottom of the firebox. There is a rack sitting over the burners that I put a stainless steel pan on with the smoker wood in it. The propane is run through a micro adjustable needle valve so temps can be regulated down to a degree or two of exactly where you want them to be. If you're using portable tanks you'll need to run high pressure burners. I converted two previous offset smokers to run the same way as the T-Pit but they were hooked to tanks and high pressure burners.

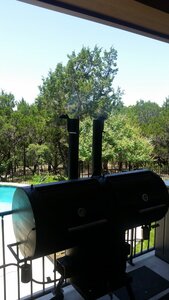

You can see the gas line coming in from the left, the knob for the needle valve directly under the vent, and beautiful TBS. This works like a dream.


The burners, rack, and stainless steel pan with the smoker wood in it

Got a nice brisket going


My target temp when I'm doing briskets is 275. You can dial in in and it'll pretty much sit there all day.



I saw a poster here that made his own burners for a Santa Maria grill. I can't remember his name.
There may have been somebody else that has done the same thing but I did post this after I got it all done.



The level of flame is adjustable with the valve. This is wide open


Getting ready to fire it up


Hope this helps at least a little bit....
Robert


Attachments

JC in GB

Master of the Pit
SMF Premier Member
2,671
1,661
Joined Sep 28, 2018
I've converted several smokers to propane. Big question: are you looking to have propane as your heat source and have smoker wood in a pan above the burners for smoke or are you just looking to use the propane as a fire starter for logs? My current smoker is what's known as a T-Pit. I have 2 low pressure 6" burners in the bottom of the firebox. There is a rack sitting over the burners that I put a stainless steel pan on with the smoker wood in it. The propane is run through a micro adjustable needle valve so temps can be regulated down to a degree or two of exactly where you want them to be. If you're using portable tanks you'll need to run high pressure burners. I converted two previous offset smokers to run the same way as the T-Pit but they were hooked to tanks and high pressure burners.

You can see the gas line coming in from the left, the knob for the needle valve directly under the vent, and beautiful TBS. This works like a dream.
View attachment 493511

The burners, rack, and stainless steel pan with the smoker wood in it
View attachment 493512
Got a nice brisket going
View attachment 493514
View attachment 493515
My target temp when I'm doing briskets is 275. You can dial in in and it'll pretty much sit there all day.
View attachment 493519




There may have been somebody else that has done the same thing but I did post this after I got it all done.
View attachment 493520
View attachment 493516

The level of flame is adjustable with the valve. This is wide open
View attachment 493517

Getting ready to fire it up
View attachment 493518

Hope this helps at least a little bit....
Robert
tx smoker tx smoker yes, this was the post I was thinking of.

Some great ideas here already to help with a pig roaster build.

JC


Wickers48162

Newbie
4
3
Joined Apr 21, 2021
tx smoker tx smoker yes, this was the post I was thinking of.

Some great ideas here already to help with a pig roaster build.

JCI
OMG.....you guys are awesome! Since visiting earlier in the day, I've found out that I could build my own pipe burner, as long as the propane/oxygen venturi is available to purchase. Sadly, they are not, so I'm kinda lean back towards my original thoughts of using 3 (for the lack of the correct term) turkey pot burners. This kinda goes with TX"s idea of using a ss pot above them to place wood chips in. It also sounds like a high volume regulator would be required. Of course, I'd fab deflection trays so the grease wouldn't drip onto the burners....
