Watching, I recently built a PID controlled heat treat oven (same as a smoker, only gets way hotter….. saved tons of money this is a great thread!



[WV_Crusader]

When I first got into smoking with a 30 gallon UDS I made one of these and it worked great for long cooks when I had to ho to work or needed to be away from it longer than I should. Still have it for a rainy day.



[GaryHibbert]

Great thread, JC. This will be a huge help to a lot of members. Unfortunately I'm way beyond Electrically Challenged--more like Totally Electrically Illiterate. My PID recently died, so now I have to figure out what you just told me.
Gary



[OldSmoke]

Great writeup!

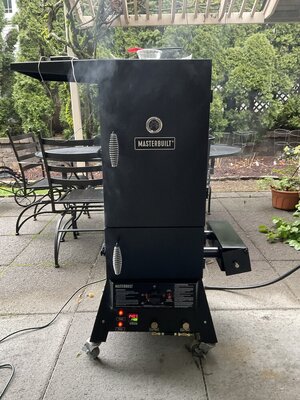

I made this modification to my Masterbuilt cabinet smoker. It really improved my smokes with consistent temperature. A fun and worthwhile project!



[indaswamp]

Great writeup!

I made this modification to my Masterbuilt cabinet smoker. It really improved my smokes with consistent temperature. A fun and worthwhile project!

Got a link to a build thread on SMF?



[OldSmoke]

Got a link to a build thread on SMF?

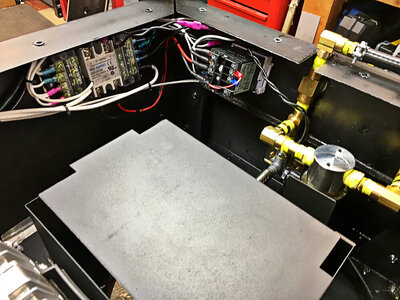

I have, but it is in several threads. I built it in stages, first the wind skirt, then the smoke generator, then the convection fan and PID. It’s an abomination of a smoker. But, damn, if it doesn’t work!



[JC in GB]

Just added some more information and parts to the thread.

Let me know if there is anything else you might want to know or other parts that need sourcing.

JC



[JC in GB]

Watching, I recently built a PID controlled heat treat oven (same as a smoker, only gets way hotter….. saved tons of money this is a great thread!

Yes, these controllers are really versatile for nearly any industrial process. With the proper controller and thermocouple, these can also be used for ceramic kilns.

JC



[pineywoods]

When I click on the link for the aluminum enclosure it's very reasonable at 14.87 but the 47.26 shipping is over triple the cost of the enclosure.
What forms of payment do they accept??



[forktender]

JC in GB
Will these work for a fan stoker unit?

https://www.amazon.com/REX-C100-Digital-Temperature-Controller-Thermocouple/dp/B07JKZHTJQ

https://www.amazon.com/Twidec-Temperature-Controller-Stainless-Thermocouple/dp/B07QN33FFB/ref=pd_day0fbt_img_sccl_1/130-5053839-4803927?pd_rd_w=CbCDc&content-id=amzn1.sym.a400618b-650b-4c39-a4fe-66c3e0813a14&pf_rd_p=a400618b-650b-4c39-a4fe-66c3e0813a14&pf_rd_r=98GABK6G90GRHF13BSP9&pd_rd_wg=FCUbM&pd_rd_r=78614f65-4adc-4335-9485-e8ff598e8ffb&pd_rd_i=B07QN33FFB&th=1

I realize it comes with a thermocouple, I just like the longer one better.
Thank you.
Dan.



[JC in GB]

JC in GB
Will these work for a fan stoker unit?

https://www.amazon.com/REX-C100-Digital-Temperature-Controller-Thermocouple/dp/B07JKZHTJQ

https://www.amazon.com/Twidec-Temperature-Controller-Stainless-Thermocouple/dp/B07QN33FFB/ref=pd_day0fbt_img_sccl_1/130-5053839-4803927?pd_rd_w=CbCDc&content-id=amzn1.sym.a400618b-650b-4c39-a4fe-66c3e0813a14&pf_rd_p=a400618b-650b-4c39-a4fe-66c3e0813a14&pf_rd_r=98GABK6G90GRHF13BSP9&pd_rd_wg=FCUbM&pd_rd_r=78614f65-4adc-4335-9485-e8ff598e8ffb&pd_rd_i=B07QN33FFB&th=1

I realize it comes with a thermocouple, I just like the longer one better.
Thank you.
Dan.

Yes that would work for controlling an AC electrical load. That is also the correct thermocouple for the controller.

JC



[JC in GB]

When I click on the link for the aluminum enclosure it's very reasonable at 14.87 but the 47.26 shipping is over triple the cost of the enclosure.
What forms of payment do they accept??

I use my debit card. Some people have had issues. I have never had problems.



[JC in GB]

When I click on the link for the aluminum enclosure it's very reasonable at 14.87 but the 47.26 shipping is over triple the cost of the enclosure.
What forms of payment do they accept??

I have enclosures for these available. All cut and ready for a controller. $30 plus shipping.

JC



[Colin1230]

Great thread JC. In the natural gas industry we used PID loops to control almost everything. Some examples of the process variables are pressure, temperature, flow, volume, engine speed, valve position, etc. Compressor Stations and Pipeline Interconnects were all controlled remotely with Bristol Babcock PLC's via SCADA system in Gas Control. It is incredible how far automation has come.



[forktender]

Yes that would work for controlling an AC electrical load. That is also the correct thermocouple for the controller.

JC

Awesome, I just ordered it.
Thanks a bunch.



[JC in GB]

Great thread JC. In the natural gas industry we used PID loops to control almost everything. Some examples of the process variables are pressure, temperature, flow, volume, engine speed, valve position, etc. Compressor Stations and Pipeline Interconnects were all controlled remotely with Bristol Babcock PLC's via SCADA system in Gas Control. It is incredible how far automation has come.

My first dealings with PI loops were at Kohler Generator. I was on a team designing a true RMS voltage regulator for the Kohler gensets. I don't know if they are still using the design but it was really tight. < 1% drift -40 F to 125 F

JC
