new air tank for reverse flow

Discussion in 'Smoker Builds' started by smokn ring, Apr 9, 2014.

  1. smokn ring

    smokn ring Newbie

    is this a  good tank and what to do to area where valves are located.

    Last edited: Apr 9, 2014
  2. smokn ring

    smokn ring Newbie

    CAN ANYONE TELL ME THE PROS AND CONS OF USING A ROUND OR HALF MOON SHAPE  FO FB TO CC

  3. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    If you cut a half moon, the diameter of the CC for the opening..... That will give you the most effective use of space..... allowing for a lower RF plate and more room for food racks....

  4. smokn ring

    smokn ring Newbie

    WHAT IS THE BEST WAY TO CUT HALF MOON IN MY 110 GAL TANK.HOW TO MEASURE WHERE TO MAKE CUT

  5. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    What are the dimensions of the tank....... OD diameter... wall thickness.... distance between welds..... total length...

    and small case letters are easier to read..... thanks...... Dave

  6. smokn ring

    smokn ring Newbie

    my tank is 110 gal

    od ..24

    ol ...62

    between welds..46

    shth  .187

    hdth    .187

    Last edited: May 3, 2014
  7. smokn ring

    smokn ring Newbie

    Looking forward to building my first reverse. Flow smoker.

  8. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

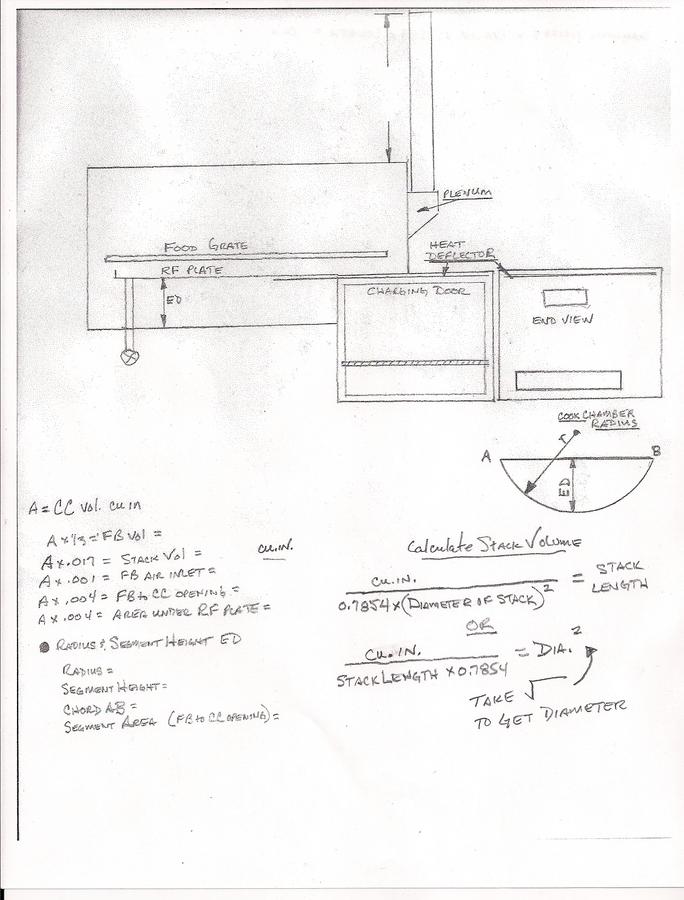

    Be sure to calculate the volume of the tank because labels can be propane volume or water volume and propane is only filled 80%....

    ...click on pics to enlarge.....


    http://www.1728.org/circsect.htm

    Last edited: May 4, 2014
  9. smokn ring

    smokn ring Newbie

     been working on my calculations and this is what I have. hope I'm on the right track.

     110 gal tank

     cc vol                         25410

    firebox                        8470 at  103.9%

                                       22x20x20

     inlets rd   2                 26.40

    chim                            4 in

    ht                                  35.3

    fb to cc                      70.40

     sediment height        5.10

     radius                        12

     length                       23.01

  10. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Looks like you used Feldon's for the FB/CC opening.... You could have trouble with an overheating FB and a cool CC.....

  11. smokn ring

    smokn ring Newbie

     if I go 1.5 x fb to cc ...1020

     change sed height to    9

      chard      23.23

      would this solve problem.

  12. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Seg. hgt. 6.75" = 104 sq. in.

    chord AB RF plate width 21.5"

    that's what I come up with..... Dave

  13. smokn ring

    smokn ring Newbie

    lets try this again:

     cc                         25410

     fb vol                    8470    at  21x21x21   109%

     fb air inlets           2541  ( 2)  5 x3 in    27.78

     fb to cc              101.64  cubic in

     area under cook plate101.64 cubic in

    radius 12

    sed hgt

    thanks dave for your feed back.im  obviously not calculating volume of

     this  tank right.is there a link that shows how this is done.this may be my first build but it wont be my last.thanks

  14. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    110 gallon tank is 25,410 cu. in. .... 110x231=25410....231 cu. in. in a gallon...


    Now use my calculator......


    25410 x 1/3 = 8470 cu. in. FB size or larger... larger recommended...

    25410 x 0.017 = 432 cu. in. stack volume...... / 0.7854 x 16 (Dia. stack squared 4x4=16) = 34" tall stack x 4" I.D.

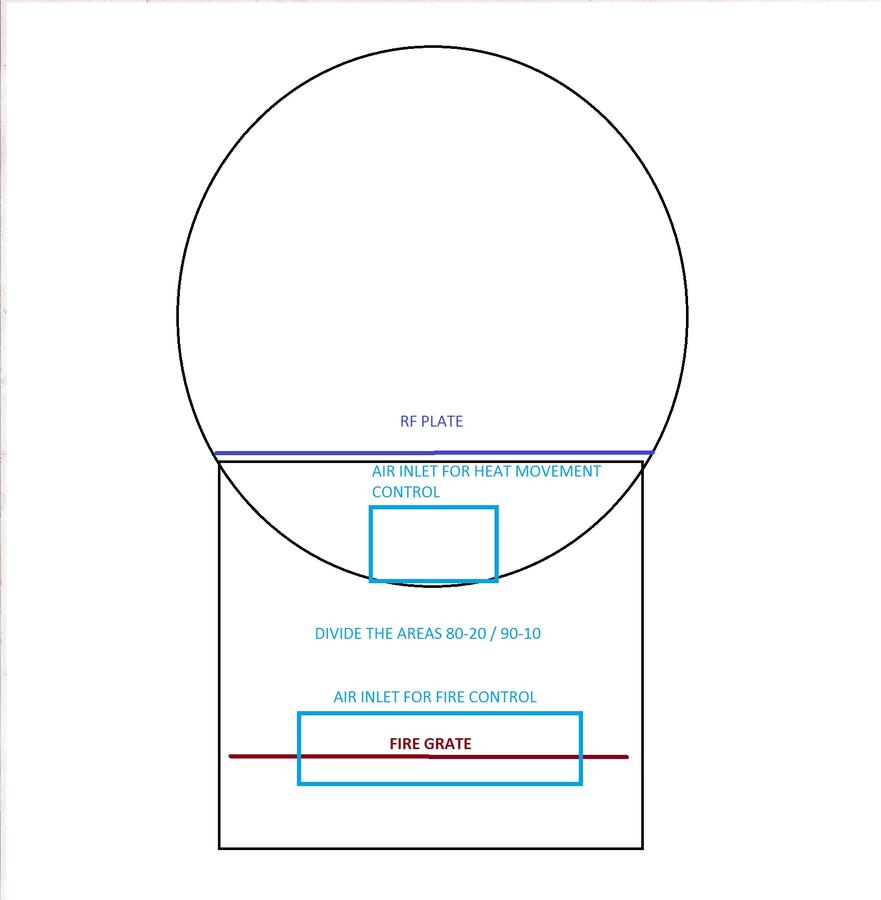

    25410 x 0.001 = 25.4 sq. in. area FB air inlets... I would use 6 sq. in. (3x2) across from the FB/CC opening for the heat mover... and 20 sq. in. (3x2.25) at or below the Fire Grate for adjusting the heat output of the fire.... or something similar.....

    25410 x 0.004 = 101.64 sq. in. FB/CC opening and area under the RF Plate....

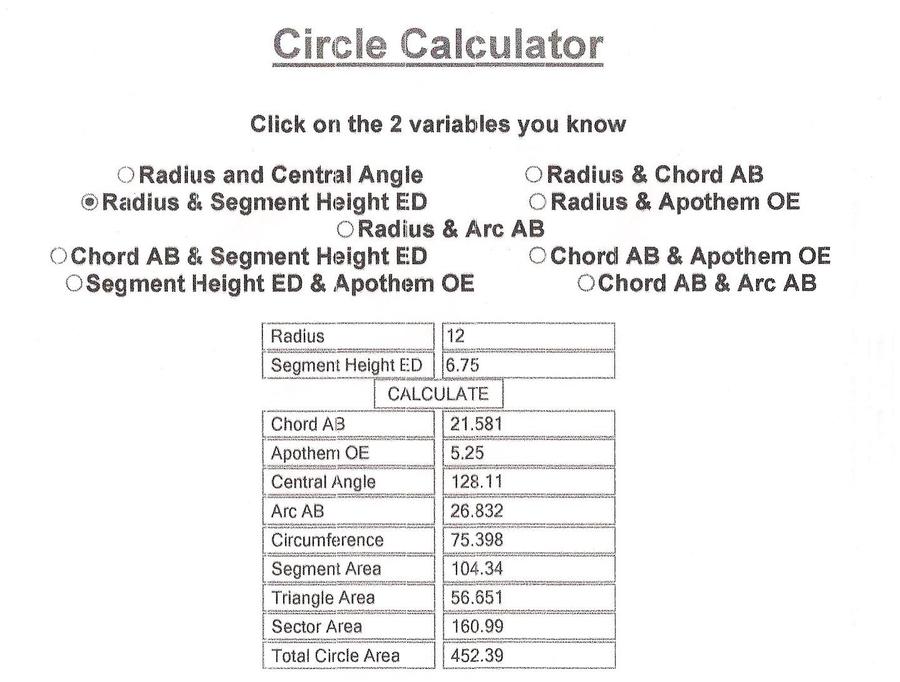

    Click on this calculator to open.....

    http://www.1728.org/circsect.htm

    ... click on pic to enlarge ...

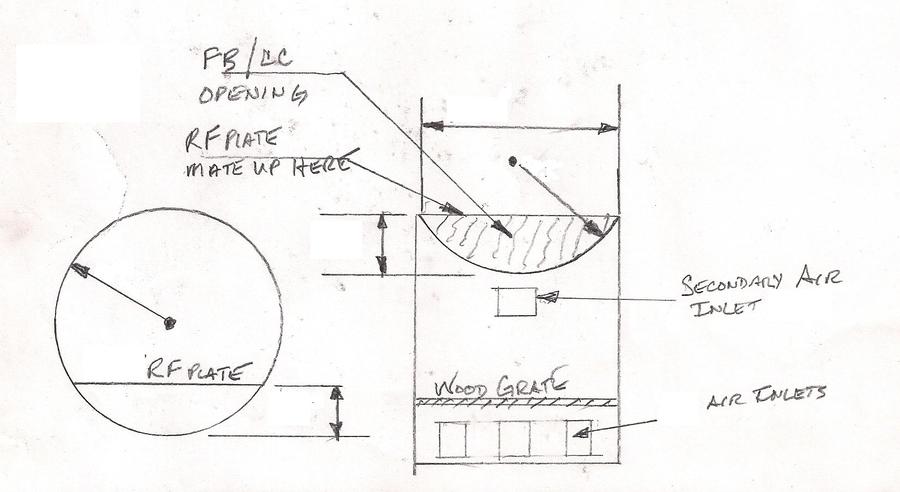

    chord AB is the width of the RF plate
    segment area (104 sq. in.) is the area of the FB/CC opening AND the area under the RF plate if it is 21.5" wide and 6.75" above the bottom of the CC... matching up to the opening on the FB...

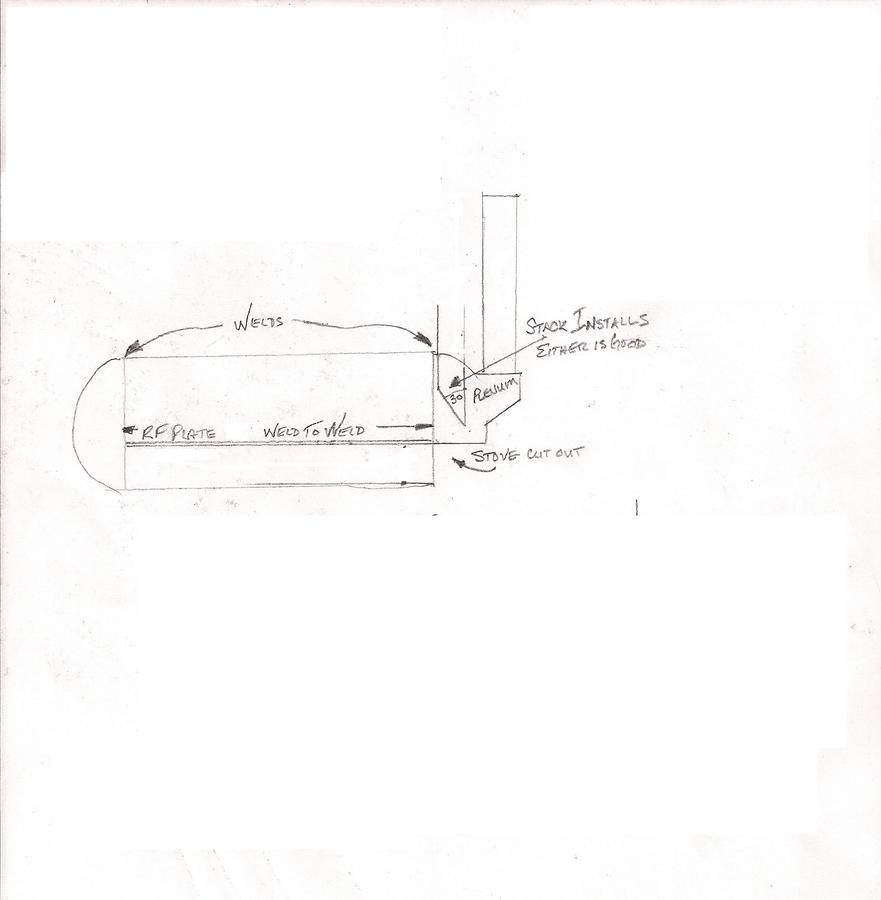

    Leave at least 7" at the end of the RF plate for the heat/smoke to make a 180 degree turn and head back to the exhaust stack.....

    I think that covers everything.... let me know.... I'll be around..... Dave

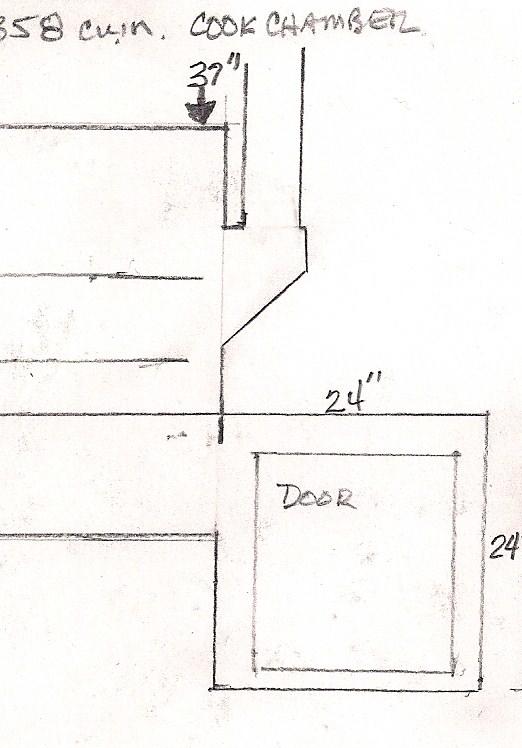

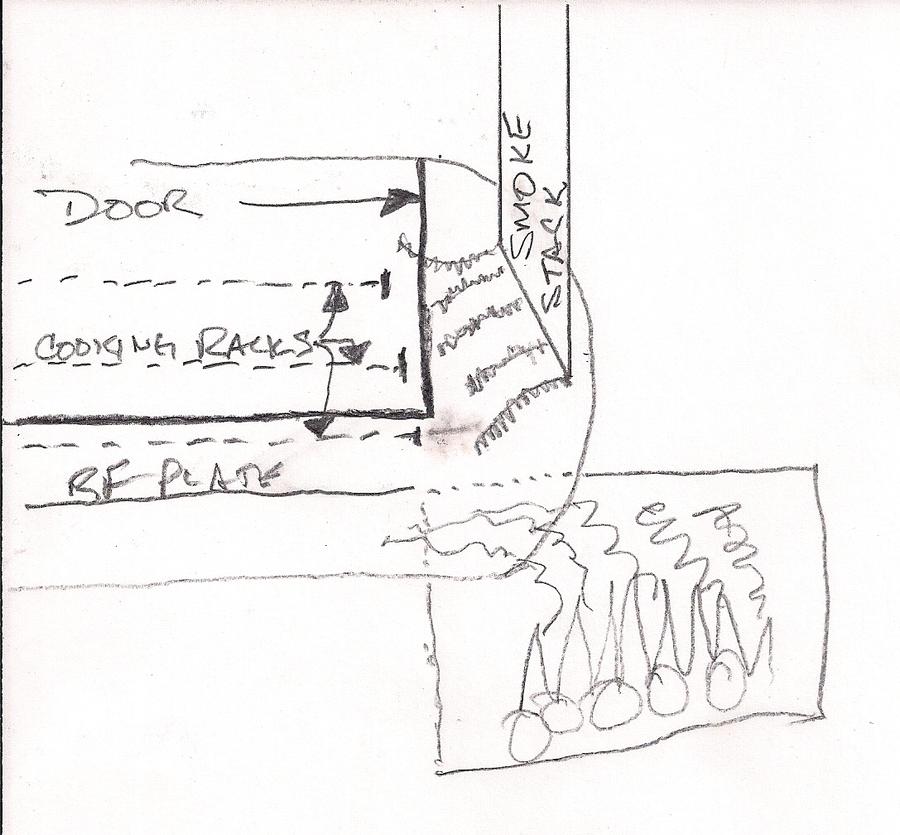

    Smoker parts have many configurations.... here are a couple.... click on any pic to enlarge ...


  15. smokn ring

    smokn ring Newbie

    Finally got her opened up. What is the best way clean out the inside.

    Last edited: Nov 4, 2014
  16. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Soap and hot water.... maybe a car wash... then when you get it all assembled, run it up to 5-600 deg... without meat in it of course.... that will finish cooking off the oils from the mercaptan scent they put in it.... or have it sand blasted...

  17. smokn ring

    smokn ring Newbie

    Why do people use grinders to clean out the inside.

  18. bruno994

    bruno994 Master of the Pit

    Wire wheel on a 4" angle grinder works quite well also, then a good wash out, followed by a good high temp burn as Dave suggested...

  19. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Grinders won't get the oils out of the porosity of the steel... You don't need to get the rust out... It isn't hurting anything.... A coating of vegetable spray or a few cooks of pork butts will help season the inside... After several smokes, the inside will be coated with volatiles from the wood... but the Mercaptans will live forever....

  20. smokn ring

    smokn ring Newbie

    I just checked width and height of my rf plate and the width 21.5 my height is 7in. When I check the height using 6.75 my Width Is 21.0 just want to double check calculations before I proceed
