my 1st reverse flow smoker build

Discussion in 'Reverse Flow' started by bearded mike, Oct 27, 2014.

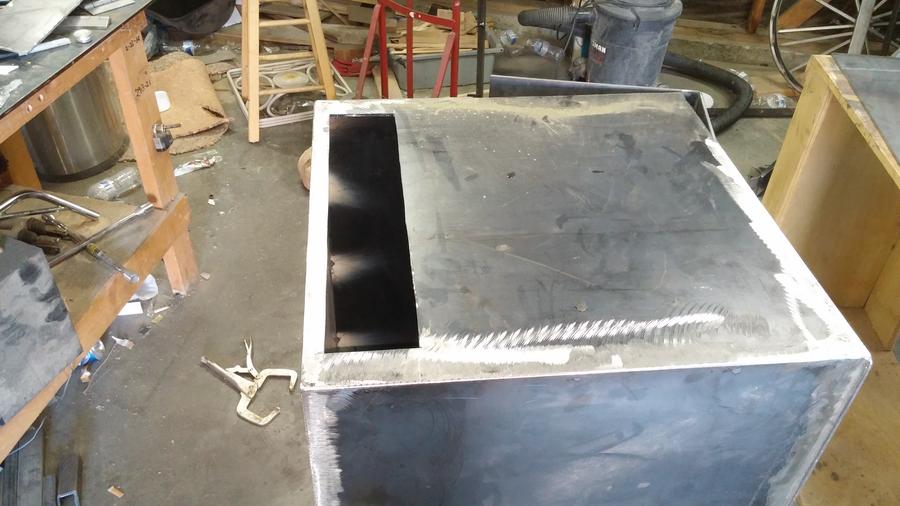

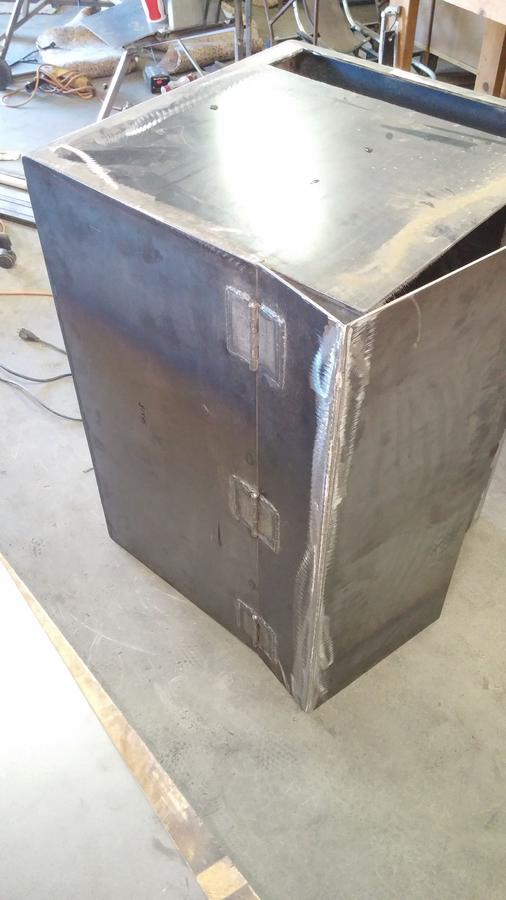

  1. Ok guys, I am new to this forum, I have been reading posts for a couple of year's on here. I finally decided to build my own reverse flow, used feldons calculator, wanted some input on my build. I am building a 36"w x 24" x 24" double racks, 24" x 20" 20" Firebox. 4" x 30" long smoke stack, fb/cc opening 4" x 20", diffuser plate will be 32" long by 24" wide, any advise would be appreciated!

  2. I look forward to watching you build.

    [​IMG]

    Happy smoken.

    David

    bearded mike likes this.
  3.
  4. Some of Feldon's calculations need to be adjusted for an RF, Be sure and post lots of pictures and ask questions as you go "If Needed"

    Gary

    bearded mike likes this.
  5.
  6.
  7.
  8.
  9.
  10.
  11.
  12.
  13.
  14. Need advise on smoke stack, should I go with 4" round pipe 30" long placed at lower grate level, or should I go square? If so what size square and length? Input is needed and appreciated. Thanks

  15.
  16.
  17.
  18.
  19. Ok I'm almost done with my rf build, smoke stack damper installed, fb air intakes installed, ash pan completed, just need to finish fb door latch , and make coal basket. Should be ready for test burn by weekend, wish me luck
