Mailbox/ammo box mod question

Canadagrown

Fire Starter
SMF Premier Member
52
20
Joined Feb 5, 2019
I see lots of posts on builds where guys vent smoke from the mailbox into the fridge with piping of some kind. My question is, why not mount the mailbox to the fridge and drill holes allowing the smoke to travel directly from the mailbox into the smoker. To be more specific, drilling holes from the mailbox into the smoker where it is attached? This seems more simple but I’m guessing there is a reason for the more complicated piping system


tallbm

Master of the Pit
OTBS Member
★ Lifetime Premier ★
4,759
1,870
Joined Dec 30, 2016
I see lots of posts on builds where guys vent smoke from the mailbox into the fridge with piping of some kind. My question is, why not mount the mailbox to the fridge and drill holes allowing the smoke to travel directly from the mailbox into the smoker. To be more specific, drilling holes from the mailbox into the smoker where it is attached? This seems more simple but I’m guessing there is a reason for the more complicated piping system
Hi there and welcome!

I think there is nothing wrong with your approach. I feel like most people fall into 2 categories with the piping:

1. They want a longer travel for the smoke to reduce the amount of heat and creosote that makes it into the smoker
2. Its easier to set on the ground and they don't want to drill into their smoker.


I fall into a #3 other category. Mine is super compact, efficient, and one piece i can move with ease which really helps when a flame up happens. I can just put on an oven mitt and remove my whole mailbox mod unit in one shot and let if flame out on the porch away from the smoker.
Plus i love how modular and easy it is to remove and add mine since i built it that way :)


Last edited:

thirdeye

Master of the Pit
SMF Premier Member
1,375
1,392
Joined Dec 1, 2019

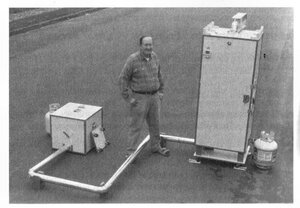

Here is a perfect example of a portable system from the Smoking book by Warren Anderson.



Canadagrown

Fire Starter
SMF Premier Member
52
20
Joined Feb 5, 2019
How do some of you attach the ducting or pipes to the smoker? And what do you use fit the pipe/ducts? I’m looking for something that looks good and is functional.


Lonzinomaker

Meat Mopper
253
91
Joined Mar 8, 2018
The exhaust pipe I used was a real tight friction fit. I did use some red high temp silicone gasket maker to seal it also.


zwiller

Master of the Pit
OTBS Member
2,287
937
Joined Nov 16, 2016
Not sure if dust was available at the time the mailbox box was created but I ran several cold smoking tests with the AMNPS tray running dust inside the MES I found it added no heat. The tray running pellets added about 25F. So there is no real need for the mod. That being said, I wanted a way to manage the tray without cracking the smoker so I decided to mod but I mounted my mailbox directly to me MES. I used the 3 screws that held the loader assembly (no drilling into MES) and works great. I made a cardboard template to line things up before drilling the holes in the MB. Funny now that I just typed this I should probably test and see what the temp difference is...


smokerjim

Master of the Pit
OTBS Member
SMF Premier Member
4,144
1,668
Joined Jan 14, 2014
Could be wrong but I dont think there would be enough draft from a couple of holes to keep amnps lit,


Canadagrown

Fire Starter
SMF Premier Member
52
20
Joined Feb 5, 2019
Not sure if dust was available at the time the mailbox box was created but I ran several cold smoking tests with the AMNPS tray running dust inside the MES I found it added no heat. The tray running pellets added about 25F. So there is no real need for the mod. That being said, I wanted a way to manage the tray without cracking the smoker so I decided to mod but I mounted my mailbox directly to me MES. I used the 3 screws that held the loader assembly (no drilling into MES) and works great. I made a cardboard template to line things up before drilling the holes in the MB. Funny now that I just typed this I should probably test and see what the temp difference is...
do you have any pictures of your setup? Sounds cool.


Canadagrown

Fire Starter
SMF Premier Member
52
20
Joined Feb 5, 2019
Could be wrong but I dont think there would be enough draft from a couple of holes to keep amnps lit,
I’m not sure. I’ve never seen a mailbox mod in action. I just got the idea from on here but it sounds like many have done it successfully. I haven’t got to that point in planning yet but I have a lot of questions about that. Also about ensuring there is enough airflow through the whole cabinet, etc


zwiller

Master of the Pit
OTBS Member
2,287
937
Joined Nov 16, 2016
No pics here but can snap one for you later. Not that impressive really.

Took some trial and error on my part to get it dialed in. My mailbox had 12 small drainage holes that I opened up to 5/8" and then added a large 1" hole in the center before it worked they I wanted. From memory I think it was suggested to drill 2-3 1" holes. Hole in smoker is 3".


pa42phigh

Meat Mopper
197
140
Joined Jan 17, 2016
Mine runs fine and it only has the 7 small mounting holes it came with. It probably depends a lot on the elevation you live at though. My original intention was to drill extra holes but it has never went out and Han nice looking smoke


Canadagrown

Fire Starter
SMF Premier Member
52
20
Joined Feb 5, 2019
Mine runs fine and it only has the 7 small mounting holes it came with. It probably depends a lot on the elevation you live at though. My original intention was to drill extra holes but it has never went out and Han nice looking smoke
Can you explain what you mean by mounting holes? Or if you have any pics?


pa42phigh

Meat Mopper
197
140
Joined Jan 17, 2016
Can you explain what you mean by mounting holes? Or if you have any pics?
The mailbox has some small holes in the btm of it for hooking it to pole maybe I’m not sure what they are for but it came like that

Last edited:

tallbm

Master of the Pit
OTBS Member
★ Lifetime Premier ★
4,759
1,870
Joined Dec 30, 2016
How do some of you attach the ducting or pipes to the smoker? And what do you use fit the pipe/ducts? I’m looking for something that looks good and is functional.

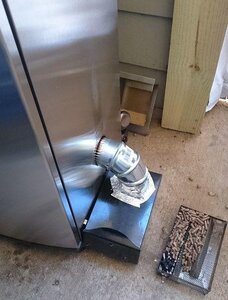

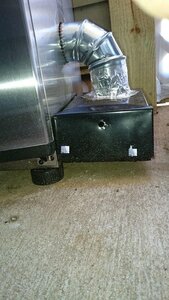

Here is my compact and all 1 piece mailbox mod using only a 3inch elbow joint and a wall hanging mailbox as the main parts:


The elbow joint tapers so no need to "fasten" it to the MES it just plugs in and stops when the taper of the end gets big enough.

The hole on my mailbox is but like a pizza is cut where I bend the "triangle slices" upwards then I use a "pipe" clamp type work tape thingy that fastens those cut pieces metal tightly against the end of the elbow joint that goes into the mailbox. Then I just use high temp foil fluetape to seal it so its air/smoke tight.

I hope this info helps :)
