Heat Balance Help

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

Revelation

Newbie
Original poster
Feb 17, 2023
2
0
I have a new 150 Gallon offset smoker that i am having trouble balancing the heat across the cooking chamber.
the right side of the chamber stays on average 30 degrees hotter than the left side.
the information I can give is:
150 gallon propane tank 84" long - 24" diameter
Fire box insulated 24" diameter with inside diameter basically 23" deep and 18' Round
Throat from firebox into cooking chamber 10" diameter with diffuser flap
Stack is 6" pipe with collector

PLEASE - any help on how to balance temperatures to 5-10 degrees across pit ????

Thank You !!


TNJAKE

Epic Pitmaster
OTBS Member
SMF Premier Member
Nov 26, 2019
10,601
14,432
🇺🇸
Pics of your smoker would help. Tell us how you are setting up intake and exhaust. Also is it traditional offset or reverse flow?

  • Like
Reactions: SecondHandSmoker

Revelation

Newbie
Original poster
Thread starter
Feb 17, 2023
2
0

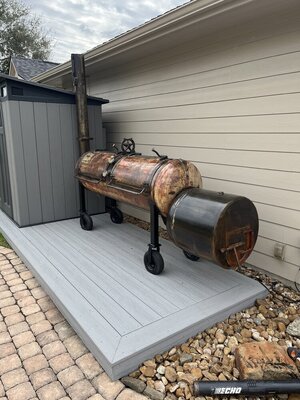

Pic of pit
Been trying to run with stack wide open and door open just as need to raise or lower temp


Attachments

  • 1016BFB9-D825-4B73-AFA0-BD71EC980D74.jpeg
    178.6 KB · Views: 23
