first time build 250 gallon propane tank

[fahrenheit250]


• fahrenheit250
• Aug 17, 2014

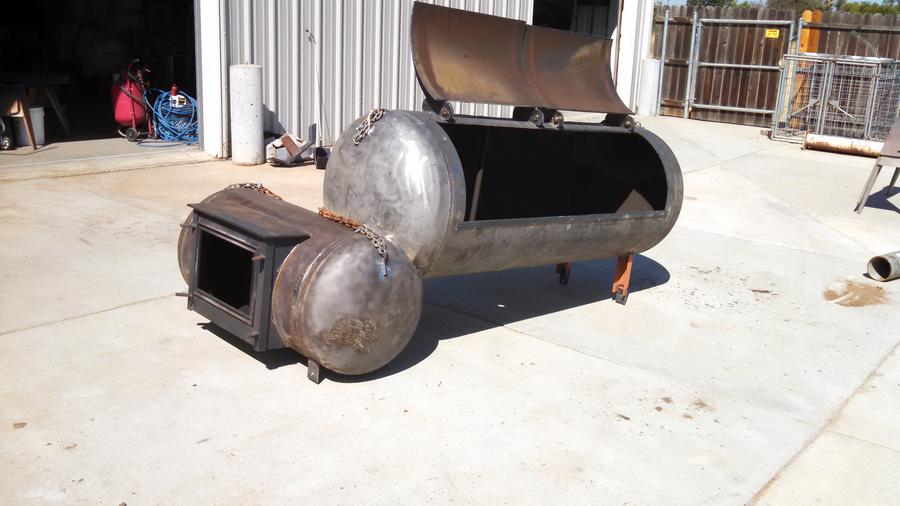

got the doors cut in



[fahrenheit250]


• fahrenheit250
• Aug 17, 2014

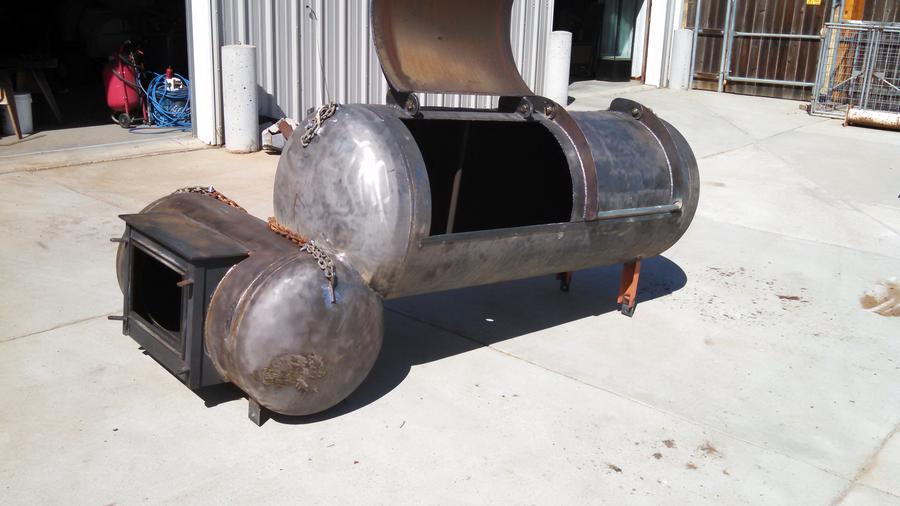

decided not to leave anything in between the doors will just overlap the flat strap from one door to the other in case we decide to cook a whole pig



[fahrenheit250]

The doors don't seem to be that heavy we had talked about putting on counterweights originally but it doesn't really seem necessary I seem them on almost all smokers. Are the doors usually really heavy or is it just to make them very easy to lift



[smokejumper]

"Heavy" is relative. In fact you might have some relatives who think they are heavier than you do.

Counterweights make them easier to lift, but they can also serve another purpose.

A properly designed counterweight and door stop will hold the door up when opened.



[rob sicc]

keep the pictures coming as you progress.  This is fascinating to follow your build.

Thanks for sharing.



[smoke_chef]

This looks like a great build. I can't wait to see more!



[fahrenheit250]


• fahrenheit250
• Aug 21, 2014

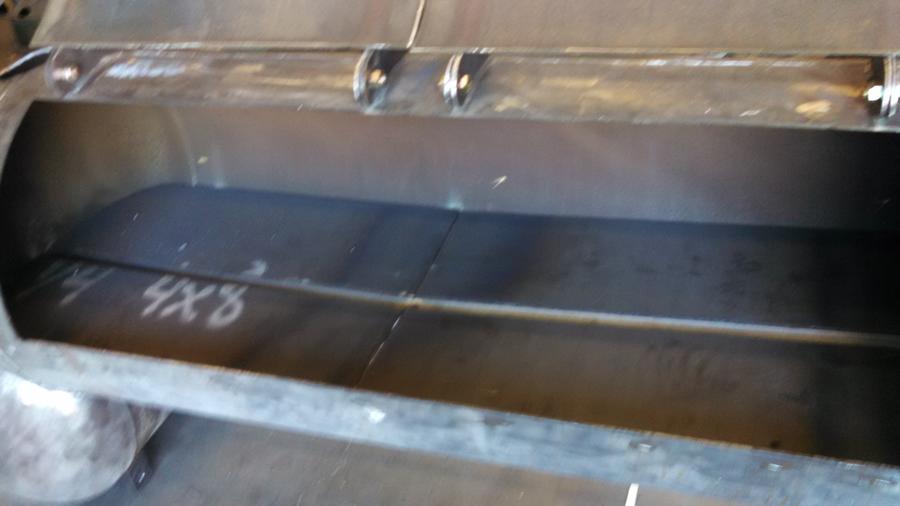

got the rf plate all cut and fitted with good slope for the drain in the center



[fahrenheit250]


• fahrenheit250
• Aug 21, 2014

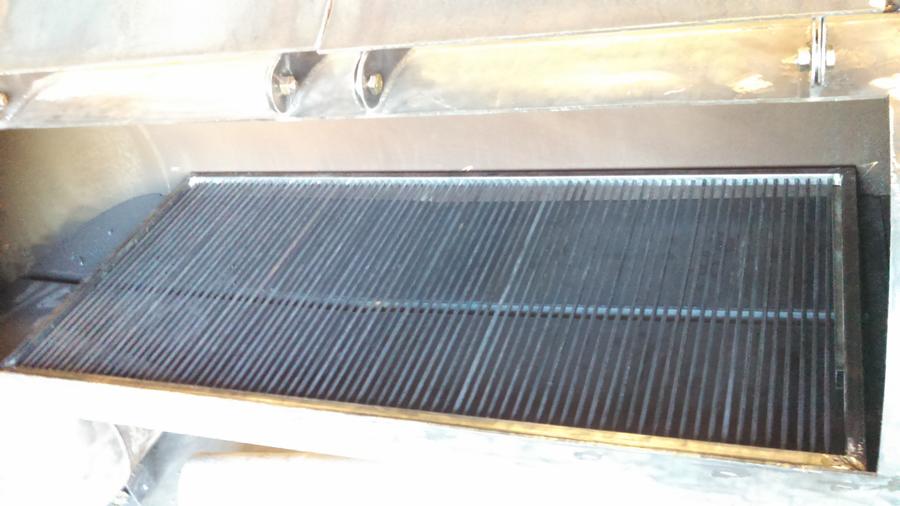

got one rack built still have to make the guides for it and it will have one more rack



[lendecatural]

Very nice, I really like that wood stove front for you firebox. Those are some really ornate doors!



[fahrenheit250]


• fahrenheit250
• Aug 23, 2014

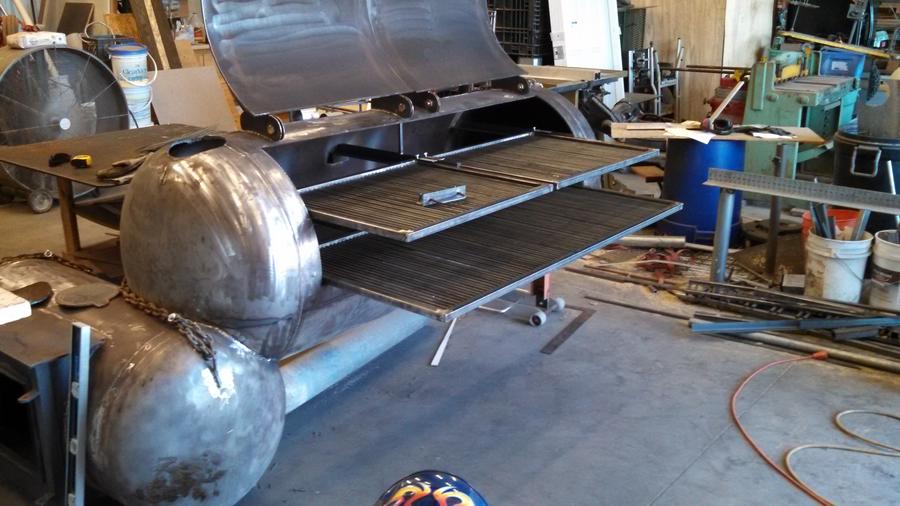

I got the rf plate all welded in and racks built and in place everything but the center guides for the top racks



[fahrenheit250]


• fahrenheit250
• Aug 23, 2014



[fahrenheit250]

I have a question I have a piece of galvanized 6 inch pipe I want to use for the smoke stack will it be OK to use since the cc should never get over 300 degrees



[daveomak]

I have a question I have a piece of galvanized 6 inch pipe I want to use for the smoke stack will it be OK to use since the cc should never get over 300 degrees

Yep.... If it does get hot, be sure you are "upwind" or you may get a dose of "galvanized poisoning".... not a good thing.....

You could burn the pipe out first... or have it sand blasted... The inside...



[smokejumper]

The greatest risk is from fumes released during the welding.

You can use muriatic acid to remove the galvanizing from the weld area prior to welding.



[rob sicc]


• fahrenheit250
• Aug 21, 2014

got one rack built still have to make the guides for it and it will have one more rack

What materials do you use to build the rack?  If I had to guess, it looks like you built the outside square, then put the support down the center then (painstakingly) put every cross bar.  Is that about right?

You do beautiful works.  thanks again fro sharing the pictures.



[fahrenheit250]


• fahrenheit250
• Aug 25, 2014

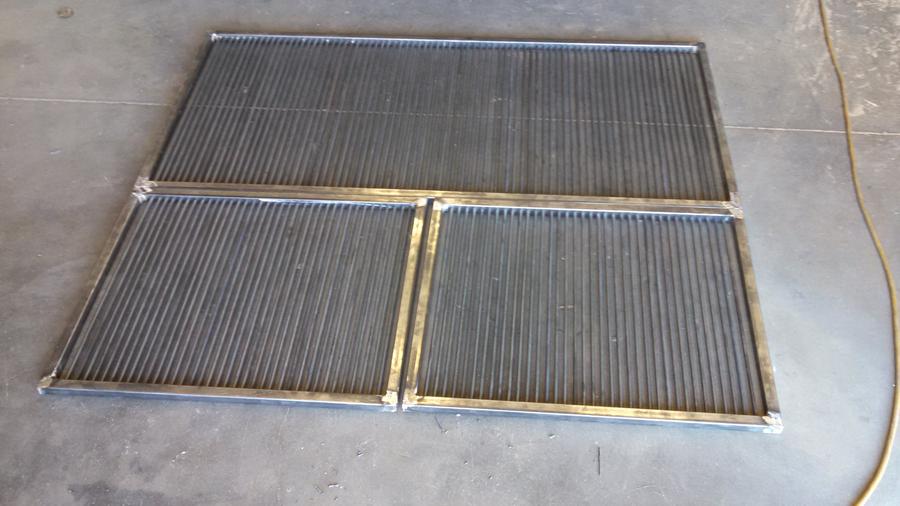

to it is a 1 inch square tube for the frame and it is drilled 3/4" on center and then we put in 5/16 rod and finished welding the frame



[fahrenheit250]


• fahrenheit250
• Aug 25, 2014

finished the rack guides and stops tonight



[fahrenheit250]


• fahrenheit250
• Aug 25, 2014

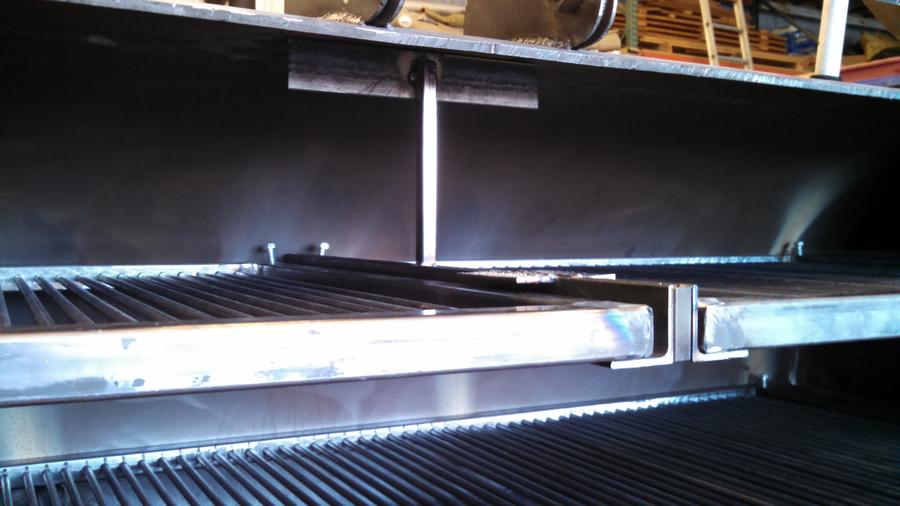

for the top racks we made the center guide removable there are 2 studs welded to the top of the tank if you remove 2 nuts the guide comes out so it will hold a hole pig



[rob sicc]


• fahrenheit250
• Aug 25, 2014

to it is a 1 inch square tube for the frame and it is drilled 3/4" on center and then we put in 5/16 rod and finished welding the frame

Thanks.



[pighog]

I drove past the BIG propane dealer the other day......

His yard is FULL of propane tanks that have gone through the fires here.... I'd bet they are cheap.... burned and all..... smoke covered.... paint blisters....

Omak Dave you wouldn't happen to know the name of that place do you? Been looking for one locally and can't find them.
