DIY foot/toe switch

[Fueling Around]

I replaced the mechanical float switch on my sump pump with an electronic one a few years ago. I kept the old float switch thinking there must be a repurposed use for it. Here is my result.

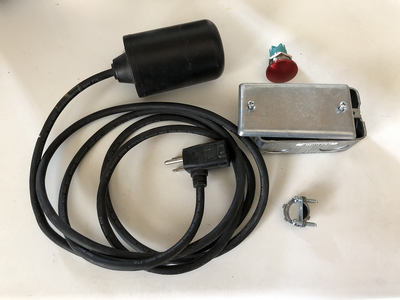

Float switch on the left and clockwise is the $5 Amazon purchased palm switch, handy box and cover, and the cord strain relief.

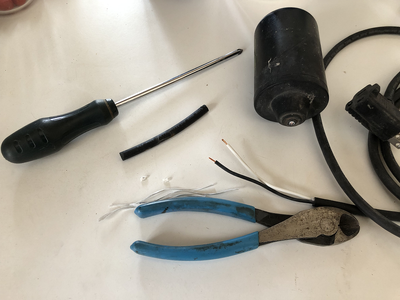

Cut the cord at the float, stripped the jacket and prepped the wires.



The 1/2" knock out in the handy box matched the palm switch perfectly.

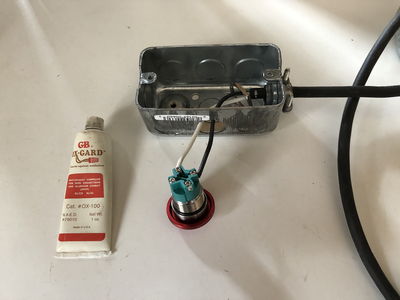

This isn't aluminum wire, but I still use the paste in wiring connections.
Did you remember to put the jamb nut over the wires before making the connection? Been there done that

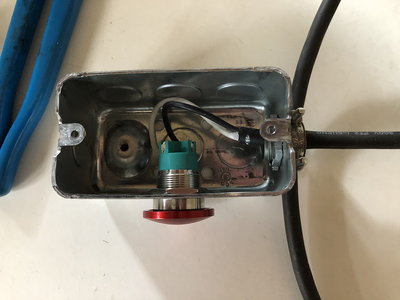

Installed the jamb nut to complete mounting the switch.



Installed cover on box and I have a $5 foot or toe switch.
OK, a cover will cost you $1 and the handy box $3 and the strain relief $1. I already had all 3 in my electric box so my only direct cost is the $5 palm switch.

Position which ever way you prefer as foot or toe. The angle is higher than a purchased ($50) foot switch and the toe switch feature is really nice to stop the grinder.

A foot/toe switch on your grinder is priceless.



[JLinza]

Nice work, I know I could find a use for that on my property.



[Fueling Around]

Thanks for the like normanaj and JLinza for the reply.
Debated the build for a long time and when I discovered the palm switch fit the 1/2" KO it was a no brainer. I'm thrifty (some call it cheap) but need make it work.



[Gonna Smoke]

Great idea John and you've got me thinking now (I know, that can be dangerous) about how I can make one...

I'm thrifty (some call it cheap) but need make it work.

I resemble that remark...



[Brokenhandle]

That's a great idea! I can see a run on palm switches now! I used my big grinder once then gladly paid the $50 for a foot switch and loved it ever since. This is just way cheaper.

Ryan
