You could go the thermocouple and solenoid gas cut off route.  No flame = no more gas flow just like in the stove or hot water heater in millions of homes across America.  If you wait until you notice a temp drop, you will already have a very dangerous buildup of explosive gas.
I should probably look into that, if you or anyone has any info on a set-up Please send it to me! Thanks!


diggingdogfarm

Master of the Pit
4,655
163
Joined Jun 23, 2011
It scares the heck out of me, there have been 3 major gas related house explosions around here in the past few years, a baby was killed in one.
About 10 or 15 years ago, an old pizzeria had a gas oven explode. It blew the door off the pizza oven and all the glass windows and doors out of the front of the place with one heck of a BOOM!
It was totally unexpected. Folks get distracted and accidents happen.
Luckily, no one was seriously hurt, but the owner decided to call it quits after the accident.

This is the result of one of the explosions, fairly recently, in Corning, NY.

It knocked neighboring houses off their foundations and rendered several other homes unsafe for occupancy.


~Martin

Last edited:

bdskelly

Smoking Guru
OTBS Member
SMF Premier Member
★ Lifetime Premier ★
5,696
1,611
Joined Feb 3, 2013
Dave, did you post dimensions, plans or drawings for this smokehouse? Been looking for them.


s2k9k

AMNPS Test Group
11,331
180
Joined Sep 8, 2011
Dave, did you post dimensions, plans or drawings for this smokehouse? Been looking for them.
All I have right now is a rough sketch and haven't posted anything yet. I based my sketch on the most efficient use of material. It is going to be 30"X30"X72" inside dimensions. I am going to line it with concrete backer board and it comes in 60"X36" sheets so if I cut them in half then flip each piece 90* I will have a 30"X72" piece. It just seemed like the easiest (1 cut) and most efficient (no throw away) way to do it.
I'm going to frame it with 2"X3"s and use T-111 siding. It will have 2 intakes on opposite walls at the bottom and 2 exhaust vents at the top perpendicular to the intakes. I'm going to use adjustable register grills for these so I can control airflow.
I still need to figure out how I'm going to do the roof and door, I have some ideas in my head just need to put them on paper.


dward51

Master of the Pit
OTBS Member
2,869
529
Joined Nov 24, 2011
You guys may want to take a look at some of these links....

Pipe burners of varying BTU output with optional safety controls!!!!

http://www.johnsongas.com/industrial/brn-drilled.asp

Tejassmokers - tons of pipe & other burner parts including pilot light kits

http://www.tejassmokers.com/castironburners.htm#Pilot_Light

Burners.inc - wide range of burner parts including "safety control valves"

http://www.burnersinc.com/index.html

The combo of a safety control valve and a thermocouple will shut down the gas flow if the flame goes out.

Another option is scavenge the burner assembly out of a leaking gas hot water heater.   Burner will be fairly decent size, you would have a pilot light and an safety shutoff system all in one.  Not sure if the temp control would work, but it might could be modified as well (normally hot water heater temps are in the cold sausage smoking range and not the 225* range).

Last edited:

dward51

Master of the Pit
OTBS Member
2,869
529
Joined Nov 24, 2011
Found the solution....  at Sausagemaker.com

They sell all the parts for a gas smokehouse kit. Even have assembly instructions with photos and a wiring schematic to add a temp control module to the system (yes a auto temp control system too!!!)

http://www.sausagemaker.com/gassmokerinstallation.aspx

This is the heart of the system - the safety valve.


Step by step instructions with photos for the assembly and operation:

http://www.sausagemaker.com/gassmokerinstallation.aspx#assembly

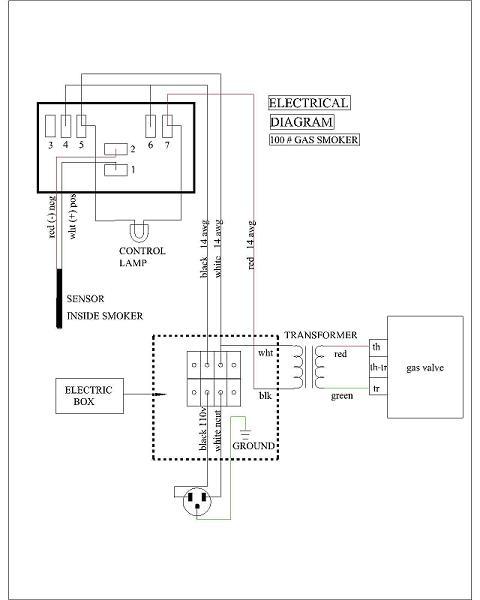

Electrical wiring diagram for the electrical side of this (the safety cut off)



dward51

Master of the Pit
OTBS Member
2,869
529
Joined Nov 24, 2011
Martin....

I guess I was typing as you were posting.  Great minds think alike?


kathrynn

Legendary Pitmaster
OTBS Member
9,453
117
Joined Jun 13, 2012
Dave----looking sweet!  I want a smoke house too....and some friends had some free concrete boards....almost got them!

I am in!  Keep showing the pictures!

Kat


s2k9k

AMNPS Test Group
11,331
180
Joined Sep 8, 2011
Thanks Martin and Dave! More money and more work, I don't have any electrical where the house is going to set so that means getting a receptacle over there! But really I am going to look into this, would much rather be safe than sorry!


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,154
2,808
Joined Nov 12, 2010
Dave, RV's come with flame sensors on the Hot Water tanks.... no elec. required...   Flame goes out, gas shuts off....    You might want to check in at a RV dealer.....   I've looked the web over and either I don't know the right search term, or they are an OEM item....  Darned if I know...

I do know they are sensing the pilot flame.... It could sense the burner flame just as easily....  And they have a thermostat....  Don't know what you would do with that.... maybe you could figure something out....

Dave


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
5,604
384
Joined Sep 10, 2011
Dave, RV's come with flame sensors on the Hot Water tanks.... no elec. required...   Flame goes out, gas shuts off....    You might want to check in at a RV dealer.....   I've looked the web over and either I don't know the right search term, or they are an OEM item....  Darned if I know...
I do know they are sensing the pilot flame.... It could sense the burner flame just as easily....  And they have a thermostat....  Don't know what you would do with that.... maybe you could figure something out....

Dave
RV units do use a 12V. supply to turn the solenoid valve in the gas line on and off... my worries are with connecting the pipe burner to the unit... They have a flame thrower type burner on them originally...


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
5,604
384
Joined Sep 10, 2011
hhmmm.. if no electric solenoid... what turns the gas off.. I have pretty much the same water heater (gas only)... The problem I have with my water heater is when it lights.. the flame blows so hard it blows it out along with the pilot light.. sometimes it will ignite the gas right at the venturi... I've asked quite a few technicians and they can't understand why it does it ether...

Dave (S2K9K).. sorry about stealing your thread... But I'll give it back to ya now.. LOL

Last edited:

s2k9k

AMNPS Test Group
11,331
180
Joined Sep 8, 2011
No problem Keith, you guys can talk all you want about this, I'm trying to learn something here!


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,154
2,808
Joined Nov 12, 2010
hhmmm.. if no electric solenoid... what turns the gas off.. I have pretty much the same water heater (gas only)... The problem I have with my water heater is when it lights.. the flame blows so hard it blows it out along with the pilot light.. sometimes it will ignite the gas right at the venturi... I've asked quite a few technicians and they can't understand why it dies it ether...

Dave (S2K9K).. sorry about stealing your thread... But I'll give it back to ya now.. LOL
The hot water tank is a self contained unit....  Disconnect the gas line, (turn off the tank first), unscrew the screws from the surrounding housing.... remove.... clean the burner.....  clean the exhaust stack....  fire it up on the bench and see if you fixed the problem....  maybe the pressure regulator is faulty...  they are very simple and work well if maintained.....   Dave

                             Dave,  I owe you a beer..........


EDIT::::::::

Since you are learning something..... I withdraw my offer.....
 ....

Last edited:

s2k9k

AMNPS Test Group
11,331
180
Joined Sep 8, 2011
I don't think it's been hijacked, I think this is vital info to building a safe propane smokehouse, but I'll take the beer anyway!:biggrin:


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,154
2,808
Joined Nov 12, 2010
OK..... I withdraw my withdrawl.....   I need your e-mail to paypal you a beer.....  unless you are heading 3k miles west ??


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
5,604
384
Joined Sep 10, 2011
yea.. all that has been done.. venturi cleaned.. orifice cleaned.. burner cleaned... think I'm gonna change it out to a gas/electric unit anyways.. so maybe I can use the old unit as you say... as for the regulator.. all other gas appliances work great...
