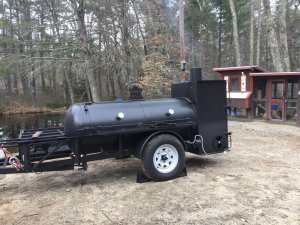

Added insulation and 1/4” plate above firebox baffle plate Fromm cc to ribbox new 6 “ stack sink
Temps are dead on when all warmed up I also extended reverse flow plate to end of bottom grate with drain fully seal welded plate inHow's the temps side to side with the rib box blocked off. Assuming you added a damper to control heat and smoke into the RB?
Now I can keep rib box at 150 with no problem or open 8” damper and be 5 degrees cooler then main chamber if I close off new stack and open the original stack on ribboxTemps are dead on when all warmed up I also extended reverse flow plate to end of bottom grate with drain fully seal welded plate in
Yes most of it but a friend did the welding great smoker but needs some mods for my liking I also have a Lang 48Did you do the work yourself? Looks fantastic. The only thing I wish my 250r had was the ability to close off the rib box from the heat and smoke.
If you like I can take some photos of inside to show baffleHow's the temps side to side with the rib box blocked off. Assuming you added a damper to control heat and smoke into the RB?
If you like I can take some photos of inside to show baffle
I’ll take and post them Friday work you know lolThat would be great. Thanks.
These are the pictures of the dampkerNo rush. I know how life gets in the way. Lol
New fire grate with log warmer self on each sideView attachment 359745 View attachment 359743 View attachment 359744
These are the pictures of the dampker
Extended reverse flow plate and add drainView attachment 359746
New fire grate with log warmer self on each side
No the original is 10” new stack is 8” x28” tall great drawLooks fantastic. Really like the damper idea for closing off the RB. I may have to do that to mine. Is your new stack the same diameter as the original?
AnytimeThanks for posting the pics and all the info. Really appreciate it.
