barrel Stove Questions

13
2
Joined Dec 25, 2020
I have a 55-gallon drum for a heat source and piped into a 3 x 3 x 3 smoke box. I have the door, one of the stove kits, wide open because I think I need more air intake. I'm burning ash and oak to get up to temperature but it seems like it takes a lot of wood to keep it there. Plus the wood burns up really fast. I'm thinking about cutting a couple of 2-3" holes in the front and installing a disk to work as a damper. Any thoughts or just does it take a lot of wood?


smokerjim

Smoking Guru
OTBS Member
SMF Premier Member
5,259
2,358
Joined Jan 14, 2014
I would definitely cut some holes to regulate your air intake , how big is your chimney on your smoker , are you running that open to create more draft.

13
2
Joined Dec 25, 2020
smokerjim I didn't have a chimney. Installed one this afternoon, about a foot above the flat roof, and in 30 minutes it is up to 215. It barely hit 215 all day yesterday. I also am able to leave the door ajar about an inch. That you for your response and help.


smokerjim

Smoking Guru
OTBS Member
SMF Premier Member
5,259
2,358
Joined Jan 14, 2014
smokerjim I didn't have a chimney. Installed one this afternoon, about a foot above the flat roof, and in 30 minutes it is up to 215. It barely hit 215 all day yesterday. I also am able to leave the door ajar about an inch. That you for your response and help.
your welcome, glad ya got it working. if it seems it still not heating up enough just extend your chimney higher for more draft.


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
6,260
822
Joined Sep 10, 2011
What is the size of the pipe that goes from firebox to chamber ??

13
2
Joined Dec 25, 2020
Jck Danls 07 Pipe from the heat source to the smokebox is 6" stove pipe. It is mounted at the far end of the barrel. Thinking I might get more heat if I moved it closer to the actual fire area?


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
6,260
822
Joined Sep 10, 2011
Pictures would be awesome... would let us see what ya got going and able to help better... Thinking if possible to get the pipe coming out of the top of the heat source since all the heat is at the top ...

13
2
Joined Dec 25, 2020

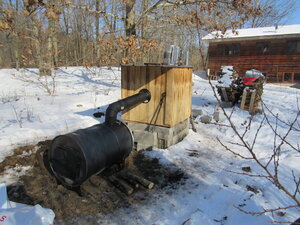

Jck Danls 07 This is my set up. It's just temporary until I can build a permanent one this spring. Plus I wanted to try it before I invested a lot. This is made from all free recycled materials, except for the stove kit, pipe, and thermometers.
