A start to another smoker

kfactor

Fire Starter
59
10
Joined Aug 9, 2012

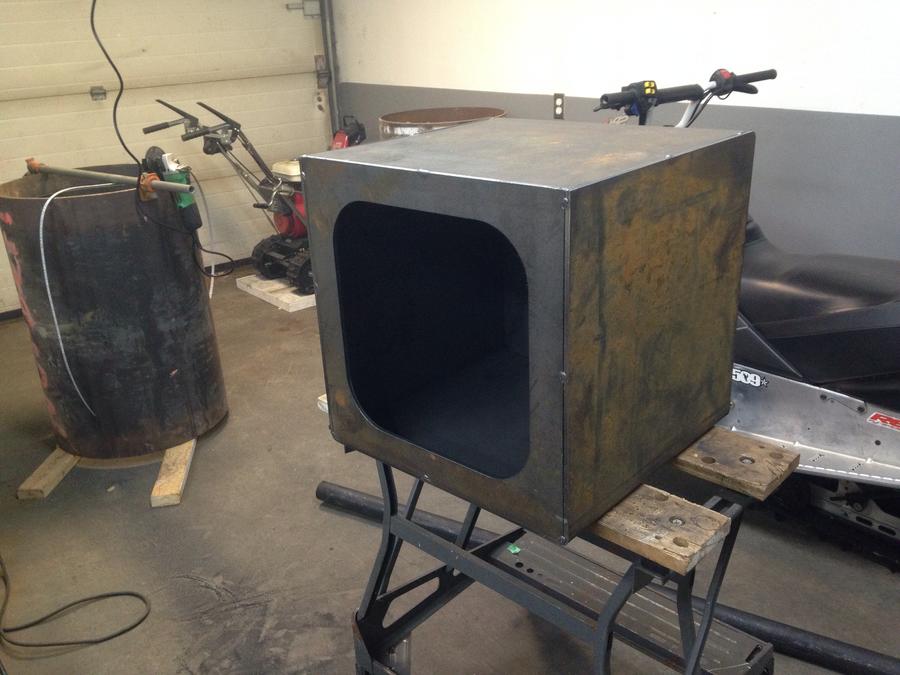

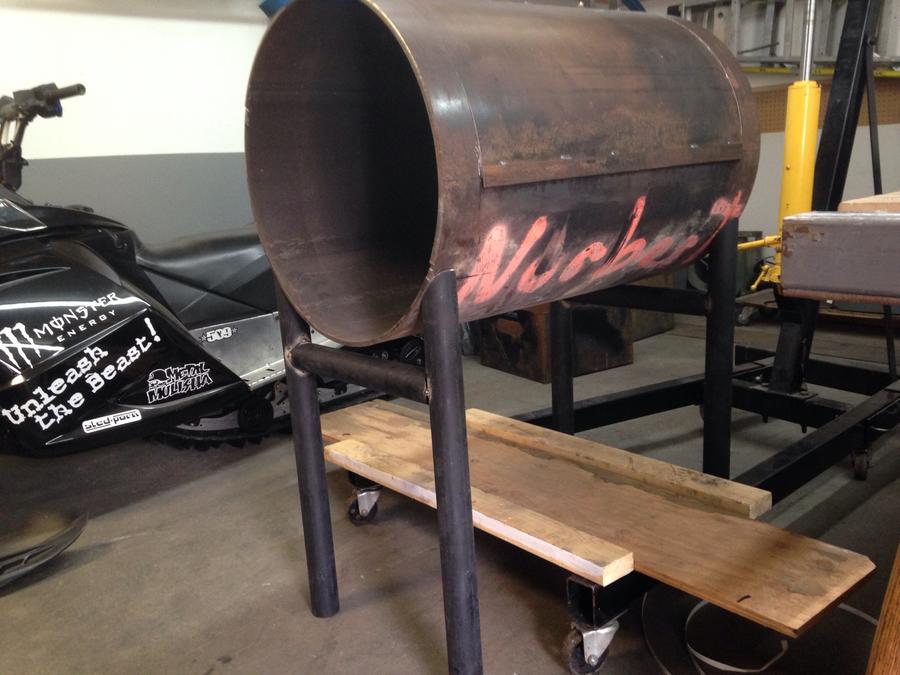

So I have decided to build another smoker . I build a side fire box last year and love it but I want to try a revers flow . I went and got 2 24"x36" pipe am building 2 one for me and one to sell . This is what I got so fare


kfactor

Fire Starter
59
10
Joined Aug 9, 2012
On feldons pit builder it says for a half moon fb to cc 10.90 " or 46.66 Squre inchs how big is that I don't really under stand the 10.90 half Moon


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,689
4,154
Joined Nov 12, 2010
If Feldon's says use 47 sq in., make it 71.... When using Feldon's. make the FB 100% of actual size in the calcs.... then use the numbers.... then multiply the FB/CC opening x 1.5... that give a better smoker...... use this formula for the size of the FB/CC opening....
http://www.1728.org/circsect.htm .... Use Radius and Segment Height ED to figure the opening......

Last edited:

barlowds

Fire Starter
39
10
Joined Mar 29, 2014
tell me about your hinges, I like the look of them and might use something similar on my build, what is the geomotry and the guage of metal you used.

if you dont mind that is :-)


kfactor

Fire Starter
59
10
Joined Aug 9, 2012
]No I don't mind at all they are 1/2 think u's that are 3 1/2 w x 4" tall they were just laying around in my garage and they worked perfect for hinges and they also work perfect for a door stop too and thanks for the link that helped out alot

Last edited:
