600 Gal RF build

dkmiller16

Fire Starter
62
97
Joined Jul 16, 2018
After checking out multiple pit builders and smoker projects it's time to start putting ideas on the drawing board! The size, diameter, of the tank really got put into perspective once I started drawing it out to actual size on paper! El Fuego is starting to come to life!


dkmiller16

Fire Starter
62
97
Joined Jul 16, 2018
Some slight progress. Hopefully be able to cut the doors out and get everything sandblasted this week. Cutting that firebox opening out with a 4" grinder, 3/8" thick, was definitely a great learning experience. :emoji_astonished: Using a plasma for the doors should go a bit faster I think...



daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,089
3,500
Joined Nov 12, 2010
Think about tack welding up the FB before the doors are cut... Tack it up well to prevent the CC from to much twisting, as the doors are cut... Or so it says in fine print somewhere.... Stress is eased as you are cutting the openings...


dkmiller16

Fire Starter
62
97
Joined Jul 16, 2018
Still waiting on material for the firebox and I had a chance to use a plasma to cut into the tank. I cut out the doors and cut all the bungs and replaced with plate. Dropped the tank off the next day to get sandblasted inside and outside and just got it back. Doors both stayed lined up and didn't spring out.


Jabiru

Smoking Fanatic
676
353
Joined Mar 5, 2019
Looks like El Fuego is coming along nicely, it will be an awesome smoker when your done!

btw what does El Fuego mean?


dkmiller16

Fire Starter
62
97
Joined Jul 16, 2018
Looks like El Fuego is coming along nicely, it will be an awesome smoker when your done!

btw what does El Fuego mean?
Thank you, still a little ways to go and its taking some time to get there.

Borrowed from the Spanish word for fire, fuego is used in English as a slang term for something “excellent” or “sexy,” with the phrase el fuego expressing something “on fire,” or “performing extremely well"

Its a phrase that my friends have used in the past to describe some of the food I have made, also the guy that's helping me with the build uses that a lot so it kind of stuck...


dkmiller16

Fire Starter
62
97
Joined Jul 16, 2018
Hoping to finally get back to this project. We have been fortunate to continue working through the entire last couple months but the last 4-6 weeks work has been absolutely insanely busy. Isn't that always how it goes... picked up a 6' long x 10" pipe for my stack and also found a better solution for trailer. Pretty sure I would have killed that little boat trailer with the weight I am seeing that I will have.


kmmamm

Meat Mopper
205
74
Joined Apr 30, 2016
Good to hear you decided to revisit the trailer issue. Your finished cooker will be pushing 2500 lbs. Suggest giving some thought to a tandem axel trailer. Tandems pull and ride a lot better than singles. It makes no sense to spend a lot of time and money building a nice big cooker only to beat it up bouncing down the road.


dkmiller16

Fire Starter
62
97
Joined Jul 16, 2018
So I have been debating the design of the smoke stack inside the tank. Do you guys have the pipe just down through the tank or do you recommend a collector type of end inside the tank. Any advice @davdaveom



kmmamm

Meat Mopper
205
74
Joined Apr 30, 2016
Definitely take the time and built a plenum. Whether it is a “Franklin” design or something of your own creation, it will enhance the airflow and ultimately the overall efficiency of the cooker. They aren’t all that hard to build, before cutting any steel, I always mock one up with either cardboard or plywood to check fit and form.


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,089
3,500
Joined Nov 12, 2010
A well designed plenum is a good choice...

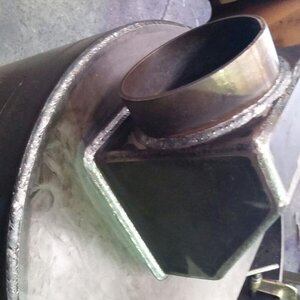

Exhaust plenum.jpg

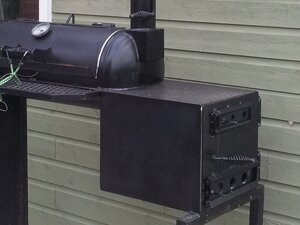

Smoker Exh and Intakes.jpg


dkmiller16

Fire Starter
62
97
Joined Jul 16, 2018
Welding and cutting day today. Firebox door and vents cuts made fb/cc opening cut and ready to insulate and put the the inner and outer walls together.


kmmamm

Meat Mopper
205
74
Joined Apr 30, 2016
So.....tell us a little about that shop you are working in....judging by the equipment, I am guessing it isn’t simply an attached garage?


dkmiller16

Fire Starter
62
97
Joined Jul 16, 2018
So.....tell us a little about that shop you are working in....judging by the equipment, I am guessing it isn’t simply an attached garage?
You are correct, this is not simply an attached garage or my backyard shop. Oh how I wish!!! :emoji_laughing: I did some of the initial cutting and fitting at my work. However I am fortunate to have a very good friend of mine, who does all the fabricating and building, for a local woodworking facility. We have a great business relationship with this company as well. He offered to help me with this build, and the owner said as long as I cover the cost of materials and anything we use, we are welcome to use their facility for this build.
