500 Gallon that has waited years to be finished

kingpapawawa

Fire Starter
35
28
Joined Dec 29, 2018

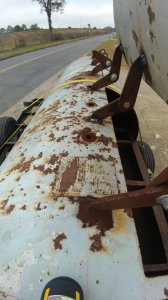

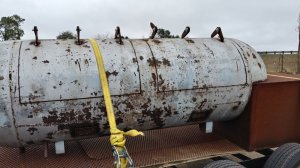

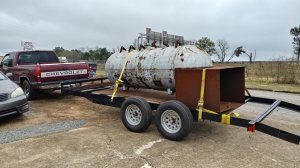

Picked this up Saturday. Needs a bit of work before it is ready for cooking but I am already hard at work.

20181229_113948_HDR.jpg 20181229_115352_HDR.jpg

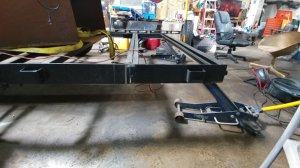

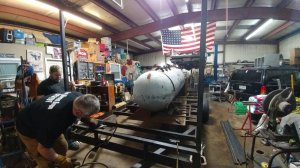

Starting with the trailer.. straightened out the dovetail. Getting ready to give it a roof.
20181230_201356.jpg 20181230_182447_Burst07.jpg

RF plate is in place. Have not calculated the openings yet.
20181230_111136.jpg 20181230_111239.jpg

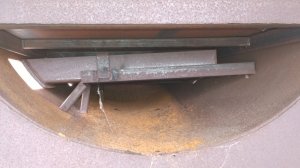

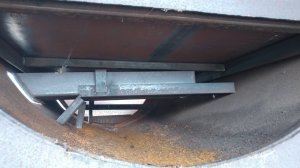

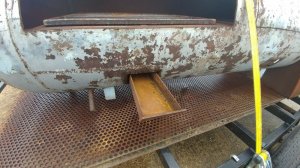

I assume this mess was intended to be a grease trap? I plan to gut these trays.
20181227_102131.jpg 20181230_111553.jpg

Not sure how I feel about the hinges yet. They need some work anyhow.

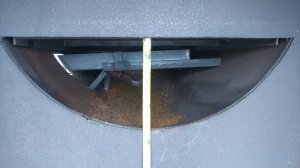

Grate level is 7" over the Plate which is 12" up from bottom.

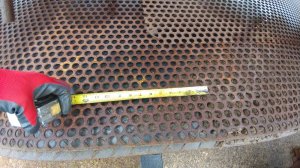

Came with some scrap.. Anyone ever used this for grates? I have 4 sheets of 4x8 expanded metal but these might work ok.. Butts always seem to stick to expanded metal.

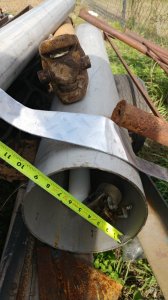

Got a section of pipe with it also. was looking for some 10in but this may be ok..


Going to be working on this pretty steady for the next 2 weeks. Any thoughts opinions ideas are welcomed.


Attachments

kingpapawawa

Fire Starter
35
28
Joined Dec 29, 2018

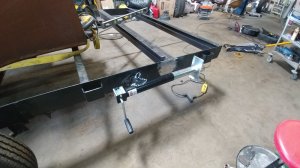

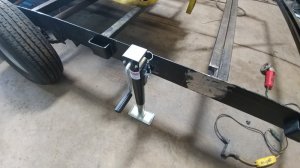

Got the jacks welded onto the back for leveling trailer
20181231_161938.jpg 20181231_161955.jpg

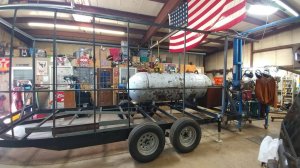

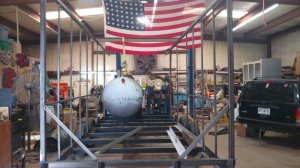

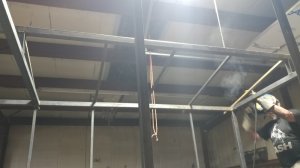

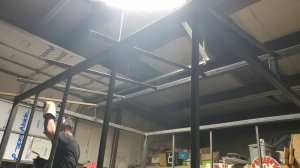

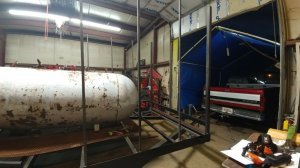

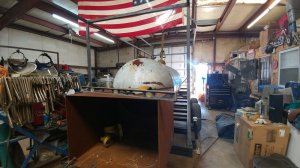

Started framing out the enclosed area for the front. Tank is going to be moved back about 5 ft still.

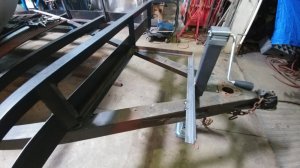

Spot for a generator started and new jack in place.

Don't know if I will get much done tomorrow.


kingpapawawa

Fire Starter
35
28
Joined Dec 29, 2018

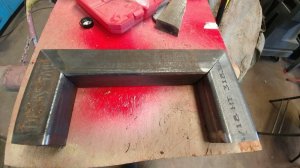

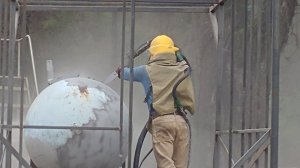

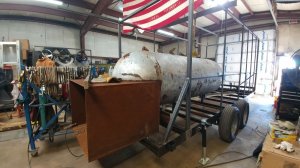

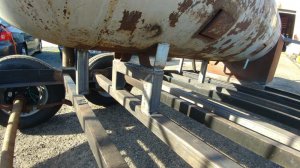

Built some supports out of 3x3 3/16 steel and got the smoker set at its final height. Ordered 2" ball valves to put in drains. Trying to get to sandblasting by the end of the week.

20190107_132015.jpg 20190107_150703.jpg

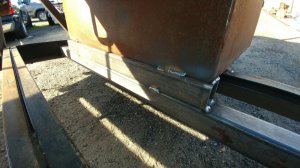

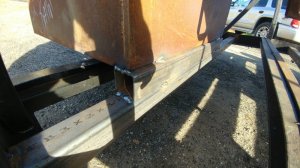

Discovered that the firebox is not perfectly square in relation to the tank. The tank is lined up with the trailer but the firebox is off by 1/2 inch or so. I won't tell if you don't. Were going to cover up the ends of this 3x3 so wasps dont nest.

20190107_150740.jpg 20190107_150811.jpg


Attachments

kingpapawawa

Fire Starter
35
28
Joined Dec 29, 2018

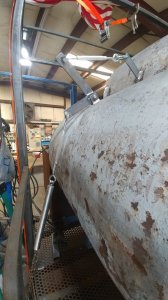

designing the door hinge lift mechanism - first with cardboard

then with steel!
Cant post video i will upload it to imgur or somewhere and try to link it. havent tried to link anything yet so not sure if it will allow me =)


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,260
2,868
Joined Nov 12, 2010
Nice engineering.... OK.... What's the lift rate of the spring ?? You have a part # ??
Thanks .... Dave


kingpapawawa

Fire Starter
35
28
Joined Dec 29, 2018
Nice engineering.... OK.... What's the lift rate of the spring ?? You have a part # ??
Thanks .... Dave
I do not... but i'll try to get it. My boy Arnold (seen in video opening door) showed up with them and said "This is what you need". I put the reciept in my box at the shop but I may not be there until tomorrow.


kingpapawawa

Fire Starter
35
28
Joined Dec 29, 2018
Been busy with other aspects of this project but finally got some more work done on this smoker.

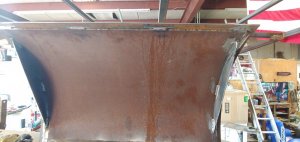

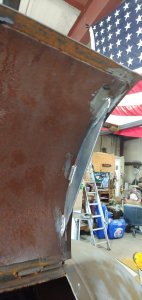

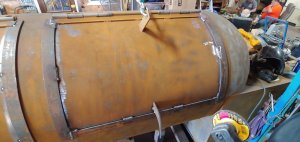

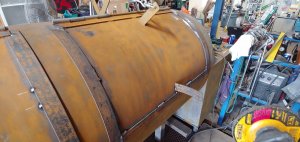

Trimmed out the doors and added some ribs to keep them from flattening out. Tomorrow will get handles on and start on the firebox and/or stack.





kingpapawawa

Fire Starter
35
28
Joined Dec 29, 2018

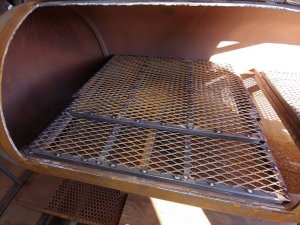

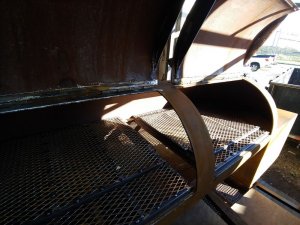

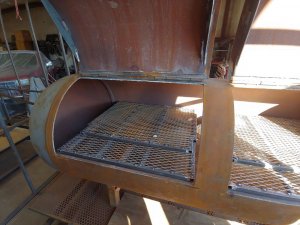

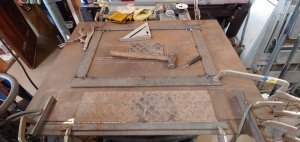

Finished the racks but not the top rail yet

51781167_2129013364096226_7480500150956195840_n.jpg 52024139_291039831586052_829758965435858944_n.jpg

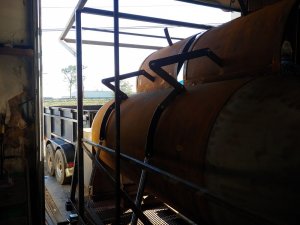

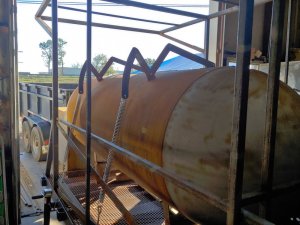

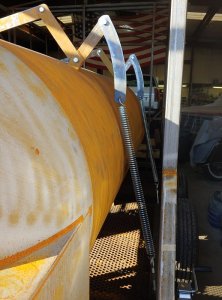

Door springs finished... will probably CNC some custom pieces here later but for now flatbar will do.
52297605_292467914755636_7875974765272367104_n.jpg 51917058_355622185030909_2670247606772301824_n.jpg

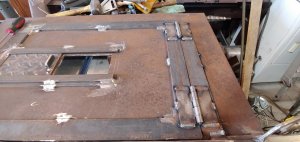

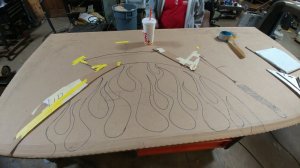

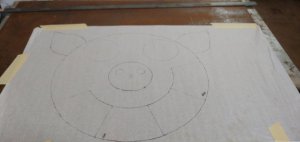

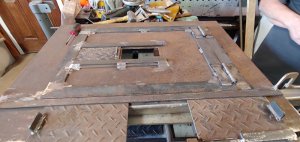

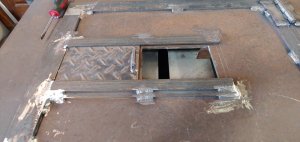

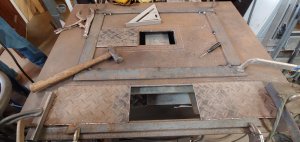

This is the pattern my friend is trying to get me to use for the air vents on the firebox door... he hasn't had much luck talking me into it =)
