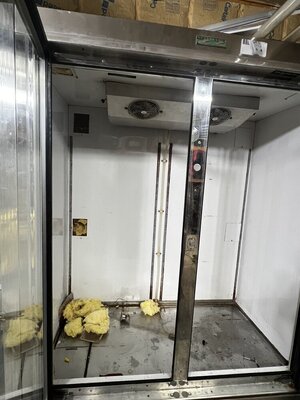

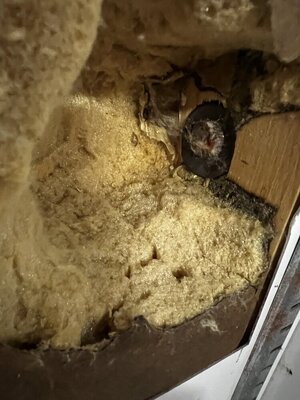

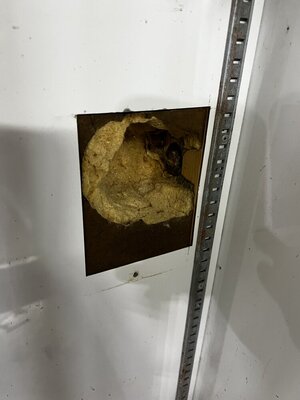

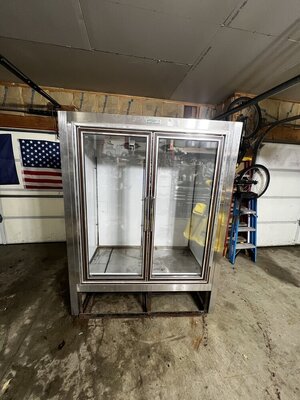

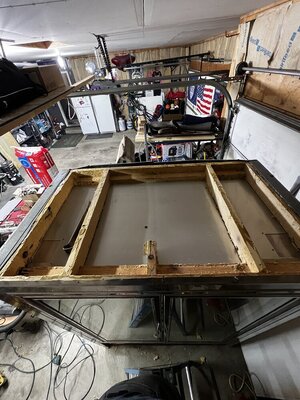

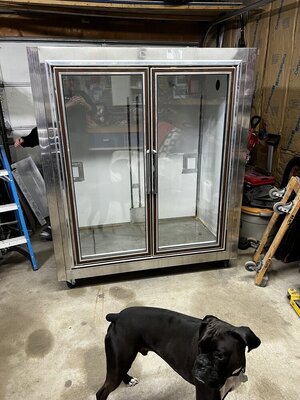

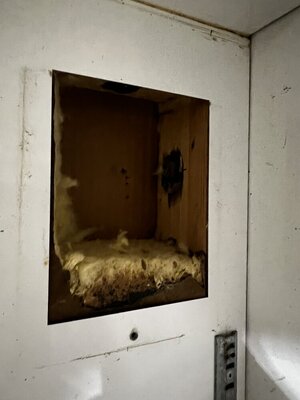

I got my hands on old zero zone fridge with glass doors. After diggin in to it iv noticed all the foam in the walls is paper lined and so “shouldn’t” be to horrible to remove. But the frame is build out of hard wood. Old school 2”x3” Y’all think it would still make a good build? Plannin on electric with some sort of cold smoked added. I Don’t plan on smoking over 200deg this build would b for sausages/ snack sticks and jerkey.


Attachments

  • IMG_6915.jpeg
    159.6 KB · Views: 61
  • IMG_6917.jpeg
    166.1 KB · Views: 57
  • IMG_6919.jpeg
    86.5 KB · Views: 58
  • IMG_6920.jpeg
    136.1 KB · Views: 56
  • IMG_6921.jpeg
    80.1 KB · Views: 57
  • IMG_6916.jpeg
    136.2 KB · Views: 61
I have about 40cubic feet 53”x27”x57” (if I did my math right). What ya think a good electric heating element would best fit this unit.

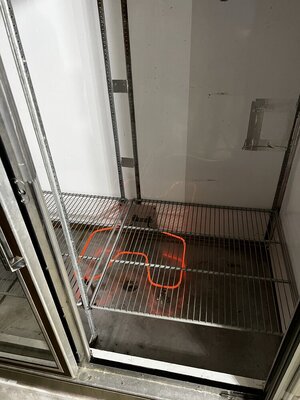

Keep your inlet and out air small and a toaster oven element would work well, remember most oven elements are 220v.some of the toaster elements run close to 15amp and make a lot of heat

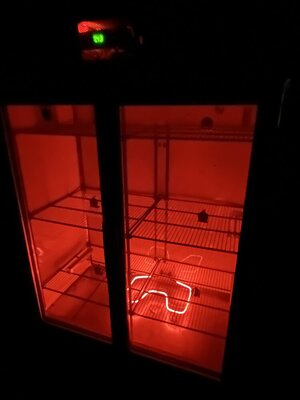

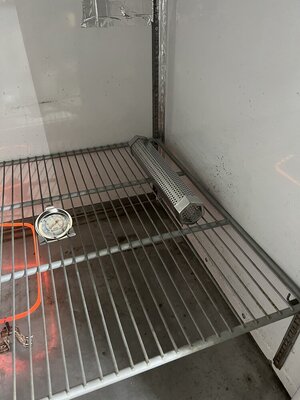

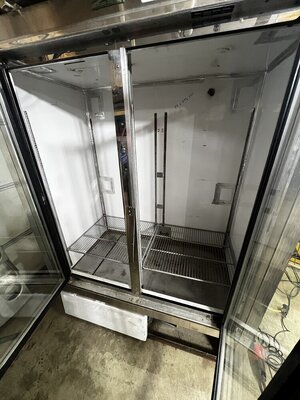

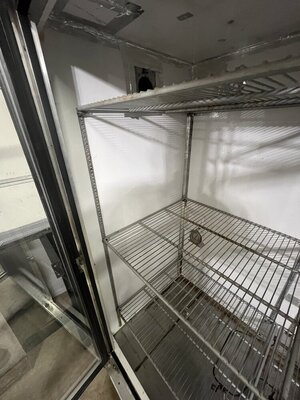

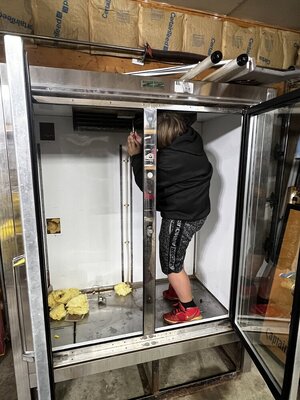

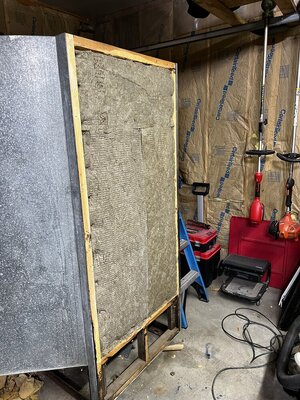

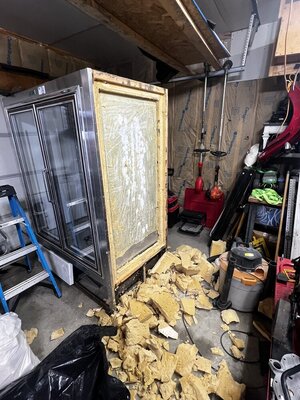

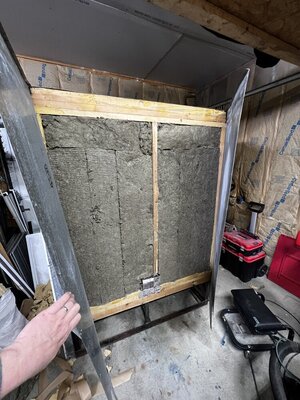

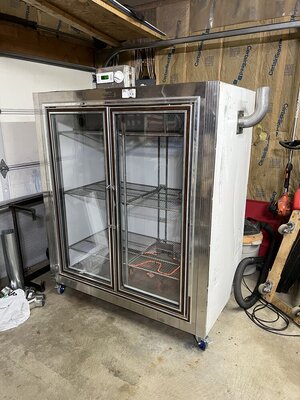

Update. Photo dump!!! I gutted it and lined it with rockwool sealed it up heats great and holds the heat like a champ.

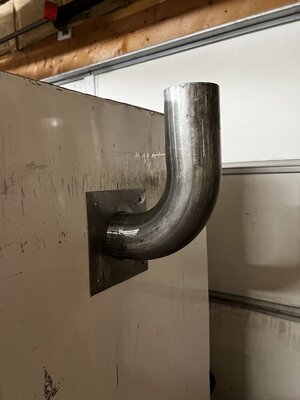

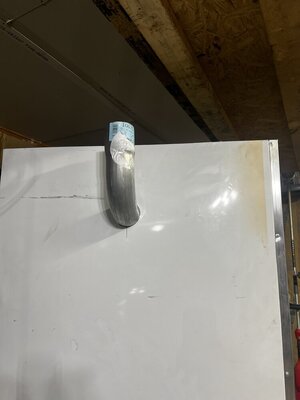

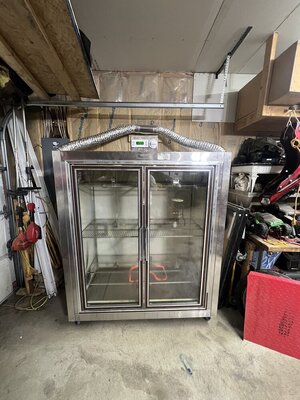

Has anyone put a fan on the ends of the exhaust. I wanna run the smoker in my garage and I’m not sure I wanna put a hole in my garage wall just yet. I connected my 2 exhaust togather and ran them out my garage door. I don’t think it’s venting properly.


Attachments

  • IMG_7613.jpeg
    82.4 KB · Views: 30
  • IMG_7951.jpeg
    130.5 KB · Views: 28
  • IMG_7953.jpeg
    148.8 KB · Views: 29
  • IMG_7962.jpeg
    192.2 KB · Views: 30
  • IMG_7965.jpeg
    56.7 KB · Views: 29
  • IMG_7964.jpeg
    118 KB · Views: 28

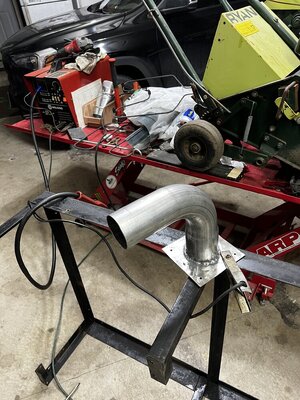

  • IMG_7608.jpeg
    193.5 KB · Views: 26
  • IMG_7603.jpeg
    179.1 KB · Views: 26
  • IMG_7597.jpeg
    57.2 KB · Views: 29
  • IMG_7457.jpeg
    138.3 KB · Views: 28
  • IMG_7454.jpeg
    155.3 KB · Views: 26
  • IMG_7464.jpeg
    202.5 KB · Views: 26
  • IMG_7465.jpeg
    177.5 KB · Views: 26
  • IMG_7468.jpeg
    254 KB · Views: 24
  • IMG_7470.jpeg
    183.1 KB · Views: 26

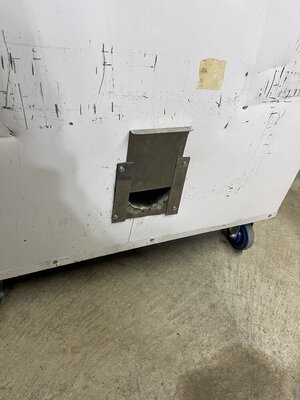

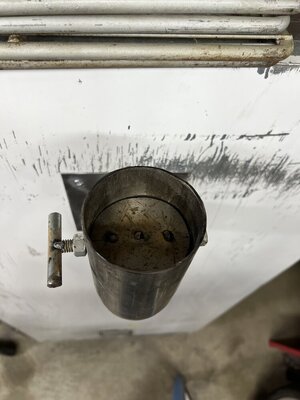

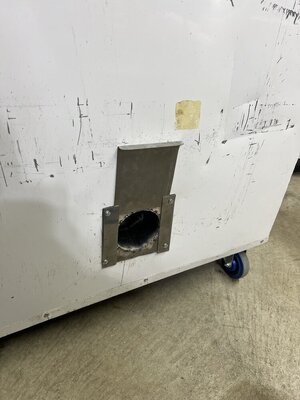

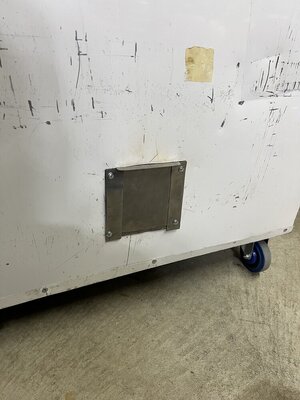

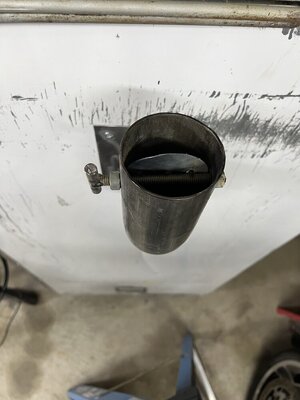

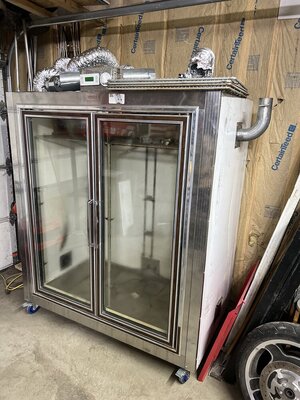

added a dampener so I can control my heat in and out.


Attachments

  • IMG_7986.jpeg
    92.2 KB · Views: 26
  • IMG_7987.jpeg
    81.5 KB · Views: 23
  • IMG_7983.jpeg
    140.2 KB · Views: 23
  • IMG_7982.jpeg
    110.8 KB · Views: 21
  • IMG_7981.jpeg
    127.9 KB · Views: 26
  • IMG_7990.jpeg
    179.7 KB · Views: 30
  • Like
Reactions: Fueling Around

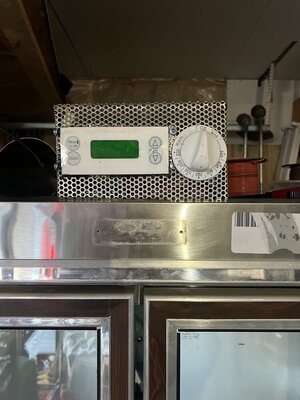

Has any one tried takin the oven element and pid out of an old oven and tossed it in a smoker build?


I have and still do... I used both elements (broil and bake) from an old oven... worked great in my 3x3x6 smokehouse.... Actually I think the bake element burned out the last time I used them.... There is no PID in a stove... just a rheostat ... I built my own controller with Auberns PIDs

You can buy inline assist fans that fit round duct . Usually 6" connection , but you could neck it down .
Yes I’m aware of that but I was wondering if anyone has done that. I think it would suck it out rather than let it flow out naturally and not allow the smoke to do what it does.
