Will type S mortar degrade from heat on an open face BBQ?

[travasskavich]

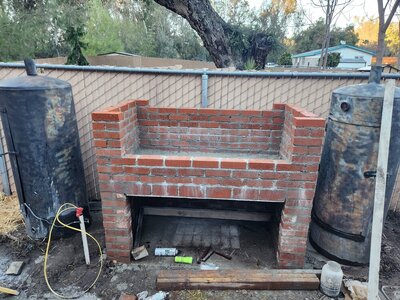

I'm in the middle of building an outdoor kitchen and hadn't considered the need for refractory cement on my brick BBQ. This is how far along I am at this point. So there's no turning back. Will the type S mortar dissolve from the heat of an open face BBQ with a chimney or will I be okay? If I plaster the inside of the BBQ with refractory cement will it protect the build?
This is my first time building with brick.
The drums on the sides will be my smokers.



[nicefly]

I really should know the answer to this with my material testing knowledge but I do not. So I looked it up.

Type N seems to be the heat resistant. But nothing I looks at disqualifies type S.

If you are placing this instead of fire brick I would be inclined to use Type N. You can build a form a a few inches away from the existing brick and place it that way. I would use welded wire for reinforcement, but that is just me I would rather overbuild than tear it out.

Anyway, in for the ride I look forward to seeing the result. Looks good so far.



[JckDanls 07]

I believe you will have to line it and use the refractory cement... Let the brick and mortar guys come along and chime in ...



[nicefly]

And mix it up at a high slump. No idea on how to consolidate the rear wall without that.

Post a topside view pic of existing.

edit: may require 2 phase construction.



[travasskavich]

Post a topside view pic of existing.



[travasskavich]

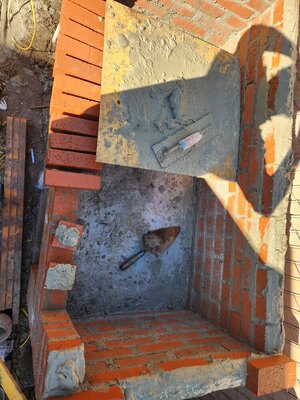

Top view, just remembered while I'm in the middle of my next course



[travasskavich]

The pan is 4 inch thick concrete with rebar



[lamar]

There are thousands of 100+ years old fireplaces built long before the "specialty" concrete came along. Ever hear of one failing?



[travasskavich]

There are thousands of 100+ years old fireplaces built long before the "specialty" concrete came along. Ever hear of one failing?



Yes. My coworker was just telling me how his buddy built a BBQ and it came apart because he used the wrong materials. I'm thinking it may have been a pizza oven. Which would need to sustain Temps around 700°.
I've built forges before and I know cement based products can explode. But that's when you're reaching 2000°+.

Just don't want to do it twice



[travasskavich]

I don't know how I just quoted myself into your comment lol. Figuring out this forum still



[lamar]

No problem



[travasskavich]

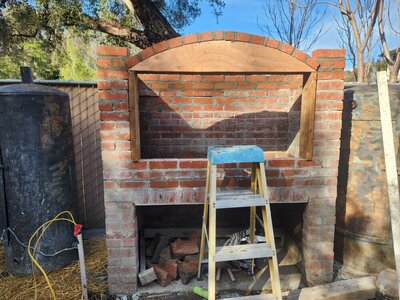

Update



[travasskavich]

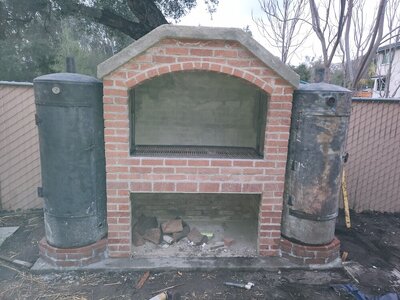

Getting close



[JckDanls 07]

yes it is... and looking good too ...
