Upgrading my brinkmann trailmaster offset!

dmeyer24

Fire Starter
34
15
Joined Feb 22, 2014

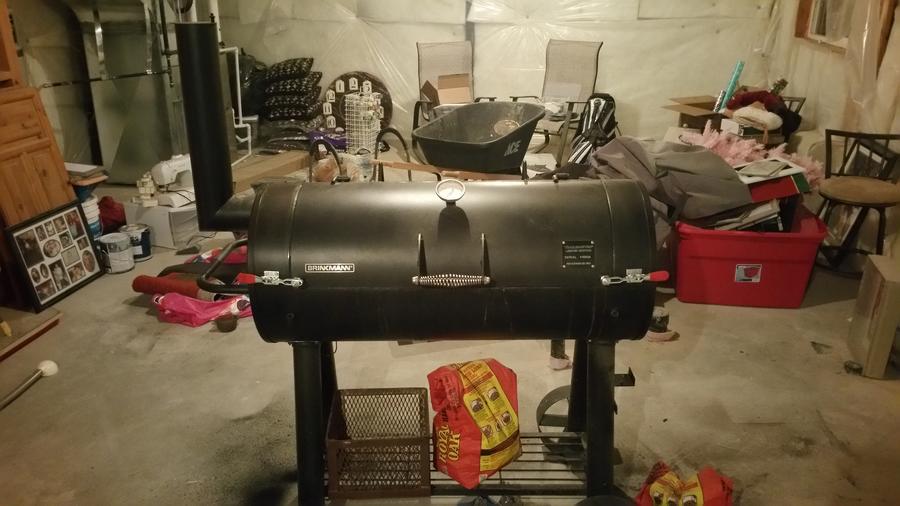

Dont mind my dirty basement... So I had to pull my firebox on my smoker so I could sand her down and paint her... while I was at it, I decided to do some mods to my smoker. I bought the baffle plate from bbq smoker mods and their gasket and latch kit. Almost done with everything! Once I get it back together, gonna clean the smoker, re-season and start smoking some meat in about 30 degree weather!


dmeyer24

Fire Starter
34
15
Joined Feb 22, 2014

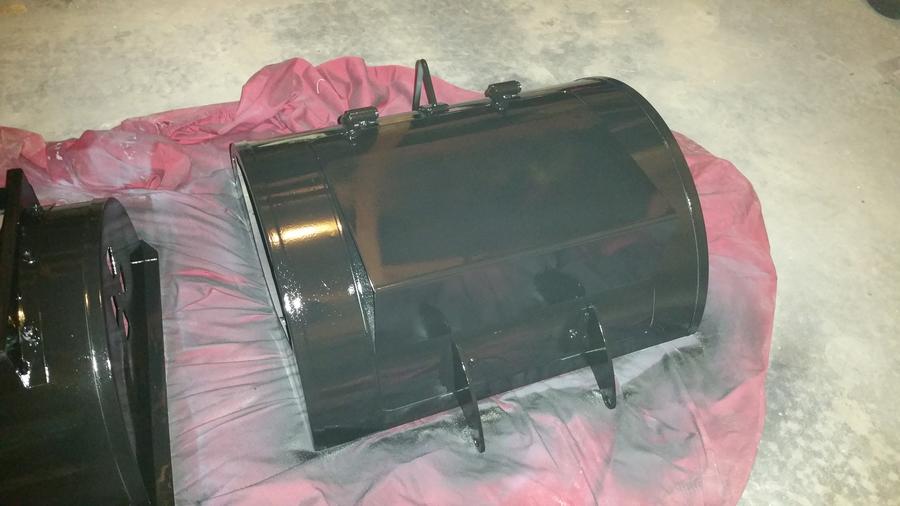

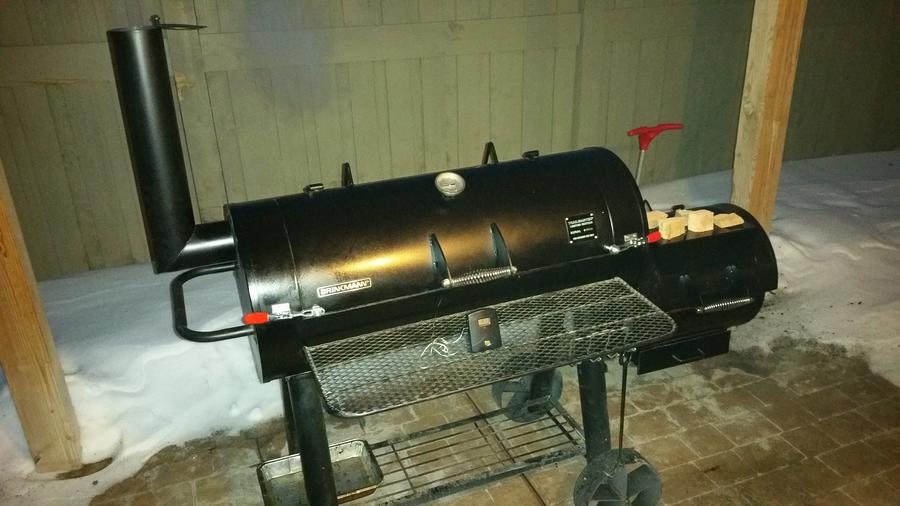

Nobody is following this thread but I'm gonna post it anyways. Finished my mods and painted my firebox. Time to clean her up and start smoking!

Last edited:

mikesys

Fire Starter
50
15
Joined Aug 3, 2015
Looks good Dmeyer24, nice work. I keep my firebox oiled up with Pam to keep the rust away.


SmokinAl

SMF Hall of Fame Pitmaster
Staff member
Moderator
OTBS Member
★ Lifetime Premier ★
47,280
7,967
Joined Jun 22, 2009
I didn't realize you could buy baffle plates.

I guess I need to get out more.

Looks like a perfect setup now!

Al


dmeyer24

Fire Starter
34
15
Joined Feb 22, 2014
I didn't realize you could buy baffle plates.



I guess I need to get out more.

Looks like a perfect setup now!

Al
Yes, bbqsmokermods.com is where I found them. Pretty slick setup. Yet to cook with it but I will let ya know how it works!


chad cochran

Newbie
17
11
Joined Jan 31, 2016

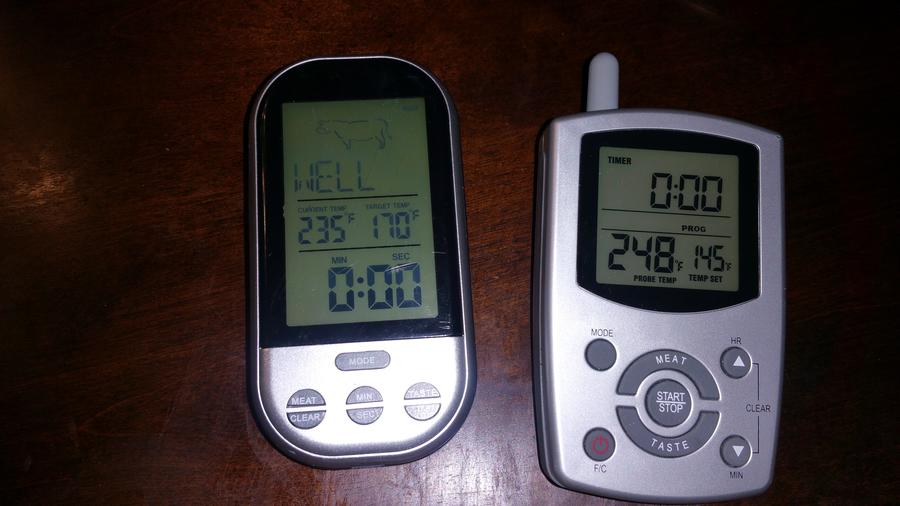

Baffle plate is working like a charm. Im now down to a 2 degree difference from side to side. Almost done seasoning.
So the plate works pretty good, then? How about smoke density in the chamber? Did you modify the stack hole to be lower, closer or below grate level?


dmeyer24

Fire Starter
34
15
Joined Feb 22, 2014
So the plate works pretty good, then? How about smoke density in the chamber? Did you modify the stack hole to be lower, closer or below grate level?
First cook plate didnt work that well. I drilled holes in the side of the plate and my cooking chamber and bolted the plate in place. Now it works really good. Seems without bolting it, heat gets above the plate and isn't forced underneath it. Bolting it to the side of the cooking chamber is a must!


chad cochran

Newbie
17
11
Joined Jan 31, 2016
First cook plate didnt work that well. I drilled holes in the side of the plate and my cooking chamber and bolted the plate in place. Now it works really good. Seems without bolting it, heat gets above the plate and isn't forced underneath it. Bolting it to the side of the cooking chamber is a must!
Post some pics please? I'm interested in ordering the plate, so if you could give a detailed review, that'll be helpful to the rest of us..


dmeyer24

Fire Starter
34
15
Joined Feb 22, 2014
Post some pics please? I'm interested in ordering the plate, so if you could give a detailed review, that'll be helpful to the rest of us..

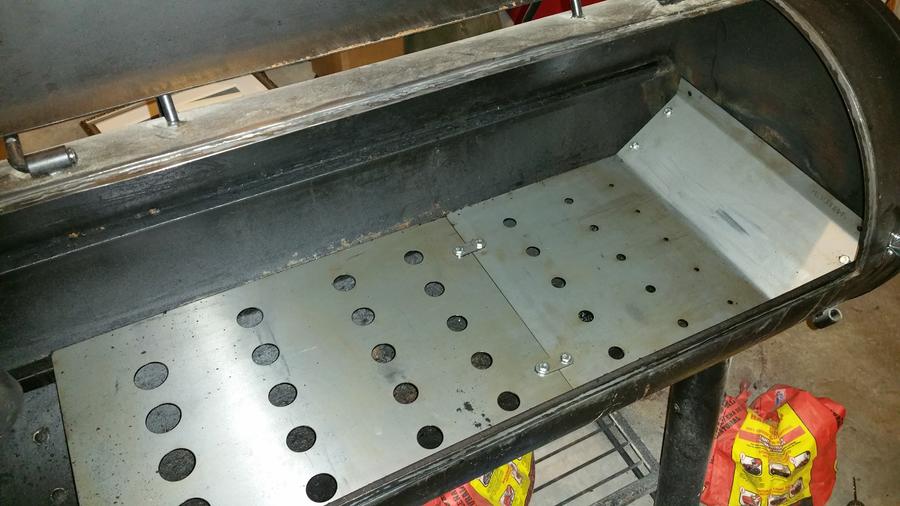

If you look on the right hand side of the plate where the 45 goes up and meets with the sidewall of the cooking chamber, you will see some pre-drilled holes. I drilled holes through the side of my cooking chamber and then bolted the plate into place. Worked great!
