Repairing cast iron pan?

kawboy

Smoking Fanatic
595
112
Joined Oct 20, 2015
Anyone have any luck welding a cast iron pan? I have a 12" that got knocked off the counter and broke in two places opposite of the handle, bottom is fine. I've only seen one video of a guy successfully fixing one with a wire feed. I love my cast iron! It's all I use, and I miss the 12". My understanding is to keep it hot while welding, which is going to be difficult here in Minnesota for the next six months. I've put it off for the last few years being scared of screwing it up, but I guess it isn't doing much good as is. Might have to just tackle it one of these weekends, good or bad.


kawboy

Smoking Fanatic
595
112
Joined Oct 20, 2015
Welding cast iron is difficult at best. Pre and post heat are definitely needed or it will crack. I understand your love of the pan but it might be time to let it go and replace it with another.
Been looking at swap meets for a replacement, they must be made of gold though! You're right though, one of these days I'll have to bite the bullet and replace it.


indaswamp

Master of the Pit
OTBS Member
4,387
1,208
Joined Apr 27, 2017
Had a cast iron head crack on an old camper. We had it brazed then milled down to a smooth surface. Lasted until we sold it years later....
Buddy had a 25 gallon cast iron pot with a 5 inch crack around one of the legs, had it brazed and he's still cooking with it today. But he only cooks over open fire with it. If the crack is on a cooking surface, I do not know how well it will hold up if cooking over propane, nat. gas or electric....


indaswamp

Master of the Pit
OTBS Member
4,387
1,208
Joined Apr 27, 2017
You might be OK with brazing since the cracks are on the side. Be very careful with heat up and cool down. Go extremely slow! A hot box is the best method IMO...


kit s

Smoking Fanatic
571
211
Joined Sep 2, 2017

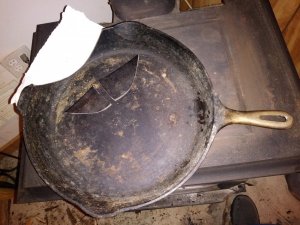

here's a picture.
Braze the two pieces together first it will do two things first it will show you what your able to do or not able to do. Second it is easier to hold clamp one piece than two while your brazing.
Their are new ones out there so figure this more for sentimental reason than practical ones. Can always use the old for wood chips or other cooking purposes.
Just my two cents.
kit


kawboy

Smoking Fanatic
595
112
Joined Oct 20, 2015
A new Lodge 12" skillet is $19.90 at WalMart
I've got a soft spot for the old stuff. I was looking for a dutch oven for years when a buddy at work was getting rid of some stuff he inherited with some cast in it. Wanted $20 for a Rubbermaid tote full. Ended up with a basting pot and nine pans. Since then people keep unloading pans on me☺.


kawboy

Smoking Fanatic
595
112
Joined Oct 20, 2015
Sounds like I may have to find some of my Dad's old Brazing stuff and give it a go. Thanks for all the input!


daveomak

Epic Pitmaster
OTBS Member
SMF Premier Member
24,928
2,651
Joined Nov 12, 2010
If you have access to a TIG machine, you can TIG braze with silicon bronze ... Heat it up hot with a weed burner... I would grind the edges to form a "V" so there's room for filler.. Some say, which I haven't tried, is peen the weld after an inch or so then continue brazing...
Check out U-Tube for brazing cast iron...
