Offset chamber to firebox Bell to Bell joining

Cale Beecher

Newbie
10
2
Joined Aug 13, 2018
So in the process of making a traditional offset out of a 120gal propane tank.

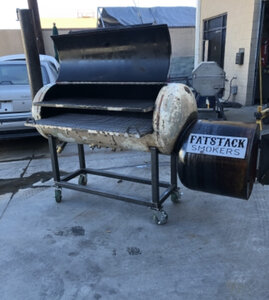

I like the looks of the FatStacks 120 on their website. But before I start cutting away looking for insight. I want to join them together bell to bell (round to round) and not sure how to measure that to make them match up correctly. Any help is great.
thanks!


Attachments

mike243

Master of the Pit
SMF Premier Member
2,513
988
Joined Feb 25, 2018
I would decide how much of a opening i wanted then take a sheet of paper and tape to the end of the fire box and mark it, cut out then take and tape to the smoker cut and then trim as needed


Cale Beecher

Newbie
10
2
Joined Aug 13, 2018
I would decide how much of a opening i wanted then take a sheet of paper and tape to the end of the fire box and mark it, cut out then take and tape to the smoker cut and then trim as needed
Great minds must think alike. That was my plan! Just figured I’d throw the question out to see what people had done. Thanks!


kmmamm

Meat Mopper
224
81
Joined Apr 30, 2016
you will have much better luck shaping, cutting and tracing if you use a large piece of stiff cardboard or 1/4” plywood to build the template.


Cale Beecher

Newbie
10
2
Joined Aug 13, 2018
you will have much better luck shaping, cutting and tracing if you use a large piece of stiff cardboard or 1/4” plywood to build the template.
Wouldn’t that be difficult to shape around the bell of the tank if the template is stiff? I’m wanting to keep them both round.


kmmamm

Meat Mopper
224
81
Joined Apr 30, 2016
Shaping the paper around the bell will work....provided both bell ends are the same dimensions and the paper can be aligned at the same points on both tanks. Using a flat template allows me to form a single plane template of the hole which I find easier to orient on a dissimilar bell. Doesn‘t really matter which method you chose, just be sure you start with an undersized cut that can be trimmed to fit. Personally, I have gotten away from mating bell ends...time consuming and I have not been able to measure any actual benefit in terms of draft and temperate control vs a flat end firebox. I now use the bells to build heavy duty fire pits and planters.
