NO heat MES 30 HELP please

tsapp

Newbie
21
13
Joined Oct 28, 2020
I have an MES 30 that had no heat I found a bad spot on the element, so I ordered a new one and replaced it, still have no heat the wires look great, the controller acts like it should be good , power light comes on set the temp and time and the red heating light comes on, the LED light works, I disconnected and reconnected all 3 plugs for the light and it beeps when it gets power, but still no heat. Can anyone help? I am supposed to smoke a brisket for my neighbor tomorrow who is 86 yrs old.


JC in GB

Master of the Pit
OTBS Member
SMF Premier Member
2,737
1,779
Joined Sep 28, 2018
Do you have access to a multimeter? Can you measure the voltage on the element tabs or maybe use a lamp to test the voltage output?

If your element is new, then it is either the controller of the wiring.

JC :emoji_cat:


tsapp

Newbie
21
13
Joined Oct 28, 2020
No voltage at the wires where they connect to the element The wires look not burnt at all.


radioguy

Smoking Fanatic
870
224
Joined Jan 12, 2013
JC is right. There is a switch on that controller that is not making contact. The switch could be a relay or solid state device.

RG


hoity toit

Master of the Pit
OTBS Member
SMF Premier Member
1,907
480
Joined Nov 4, 2011
Bad Controller.
By the way, I'm done with store bought smokers, prefer to do the build myself. I had masterbuilt for years many of them...All died a slow death eventually. The path is wrought with danger, tread well my friend. Good Luck.

HT

HT


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
5,462
2,511
Joined Dec 30, 2016
I have an MES 30 that had no heat I found a bad spot on the element, so I ordered a new one and replaced it, still have no heat the wires look great, the controller acts like it should be good , power light comes on set the temp and time and the red heating light comes on, the LED light works, I disconnected and reconnected all 3 plugs for the light and it beeps when it gets power, but still no heat. Can anyone help? I am supposed to smoke a brisket for my neighbor tomorrow who is 86 yrs old.
Hi there and welcome!
Could be the controller on top or the controller board underneath the bottom compartment.

There is a way to turn your smoker into an amazing even better preforming one if you do the simple rewire and use an Auber PID controller with it.
An Auber PID controller cost like $150 but the thing is it makes your smoker 100x better than any new MES u can buy hahaha. Holds temp within 1-3 degrees no problem so no more temp swings :)


tsapp

Newbie
21
13
Joined Oct 28, 2020
Hi there and welcome!
Could be the controller on top or the controller board underneath the bottom compartment.

There is a way to turn your smoker into an amazing even better preforming one if you do the simple rewire and use an Auber PID controller with it.
An Auber PID controller cost like $150 but the thing is it makes your smoker 100x better than any new MES u can buy hahaha. Holds temp within 1-3 degrees no problem so no more temp swings :)
Is there a a post that shows you how to re-wire it?


pa42phigh

Meat Mopper
271
253
Joined Jan 17, 2016


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
5,462
2,511
Joined Dec 30, 2016
Is there a a post that shows you how to re-wire it?
Yep, pa42phigh pa42phigh beat me to the reply and posted it.
Rewire with an Auber PID is like having a brand new and extra amazing smoker. It's not really a draw back, but you will need to generate smoke with an AMNPS tray or tube and wood pellets once you rewire. Most of us MES guys do that from the beginning of owning an MES so again not really a draw back.

With the Auber PID you dont get long on/off cycles of the element being on therefore the element doesnt heat up long enough to smolder the wood chips, it just cuts on in short intervals as needed to maintain temp within 1 degree or so.

Here is the Auber PID that will work for both MES40 and 30 in the case you ever upgrade to an MES40. I think the best electric smoker for the money is a used MES40 off Craiglist or Facebook that is rewired and has an Auber PID controller put on it hahaha:
You would want the multi-purpose temp probe.

Let us know if you have any questions at all about this stuff. Everyone who rewires and uses a PID controller on an MES says "why did I wait so long to do this!!!" hahaha.


Firemedic911

Newbie
6
0
Joined Nov 21, 2020
Yep, pa42phigh pa42phigh beat me to the reply and posted it.
Rewire with an Auber PID is like having a brand new and extra amazing smoker. It's not really a draw back, but you will need to generate smoke with an AMNPS tray or tube and wood pellets once you rewire. Most of us MES guys do that from the beginning of owning an MES so again not really a draw back.

With the Auber PID you dont get long on/off cycles of the element being on therefore the element doesnt heat up long enough to smolder the wood chips, it just cuts on in short intervals as needed to maintain temp within 1 degree or so.

Here is the Auber PID that will work for both MES40 and 30 in the case you ever upgrade to an MES40. I think the best electric smoker for the money is a used MES40 off Craiglist or Facebook that is rewired and has an Auber PID controller put on it hahaha:
You would want the multi-purpose temp probe.

Let us know if you have any questions at all about this stuff. Everyone who rewires and uses a PID controller on an MES says "why did I wait so long to do this!!!" hahaha.
In regards to that AMNPS tray you recommended to use, that will fit in the MES bottom? I cant picture where i would put that to make it fit with everything that is inside the smoker. Are there more modifications that has to be done if using this for smoking?


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
5,462
2,511
Joined Dec 30, 2016
In regards to that AMNPS tray you recommended to use, that will fit in the MES bottom? I cant picture where i would put that to make it fit with everything that is inside the smoker. Are there more modifications that has to be done if using this for smoking?
Hi there and welcome!

If you have an MES30 inch then guys put it on the lowest smoker rack.
If you have an MES40 there are bars across the bottom of the smoker to the left of the heating element where it may fit.

I personal built a "mailbox mod" and my AMNPS goes into the mailbox. The mailbox has a duct that runs and plugs into the tub chip feeder hole (3inch elbow duct fits and chip tube is completely removed).

I'm partial to the mailbox mod and if you have an MES30 its the most effective way to use an AMNPS tray because I have helped a number of folks who could never get the AMPNS tray to run inside their MES30 due to lack of airflow.
A number of the MES40 guys run the tray inside the smoker.

Let me know if this info helps :)


cmayna

Master of the Pit
OTBS Member
★ Lifetime Premier ★
3,385
1,056
Joined Jun 23, 2012
As Tallbm suggests. I aquired a MES40 a couple years ago with a dead controller. Learned about Auber's PID and never looked back. Also did the mailbox mod. OMG!!!

Yesterday I found a MES135S on craigslist for free. Only 5 miles away. As if I needed another smoker........I happen to have a couple extra Auber sitting out in my shop. Hmmmmm


Firemedic911

Newbie
6
0
Joined Nov 21, 2020
I am not familiar with the mailbox mod. Do you have any pics that can better depict/describe this? Im still new at this....

Thanks fellas!


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
5,462
2,511
Joined Dec 30, 2016
As Tallbm suggests. I aquired a MES40 a couple years ago with a dead controller. Learned about Auber's PID and never looked back. Also did the mailbox mod. OMG!!!

Yesterday I found a MES135S on craigslist for free. Only 5 miles away. As if I needed another smoker........I happen to have a couple extra Auber sitting out in my shop. Hmmmmm
So tempting when you see those posts aye? :)


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
5,462
2,511
Joined Dec 30, 2016
I am not familiar with the mailbox mod. Do you have any pics that can better depict/describe this? Im still new at this....

Thanks fellas!

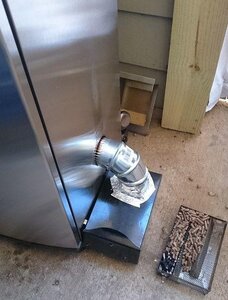

Here's my mailbox mod. Mine's a little different from most peoples but the idea is the same. Mailbox with duct that goes from mailbox to MES chip tube and AMPS goes into mailbox.


Firemedic911

Newbie
6
0
Joined Nov 21, 2020
So the mailbox is only for the chips and chip tray? No heating element in the mailbox at all right? Im new to all this so forgive me but i dont see how the chips will be heated in a separate box than the element?? Thanks for responding!


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
5,462
2,511
Joined Dec 30, 2016
So the mailbox is only for the chips and chip tray? No heating element in the mailbox at all right? Im new to all this so forgive me but i dont see how the chips will be heated in a separate box than the element?? Thanks for responding!
No problem. No heating element involved with a mailbox mod, there is no need for one to produce smoke with a mailbox mod.

The A-Maze-N Pellet Smoker (AMNPS) tray uses pellets. You can see it next to my mailbox mod on the concrete.

You use the AMNPS with a mailbox mod.
The AMNPS is built like a "maze" or "snake" so that you put as many or as little pellets as you want in it. Then you light one end and let it flame for 10 min then blow out the flame. The red hot smoldering pellets will continue to smolder down the line of pellets and continue to do so producing perfect smoke the whole time.
A full tray gives you 12 hours of perfect hassle free smoke :)

So after the AMNPS is flaming for 10 min u blow out the flame and put the AMNPS tray into the mailbox mod.
The mailbox mod is hooked into the side of the MES via the chip loading hole (tube is removed). The smoke will travel up and into the smoker.

That's how it all works. No chips involved and no having to feed wood every 30-45 min when using the AMNPS tray and wood pellets :)
A 40 pound bag of pellets lasts FOREVER this way :)

I hope this info helps!


cmayna

Master of the Pit
OTBS Member
★ Lifetime Premier ★
3,385
1,056
Joined Jun 23, 2012
tsapp,
Have you decided what direction you will take for the no heat issue? Per your signature, looks like you have a couple other smokers to take care of your brisket.
