Lowes Dual-door Master Forge Smoker to natural gas

[acefred]

I just went to my local Lowes (Canada) and the new version of this must be different again...You can screw a natural gas BBQ line right on to the valve extension now...I didn't get to look at the orifice but drilling seems to be an easy option.  $179 cnd.



[acefred]

Picked up this smoker this week on sale for $139 cnd...Found a free used hose, drill out the orifice and had it seasoned. The only thing I am not sure of now is the temp.  I have ordered a probe thermometer to use but the door thermometer would only show this thing getting up to 280 - 290 on high for an hour...how hot should this smoker get on NG?  I drill to 3/16 should I go bigger yet (the flame looks good)?  Looking forward to sealing the doors and running this all summer :)



[tclark]

3/16 is WAY too big...that could be part of your problem. With a normal municipal NG supply, you should only use a 1/16" bit.



[acefred]

3/16 is WAY too big...that could be part of your problem. With a normal municipal NG supply, you should only use a 1/16" bit.

Sorry 1/16 is what I did...



[adamvsmaximvs]

I realize this is a bit of a thread necro, but I just purchased this unit and noticed it's changed a bit and it's much easier to convert to NG now. I've attached some pics to show the differences


• adamvsmaximvs
• Apr 22, 2015


• adamvsmaximvs
• Apr 22, 2015

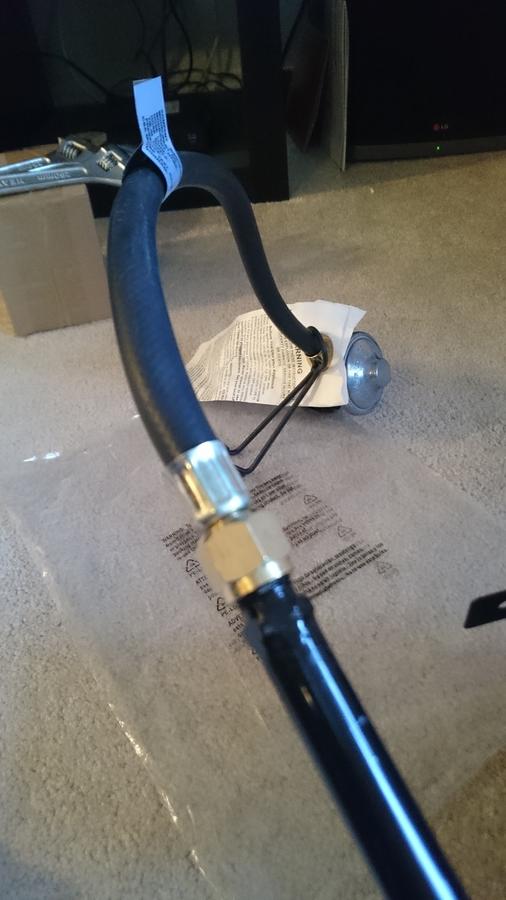

ou can now directly attach a NG conversion kit hose to the feeder tube using the flare fitting end. It's a piece of cake.


• adamvsmaximvs
• Apr 22, 2015

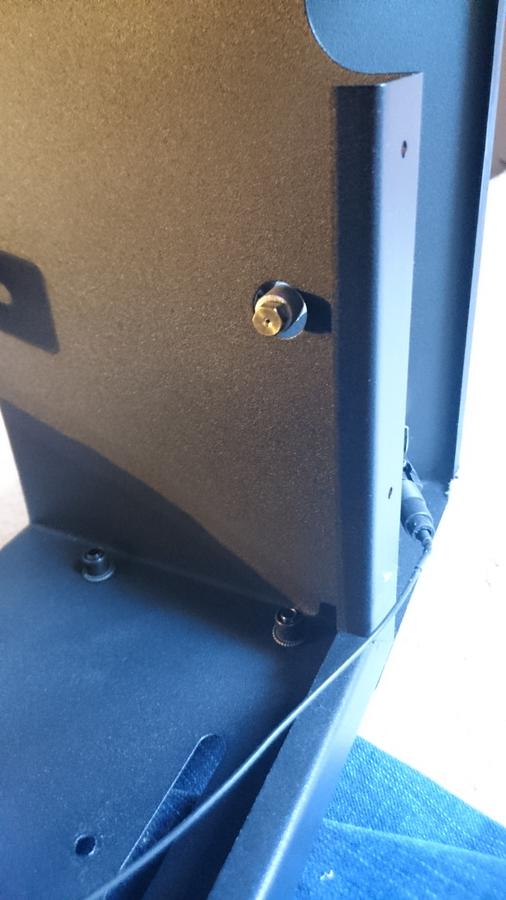

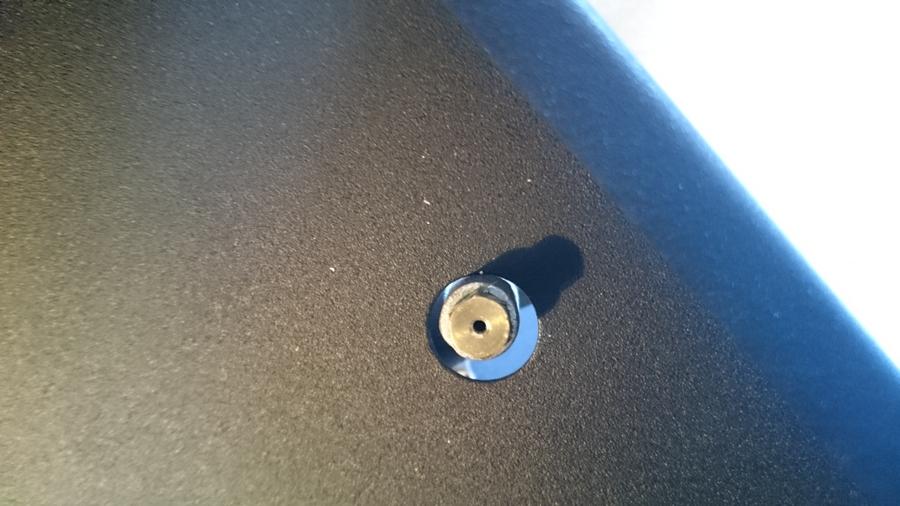

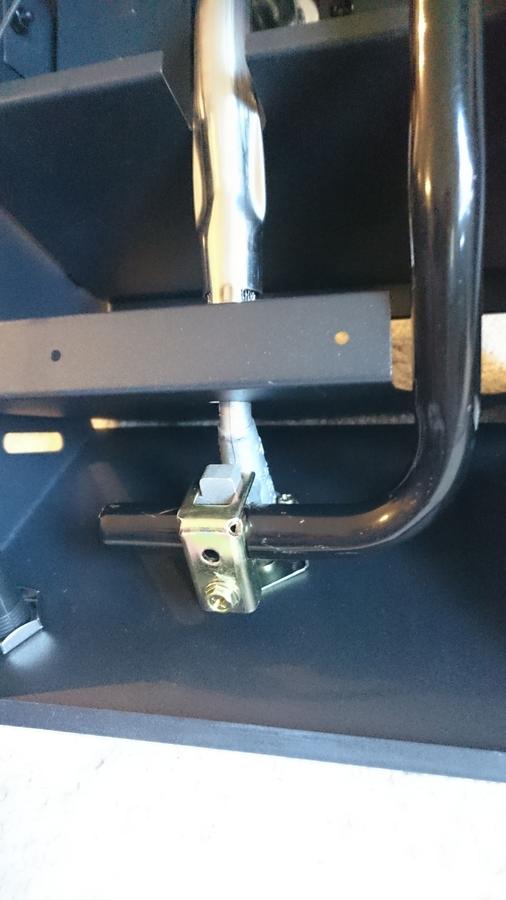

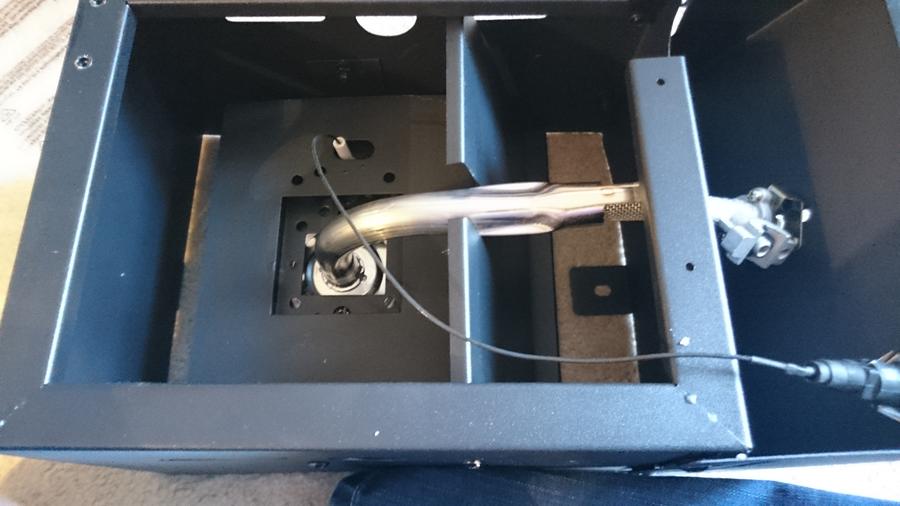

You'll need to remove the black steel support plate and the brass bracket to access the valve orifice


• adamvsmaximvs
• Apr 22, 2015


• adamvsmaximvs
• Apr 22, 2015


• adamvsmaximvs
• Apr 22, 2015

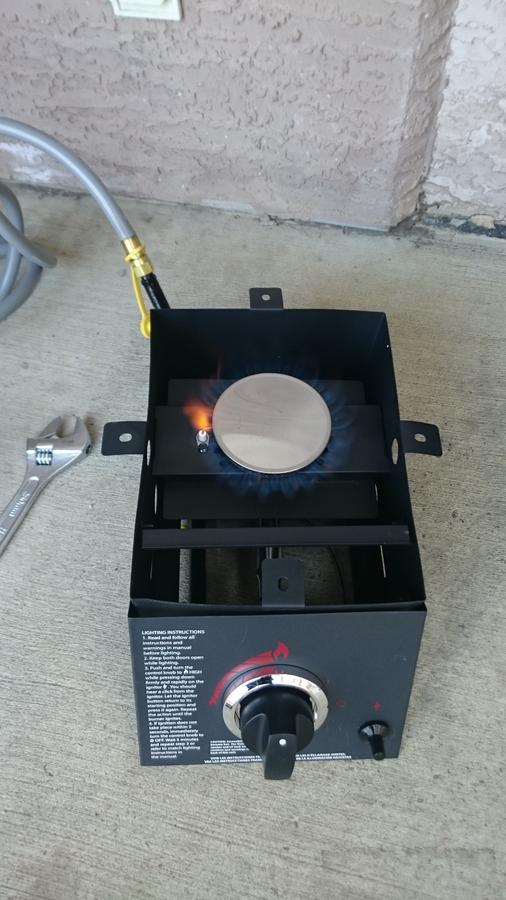

You can see in the next pic, I've reattached the support and feeder tub and it's directly attached to the NG line. You don't even need to buy any teflon tape anymore. Literally all you need is a drill and bit.


• adamvsmaximvs
• Apr 22, 2015

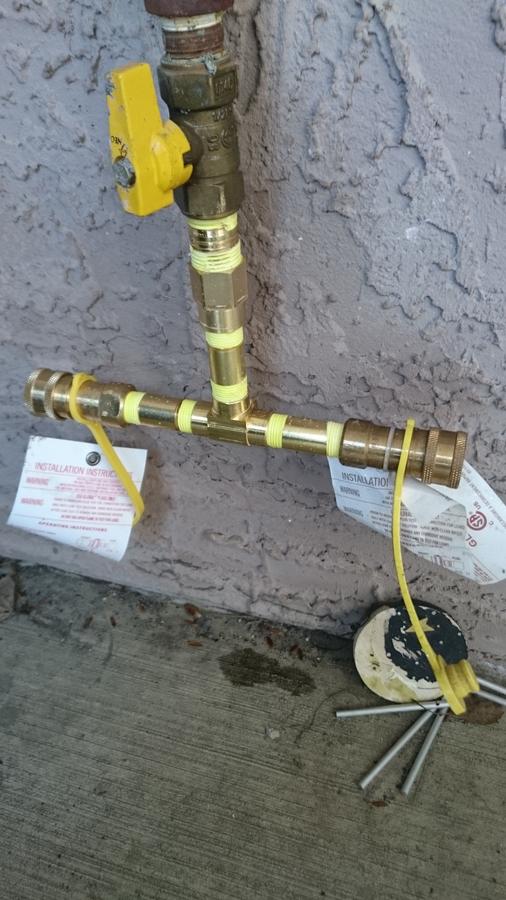

Of course, if you have a NG grill as well, you can make yourself a simple splitter/header so both can run at the same time;


• adamvsmaximvs
• Apr 22, 2015

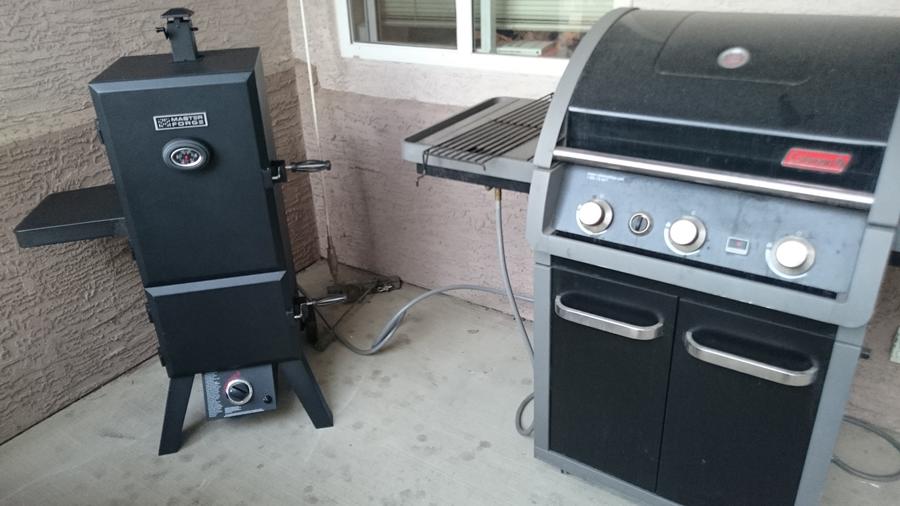

Voila NG smoker (and BBQ!)


• adamvsmaximvs
• Apr 22, 2015



[klago]

how did you do that?



[adamvsmaximvs]

It's just a basic splitter/tee header. I've got a much more complicated setup at my new place, since I've got a NG fire place too and a bigger Napoleon with a 3/4 gas line.

Basically you just want to make two branches from your NG line, and this isn't the only (or even best) way to do it. In this case Start with your vertical run going from Nipple-Reducer-Nipple-Tee all screwed in and threaded. You can't attach the branch nipples as you wouldn't be able to thread the unit in.

Once you've got the vertical run in, use a couple pipe wrenches to thread the horizontal nipples and quick connects in place. Strictly speaking teflon tape isn't necessary, and there's probably a type of brass 'pipe' dope you can use if you prefer (just only dope the male threads).

You could also use a union on the vertical run that allows you to create the horizontal run whole, I was just going off what was available at my local hardware store at the time which didn't have any unions.
