I need input on my first 250 gallon build

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

Jonatan

Newbie
Original poster
Mar 18, 2023
3
0
Hello!

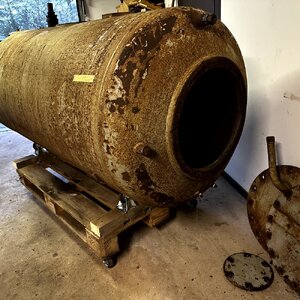

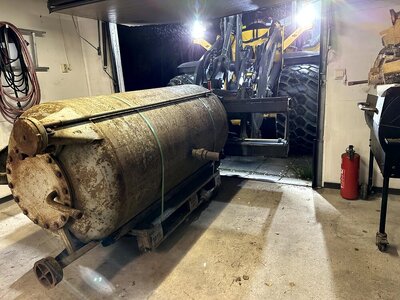

I’m new to this with big offsets and is about to start my first offset smoker build. These are not common here in Sweden. I really would like some inputs from you pro’s :-) I found a air pressure tank from the 70’s that is really thick (I guess around 9mm or 3/8inch as you say). Its volume is about 1000 liters or 250/260 gallons. My original idea was to place the firebox high and let the opening from firebox enter above grate level. After my YouTube research I found out this is called jambo- or outlaw-style…. Seemed like a natural idea to me.

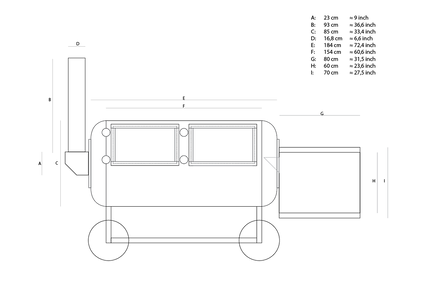

What do you think of the design? "Drawings" and photos attached. Do you think it will work? My biggest concern is what size I should use on the openings between firebox/cooking chamber and from cooking chamber to smokestack. And height of chimney.


Attachments

  • IMG_3157.jpg
    270.7 KB · Views: 38
  • IMG_2509.jpg
    199.7 KB · Views: 36
  • front-back-01.png
    32.1 KB · Views: 38
  • side-01.png
    60.7 KB · Views: 38
If you don't need the cooking room, put the Fire Box inside the air tank in the first 3 feet... Divider wall height to above the food grate... Exhaust stack opening below the food grate... Exhaust stack height, ~ 36" above the air tank...

Check out this build...


If you don't need the cooking room, put the Fire Box inside the air tank in the first 3 feet... Divider wall height to above the food grate... Exhaust stack opening below the food grate... Exhaust stack height, ~ 36" above the air tank...
I wan't to use the whole tank as cooking chamber. I prefer the room for lots of meat.

Check out this build...

Thanks for the link, intresting project there. But not really they way I want to go.
