First Reverse Flow Build! (Patio)

[smokinbuckeye]

Hello All,

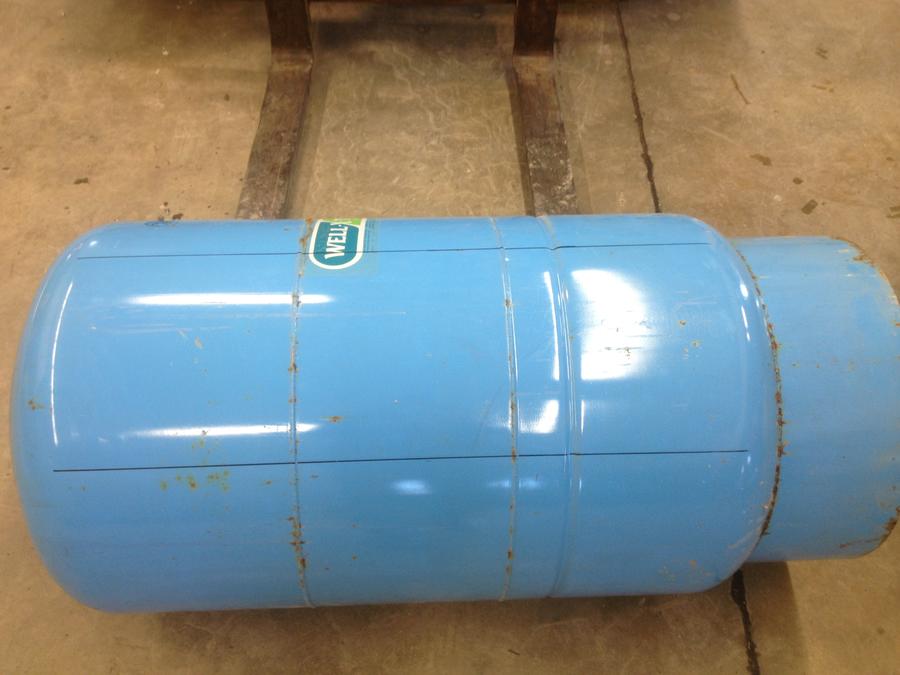

Have been researching for my build for a while now, and finally jumped into making one! It is 22in diameter and 40 inches long. It is an old water tank we had upstairs so we made that our candidate.  Cutting the lid was a chore since there was a support inside and of course a rubber bladder for the water...but with the plasma cutter it made things smoother.  I will be sure to post pics as we go along, next I need to get some 1/4in for the fire box and RF plate.

Here are a few to get you all started!


• smokinbuckeye
• Jan 9, 2013


• smokinbuckeye
• Jan 9, 2013

Good work bench


• smokinbuckeye
• Jan 9, 2013

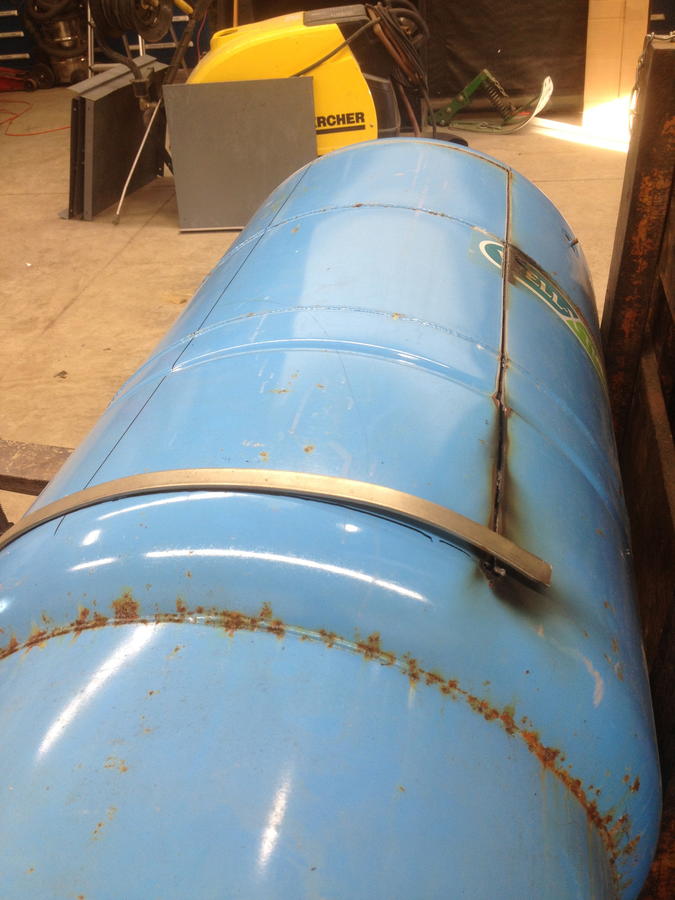

Bent some metal for a plasma guide


• smokinbuckeye
• Jan 9, 2013

Took some thinking for the fire box opening...had to cut it so early so we could get in and cut the bracing just to get the lid free!


• smokinbuckeye
• Jan 9, 2013

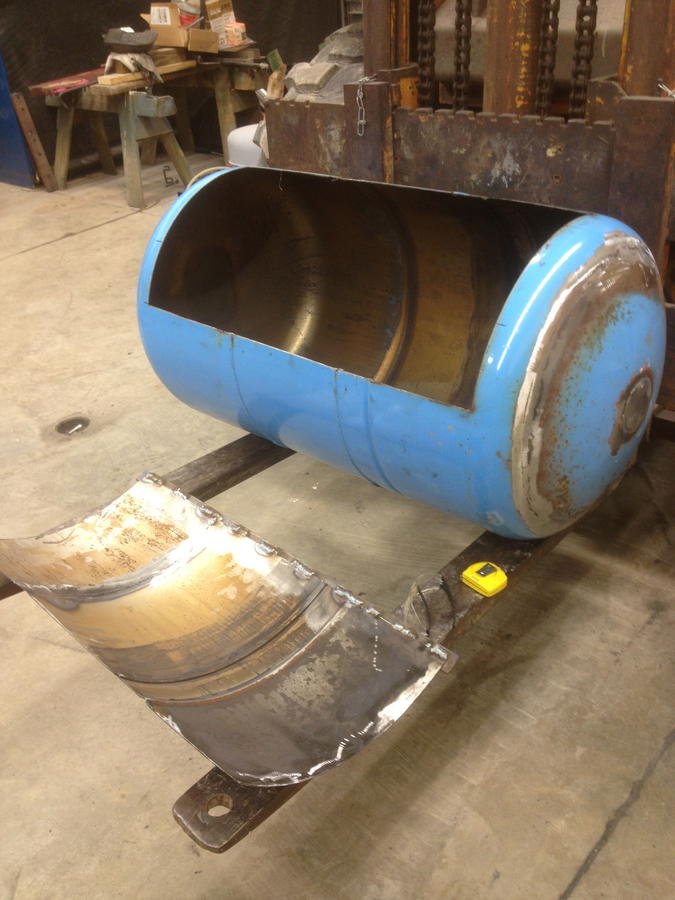

You can see the bladder on the right side of the tank. Took some extra work but looks like a normal chamber now!

Will post pics right along! Stay tuned



[smokinbuckeye]


• smokinbuckeye
• Jan 9, 2013

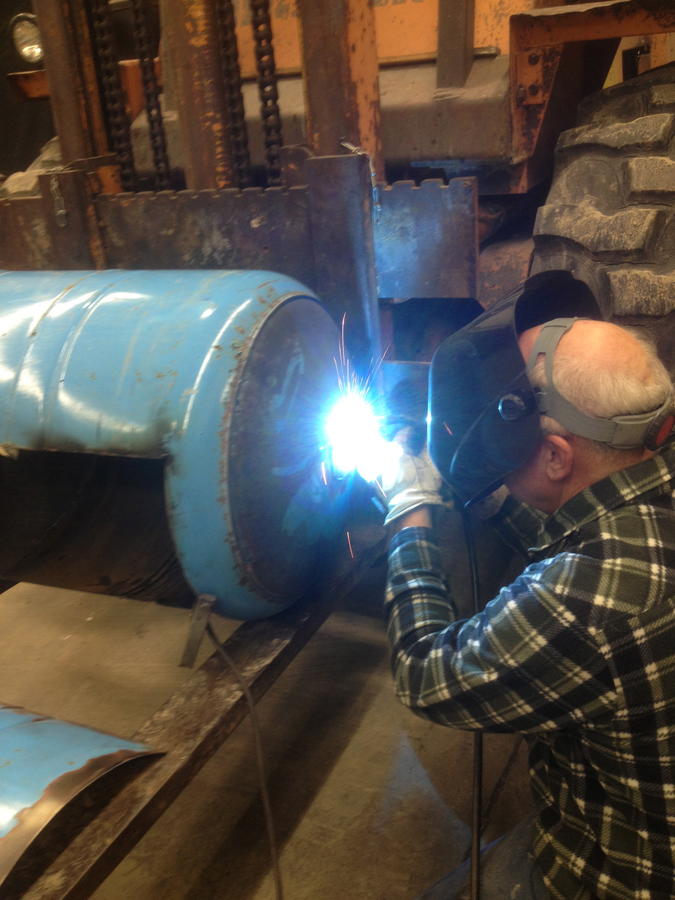

Dad helping out with some welding


• smokinbuckeye
• Jan 9, 2013

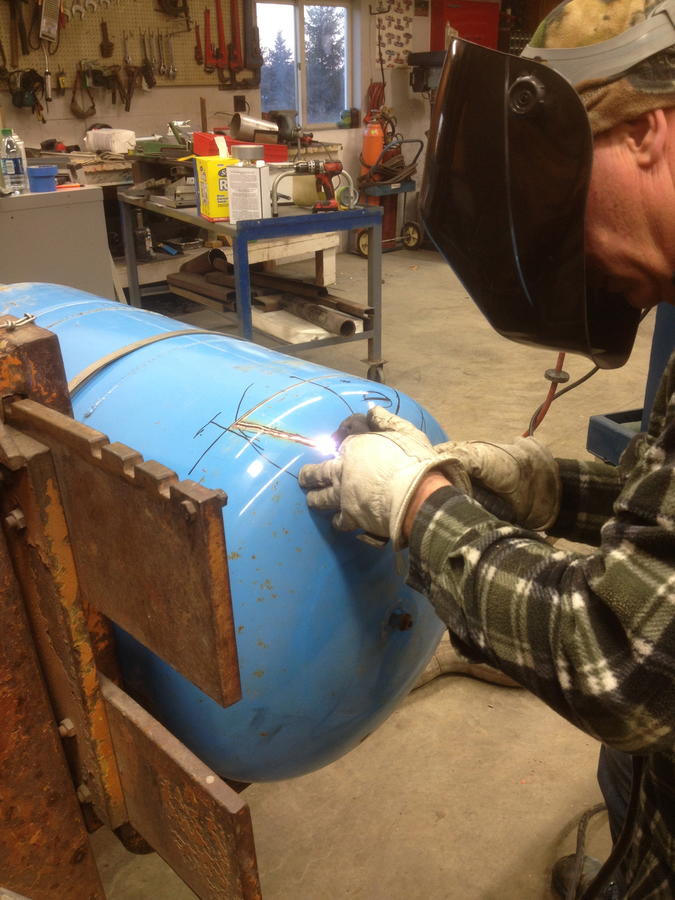

Patched a hole in the center and did some welding along the edge from where the plasma cut through from cutting off the tank stand, then ground it down...turned out nice


• smokinbuckeye
• Jan 9, 2013

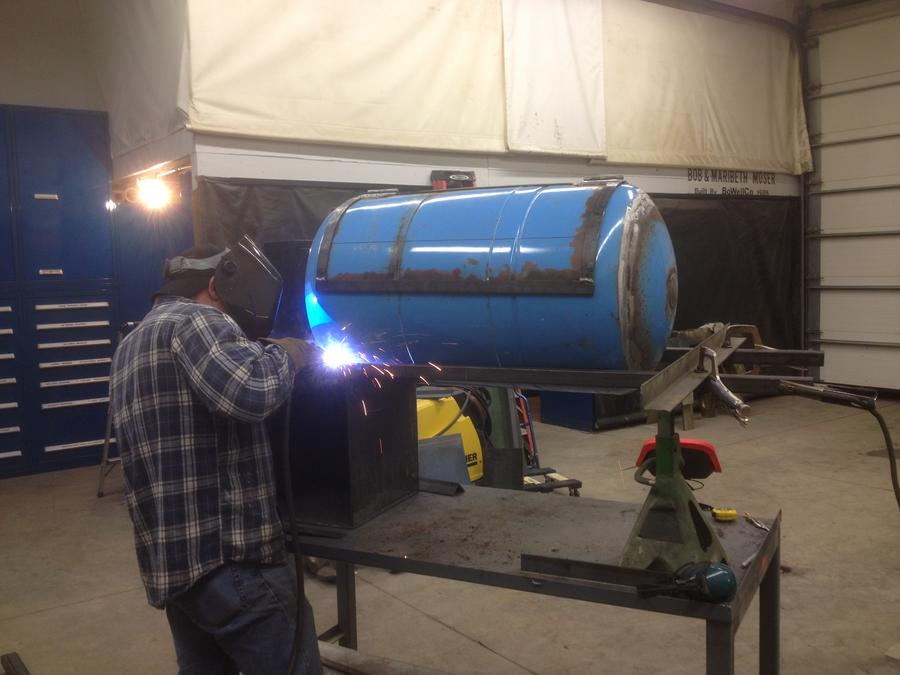

As she sits now...not bad for a few hours of work



[jarjarchef]

Looks good.

I have wondered about a guid for the plasma cutters, but no one showed one so had no clue what would work.



[themule69]

Looks good.

I have wondered about a guid for the plasma cutters, but no one showed one so had no clue what would work.

i tried hose clamping a nail to the torch head.i kinka worked. i'm still looking for a way. oh my bad. i'm off topic. sorry.



[themule69]


• smokinbuckeye
• Jan 9, 2013

Dad helping out with some welding


• smokinbuckeye
• Jan 9, 2013

Patched a hole in the center and did some welding along the edge from where the plasma cut through from cutting off the tank stand, then ground it down...turned out nice


• smokinbuckeye
• Jan 9, 2013

As she sits now...not bad for a few hours of work

looks like it will be a nice RF. keep the pics coming.

david



[bamaque]

Looking forward to watching this one. I have a similar project using an air tank about the same size........



[smokinbuckeye]

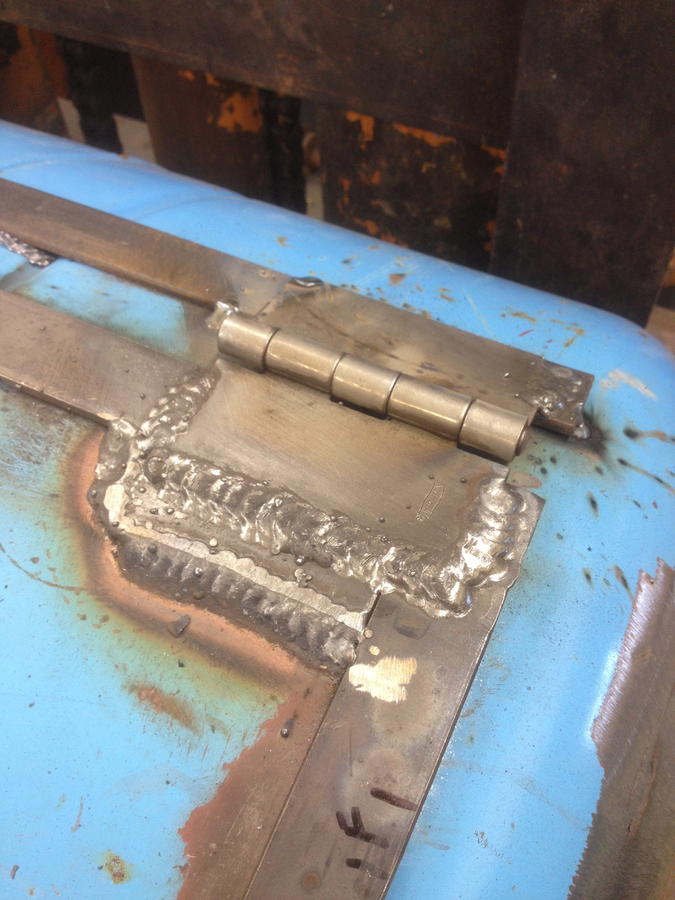

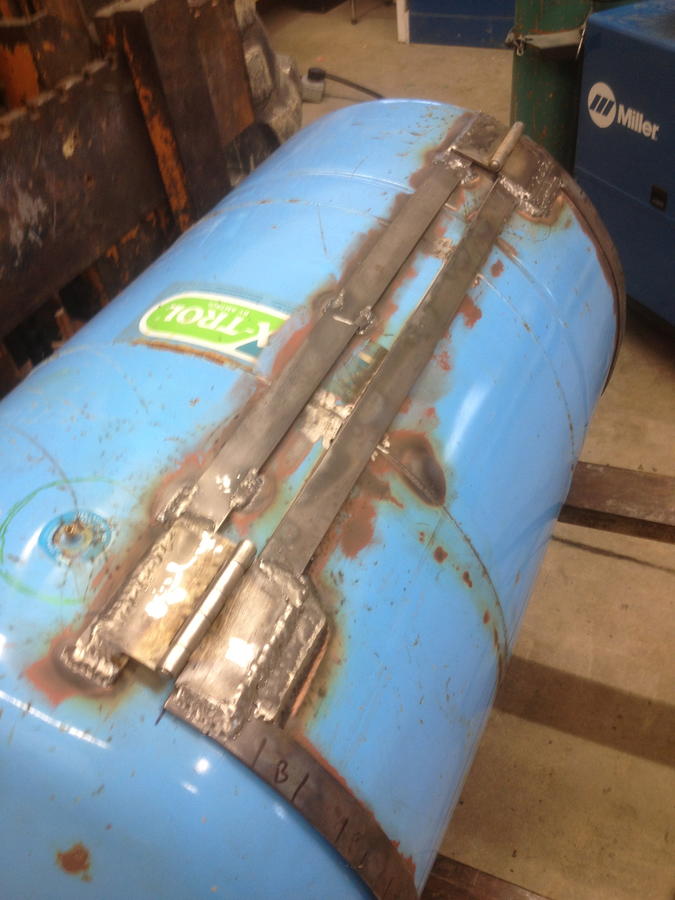

Had a little time this afternoon to get the hinges on, had some weld on ones so I put another piece of metal to act as a spacer on the back, also made for a nice spot to weld too.

The extra piece of metal may also help to keep the tank straight? Guess some extra support cant hurt, but thats what I did.


• smokinbuckeye
• Jan 11, 2013


• smokinbuckeye
• Jan 11, 2013



[themule69]

i'm still in.



[smokinbuckeye]


• smokinbuckeye
• Jan 11, 2013

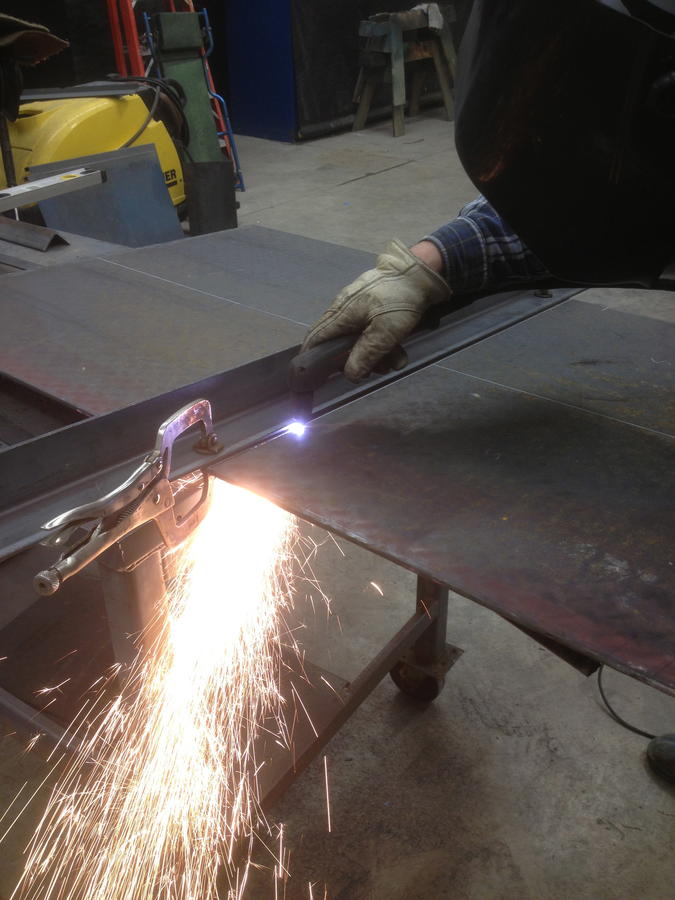

Make shift plasma guide


• smokinbuckeye
• Jan 11, 2013

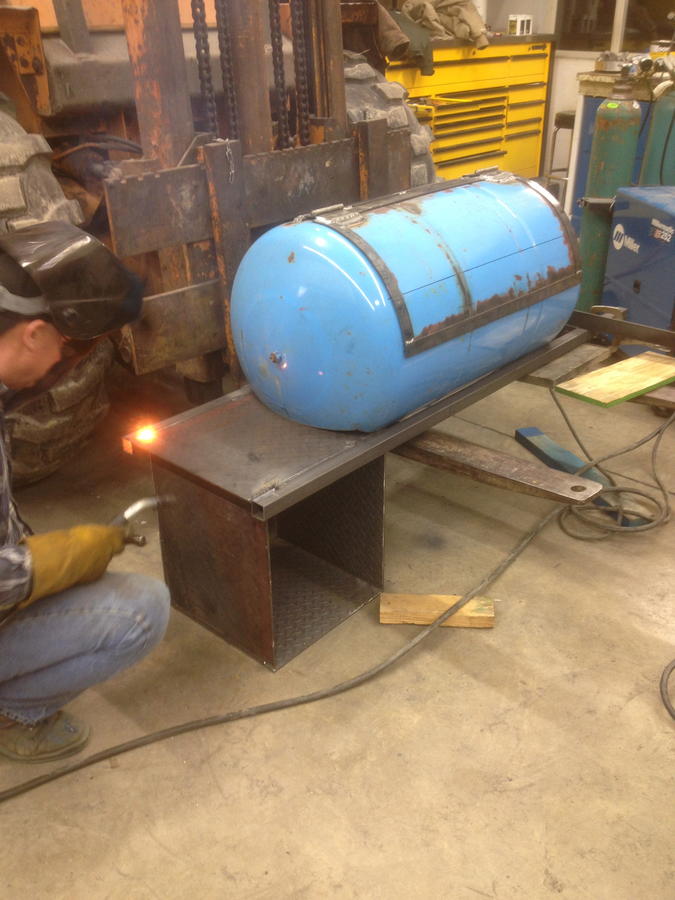

Tacking the base together


• smokinbuckeye
• Jan 11, 2013


• smokinbuckeye
• Jan 11, 2013


• smokinbuckeye
• Jan 11, 2013

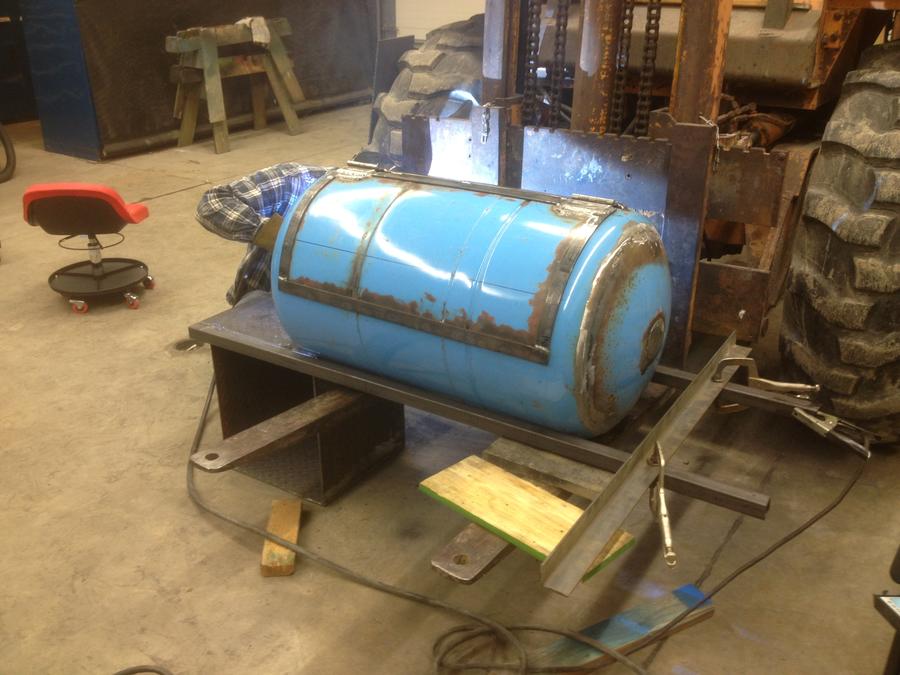

Starting to look like a smoker!


• smokinbuckeye
• Jan 11, 2013

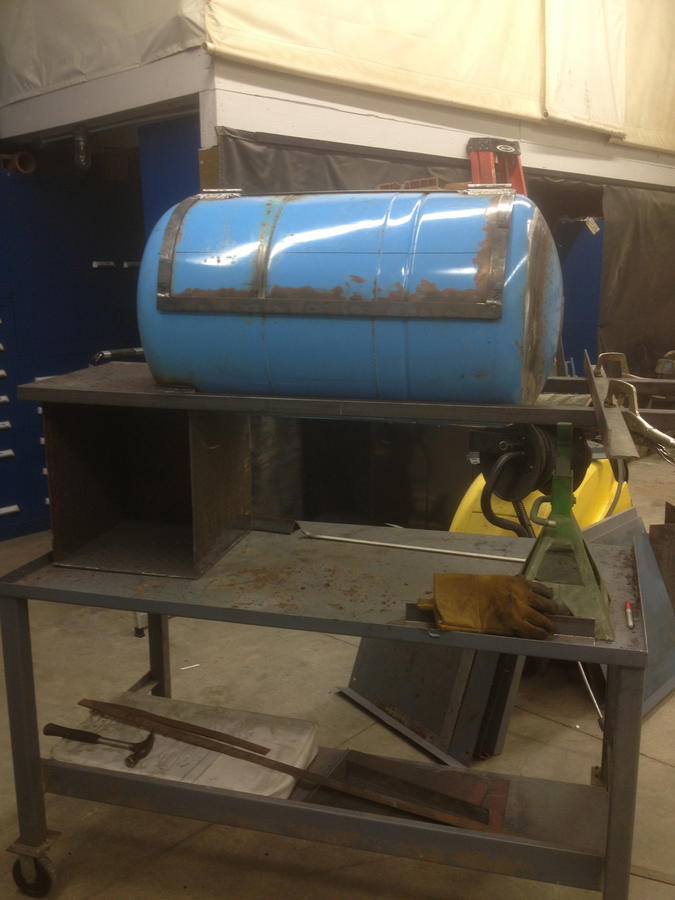

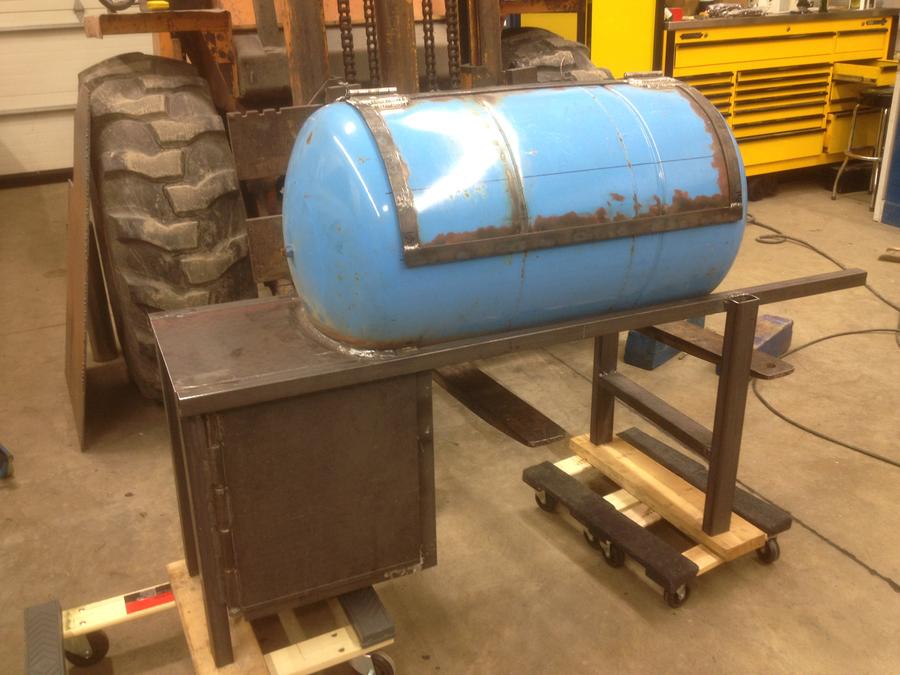

As it sits currently, got a lot done tonight!



[coronaca92879]

Looking good so far. Good job.



[themule69]


• smokinbuckeye
• Jan 11, 2013

Make shift plasma guide


• smokinbuckeye
• Jan 11, 2013

Tacking the base together


• smokinbuckeye
• Jan 11, 2013


• smokinbuckeye
• Jan 11, 2013


• smokinbuckeye
• Jan 11, 2013

Starting to look like a smoker!


• smokinbuckeye
• Jan 11, 2013

As it sits currently, got a lot done tonight!

great looking build so far.....question about your plasma guide. are you dragging the tourch against the guide? when i have tried that ti just burns up the tip.

thanks david.



[smokinbuckeye]

great looking build so far.....question about your plasma guide. are you dragging the tourch against the guide? when i have tried that ti just burns up the tip.

thanks david.

put the tip of the cutter against the guide and keep it moving, we have the plasma on the higher setting to help blow the metal out quicker. try on scrap metal, wont take long to get in the groove of things.



[smokinbuckeye]

Was gone most of the day, had a few hours to work at it tonight.


• smokinbuckeye
• Jan 12, 2013

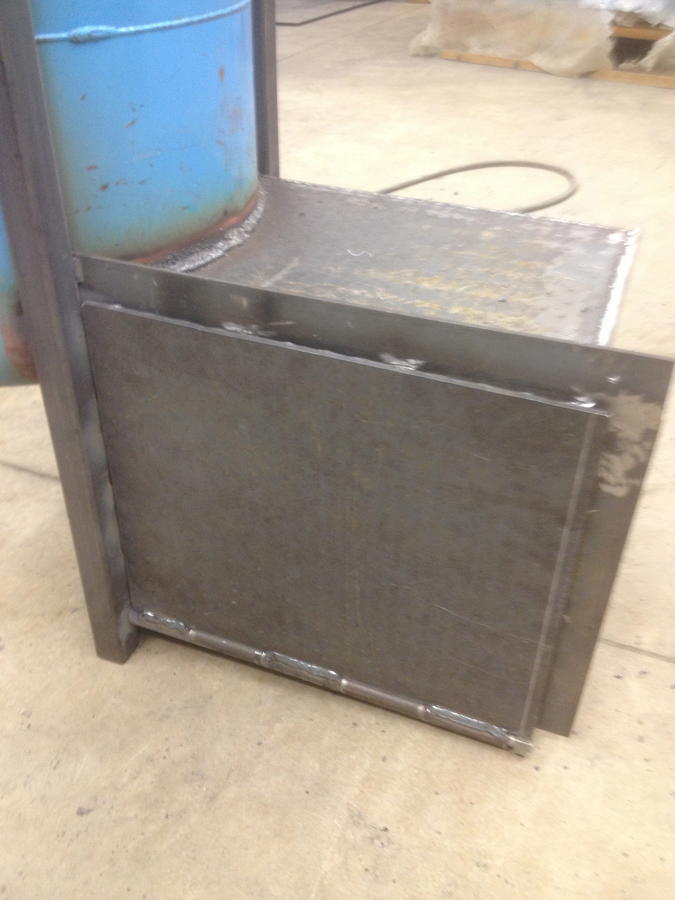

Got the firebox door on! We made the door a little bigger so we could put angle iron around the box, this will be a good place to add our seal, dresses it up a tad too.


• smokinbuckeye
• Jan 12, 2013

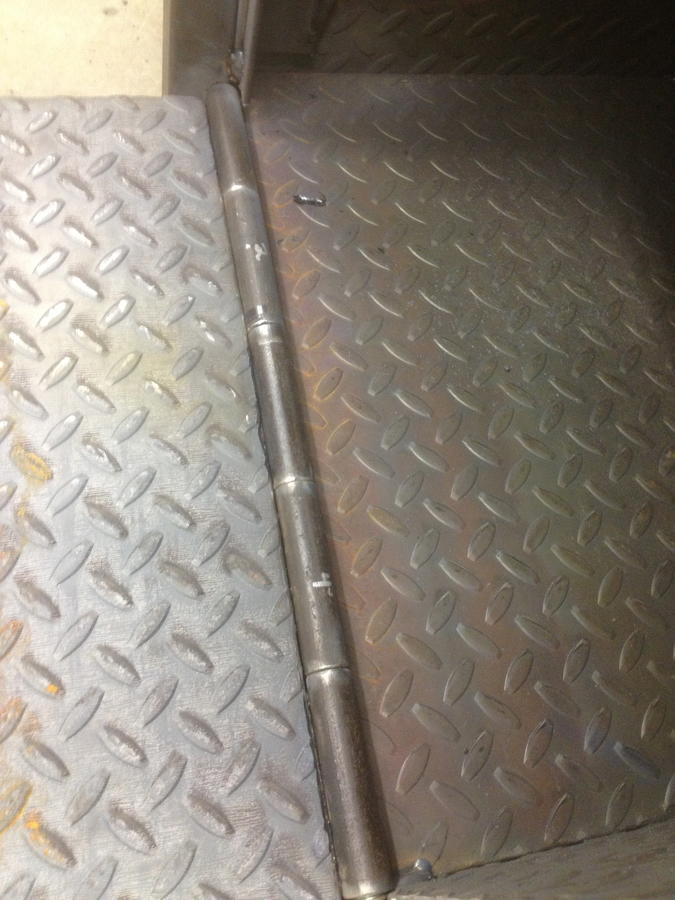

Cut a pipe into 5 sections for our hinge, used threaded rod in the center and put a nut on the bottom (it will not fall out since the bottom angle iron seal and door keep it up)


• smokinbuckeye
• Jan 12, 2013

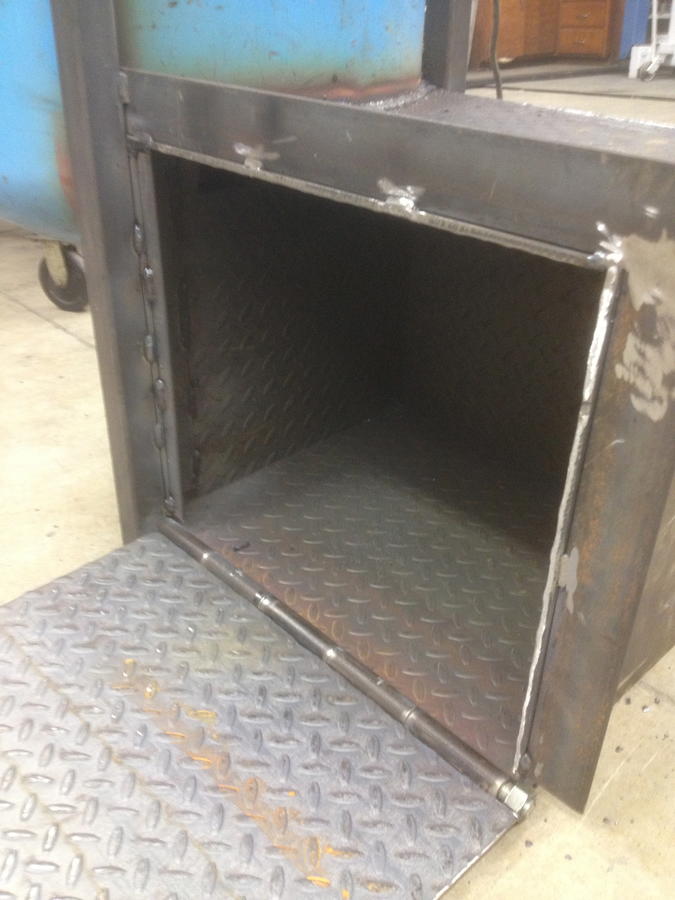

Picture of hinge and angle iron seal. All three sides got the angle iron, hinge side didnt need one.

Keep watching! More to come



[themule69]

put the tip of the cutter against the guide and keep it moving, we have the plasma on the higher setting to help blow the metal out quicker. try on scrap metal, wont take long to get in the groove of things.

i'll give it a try. i keep going back to my oxy/act because it likes me. i burn up tips as fast as i can with my plasma........i guess i'm just old school.....nice build you have going.

david



[smokinbuckeye]

i'll give it a try. i keep going back to my oxy/act because it likes me. i burn up tips as fast as i can with my plasma........i guess i'm just old school.....nice build you have going.

david

Thats really strange then, We havent used the oxy to cut since we bought the plasma. Maybe unscrew the tip and make sure the  components are still good, something may be burned up causing your problems.  With ours it looks like a factory cut when done, smooth as glass.



[smokinbuckeye]


• smokinbuckeye
• Jan 13, 2013

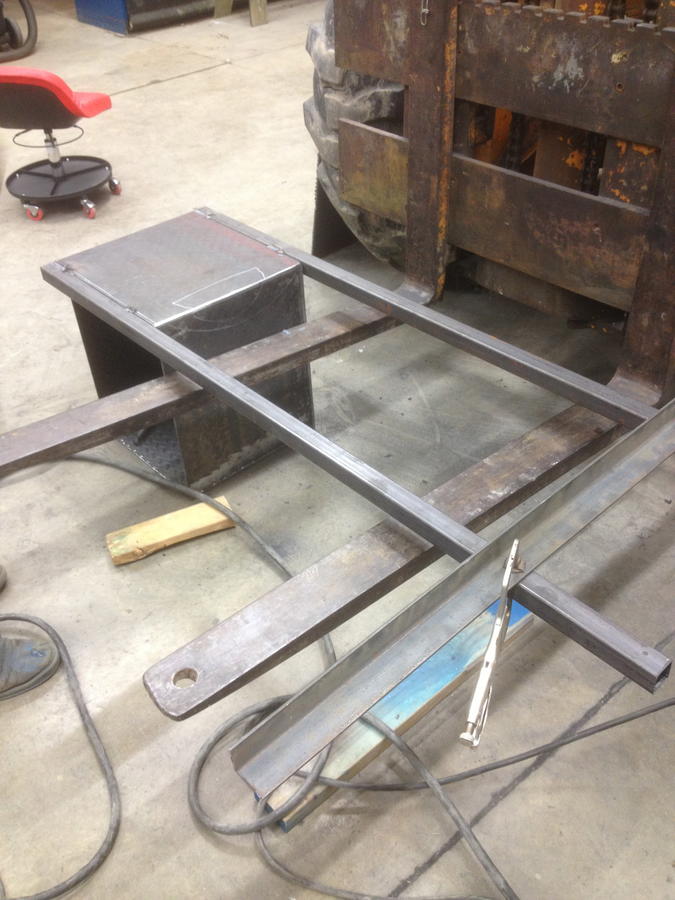

Got the stand started tonight, ordered pneumatic solid rubber casters so I will wait to do more until those come in.  Other than that just did more welding on various areas.



[caublecustomfab]

i'll give it a try. i keep going back to my oxy/act because it likes me. i burn up tips as fast as i can with my plasma........i guess i'm just old school.....nice build you have going.

david

Sounds like your plasma doesn't have a drag tip. Most plasmas need to be held just above the cutting surface to keep slag from blowing back in the tip.



[smokinbuckeye]

Sounds like your plasma doesn't have a drag tip. Most plasmas need to be held just above the cutting surface to keep slag from blowing back in the tip.

Good point, didnt even give that a thought. We run ours right on the metal but I guess I should of thought of that earlier, probably the problem.



[themule69]

Sounds like your plasma doesn't have a drag tip. Most plasmas need to be held just above the cutting surface to keep slag from blowing back in the tip.

that's going to be the problem. thanks. david



[smokinbuckeye]


• smokinbuckeye
• Jan 14, 2013

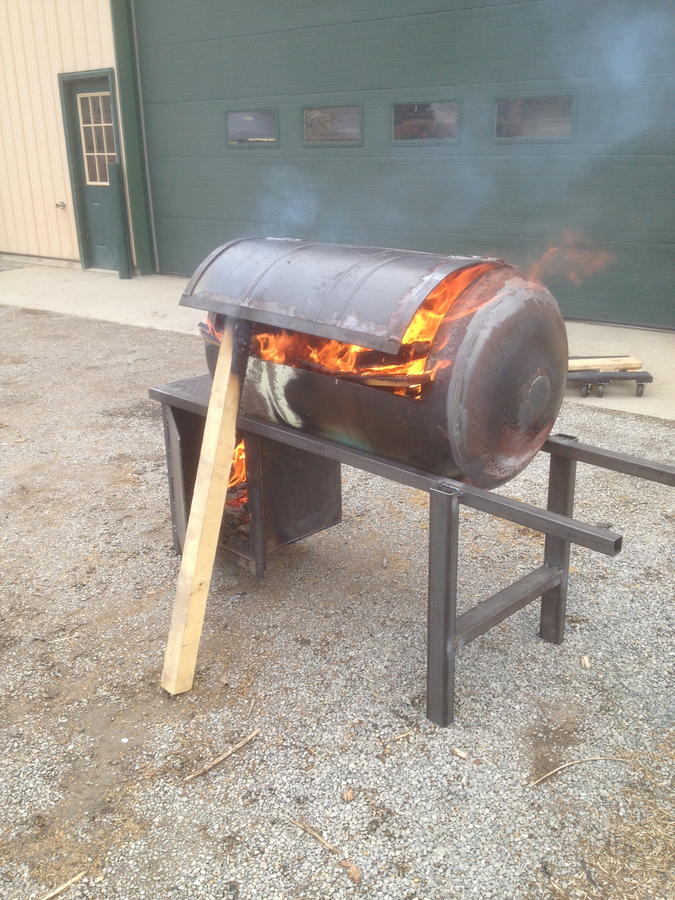

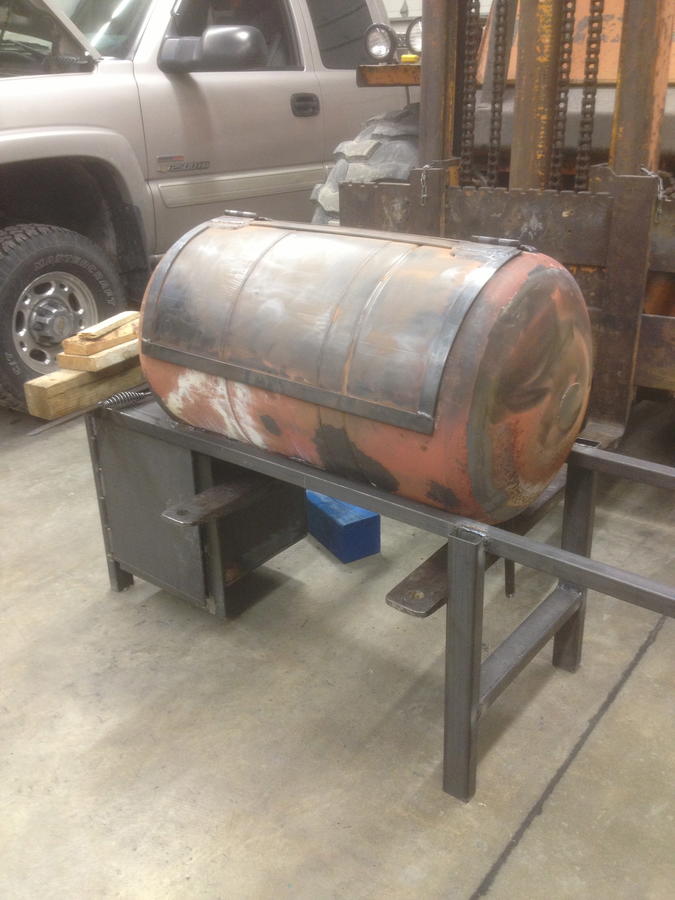

Got a nice burn in today


• smokinbuckeye
• Jan 14, 2013

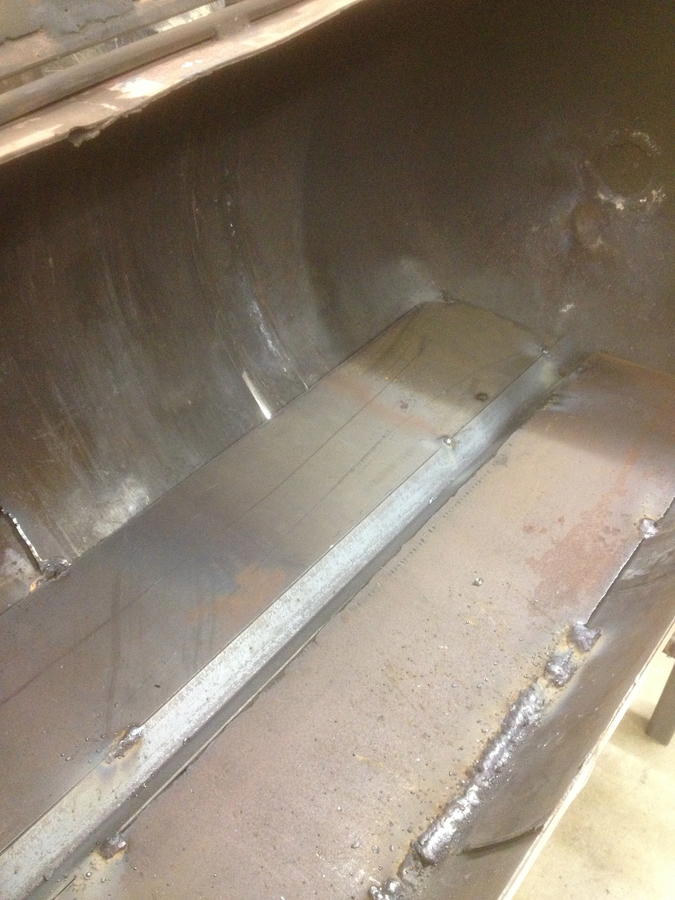

Started the RF plate


• smokinbuckeye
• Jan 14, 2013

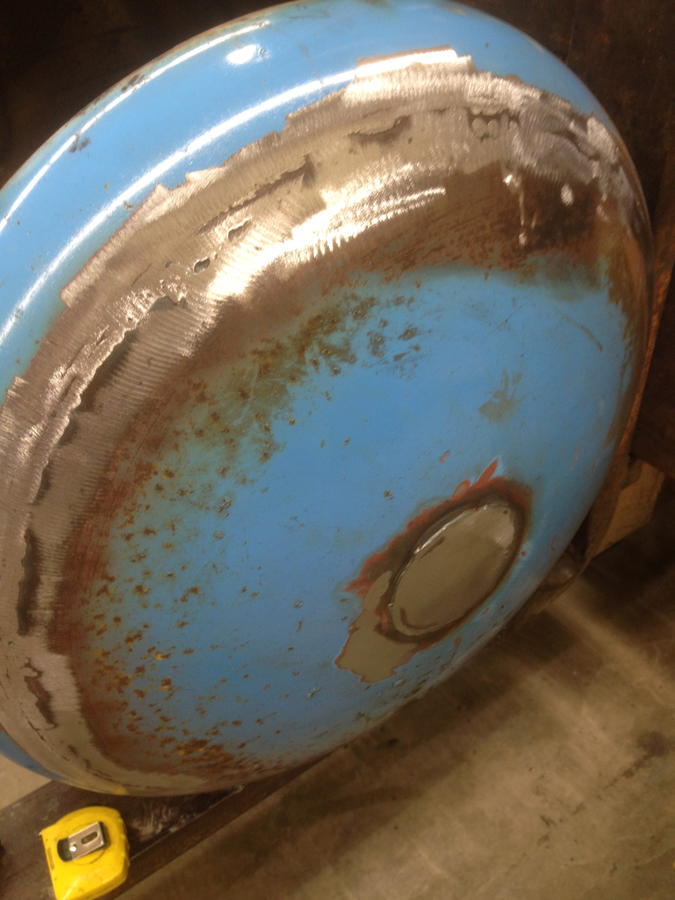

Paint came off nice
