New 150 gallon smoker

[southern somker]

Need some help with the build of the reverse flow plate? How high do they need to be for the smoke and heat to travel good thru the smoker.



[bruno994]

First of all, welcome to the forum, Southern somker!  As for your question, the opening under your plate needs to be as big if not slightly larger then the opening from the firebox to cook chamber (mine is the same all the way down).  This also goes for the end of the RF plate, opposite of the firebox, theis opening needs to be at least as big as the firebox to chamber opening, preferably bigger.  This will keep from restricting any air flow, helping with draft.

RF Smoker 2012 011.jpg

• bruno994
• Mar 12, 2013

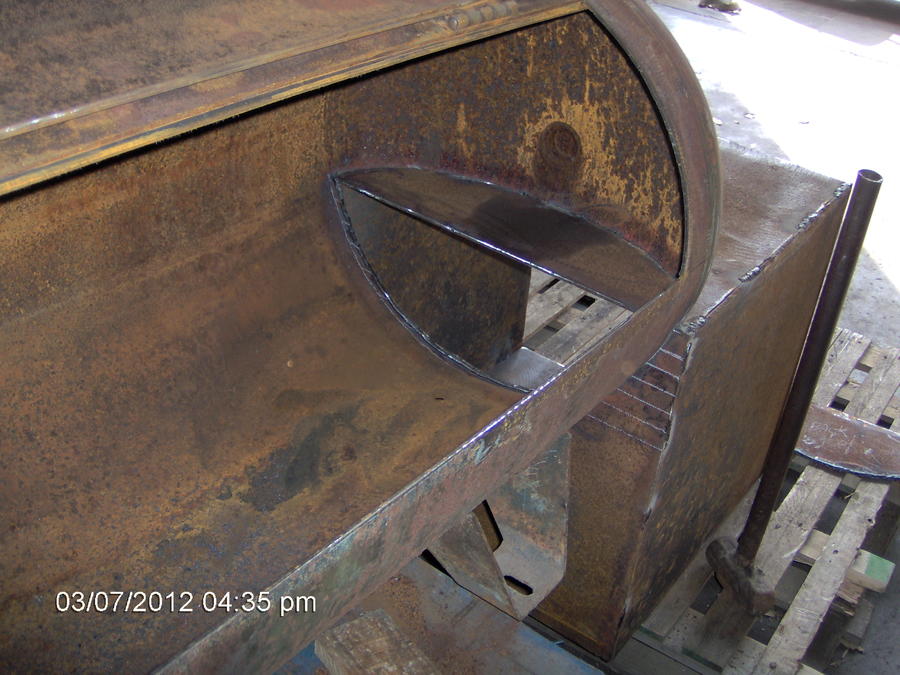

This is a pic of my firebox prior to attaching the RF plate to the top of the firebox inside the cook chamber.  The opening you see is the same all the way to the end of the RF plate.

Hope this helps.



[southern somker]

Thanks for the info we are going to start the build in about two weeks.I will be posting picture as we go.
