Stainless Vertical Insulated Rotisserie Woodburner

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

Furrylittleotter

Newbie
Original poster
Feb 2, 2018
17
1
Olympic Peninsula
Greetings meatheads, I’m converting a giant Hobart rotisserie HGFR-12 into a firebox smoker. Will probably add a second spit and mount a wood stove (standard fireplace insert I got off craplist) in the bottom. Will add a top cover and rockwool insulation.


It’s big. It’s heavy. It should be fun. I plan to smoke butts, chickens, ribs, possibly piglets and brisket.

The unit has two catalytic gas burners in top, one “show” burner in bottom rear. It also has a light and circulating fan.

I plan to smoke with wood only, as God intended.

I have a stoker fan already and ordered two smokeware stainless adjustable chimney caps.

I am considering using a controller to regulate the stoker fan

Unit has a stainless floodable drip pan I will probably lower and retain.

I may add a stainless lp burner in the woodstove for a log starter.

I have built a firebox with a “snorkel” to transfer the heat and smoke into the cooking chamber.
It is on wheels and I can roll it out when cleaning the cooking chamber.

The rotating meat and possibly using the circulating fan should ensure even cooking(?)

I will probably add slide in racks to increase versatility.

I have added a “bypass” flue stack with damper to isolate as needed.

Unit will be attractive and not look “cobbled” or homebuilt. I want something I can be proud of, will be efficient enough to cook just a few birds at a time if I want.

In other words, I know it is big but I want to make it efficient enough to cook small as well.


Any suggestions are appreciated.

Neil

Last edited:

Last edited:
So far I strippped the unit down to its frame, removed the gas heaters, lights, controls, etc. I removed the water pan and lowered it to its lowest level.
I completely reconfigured the woodstove into a firebox with snorkel to feed heat OVER the drip pan (previously water pan) and will cover the snorkel with a piece of stainless to keep it clean.

The firebox is on wheels and I can roll it out when I clean the cooking chamber.

I bought rockwool to insulate and have collected enough stainless to wrap the insulation so it will be stainless inside and out.

The doors are glass, I may try to seal them if I can.

I may build an insulating blanket to cover the doors.

I may build an insulating “skirt” or removable insulating panels to try and contain some heat from the firebox.

I have two sets of rotisserie “wheels” one hold 7 spits, the other holds 8.

One is regular, one is a “planetary gear “ setup where each spit spins individually.

I have some round spits and some chicken bars, I want to buy or build rotisserie baskets

As you can see here I have massive amounts of stainless I have accumulated over time. Some from craplist, some from the side of the road.

I am thrilled to not be welding and grinding for the first time in several days. It’s fun at first but gets old fast with crappy tools and seaming scraps together.

I got the firebox done and that was quite an accomplishment.

Now onto sheet metal...

Neil

I made a little more progress on the smoker. I had to cut apart the “shaft mounting collars” that attach the rotisserie wheels to the shaft on the 8 spit wheels They were stainless and the bolts had all welded themselves together so out came the angle grinder and I purchased steel hubs for a go cart I can replace them with.

I haven’t made any other progress because I needed access to a strong 48” brake. My 36” harbor freight is no match for 16g stainless.
I just started a new job that gives me access to one and a plasma cutter which should make quick work of the sheet metal work I need to do.

Maybe I can do that this week and then I will be ready to start smoking.

I spent the entire weekend burning the huge soaking wet waste pile the previous homeowner left me. I did it by attaching a long 4” steel vent pipe to the rotisserie fan. This created a huge stoker for the burnpile. It still took forever but I’ve never seen soaking wet wood and brush burn so hot!

I was doing the wrong kind of smoking but wow what a sense of accomplishment to have that eyesore gone!

I also picked up a $150 riding mower so I can cut our acre in less than an hour, that leaves more time for smoking and smoker building!

Neil

I made some more progress this weekend I got the rotisserie shaft, wheels and spits modified to go in. I’m going to start using the eight spit wheel version first. This unit was originally a 7 spit rotisserie. With the 8 spit setup I can run 8 spits up to 7” deep or 4 spits 14” deep. I cut down the spits that I have to the proper length and then riveted them back together. I also moved the mounting hole location for the mainshaft to maximize the available space. I fabricated some aluminum blocks to use as bearings. I had to drill a lot of holes in the stainless metal and that is a major pain in the ass. It is extremely difficult to machine stainless using handheldpower tools. I got it done though. Then I cleaned the cabinet with oven cleaner. It was absolutely disgusting. I painted the firebox with supposedly heatproof paint. Will post more pics soon.

Neil

Oops this just happened. This came up on craigslist for free several weeks ago and he finally returned my email and here it is. It’s a Welbilt brand, in excellent condition, almost completely stainless inside and out. Polished stainless inside.

I will make this a woodburner as well.

Should be fun.

Neil

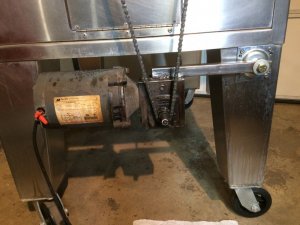

I made more progress: I made a bracket and mounted the gearmotor, which ran for a day and a bearing failed. It ran about 6 rpm at the rotisserie and drew 5 amps. I then made a new (Black) bracket and mounted the 30:1 gearmotor which draws .5 amp And turns the rotisserie at .9 rpm, which is slow enough to load and unload racks while turning so, while I do have the option of changing sprockets, I might just leave them be! I believe I am going to run 4 racks to start: 14”x36” chrome “Metro” style shelves modified to hang from skewers. May have this thing cooking next week! Neil


Attachments

  • 06D0F77E-6697-491C-A27B-E6BA5CBB0585.jpeg
    122.8 KB · Views: 14
