  1. lovelife

    What is the best calculator to use for a reverse flow build

    I converted the measurements.
  2. drawing space cc in inches.png

    drawing space cc in inches.png

    • lovelife
    • Media item
    • Comments: 0
    • Album: What is the best calculator to use for a reverse flow build
  3. lovelife

    What is the best calculator to use for a reverse flow build

    94.5 inches long OD 31.5 inches
  4. What is the best calculator to use for a reverse flow build

    What is the best calculator to use for a reverse flow build

    • lovelife
    • Album
    • Comments: 0
  5. lovelife

    What is the best calculator to use for a reverse flow build

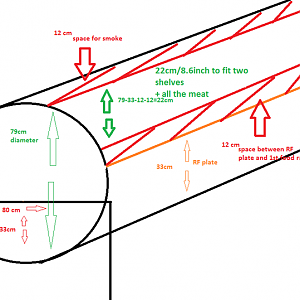

    19cm doesn't make sense since the opening from FB to CC will be around 33cm high. I made this drawing, and I'm not too happy that I only have 22cm / 8.6 inches to fit two racks and all my meat. Am I doing something wrong or is this the consequence of having a somewhat skinny tank (31 inch...
  6. drawing space cc.jpg

    drawing space cc.jpg

    • lovelife
    • Media item
    • Comments: 0
    • Album: What is the best calculator to use for a reverse flow build
  7. lovelife

    What is the best calculator to use for a reverse flow build

    Area under the RF plate needs to be 0.19m³ I could really use some help explaining how to calculate how high my RF plate needs to be from the lowest point of the thank. Or is it just 0.19m, so 19cm?
  8. lovelife

    What is the best calculator to use for a reverse flow build

    Thanks again. Always a big help Dave!
  9. lovelife

    422 gallon tanks - reverse flow build

    Delete
  10. lovelife

    What is the best calculator to use for a reverse flow build

    Thanks Dave! :) Also, I have a question about the doors. Some cut them right on top at 12 o clock or 0C. Others cut them a little lower. You would think at 12 o clock you get the most space, but it will be harder to open. A weight on top of the doors will be needed, correct? 12 o clock has my...
  11. lovelife

    422 gallon tanks - reverse flow build

    I see that some people have their doors at 0C or (12 or clock) and some people have the top of their doors a little lower. I am planning on cutting the doors tomorrow. What are the pro's and con's for each option? When you cut them at 0C I assume you need to have a weight on top, correct?
  12. lovelife

    What is the best calculator to use for a reverse flow build

    My fire box need to have a minimum volume of 0.40m³. My RF plate is going to be around 0.77m wide. A firebox of 0.80x0.75x0.75  (0.80 being the side that connects to the CC) would have a volume of 0.45m³. The dimensions of the fire box don't matter as long as you have the minimum volume right...
  13. lovelife

    422 gallon tanks - reverse flow build

    I understand. The biggest piece of meat would be a beef clod. But mostly pork butts and ribs.
  14. lovelife

    422 gallon tanks - reverse flow build

    Yeah liking the size. Would you guys recommend two or three doors for a 95 inch tank? I was thinking if I use three, I would probably not need contra weights (if that is correct English)
  15. lovelife

    What is the best calculator to use for a reverse flow build

    Thanks Dave. I got confused and was convinced I did something wrong when I started to read other peoples threads on the internet and reading that they were using 6, 7 and 9 inch diameter pipes... Does the thickness of the steel of the pipe matters at all? I guess not...right? I really...
  16. lovelife

    What is the best calculator to use for a reverse flow build

    I understand Dave. I am just trying to figure out the diameter of the exhaust stack I'll need and have some trouble with that.
  17. lovelife

    What is the best calculator to use for a reverse flow build

    Yeah not sure why I said that. In the calculation I did use the 356 cubic inches number though...
  18. lovelife

    What is the best calculator to use for a reverse flow build

    Thanks for the reply Dave. I was missing the point that I had to divide the numbers. Anyway, I came up with his:             356                ------------------------------            = 36.18 (0.7854x3.54x3.54)= 9.84   Stack diameter:  3.54 inch  = 9cm So if I make my exhaust stack 36...
  19. lovelife

    422 gallon tanks - reverse flow build

    Hi JC, I did some calculations and it was 321 gallon if I remember correctly. So just a tad bigger Tha 250.
  20. lovelife

    What is the best calculator to use for a reverse flow build

    Hi guys, I received my tank today (check my other thread) and started doing some calculations. I all went well until I reached the smoke stack calculations.... Exhaust Calculation.. ESV in cubic inches_____________________________ ... = Stack Length in inches (36" +/-) 0.7854 X Stack...
