Char Griller modifications

[duomoder]


• duomoder
• Jul 26, 2017

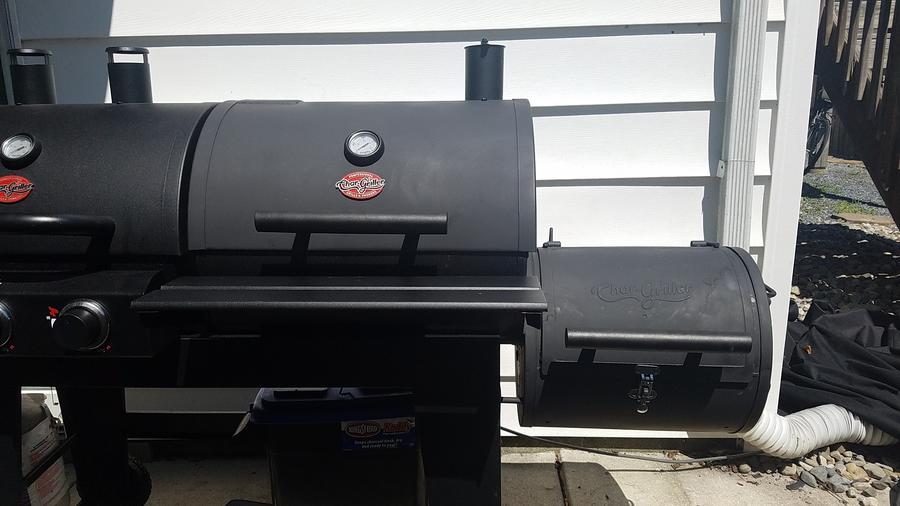

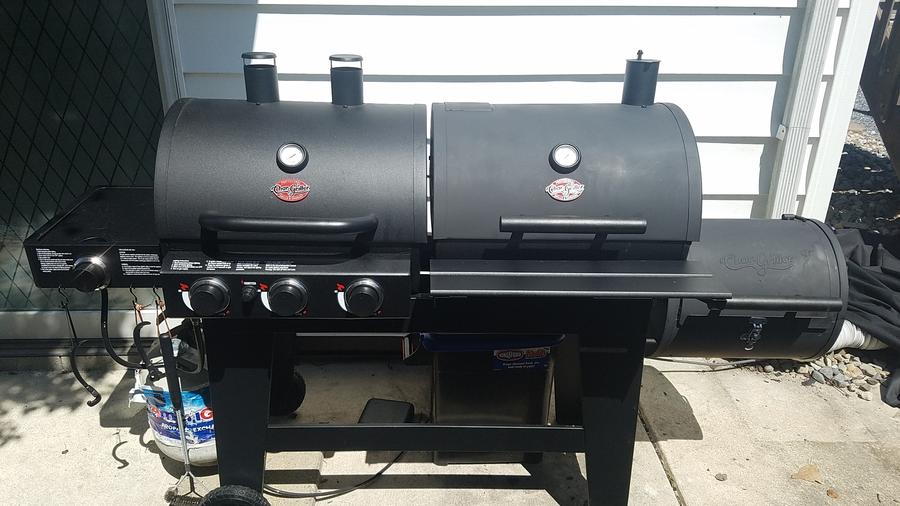

3 burner gas grill on left charcoal grill on right with a fire box attached


• duomoder
• Jul 26, 2017

Handles moved around to match. Cheap original paint burned off. Repainted with 2000 degree auto engine paint.


• duomoder
• Jul 26, 2017

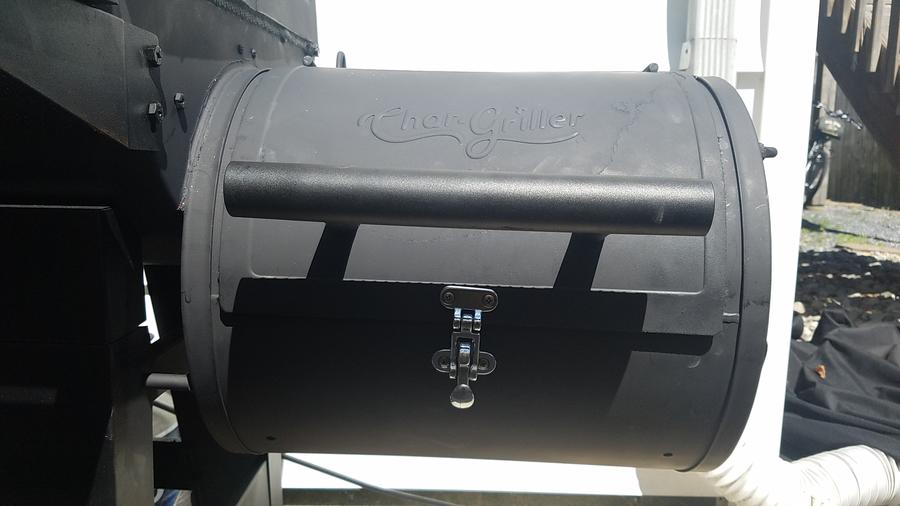

Repainted fire box with pressure latch to lock in heat


• duomoder
• Jul 26, 2017

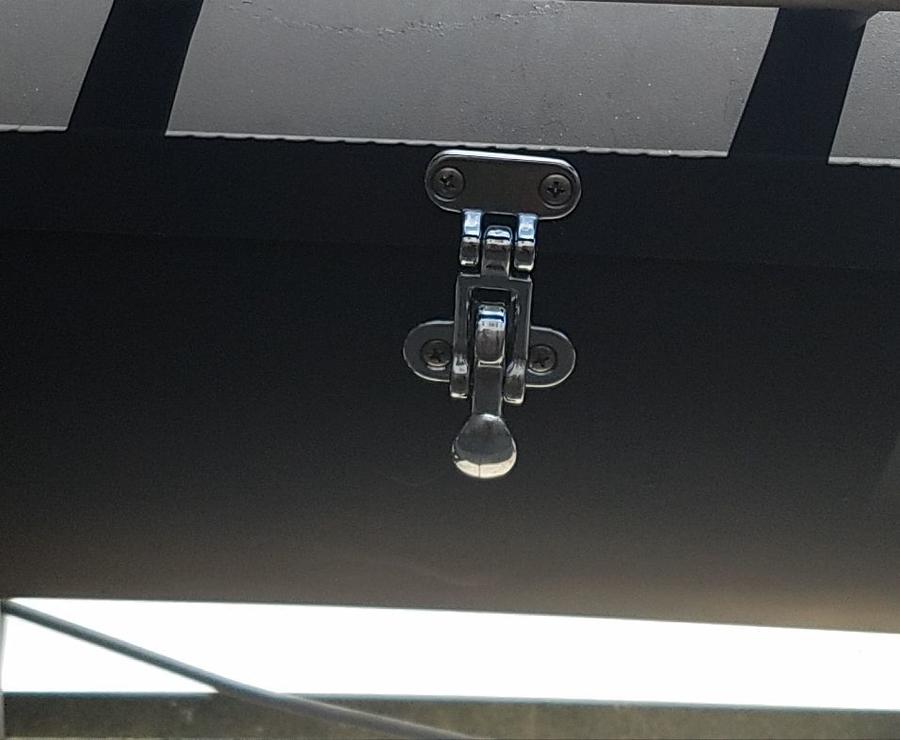

Brass/zinc marine latch


• duomoder
• Jul 26, 2017

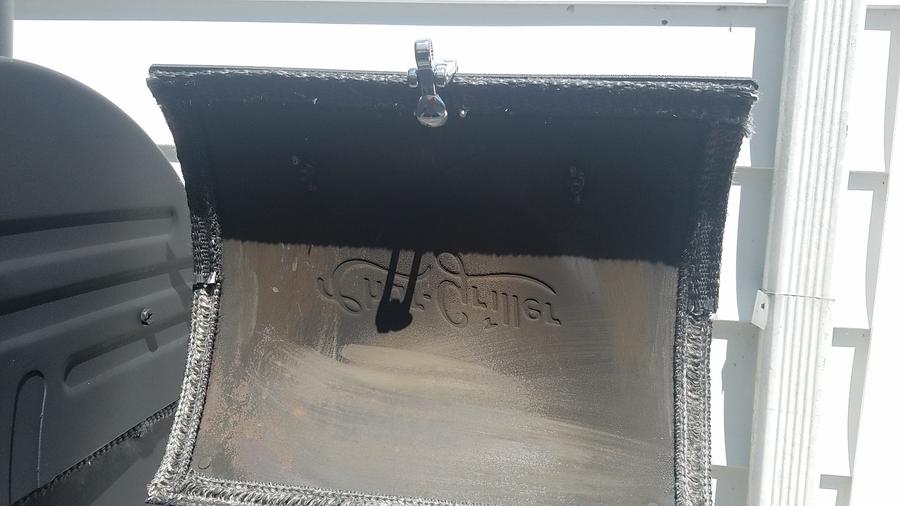

2000 degree rated fiberglass insulation tape to keep heat and smoke from leaking out


• duomoder
• Jul 26, 2017

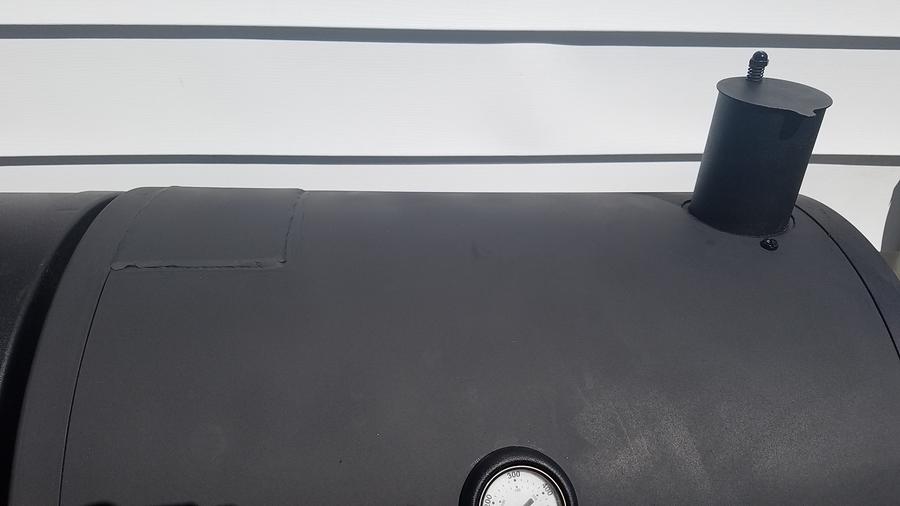

Moved smoke stack to create reverse heat and smoke flow. Welded shut old location


• duomoder
• Jul 26, 2017

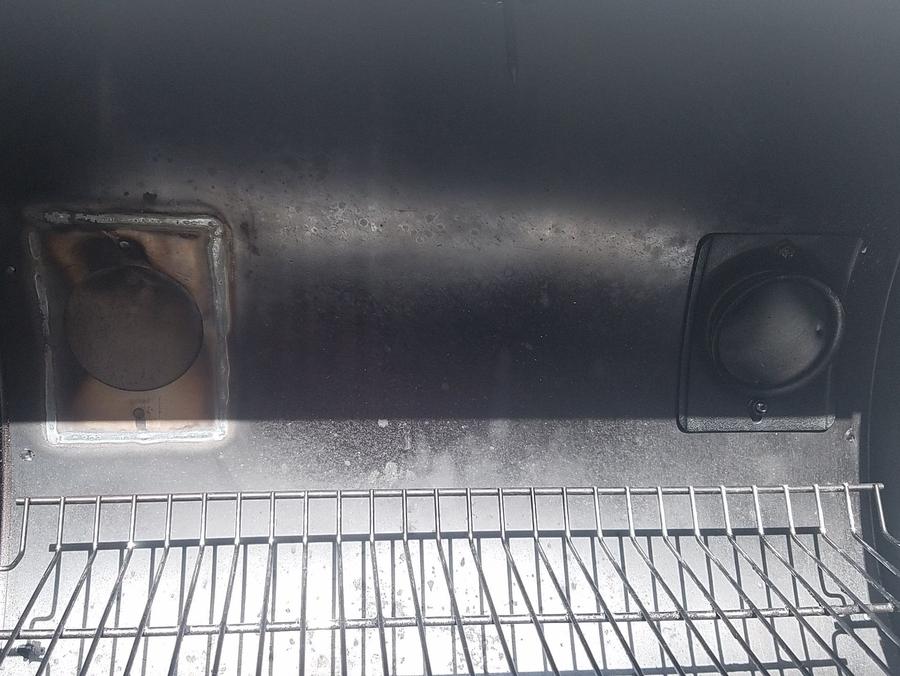

Internal view of weld


• duomoder
• Jul 26, 2017

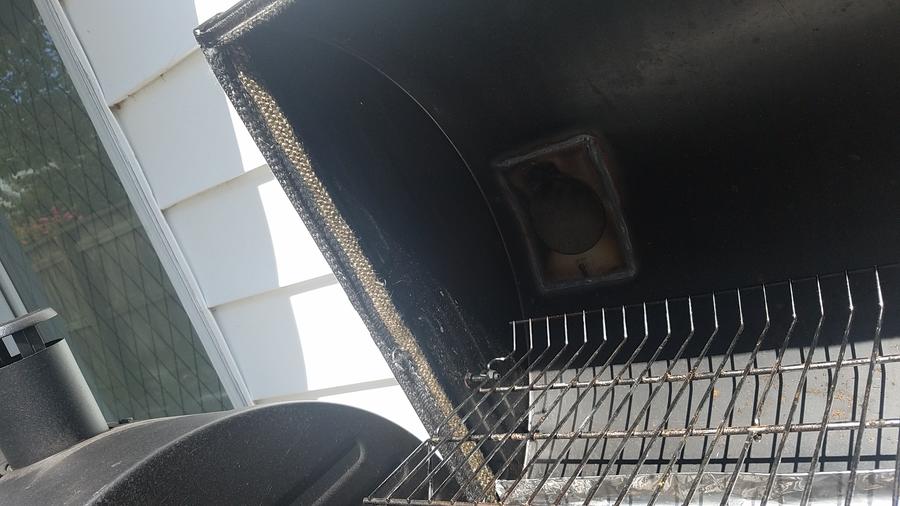

2000 degree rated insulation around lid to keep heat and smoke from leaking


• duomoder
• Jul 26, 2017

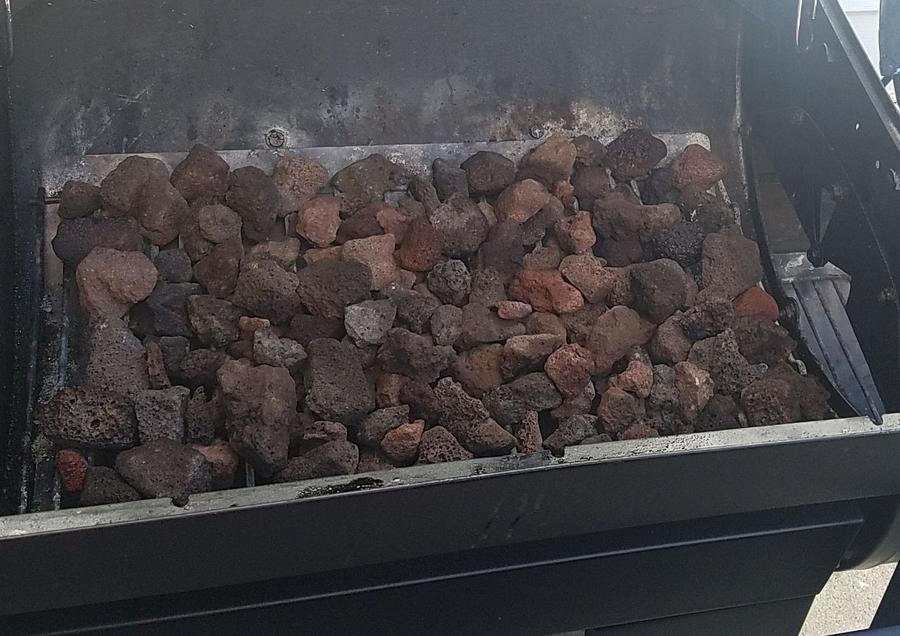

Lava rocks in ash pan to retain heat under baffles


• duomoder
• Jul 26, 2017

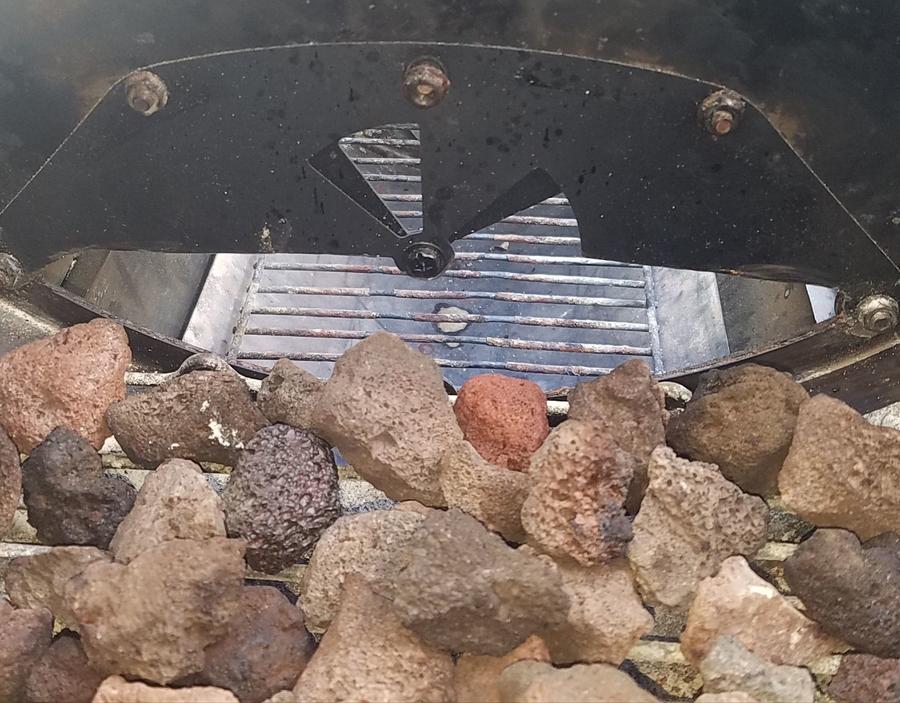

Minimized opening from firebox to direct and increase flow of heat and smoke under baffle


• duomoder
• Jul 26, 2017

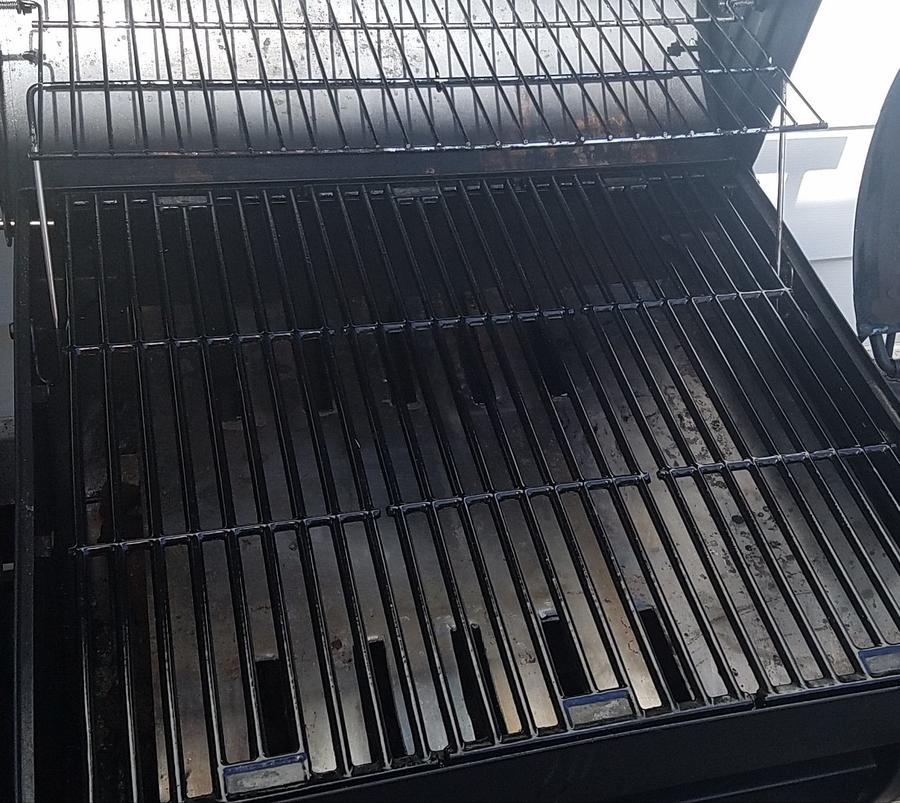

Custom made baffle system over lava rocks and under grill racks


• duomoder
• Jul 26, 2017

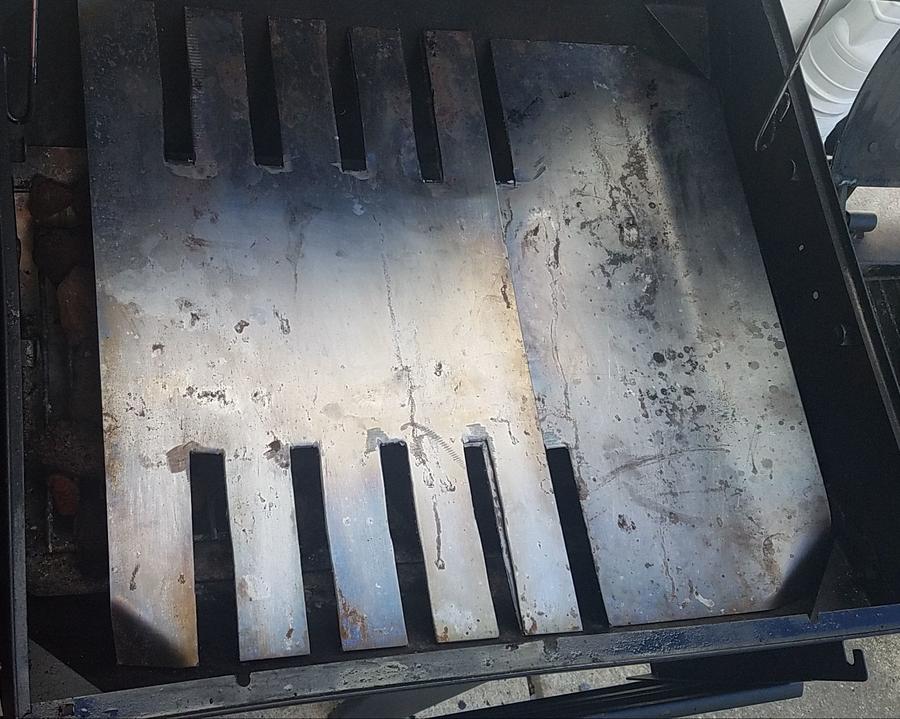

Custom made baffle system
