AMNPS Goes Out with Mailbox Mod

Discussion in 'A-Maze-N Smokers' started by rhinodbj, Jun 3, 2015.

  1. I've had my AMNPS for a year and a half ... love it ... most of the time ... but lately it seems like the AMNPS goes out more often than not in my mailbox mod.

    I'm using Todd's pellets (Pitmaster's Choice), microwave 'em 'til they're really hot ... light 'em with a torch, let 'em burn for 10-15 minutes and put 'em in the mailbox.

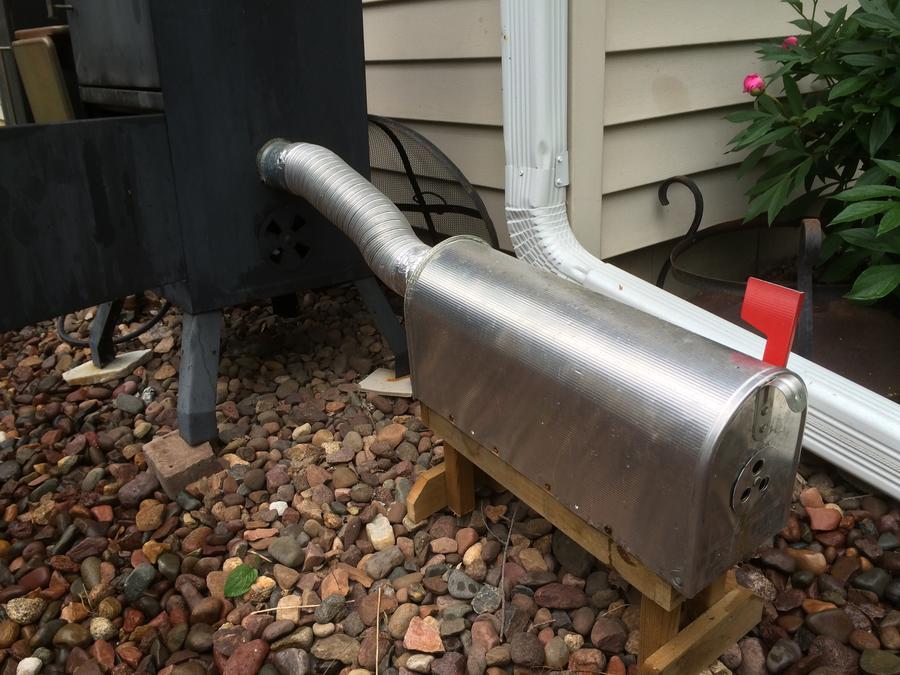

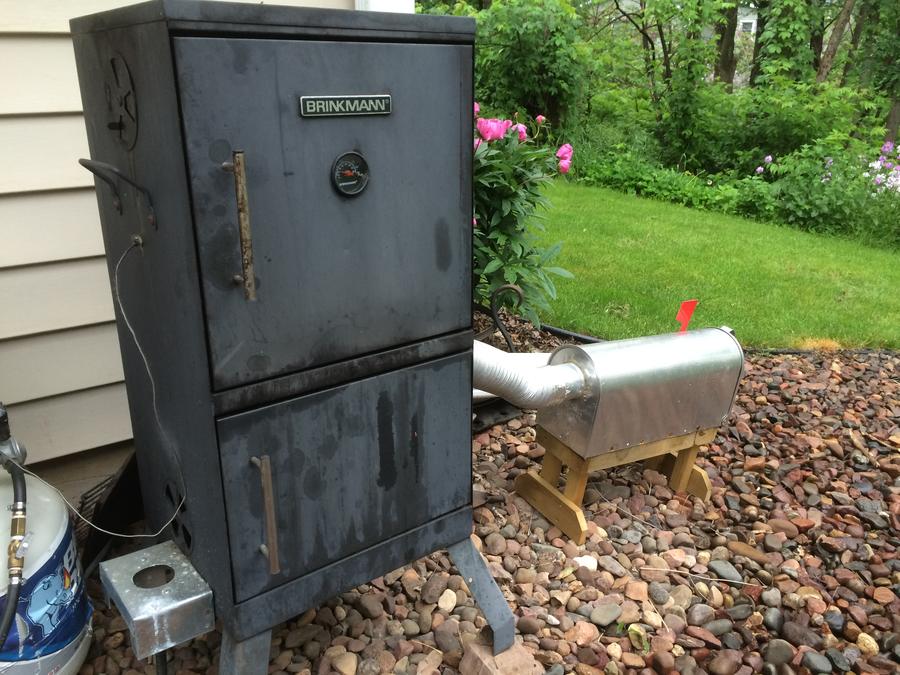

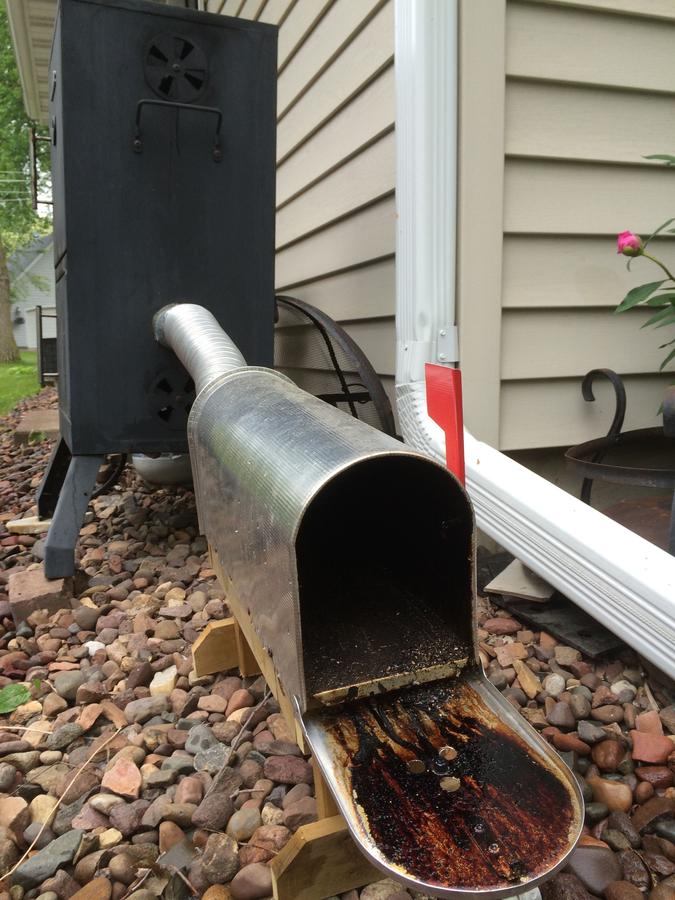

    As the pictures show that I have 3 "port holes" in the door of the mailbox ... and a 3" duct out the back into the Brinkman.  I've tried opening and/or closing different configurations of "baffles" on the Brinkman ... and nothing seems to make much difference.

    At times it almost seems like I'm getting a backdraft through the Brinkman that pushes the smoke back into the mailbox ... not desired, either.

    So ... how 'bout some help ...
    1. How can I keep the pellets lit?
    2. How can I keep the smoke from back-drafting?
    Thanks!

    Rhino DBJ




  2. dirtsailor2003

    dirtsailor2003 Smoking Guru OTBS Member

    Do you set the AMNPS right on the bottom of the mailbox? Make a spacer could even be a few pieces of tinfoil rolled into logs then placed at each end. Doesn't have to be much, just enough to get it up off the bottom to allow better air flow.

  3. dirtsailor2003

    dirtsailor2003 Smoking Guru OTBS Member

    Another thing is you may not have the air holes positioned low enough. It also appears that you are piping the smoke in above the heat source. The hot air is blocking the cold from coming in. First I would add some air intakes lower in the door of your mailbox. If that doesn't work I'd move you out let hose lower than the heat source. That will allow the heat above to suck the cold air from the mailbox into the smoker.

  4. darwin101

    darwin101 Meat Mopper

    As the others have said it's mostly down to air flow/draft and good dry pellets. When cold smoking i put an old PC fan on the top vent to pull air up and out the cabinet.

  5. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Keep both the top air vents wide open on the smoker.... cut down on the flame in the burner.... the best smoking temp is under 140... finish adding smoke then turn up the heat.... try closing down the lower air vents about 1/2 also.... drill 2 each 3/4" holes near the bottom of he MB door...

    Last edited: Jun 3, 2015
  6. foamheart

    foamheart Smoking Guru OTBS Member SMF Premier Member

    A year you say? I had some problems at about that same time frame. I fixed mine by taking a wir4e brush both inside and out and brought back to the metal. I couldn't understand it, some days it just would get an attitude.

    Nephew gave me a small SS brush:

    https://www.fastenal.com/products/details/5138-44167

    I taught him to use them on his golf clubs, he didn't realize I didn't golf anymore. But It worked great between it and the old standard BBQ grate brush.

    I really couldn't see any major holes plugged in the AMPs, but I was bored. Its smoked like a champ ever since, only thing I can imagine is it might help heat transfer. Who knows, try it and let me know if it helpped I be interested in knowing.

    BTW I had thought pellets, position in the MES, hunidity, vent position, fluid drips, etc etc.....

    Last edited: Jun 4, 2015
  7. tropics

    tropics Smoking Guru SMF Premier Member ★ Lifetime Premier ★

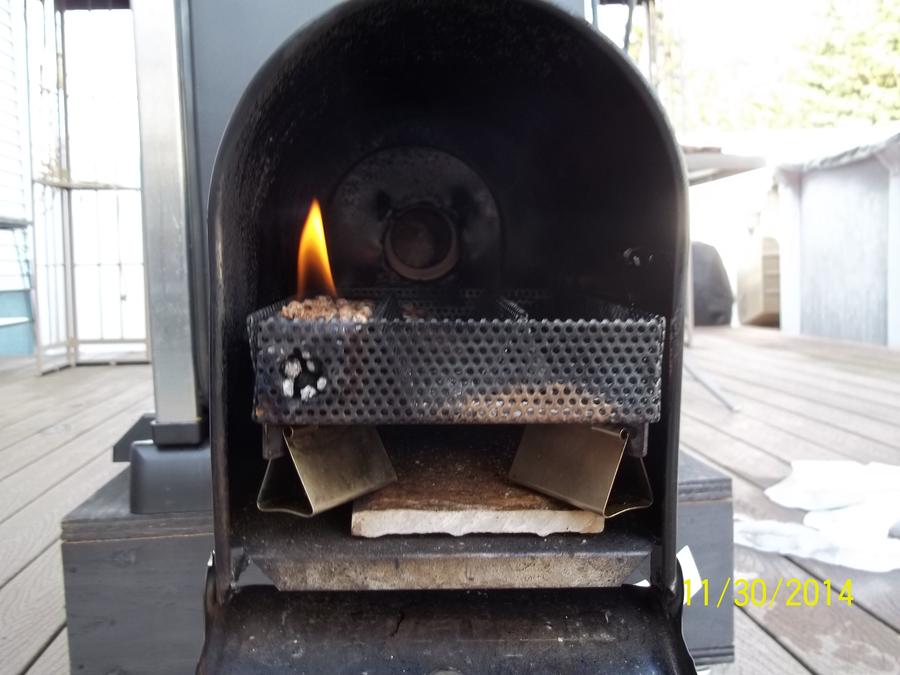

    As stated raise the AMNPS off the floor.maybe even put a whole in the bottom of the door.


    Binder clips from Staples

  8. Thanks folks for the insights ... I'm working on the modifications.  We'll let you know what happens!

    Rhino

  9. Good luck,   You got all the right information to make it work every time

    Gary

  10. westby

    westby Smoking Fanatic

    What about putting the mailbox air intake on the bottom of the box.  Place the amazen smoker over the holes to ensure enough air is passing by to keep them going?

  11. tropics

    tropics Smoking Guru SMF Premier Member ★ Lifetime Premier ★

    westby That works and there are holes on the bottom already. Doing the front allows you to put a magnet over the hole to control air intake if needed.
