Ultimate trailer build

[ahumadora]

I have been given the green light to build a high end BBQ trailer for events and show.

The guys I am building it for a semi famous down here for doing Asado's (Argentine BBQ) with over 1.1 million followers on Facebook. (The build is a secret for now).

It will be similar to this trailer I built earlier this year.


• ahumadora
• Jul 30, 2016


• ahumadora
• May 1, 2016

IMG-20160501-WA0045 - Copy.jpg

• ahumadora
• May 1, 2016

IMG-20160501-WA0043 - Copy.jpg

• ahumadora
• May 1, 2016

Will only have 1 smoker the same size as this but also an Al asador  (round tank end in top pic) with 3 racks for hanging meat and which large tripod for a dutch oven, Brasera for burning wood to make coals, Parrilla 200x80cm, chest freezer, wood fired oven, ceramic Kamado style smoker, cabinets for storage, tread plate for siding, 200 x 80cm stainless table, sink with adapter to connect a garden hose and waste water storage.

He may or may not have a roof on it, but wants somewhere to display a large banner.

Question he has is:   What else can we put on it?

Let me know if y'all have ideas or photo's.

Thanks



[jasper7]

Question he has is:   What else can we put on it?

I don't know, how about a 60" flat screen with surround sound.

  Seems like you've got all the bases covered.



[ahumadora]


I don't know, how about a 60" flat screen with surround sound.

  Seems like you've got all the bases covered.

How do you make a 60" wood fired?

I have a serious attachment to heavy steel and wood fires.  Yes he wants to attach some big ass speakers also.



[jasper7]


How do you make a 60" wood fired?

I have a serious attachment to heavy steel and wood fires.

Well then, you'll need to build him a wood fired steam generator, then you have the option of adding a steam calliope.  Best of luck with the new build.



[ahumadora]

I spent the better part of a week sourcing parts and trying to figure out the layout so it all works on the trailer.

The owner added some more crap so when I done the calculations it exceeded the weight of the trailer, so I had to order new axles and wheels. The will be arriving later this week.

We made a start on what we can.

I am building the adjustable height hitch for the big ringfeeder we have to use down here.

My Bolvian partner started working on the brasero in the photos below.

C channel for the trailer should be here tomorrow so I can start on that also.


• ahumadora
• Sep 18, 2016

Here the Brasero, it's where you burn wood to make coals for the parrilla.

It will have an access door near the top to add wood.


• ahumadora
• Sep 18, 2016



The coals fall down into the left tube where you will be able to open a door and shovel them into the parrilla next door.


• ahumadora
• Sep 18, 2016


• ahumadora
• Sep 18, 2016

I cut the end off a 500 Gallon tank to start making athe " Al Asador"  the fire will be inside the small ring and I will make adaptors to mount the crosses (where you hange the meat) .

   It will look like this.


• ahumadora
• Jul 30, 2016



[ahumadora]


• ahumadora
• Sep 21, 2016

I am buying 50 of these 20"  3/16" tubes for scrap metal price.


• ahumadora
• Sep 21, 2016

 also working on this insulated vertical which should be ready next week.


• ahumadora
• Sep 21, 2016

 This will swing out from the trailer with a 250 gallon tank end sitting on it.


• ahumadora
• Sep 21, 2016

 I have my CAD guy in Croatia making the drawings.  I just send him a whatsapp pic of a drawing and he does the rest.


• ahumadora
• Sep 21, 2016

 We made the handle for the dutch oven.


• ahumadora
• Sep 21, 2016


• ahumadora
• Sep 21, 2016

 part of the swing out mechanisim for the dutch oven. I will get these plasma cut.


• ahumadora
• Sep 21, 2016

 Here it is welded together


• ahumadora
• Sep 21, 2016


• ahumadora
• Sep 21, 2016

 Nope, I don't think it will break!    This is the swing out for the 500 gallon tank end. 100x60x3.2mm  rectangle tube

We are still waiting on the brakes and axles and can't do much more until we get them.



[smokinhawgbbq]

Another great build in progress !!

Mike



[dirtsailor2003]

Another mega build! Looking good!



[ahumadora]


• ahumadora
• Sep 28, 2016


• ahumadora
• Sep 28, 2016


• ahumadora
• Sep 28, 2016


• ahumadora
• Sep 28, 2016


• ahumadora
• Sep 28, 2016

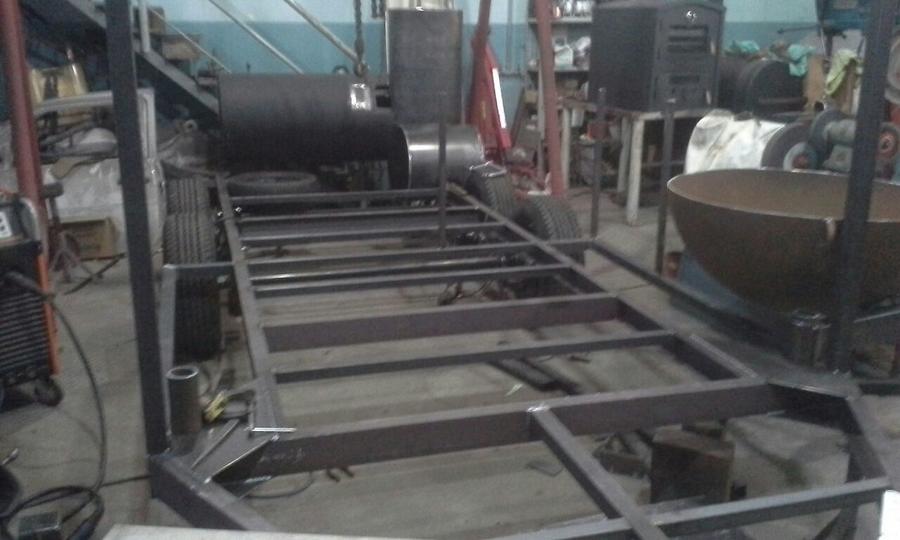

Progress has been slow, trying to get everything to fit in the space but will get there. The upright posts are for a tarp when on the road and storage.  Next year we will build a roof for it.  They are planning an asado for 100 people on the 14th of next month, so I better stop posting on this forum and get my ass to work!



[hardcookin]

That's quite the project!! Good luck with your build...keep us updated when you get a chance.



[ahumadora]


• ahumadora
• Oct 4, 2016


• ahumadora
• Oct 4, 2016


• ahumadora
• Oct 4, 2016


• ahumadora
• Oct 4, 2016


• ahumadora
• Oct 4, 2016


• ahumadora
• Oct 4, 2016


• ahumadora
• Oct 4, 2016


• ahumadora
• Oct 4, 2016


• ahumadora
• Oct 4, 2016

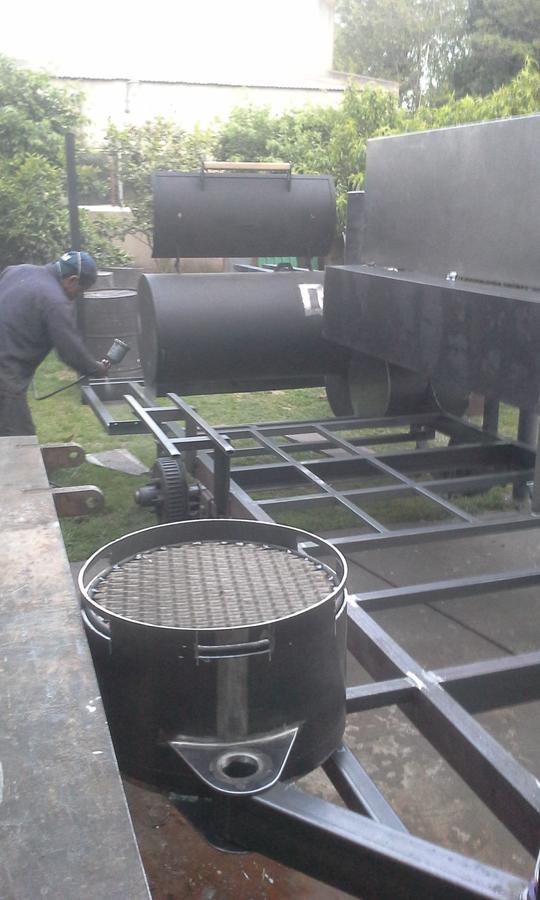

Progress finally.



[paprika pal]

Looks like you should have all you need to throw a heck of a party! Thanks for sharing all the pictures.



[ahumadora]


• ahumadora
• Oct 7, 2016

 Here's the wood storage under the al asadors.


• ahumadora
• Oct 7, 2016

 We will cover the front part with wood so it acts as a table also.


• ahumadora
• Oct 7, 2016


• ahumadora
• Oct 7, 2016


• ahumadora
• Oct 7, 2016


• ahumadora
• Oct 7, 2016

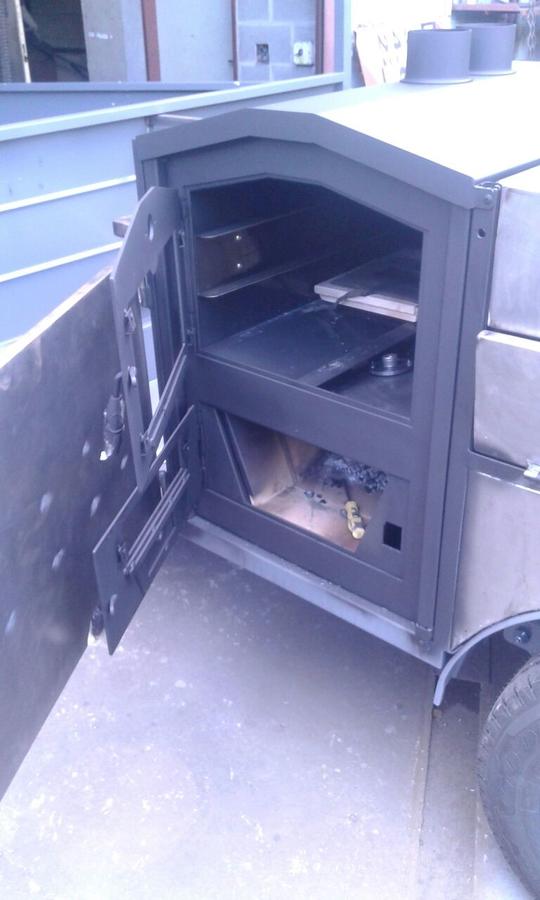

 Wood fired oven


• ahumadora
• Oct 7, 2016

 Still have no figured out what we are doing with this space.  Maybe a fire extiguisher.


• ahumadora
• Oct 7, 2016


• ahumadora
• Oct 7, 2016



[dirtsailor2003]

Man that's crazy! Keep the pictures coming!



[paprika pal]

Wow can't wait to see it in action!



[ahumadora]


• ahumadora
• Oct 13, 2016


• ahumadora
• Oct 13, 2016


• ahumadora
• Oct 13, 2016


• ahumadora
• Oct 13, 2016


• ahumadora
• Oct 13, 2016


• ahumadora
• Oct 13, 2016

 Will be used to hang a Dutch oven and also a full leg of beef over the fire


• ahumadora
• Oct 13, 2016

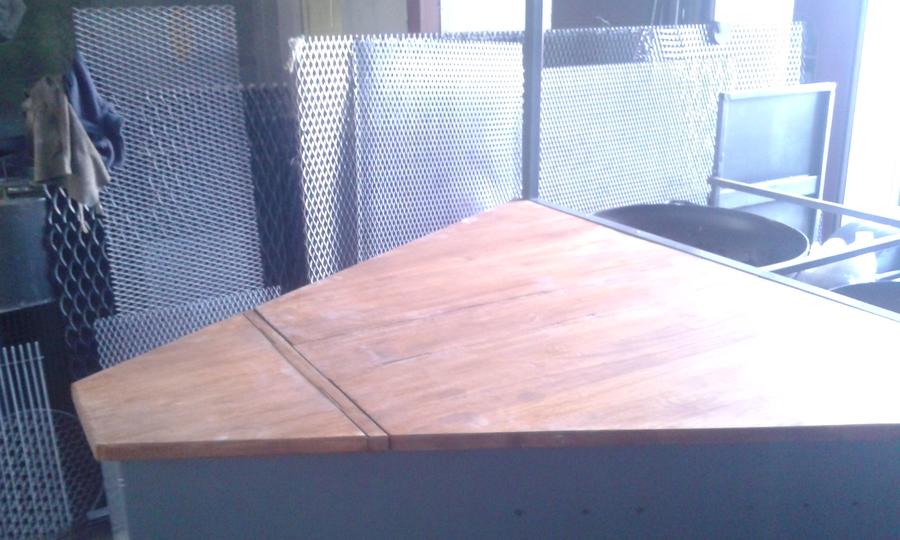

 The lid for the trailer tongue


• ahumadora
• Oct 13, 2016

 Cutting boards from Brazilian Pine (Really hard wood)


• ahumadora
• Oct 13, 2016


• ahumadora
• Oct 13, 2016


• ahumadora
• Oct 13, 2016


• ahumadora
• Oct 13, 2016

Painted the hot parts with Hi temp today.



[ahumadora]


• ahumadora
• Oct 16, 2016


• ahumadora
• Oct 16, 2016


• ahumadora
• Oct 16, 2016

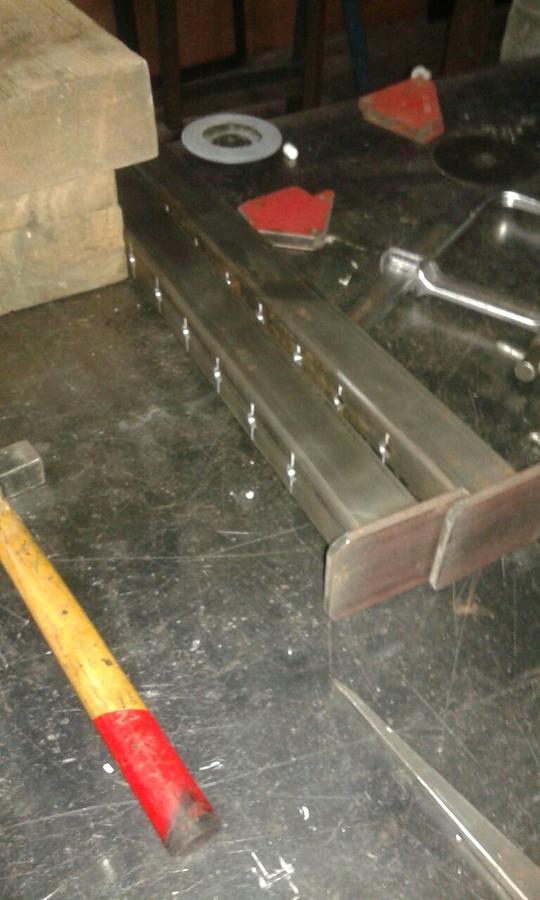

The cutting table slides out on roller guides. We will have 2 more tables as well

IMG-20161014-WA0013 - Copy.jpeg

• ahumadora
• Oct 16, 2016

On Friday we fired up the smoker and cooked a few ribs, chicken wings and 2 Boston butts.


• ahumadora
• Oct 16, 2016

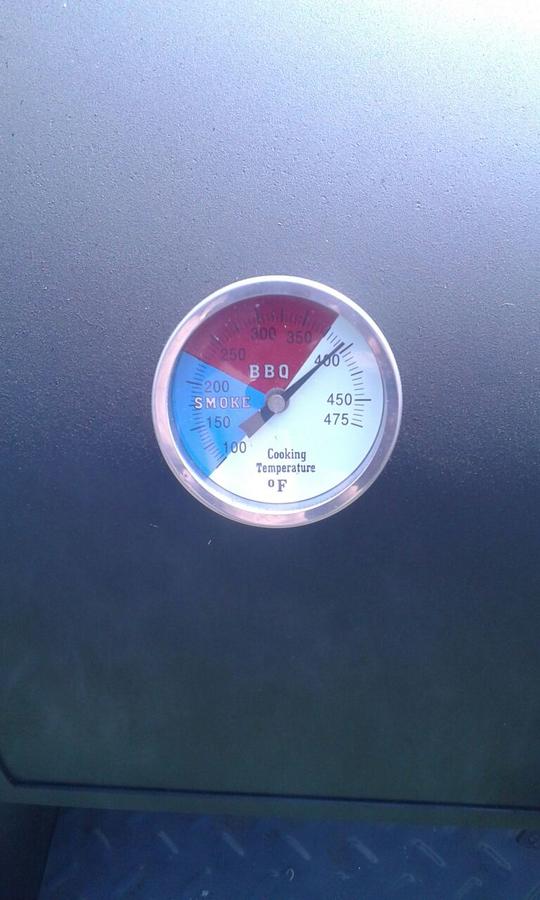

 Burning all the crud off the new smoker. We were pressed for time so cooked 300-325f most of the time.


• ahumadora
• Oct 16, 2016

 I seasoned the disc with cooking oil and a couple of onions. Damm that disc got hot fast!


• ahumadora
• Oct 16, 2016

 Have the auto electrician in, installing the 220V , sound system and brake lights.

Finally we got the rest of the sheet

metal from the benders, so should have it wrapped up by end of week.

Another guy wants to rent a 500 Gallon trailer for next weekend and I am only 1/4 of the way through the build, so I better get to work and stop posting.



[ahumadora]


• ahumadora
• Oct 22, 2016

 Extra storage space and will put a cutting board on  top.


• ahumadora
• Oct 22, 2016


• ahumadora
• Oct 22, 2016

 I had to knock this 130 gallon baby out this week for an event today. I delivered into Buenos aires at 10 pm last night for an event this morning.

Progress has


• ahumadora
• Oct 22, 2016


• ahumadora
• Oct 22, 2016

Like our fold out stairs we made?   In the future I want to put a big whole pig cooker on this side that slides out.  The trailer will be finished Tuesday for an event Weds.     Today we are doing a cook with it, I will get pics of it, I think y'all will be impressed.



[timstalltaletav]

Wow! What a build!



[mcokevin]


What else can we put on it?

Late to the party, but a kegerator would look great on that.
