My offset build (using tuning plates)

bladebuilder

Meat Mopper
283
94
Joined Oct 6, 2014

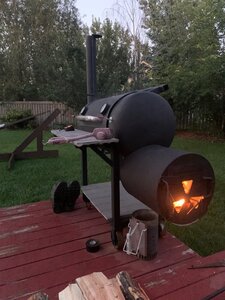

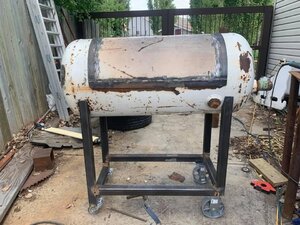

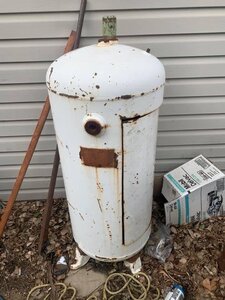

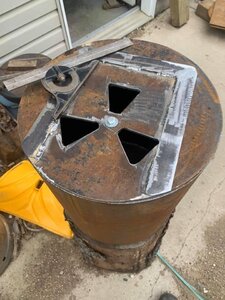

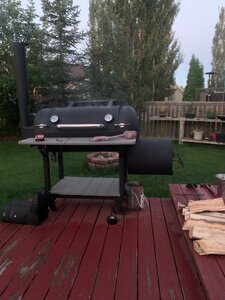

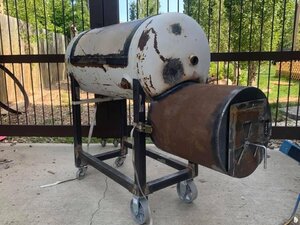

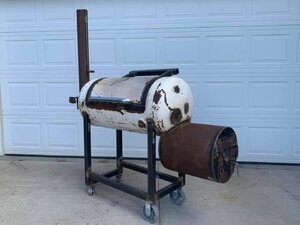

I thought I'd share my newest smoker build. I started with a 60 gallon pressure vessel (got from a co-worker who decided a smoker build was more than he wanted to tackle, he had door cut.)

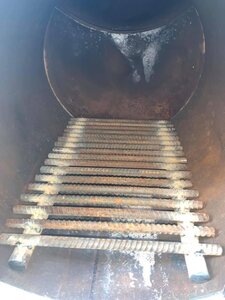

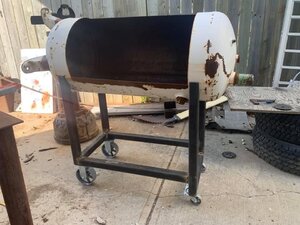

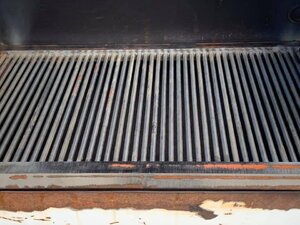

Most parts are recycled steel. The tubing for the legs, and wheels I bought new. Grill is also from scratch. Used stainless gas tubing. Tuning plates (not shown) are 3/8' x 6" wide
smoker1.jpg smoker2.jpg smoker3.jpg smoker8.jpg smoker9.jpg smoker10.jpg smoker11.jpg smoker12.jpg smoker13.jpg smoker14.jpg smoker15.jpg


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,691
4,160
Joined Nov 12, 2010

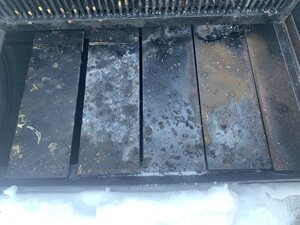

Where are the pictures of the tuning plates ????


bladebuilder

Meat Mopper
283
94
Joined Oct 6, 2014
Nice! How are the smokes?
So far, good. I’m limited to hard wood up here, right now using a variety of maple. There is also cherry (choke) and alder. Past that not a lot of availability. I want to upload a video, but can’t seem to upload directly.


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,691
4,160
Joined Nov 12, 2010
post your video to U-Tube then move it to here.. That's the only way I have figured out how to do it....
