Added pic My first reverse flow smoker build

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

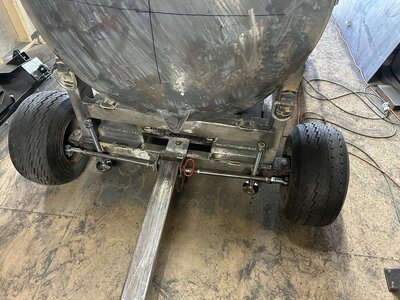

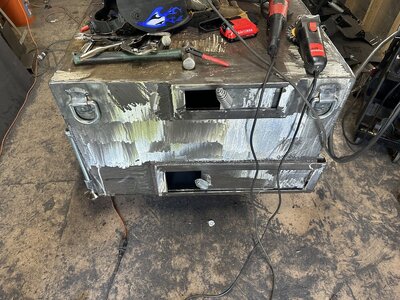

Also have the tie down D rings welded on.


Attachments

  • IMG_4388.jpeg
    255.8 KB · Views: 28
  • IMG_4389.jpeg
    230.5 KB · Views: 23

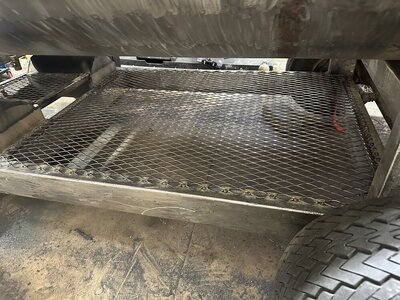

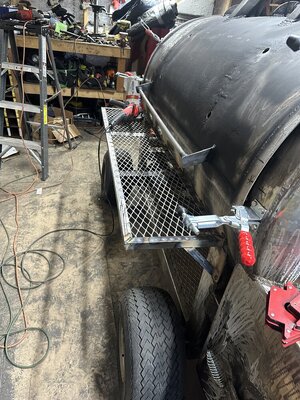

Expanded metal welded to frame for a bottom shelf. Decided to make the front shelf non folding. I was worried if I didn’t it would limit access to food inside. I can still reach back in pretty far and the racks slide out so it’s really not an issue. Started the heat shield/fenders ( I forgot I was gonna add them) for the rear wheels also. No pics on them yet hopefully they will be done tomorrow and then I can start the paint prep. I have some things I want to get done around the house and have a fire each night before the crappy rain hits again on Sunday. I will be working on the smoker in between things. We will see how far I get this weekend yet. 🤣🤣🤣🤣


Attachments

  • IMG_4390.jpeg
    210.7 KB · Views: 16
  • IMG_4391.jpeg
    231.3 KB · Views: 16

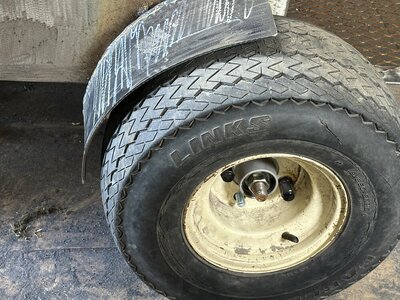

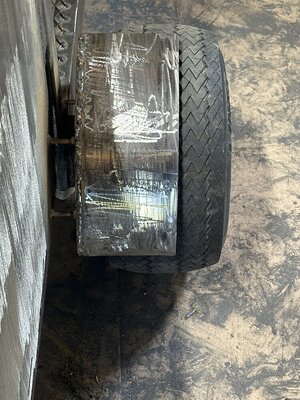

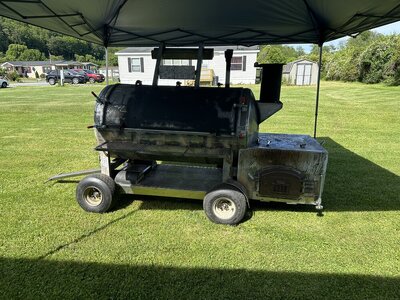

Ok everyone it’s finally here last thing to fabricate is almost complete. 1 more to build of the half fender /heat shield for the tires. Not 100% perfect round on the bend but not to bad for what tools and things I have. I am happy with them hopefully I don’t have any tire melting issues will need to monitor that on first few long cooks. When I get the other side done I think it’s gonna go out side for a prep and paint gonna put the canopy over it while the paint and cleaning happens. This shed is just so dirty from all the cutting and grinding and I do want all the crap getting into my paint. It’s not perfect by any means it has imperfections ect…. But I don’t want that dust and stuff on it. 🤣🤣🤣 Once I get it outside I will update with a few full sized pics.


Attachments

  • IMG_4416.jpeg
    221.7 KB · Views: 10
  • IMG_4417.jpeg
    211.9 KB · Views: 12
