Hi all , I have access to some decent welders etc so want to make a heavy duty offset smoker. Theres a stock size 508mm x 6.3mm thick tube but I am struggling to get hold of any at a reasonable price. I want about 1.5 metres. If anyone can point me in the right direction Id be grateful. I can get it but its either a 10 metre length of minimum £500 order all of who make it unviable. I do know it should cost about £90-110/metre if I can get a small enough piece . I would consider other similar sizes , maybe someone has an offset ?

  • Like
Reactions: JLeonard

thegsey

Newbie
Jul 18, 2022
2
0

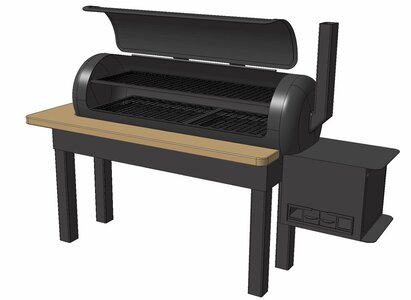

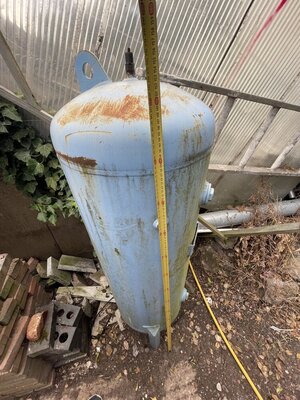

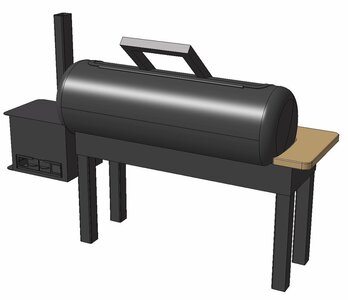

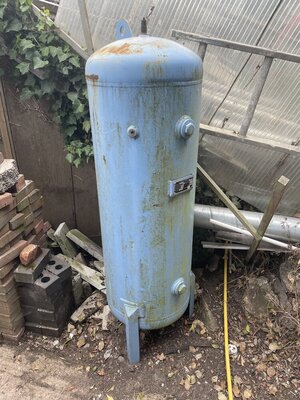

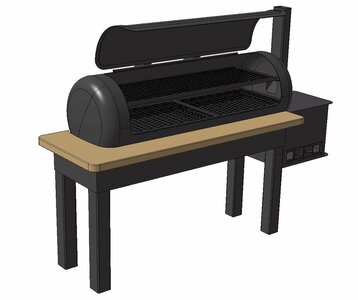

I have an old air receiver tank which I bought to make one but haven't had the time. You might be interested. It is about the size you are looking for. Located in Hinckley. I have attached pics of it and the design I was going to make. £150


Attachments

  • IMG_2908.jpg
    242 KB · Views: 5
  • IMG_2911.jpg
    222.1 KB · Views: 5
  • BBQ 03.jpg
    BBQ 03.jpg
    52.2 KB · Views: 4
  • BBQ 02.jpg
    BBQ 02.jpg
    63.5 KB · Views: 4
  • BBQ 01.jpg
    BBQ 01.jpg
    71.7 KB · Views: 5

alex427

Newbie
Original poster
Thread starter
Aug 16, 2020
14
3
Hi , probably a bit far away. Whats the diameter? do you know the thickness?
thanks

  • Like
Reactions: JLeonard

thegsey

Newbie
Jul 18, 2022
2
0
I can't measure either of those unfortunately but the circumference is about 1450mm so diameter should be about 460mm. It is a pressure vessel so should be decently thick. I had plans similar to yours. I looked into using pipe but this came a long and seemed spot on and a lot of the fab work would not be needed. Unfortunately I am moving out of the country before I could get to it so the plan has to be postponed for the foreseeable.

My idea was to make a reverse flow offset smoker with a very thick baffle plate running the length of the bottom. This would act as a large thermal mass fully inside the chamber which is directly in contact with and deflects the hottest part of the exhaust but is not in contact with the outside air. I think this would make a decently stable system as if the baffle plate was heated with a gradient due to the offset nature of the system it would be the inverse to the air temperature gradient above it in the main chamber.
