Started My Fridge Build

Discussion in 'Fridge/Freezer Builds' started by backtothebush, Jan 13, 2014.

  1. backtothebush

    backtothebush Fire Starter

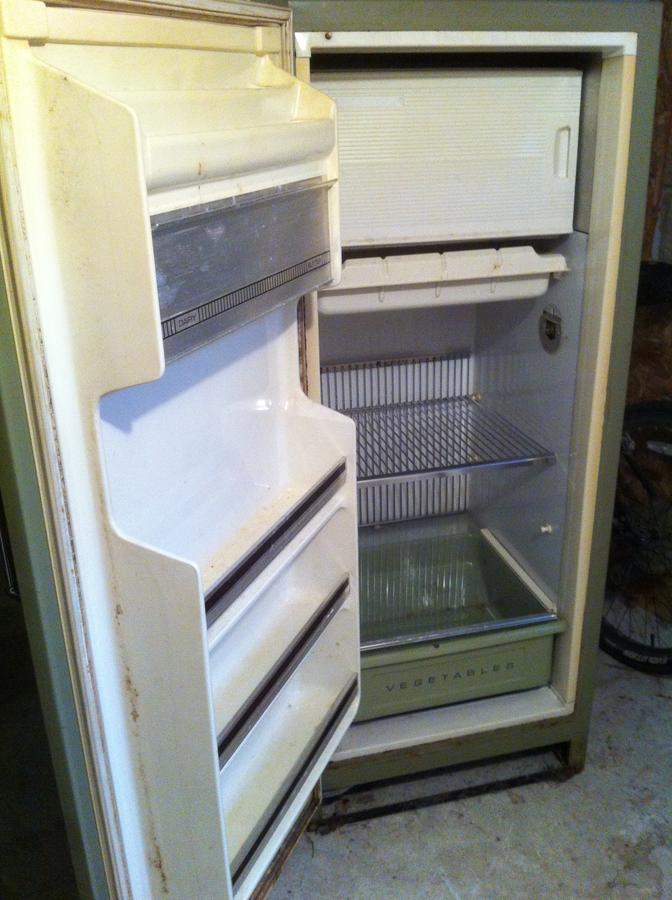

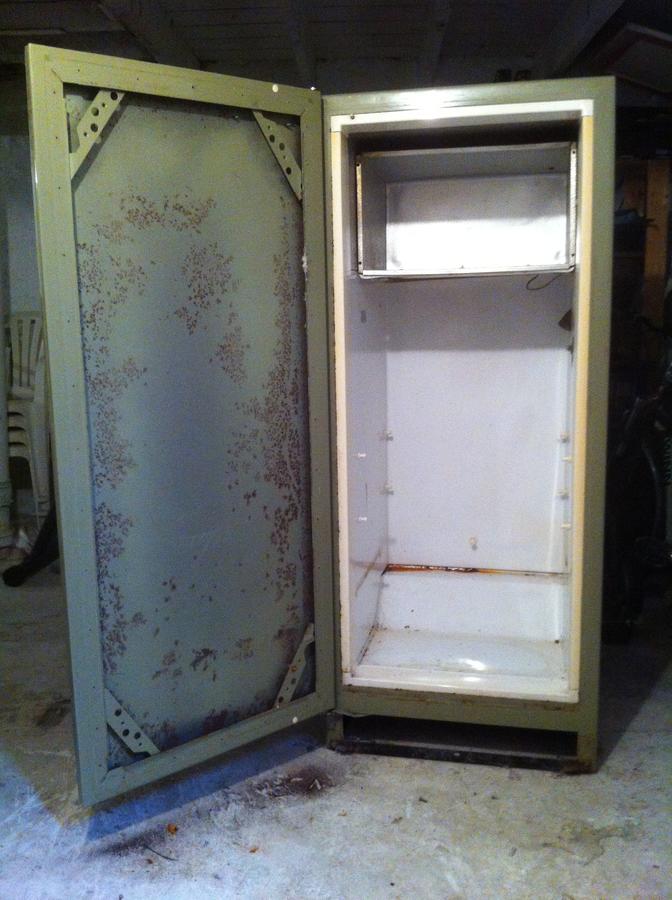

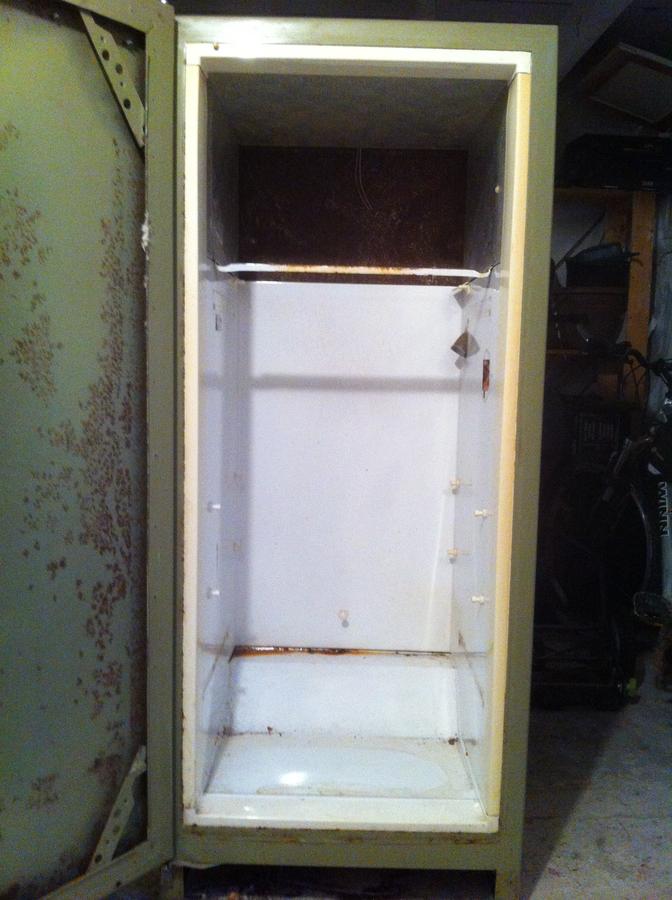

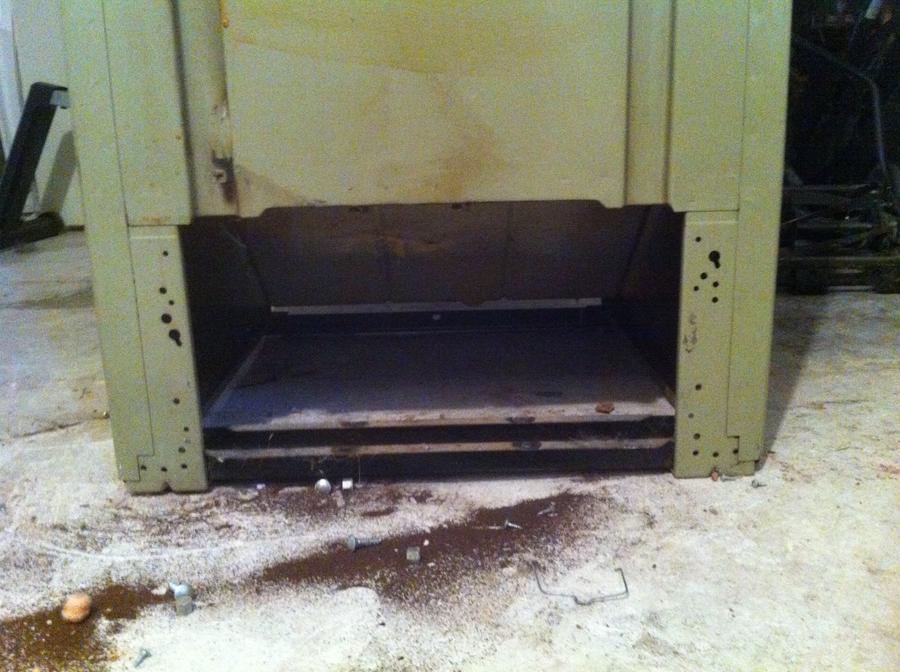

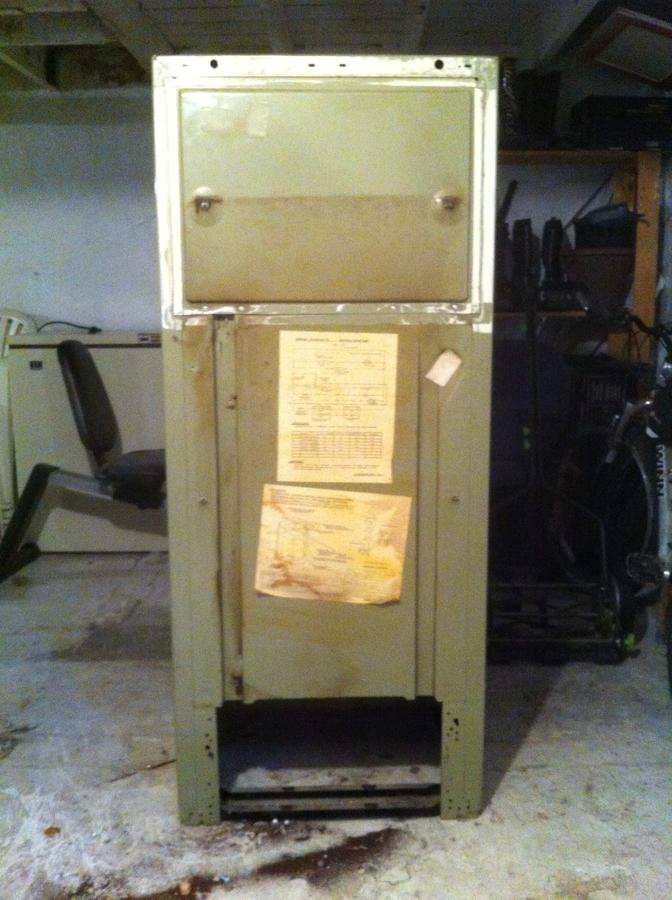

    Almost done the tear down. So far it was pretty easy. Everything was connected with screws and it all came apart as planned. All I have left is to pull the plastic rack pegs and the plastic trim on the inside at the front. Left that for another day since it seems to be well connected, and is going to probably have to be cracked and broken in order to pry it off.


    I need a bit of advice here...


    1 - Should I strip the paint from the inside? Or will seasoning it make it safe?

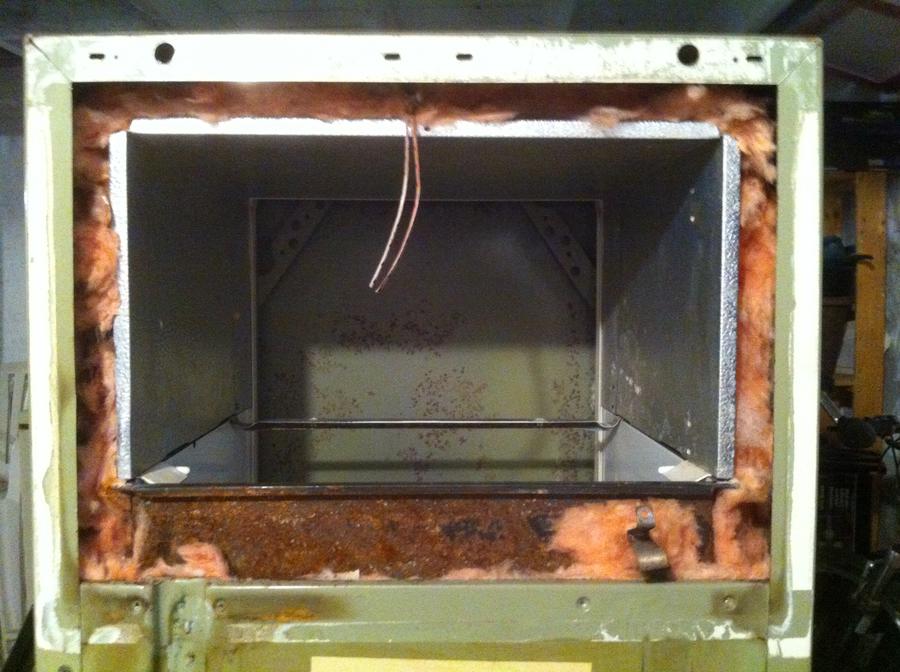

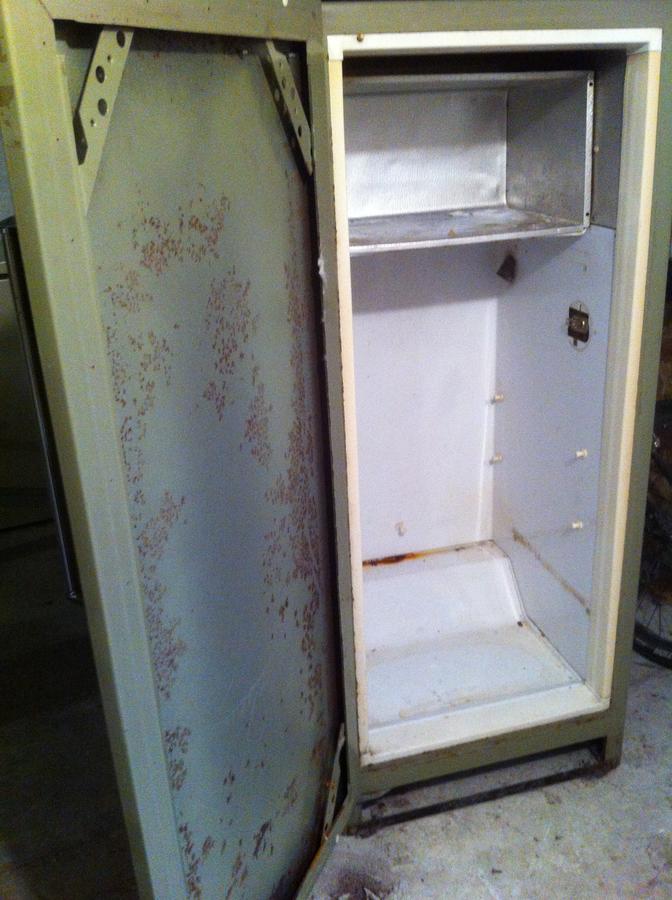

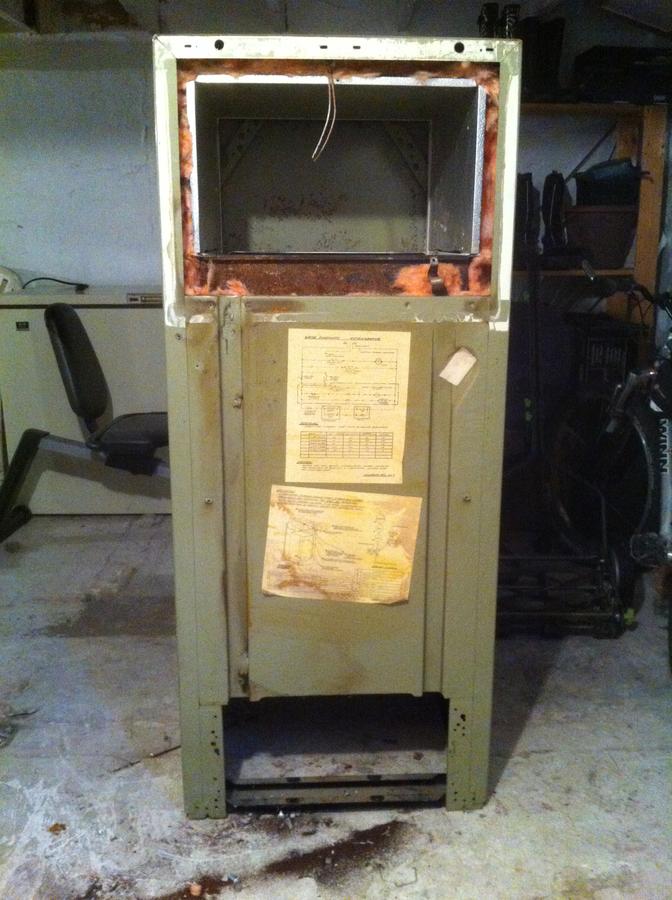

    2 - Will the fiberglass all have to be taken out? I am unsure what its heat tolerance is (see pic 7).


    3 - Anyone know of any specific insulation that can be used to seal between the inner and outer shells? A few places have large gaps that will need to be filled (see Pic 7).






















    Last edited: Apr 21, 2014
  2. dward51

    dward51 Master of the Pit OTBS Member

    I would think that enameled interior is going to be fine.  Once you get a seasoning layer of smoke on it, it should be ok.

    As to the insulation, fiberglass insulation is just fine for the temps we are talking about.  Just make sure there is no paper facing on the fiberglass.  If there is, you can replace it with unfaced fiberglass which would also work for filling those voids you mentioned.  The other option is mineral wool batting, but plain old unfaced fiberglass will work just fine for the normal smoker temps of 250* of less.  Unfaced means just the raw spun fiberglass "wool".  If you can't find it, you can strip the paper facing off common batting material.  You do not want any sort of facing or encapsulation material on the fiberglass.

    Here is a engineering chart of common insulation temperature tolerances I found.  Also note the low ratings for the foam insulation. You were lucky to find a fridge with fiberglass or else you would end up trying to scrape all the foam out (and if you have any in yours, please take it out and replace it as the most common foam in refrigerators is polyurethane which does not have a high temperature rating at all).
    Insulation MaterialTemperature Range
    LowHigh
    (oC)(oF)(oC)(oF)
    Calcium Silicate-1806501200
    Cellular Glass-260-450480900
    Elastomeric foam-55-70120250
    Fiberglass-30-205401000
    Mineral Wool, Ceramic fiber    12002200
    Mineral Wool, Glass032250480
    Mineral Wool, Stone0327601400
    Phenolic foam    150300
    Polyisocyanurate or polyiso-180-290150300
    Polystyrene-50-6075165
    Polyurethane-210-350120250

    Last edited: Jan 13, 2014
  3. backtothebush

    backtothebush Fire Starter

    Thank you very much for the info! Yes, it is ALL fibreglass insulation. There was one piece of foam at the rear behind the panel that I removed in order to remove the freezer component. It was one piece and came out easily. I used a straightened wire hanger to check inside the walls and it is all fibreglass in there as well.

  4. backtothebush

    backtothebush Fire Starter

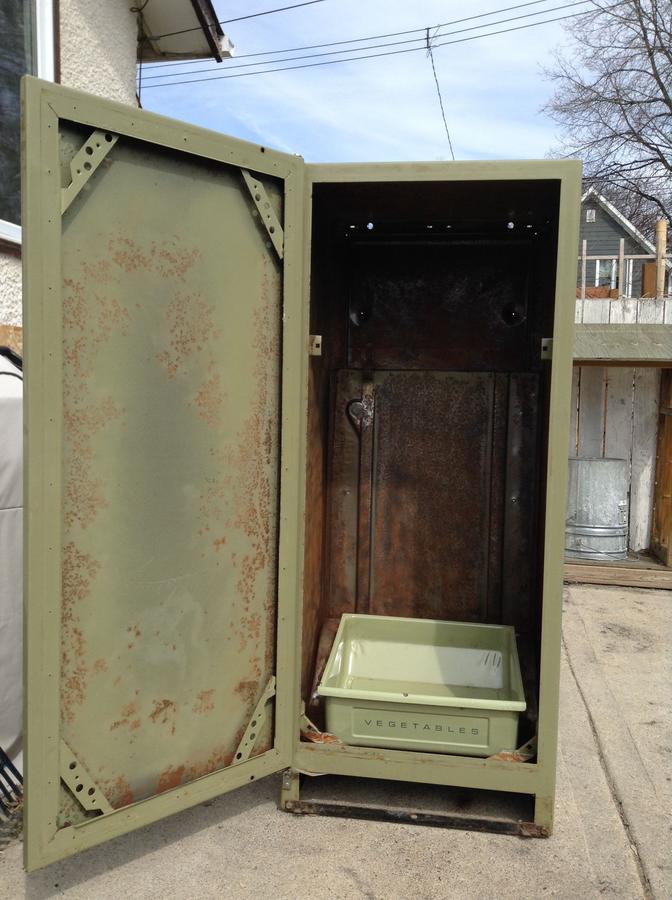

    Insert torn out. Out in the spring sunshine to remove the black gunk and grind down the rust. Black gunk pulled off like loose caulking, all in one piece. I'll clean with solvent to be sure before re-sealing with the high heat food safe caulking. I can see the light at the end of the tunnel! Just strapped for time to work on it.

  5. goliath

    goliath Smoking Fanatic

    GONNA BE A NICE SMOKER !!!!!

  6. madman mike

    madman mike Smoking Fanatic

    Saw your other post asking about finding components in Canada. How did you make out? decide on controls, heat and smoke source? Just getting my build underway here in Saskatoon.

  7. backtothebush

    backtothebush Fire Starter

    Haven't found a source yet. Doing electric with a charcoal bin so it does coal fired as well as electric. I'll be ordering an AMAZIN smoker for when doing electric. Still need element/control and thermometer. You have a source?

  8. goliath

    goliath Smoking Fanatic

  9. backtothebush

    backtothebush Fire Starter

    Thanks Goliath!

  10. goliath

    goliath Smoking Fanatic

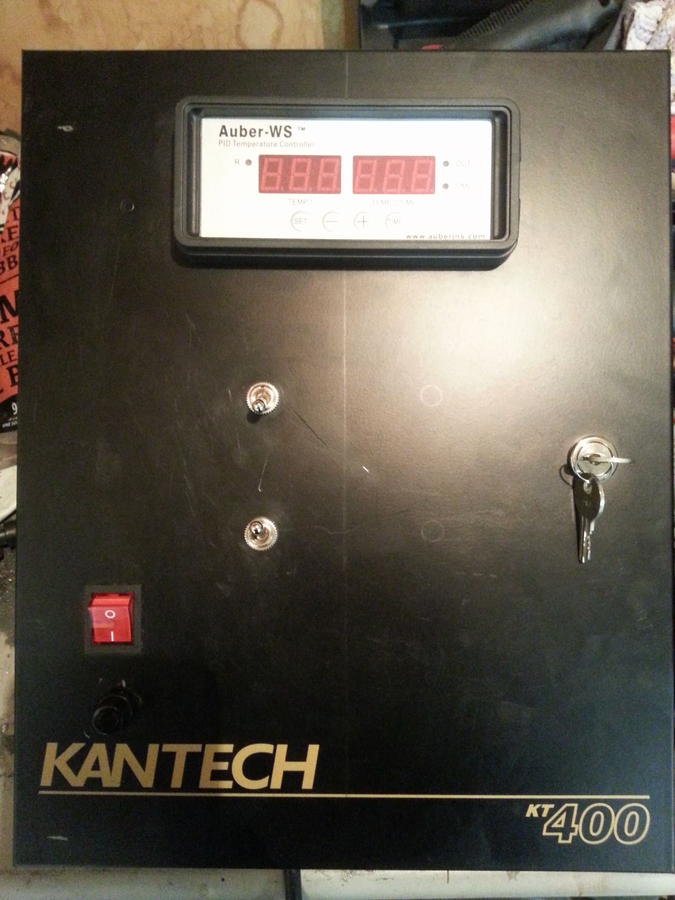

    i found your other post about finding what ya needed, this is a more extravagant bit of equipment but it sure is bullet proof. PLUG AND PLAY !!!!!
    i found it to be worth every penny. i also have a Maverick E-732 as my remote wireless thermometer. actually just bought another for my pellet grill. can get it online on amazon.ca free shipping.

    GOOD LUCK

  11. madman mike

    madman mike Smoking Fanatic

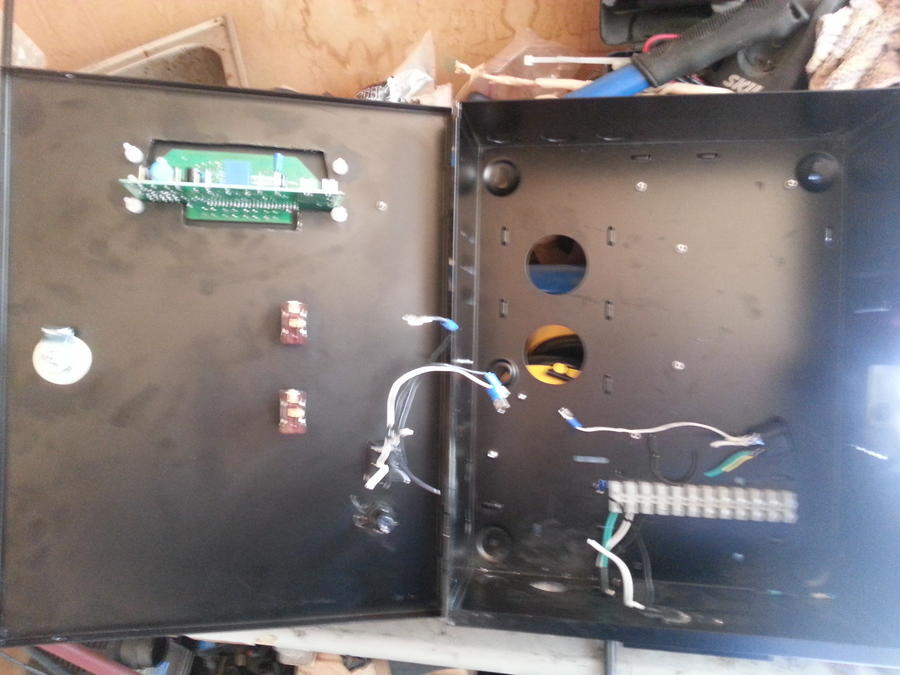

    I really recommend the same unit Goliath is using. I just got one myself. I mounted it in a control box so I can add more controls and make it easier to permanently mount it to the smokehouse. add controls for fans and a plug to connect an aquarium pump for a smoke generator.
