The doors are now on and pretty tight but some tweeking will need to be done to make the smoke stay inside.
My first reverse flow trailer build
- Thread starter skuuzmeplease
- Start date
-
Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

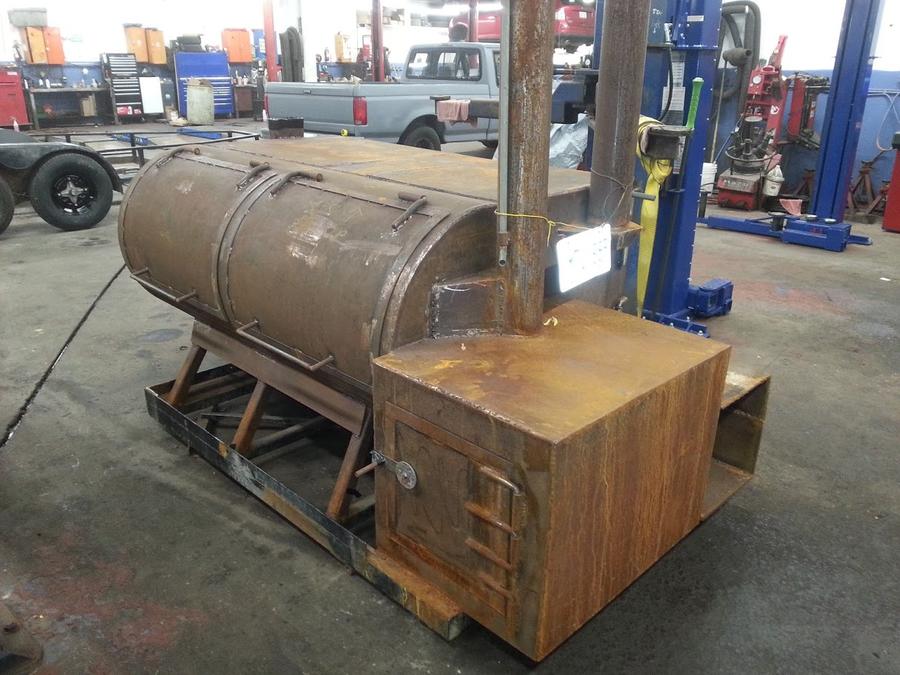

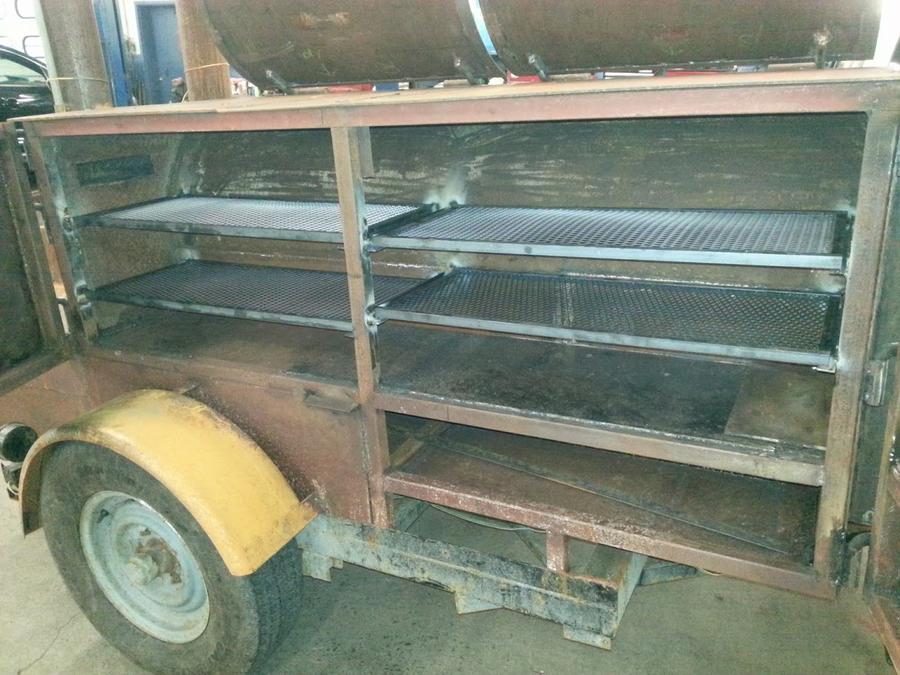

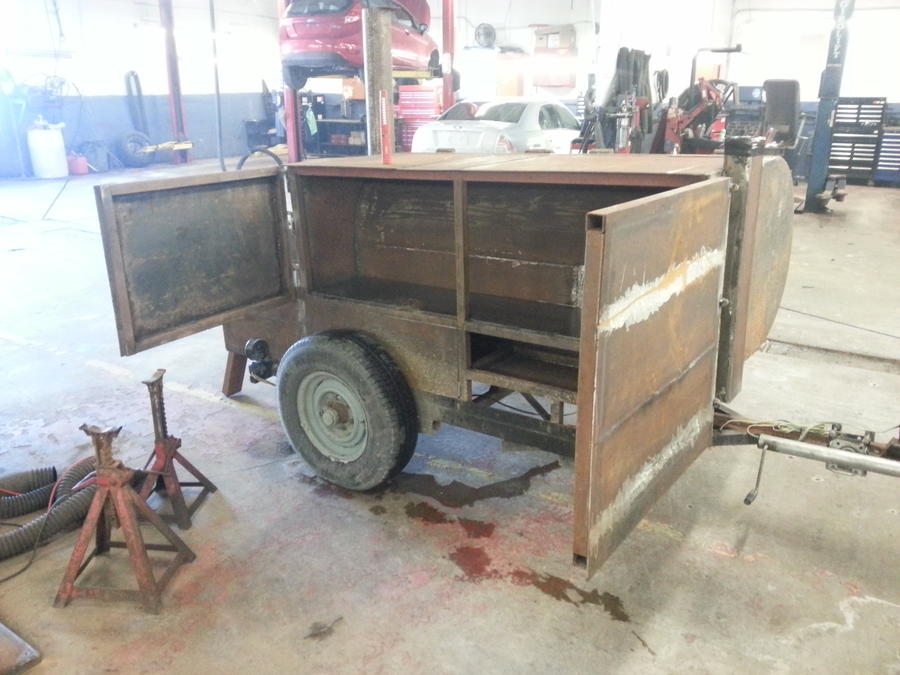

The doors are now on and pretty tight but some tweeking will need to be done to make the smoke stay inside.

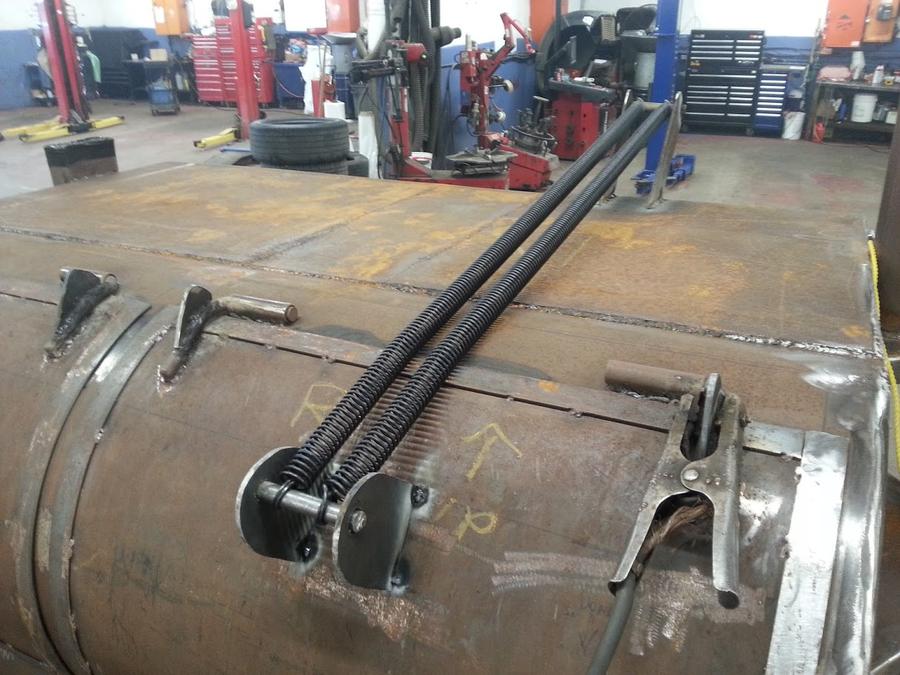

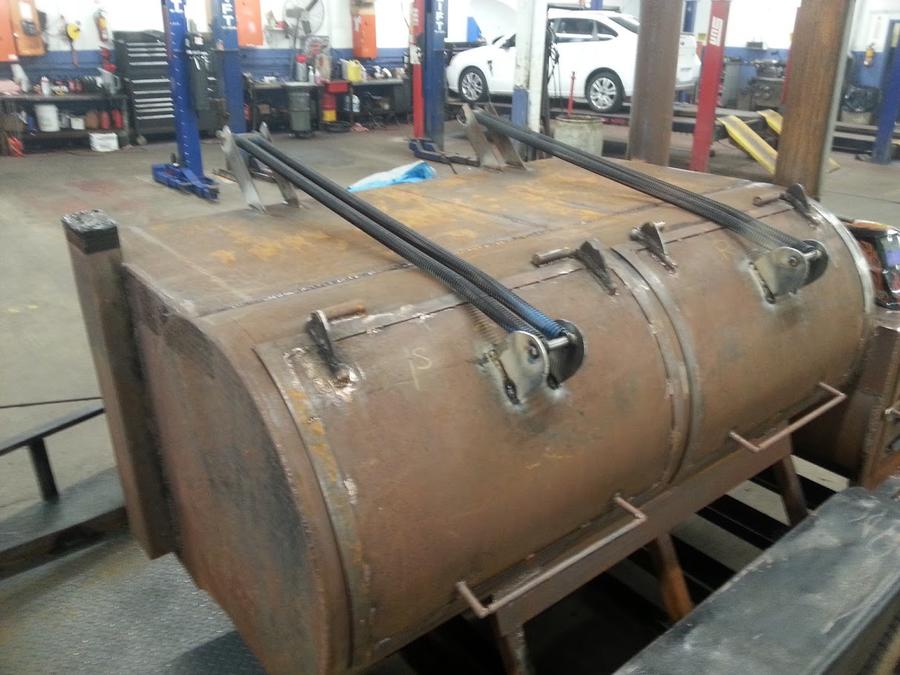

I am not going with the usual hanging counter weight for the doors because i would not have been able to have the warmer box due to the interference of the weights.I am going to try an alternative method of using garage door springs.
Last edited:

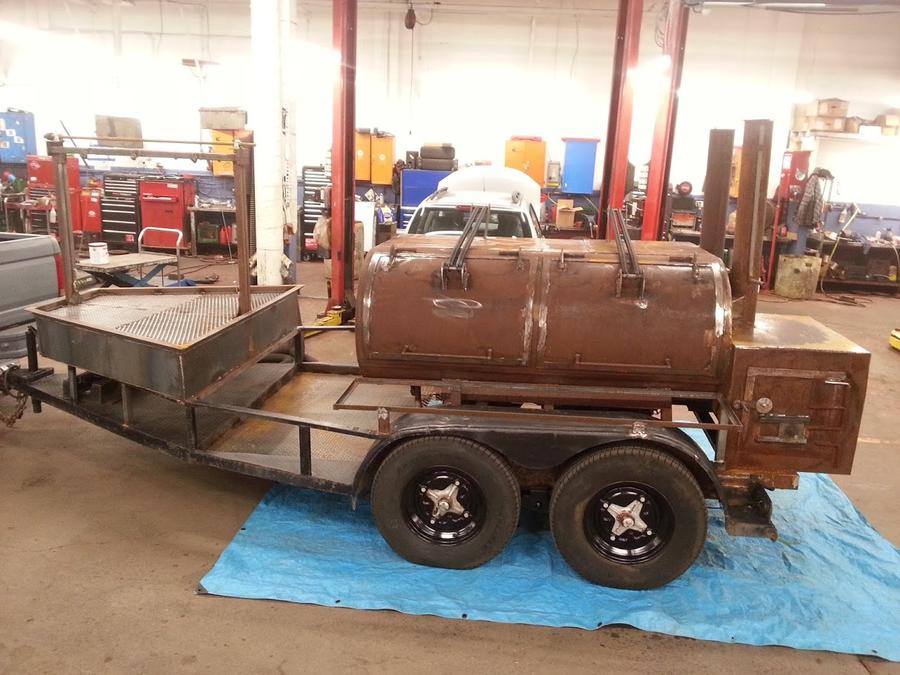

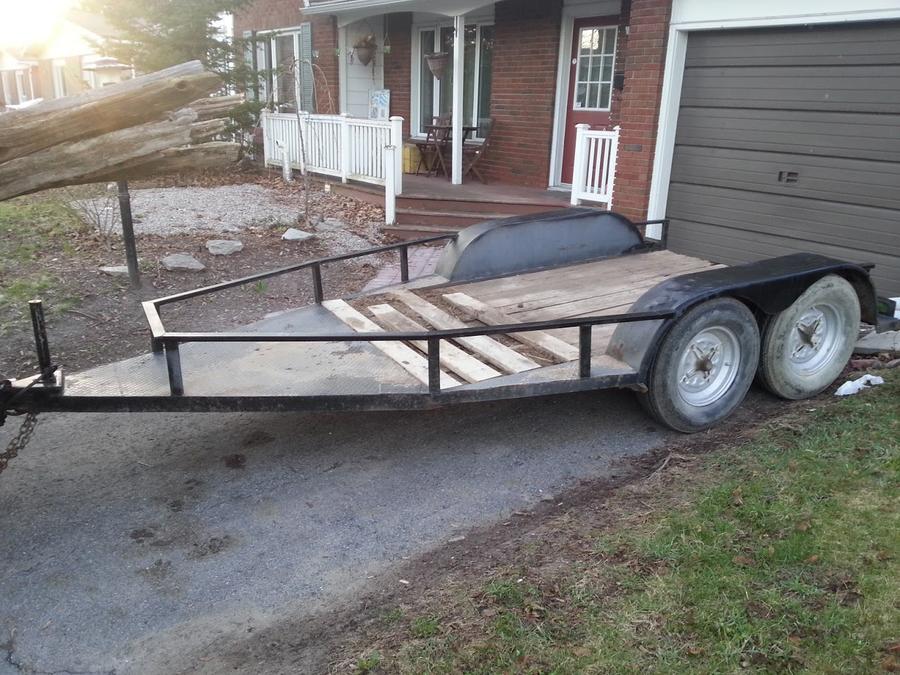

I have had to make a change in my trailer because of the weight.The axle was a 3500lb without brakes so you could really feel it pushing me.I found this old horse trailer for cheap replaced the suspension with new springs shackles and installed new brakes and now this trailer has an 8000lb capacity.I basically left the old trailer frame attached to the smoker since it was the foundation and mostly welded to everything.

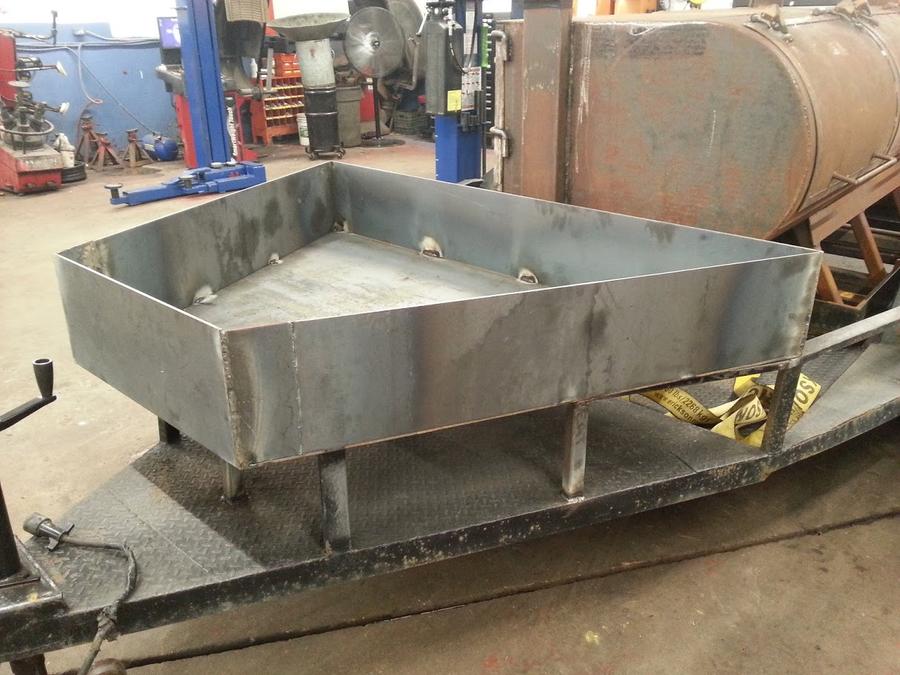

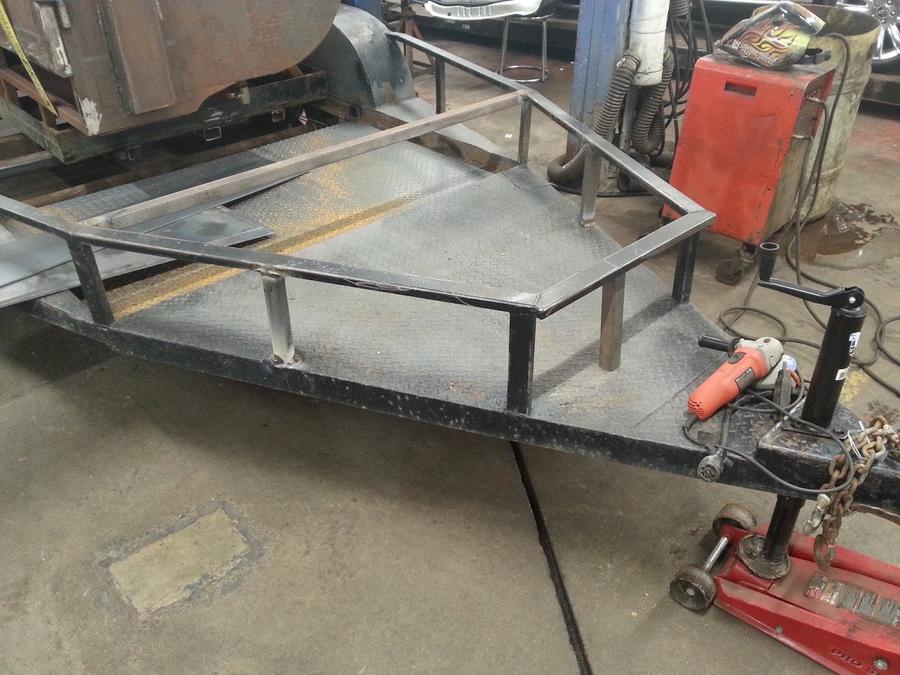

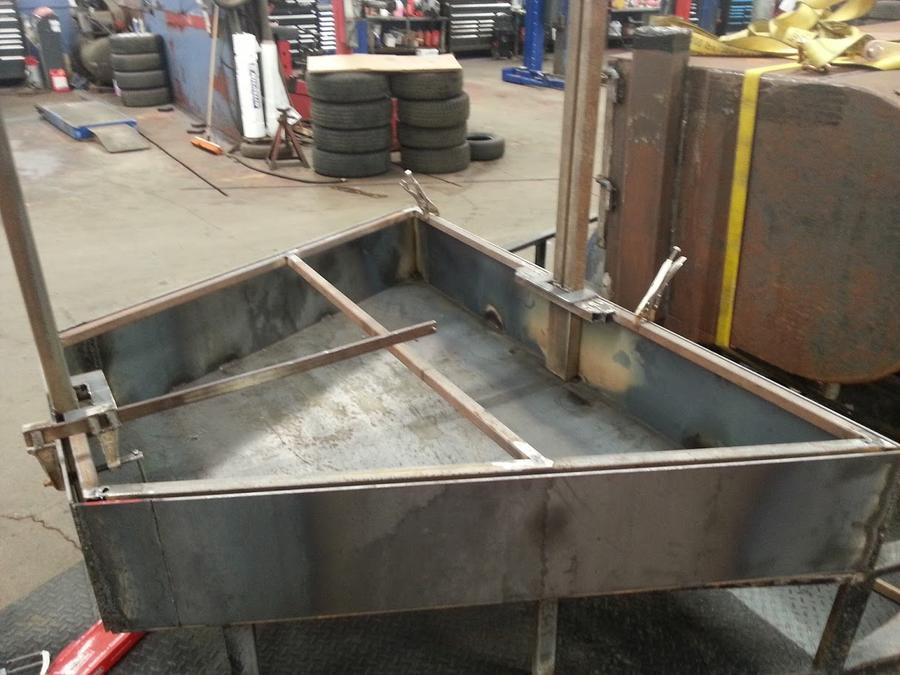

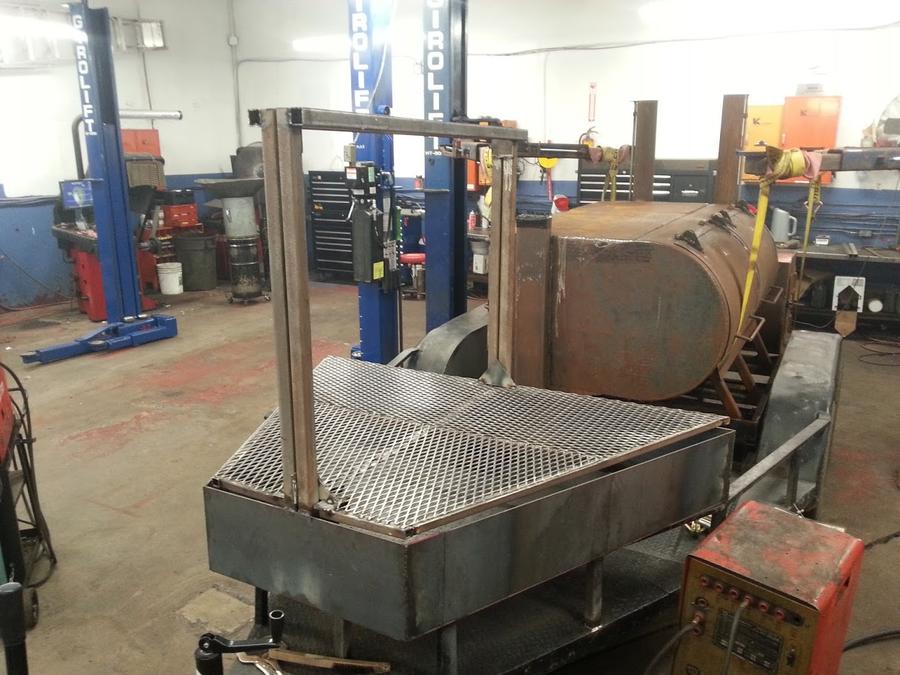

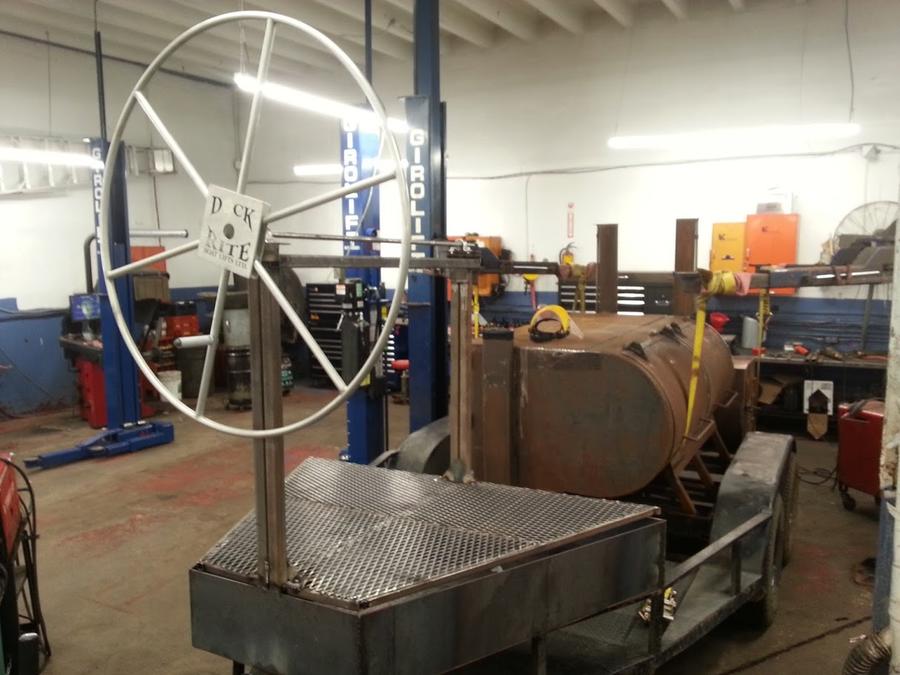

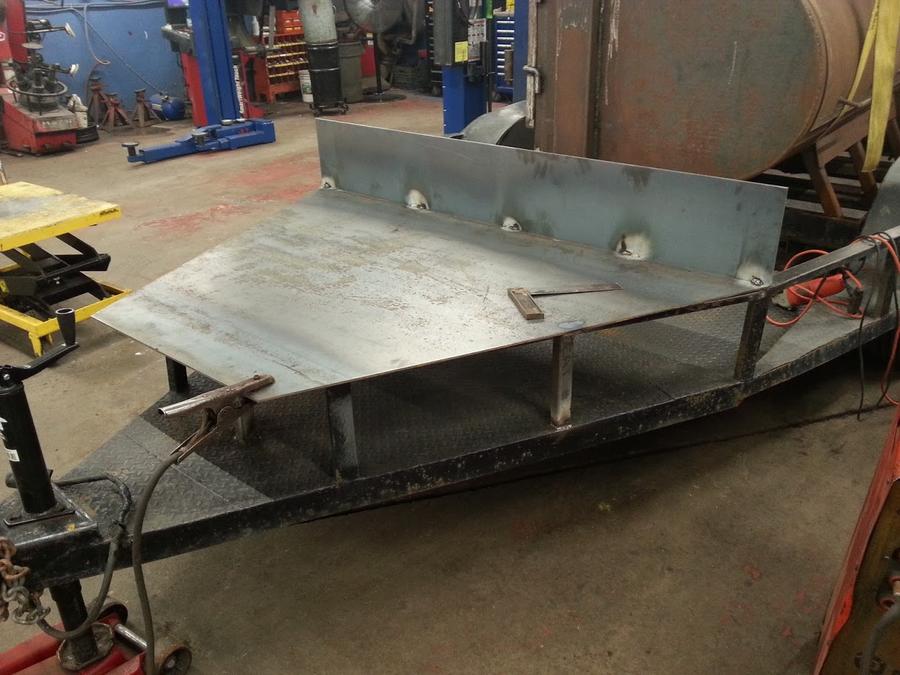

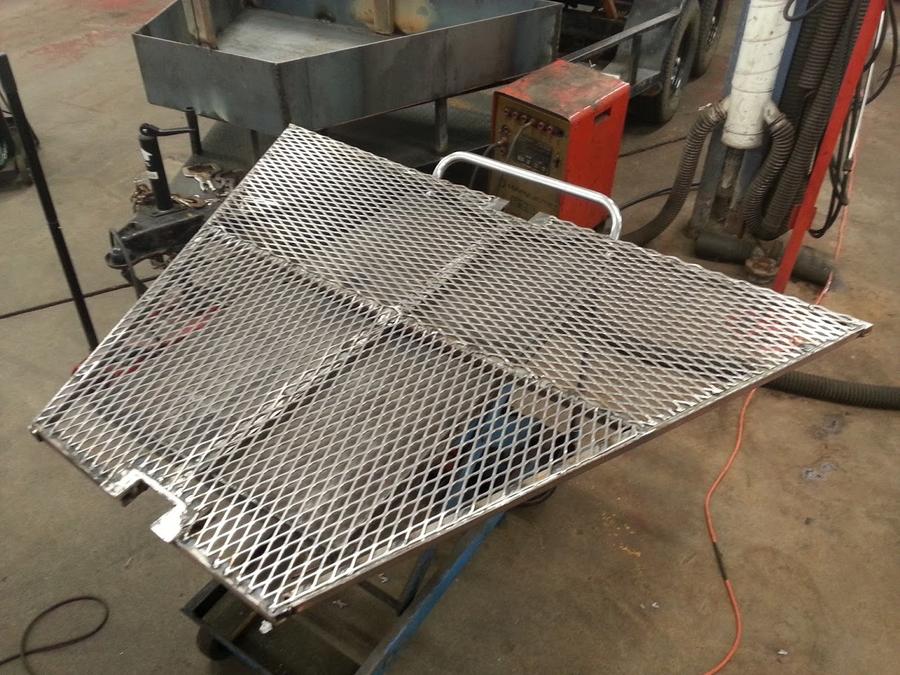

i have a lot of space up front and need counter balance or tongue weight so i decided to make a Santa Maria style grill.i purchased new 1/4 inch plate for this.
bobwire
Newbie
- May 24, 2016
- 14
- 14

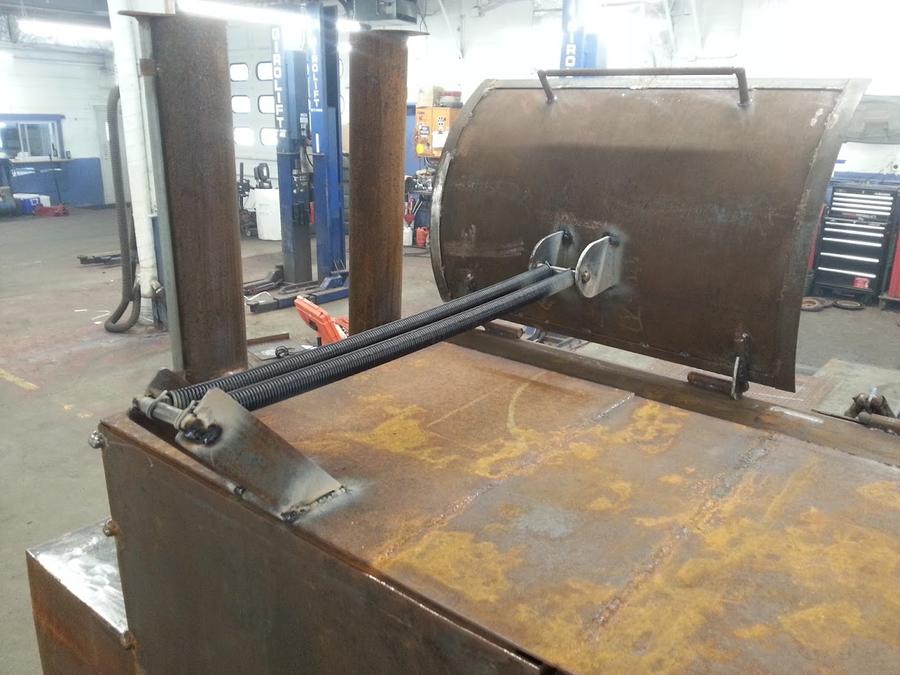

since there was no room for counter balance arms i went with garage door spring and they work great!

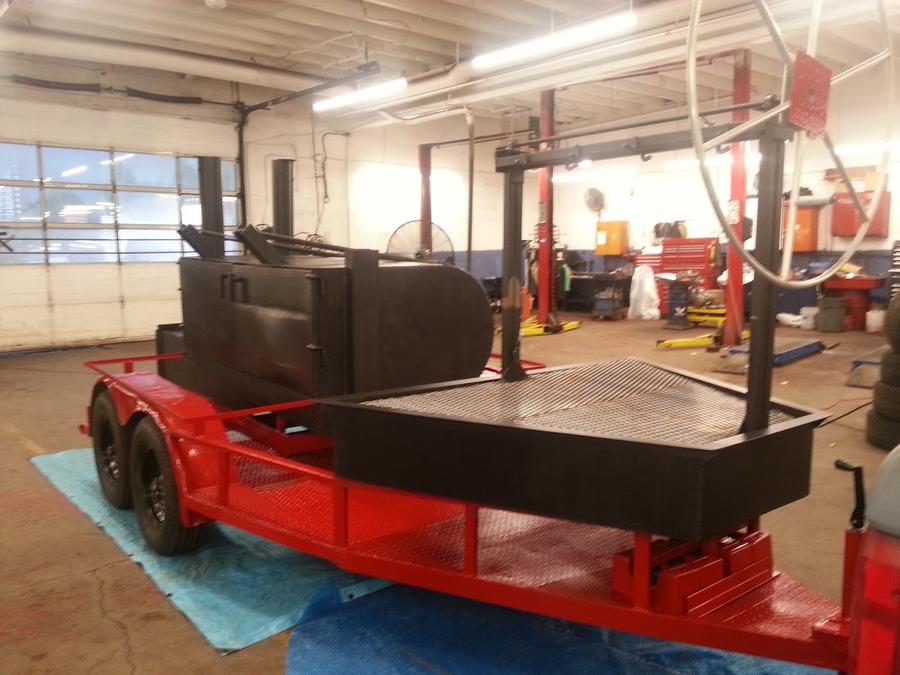

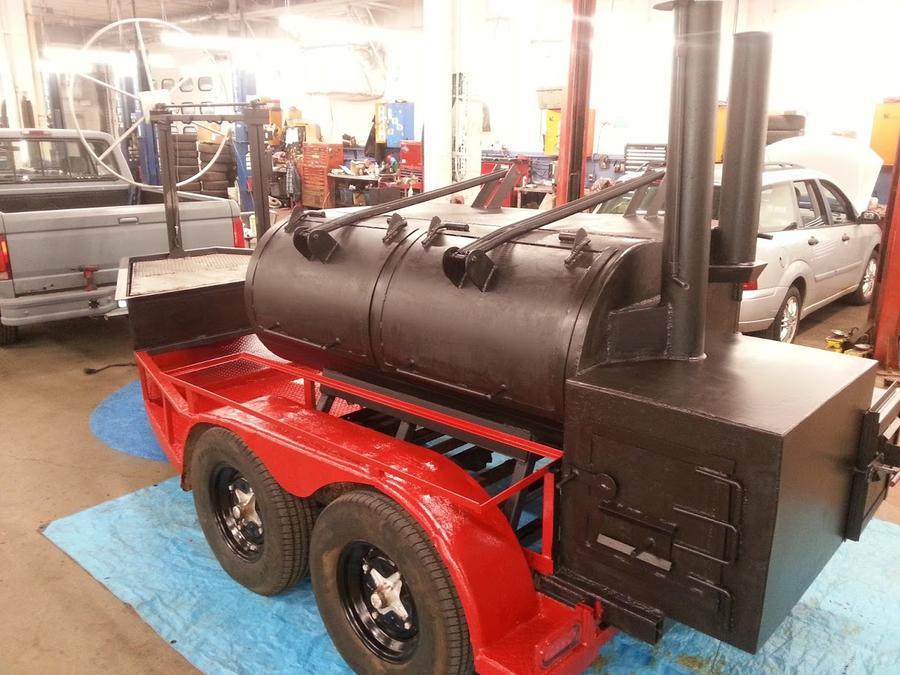

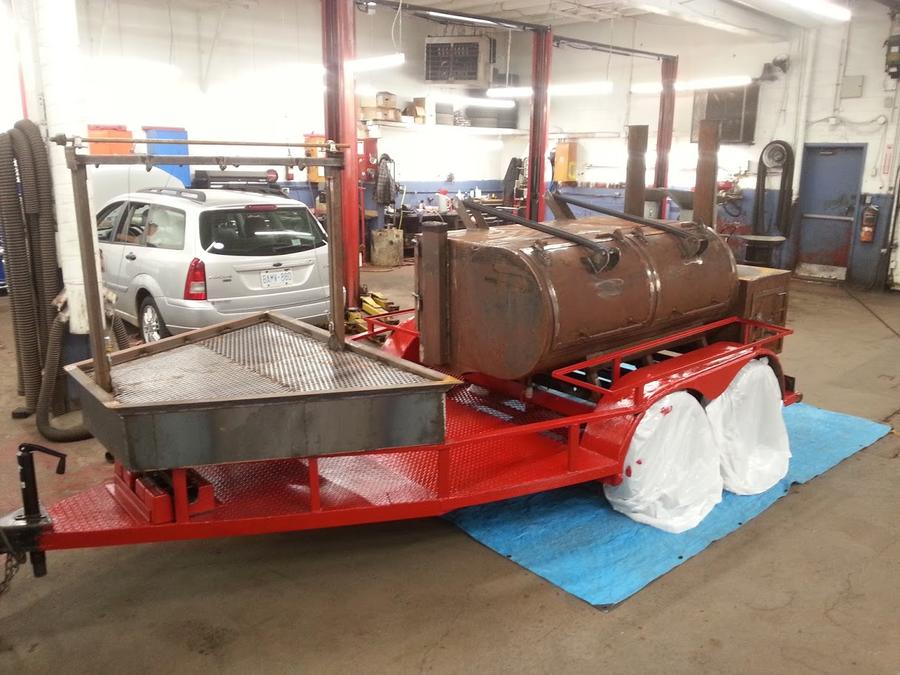

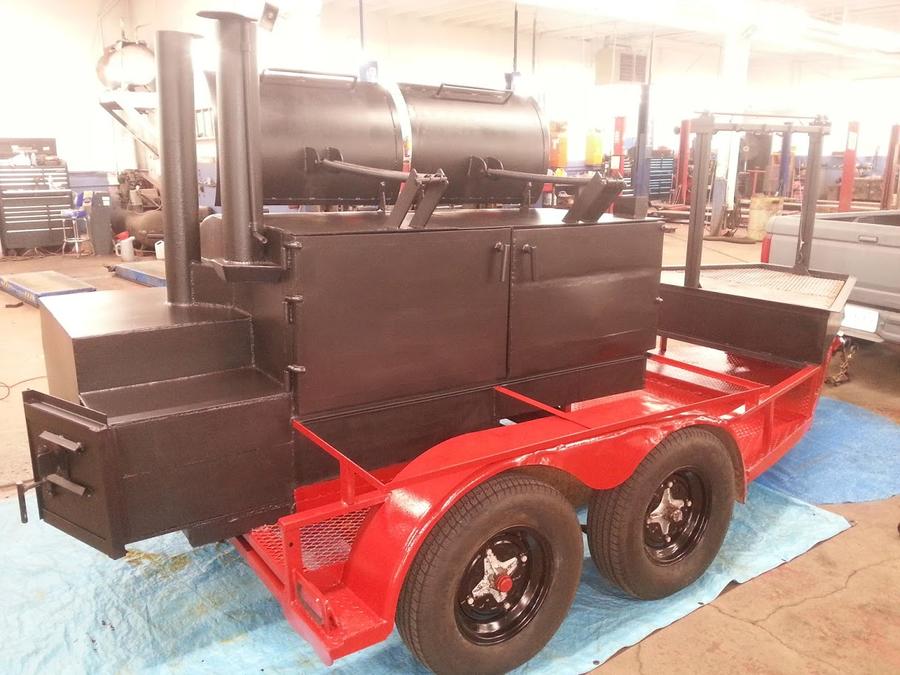

Ready to grind of surface rust and paint
still have to finish the fender shelves and enclose the side with some tin.
still have to finish the fender shelves and enclose the side with some tin.
Around $3500.00 Canadian for materials of which most i purchased from a guy on kijji for dirt cheap.
