looking for plans for RF vertical smoker

Discussion in 'Reverse Flow' started by bigpuddin43, Apr 30, 2015.

  1. I am wanting to build a reverse flow vertical smoker.  Cant seam to find detailed plans for what I am wanting.  It seams like if you used the back wall for both the heat and smoke coming up and the exhaust you could eliminate 2 extra side walls and save on materials.  I don't know if that would work or not.  never built one and just getting started trying to figure it out.  seams like there is a lot of science to everything and really don't know where to start so hoping to find a good set of plans to go by.  just want something big enough to do a couple butts on or maybe a whole brisket.  Any help is greatly appreciated as my Bradley has bit the dust so ready to go to lump coal and wood burning.

  2. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

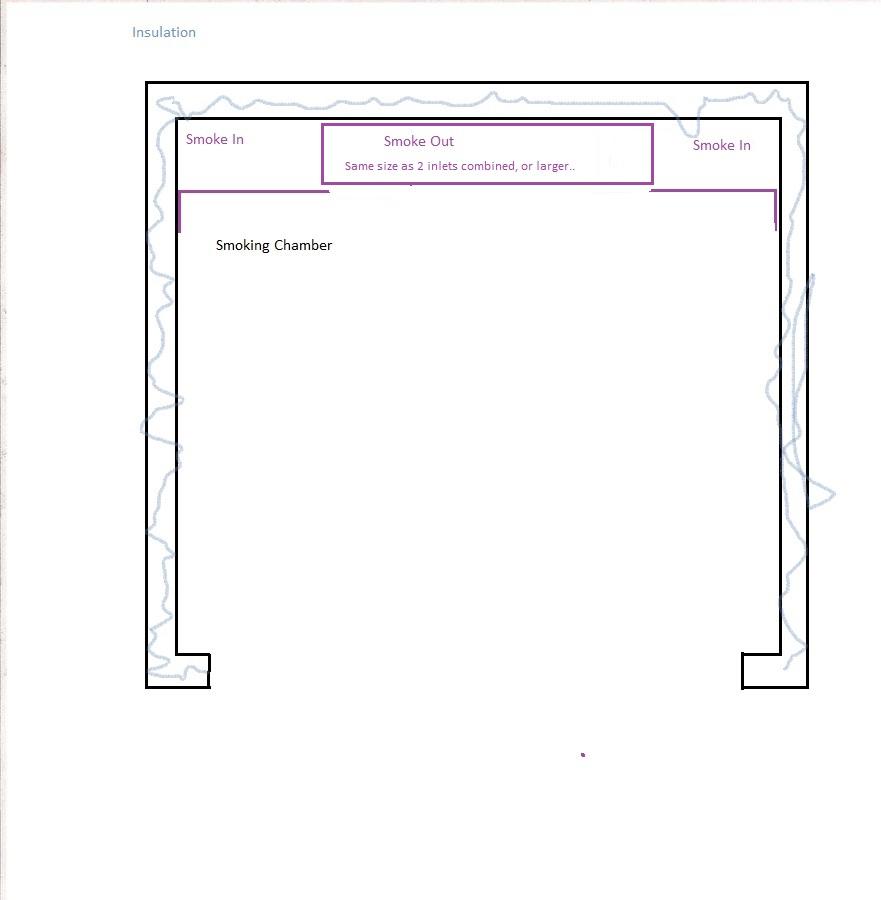

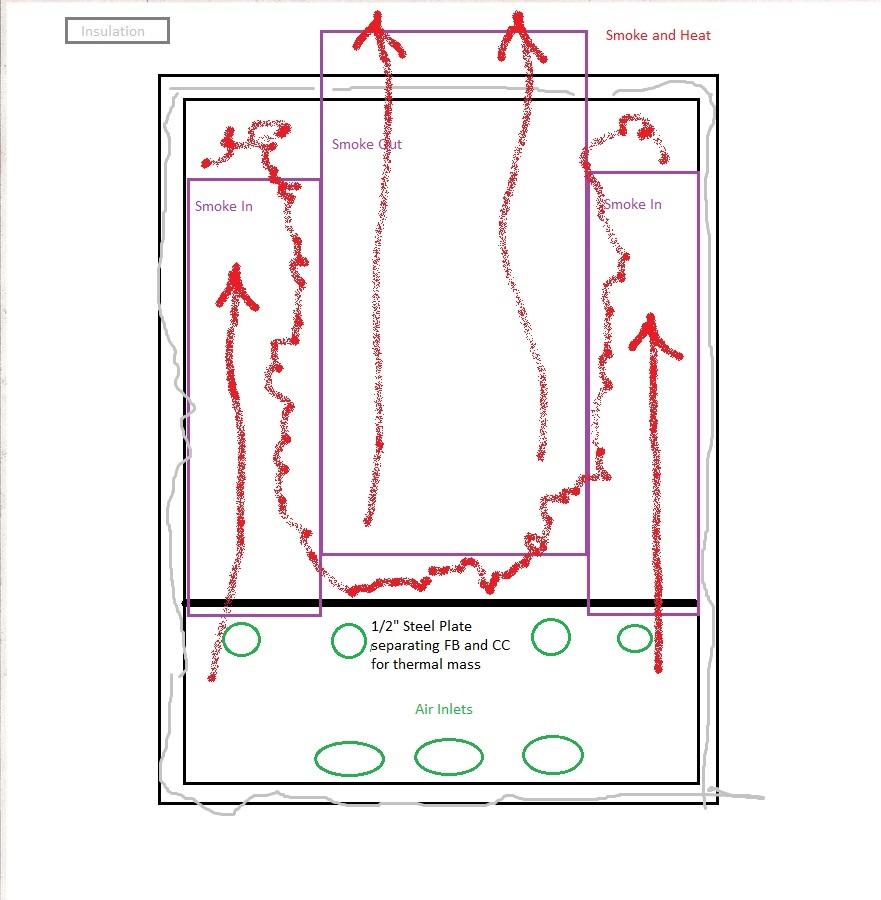

    Here's a design I haven't built yet.....
    ....click on pics to enlarge....

    ... ...




    Last edited: Apr 30, 2015
  3. smokejumper

    smokejumper Smoking Fanatic

    Good looking design.
    Someone should build it.

    Not to be disrespectful or anything, but I would probably go with a 1/4" plate between the FB and CC. I don't really see the need for the extra thermal mass, though it would last longer.

  4. my big worry is sizing the smoke inlets and exhaust to make sure it draws the way it is supposed to.  I know nothing about sizing all this stuff so that the smoke and heat moves through it the way it is supposed to.  Also what ga metal to go with. thanks again for the help.

  5. smokejumper

    smokejumper Smoking Fanatic

    Smoker plans are rare as hens teeth.

    Best thing to do is look through these forums for similar builds and study them thoroughly, and reach out to the builders for advice. Nearly everyone here will willingly share what they know. Just send PMs to them, and don't get discouraged if some do not respond right away, since not all of us check our e-mails or websites regularly.

    Unfortunately cabinet smokers are outside my area of expertise, so there is not much I can add.

    If all else fails, PM me and I will find some time to educate myself on cabinets and try to help you out.
