Started my UDS project w/build-view

post #1 of 16
Thread Starter
I got started on my UDS project this week. I bought 2 barrels so this first one is a trial run. I'm pretty much just shooting from the hip using ideas from things I've seen here and elsewhere. Thanks a lot to those who have posted their builds for the great info.

Here we go:

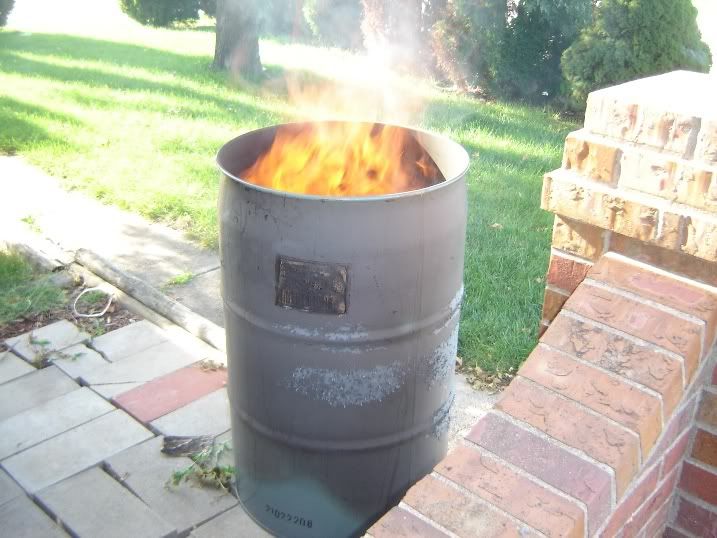

Here are a couple of shots of the burn out. I may still need to do another one as I'm not convinced everything burned out as much as it should have.

Burning stuff is fun...icon_smile.gif

Here is the fire bowl from the knockoff. I had just cut off about 2 in worth of the bowl as it wouldn't fit as it was.

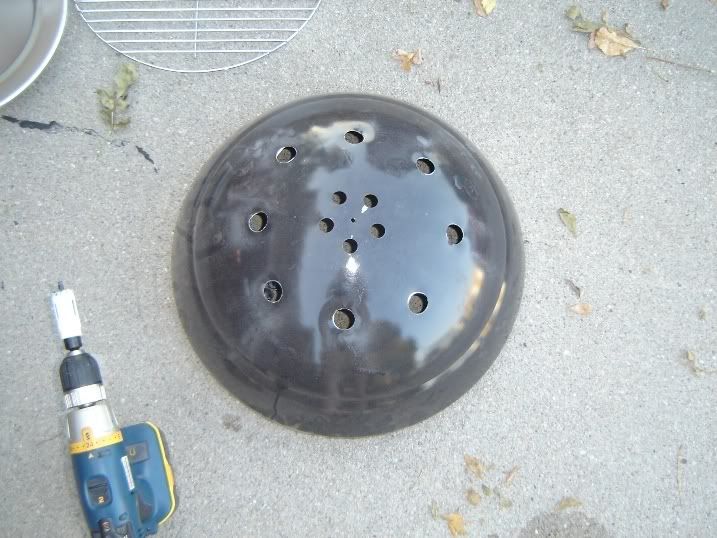

I drilled additional holes to help with air flow using a 1in. hole saw.

Here is my idea for using the fire bowl as my charcoal basket. I may need to drill more holes to get better air flow, but as I said, this is trial an error for now.

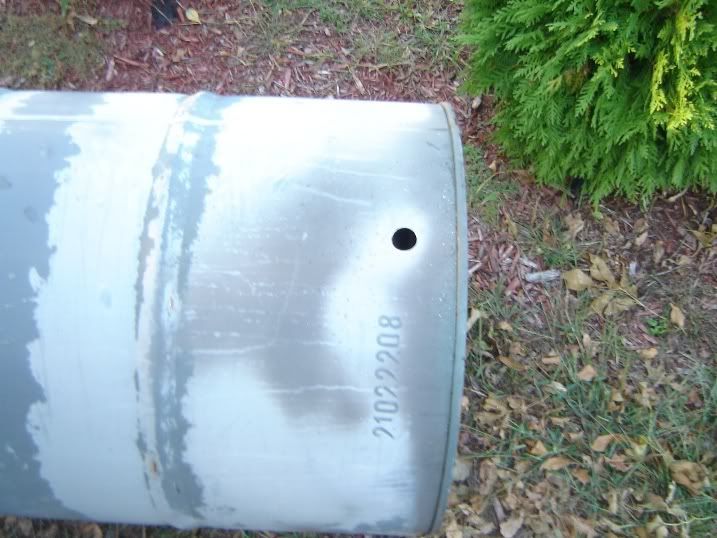

I drilled 4 intakes around the bottom of the barrel.

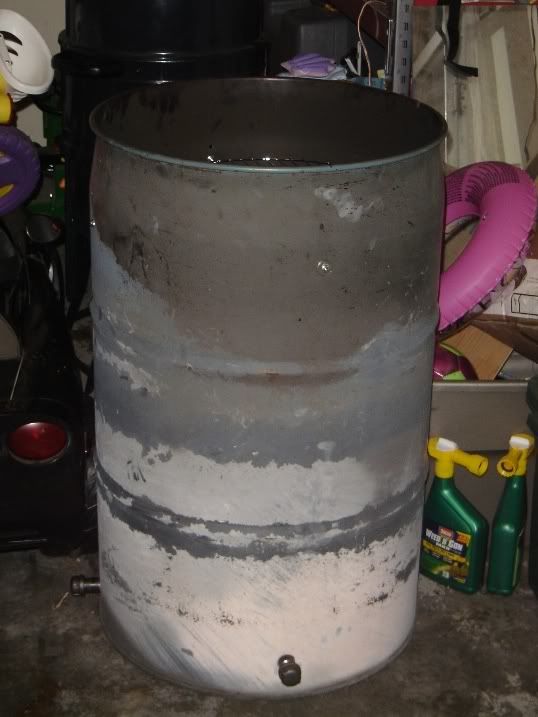

Here is the barrel with the pipe inserted into the intakes. I need to get the conduit lock collars so they don't move. I also plan on adding an extension pipe up the length of the barrel for my air 'spigot' so I don't have to bend over to adjust air flow (I'm lazy like that).

I plan on using the lid from the kettle. I will also add the wheels, a shelf I didn't use on my Char-Griller, the handles from the kettle, and a few other things as time rolls on. I did realize the bolts I bought weren't long enough to hold my grate so I'll have to make a trip back to the hardware store to do an exchange.

Thanks for looking!

post #2 of 16
Looks like you have already made quite a bit of progress. Nice pics.

How well does the lid from the kettle fit on the drum? Any modifications to the lid needed?
post #3 of 16
love the ideas, thanks for posting
post #4 of 16
Looks like you're moving right along, nice work.
post #5 of 16
Thread Starter
Yeah, the lid doesn't have a perfect fit so I'll have to come up with something. It fits good enough that it rests on the lip of the barrel so I may just take some pliers and bend the lip of the lid out a bit all the way around. I'll have to monkey with it a bit.

post #6 of 16
Good start!

You will definetly need more holes on your basket.

Get that inside down to bare metal before you season!
post #7 of 16
Thread Starter
Thanks! What's the best way to get down to the bare metal? A wire brush? Thanks again for the input!

post #8 of 16
cool. getting ready to build one myself.
post #9 of 16
Looking good. I used a wire wheel and drill to take my barrel down to the metal. It worked great.
post #10 of 16
Looking good!!
post #11 of 16
sweet. got my drum and burning out as i type.PDT_Armataz_01_18.gif cant wait to try er too.
post #12 of 16
Hey!Thanx for letting us look!And lookin good indeed!PDT_Armataz_01_37.gif
post #13 of 16
Thread Starter
Thanks! Need all the encouragement I can get...I'm not a very handy person (well I try, but usually end up making things worse!) so I'm keeping positive that I can get this done AND have it work! Lol...stay tuned...

post #14 of 16
looking good so far! keep us posted...
post #15 of 16
About that Webber lid. Mine didn't fit either. I put the lip on a hard surface and lightly tapped it with a hammer to shape it " out ". Don't take all of the bend out, but it works for me. Just a thought for ya.
post #16 of 16
Thread Starter
Thanks! Yeah, I messed around a bit this weekend and took and bent the lip back all away around just enough to give it a bit more 'grab' on to the lip of the barrel. It worked out pretty well. I also started getting everything together. I have one or two more parts to pick up, but for the most part I just need time to fully burn it out, paint it, and put all of the accessories together. I'm hoping to get sometime this week to do it all. We'll see...Thanks again!
